Description

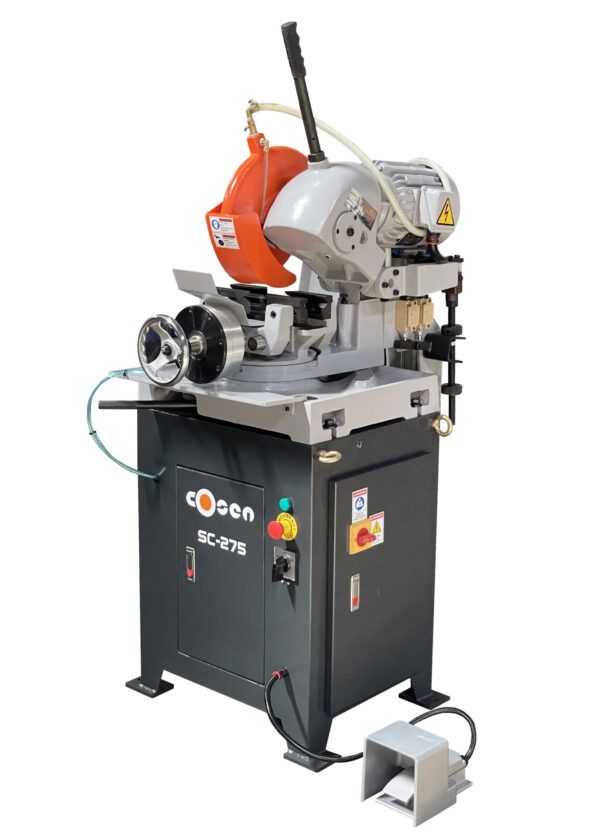

Cosen 10″ Semi-Automatic Cold Saw, SC-275
Inventory # 9883
Model: SC-275
Description:
This semi-automatic cold saw will save time while making production cuts. Built to last, this Cosen cold saw offers a cast iron head and base, pneumatic vising, and a flood coolant system that lubricates the blade for a clean cut and a smooth finish
Designed with a sturdy steel stand that stabilizes this circular saw and adds to its structural strength. The rigid cast iron base reduces vibrations for an accurate cut and prolongs both the life of the saw and the blade. It’s extremely user-friendly. Just put your material in the vise and push the foot pedal to clamp it. Then the blade will automatically start to lower and make the cut
Specifications:
Max. Cutting Capacity:
@ 90°:
Solid Round: 1 1/2″
Tubing Round: 2 3/4″
Tubing Square: 2 3/4″
@ 45°:
Solid Round: 1 1/2″
Tubing Round: 2.165″
Tubing Square: 2.165″
Saw Blade Diameter: 10″ – 11″
Bore Size: 1.25984″ (32 mm)
Blade Speeds: 60 or 120 RPM
Vise: Pneumatic
Coolant Motor: 1/8 HP
Motor: 3 HP / 220v / 3ph
Standard Features:
Cuts a variety of material, including tubing, pipe, extrusion, and solid bar stock. Comes equipped with a stop bar that allows you to cut repeatable lengths
Features a direct drive blade motor set up. The operator can cut at two blade speeds, 60 or 120 RPM, depending on the application
Heavy-duty cast iron saw head reduces vibration to provide quality cuts with a smooth surface finish. Saw head also features all-metal gears that are ground and hardened for longevity
Equipped with a self-centering vise that keeps the material in the right position for the blade to make cuts
Pneumatic vise allows the operator to clamp material hands-free
This saw can be operated in manual mode or semi-automatic mode via a foot pedal
Blade shuts off and the head automatically raises to the top once a cut has been completed, eliminating a manual lift of the saw head back to the starting position
Saw head swivels 45° to the left, and 30° to the right
Mechanical Specifications:
Dimensions: 55″ x 42″ x 69″ H
Shipping Weight: approx. 730 lbs.
FOB Factory – Contact us for special pricing and availability
