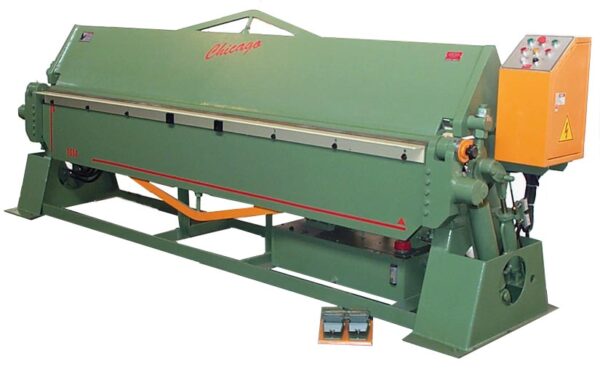

Chicago Dreis & Krump 121″ x 14 Gauge Hydraulic Straight Bending Brake, HSB-1014

Shipping: Add to Cart to Calculate

In stock

SKU: HSB-1014

Inventory #: 8038

Category:

Condition:

Type:

Brand:

Description

Chicago Dreis & Krump 121″ x 14 Gauge Hydraulic Straight Bending Brake, HSB-1014

Inventory # 8038

Model: HSB-1014

Specifications:

Capacity:

Mild Steel: 121″ x 14 Gauge

Stainless Steel: 121″ x 18 Gauge

Back Gauge: 25 1/2″

Motor: 3 HP / 220v, 440v / 3ph, with 110v Control Circuit

Standard Equipment:

Removable Nose Bar

Bolted Bottom Bar

Compact Hydraulic Power Unit

Angle Bar

Insert Bar

Oil Level Sight Gauge

Electric Foot Switch: Clamps and unclamps top leaf. Allows operator mobility when loading and unloading material

Bend Angle Dial Adjustment: Adjustable cam and scale that read in degrees, actuates an electric limit switch for bend angle control and repeatability of bends

Material Thickness Dial Adjustment: Reference scale for speedier set-up when adjusting clamping pressure

Back Gauge: Rack and pinion type gauge with hand wheel adjustment on the right side of the machine

Inch Control: Bending leaf up/down pushbuttons allow complete operator control of the bending leaf motion

Automatic Cycle: Actuating the “automatic pushbutton” clamps the top leaf, raises the bending leaf to the preset bend angle dial adjustment setting, lowers the bending leaf, unclamps the top leaf

Mechanical Specifications:

Dimensions: 150″ x 48″ x 57″ H

Shipping Weight: approx. 4,650 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 4750 lbs
