Chevalier 6″ x 19″ High Precision Manual Surface Grinder, FSG-618SP

Shipping: Add to Cart to Calculate

SKU: FSG-618SP

Inventory #: 8339

Categories: ,

Condition:

Type:

Brand:

Description

Chevalier 6″ x 19″ High Precision Manual Surface Grinder, FSG-618SP

Inventory # 8339

Model: FSG-618SP

Specifications:

Table Size: 6″ x 19″

Max. Grinding Length: 19″

Max. Grinding Width: 8″

Max. Distance from Table: 19″

Standard Magnetic Chuck Size: 5.9″ x 17.7″

Max. Manual Longitudinal Travel: 20″

Cross Movement of Table:

Max. Manual Travel: 9″

Handwheel per Revolution: 0.2″

Handwheel per Graduation: 0.001″

Micro Feed: Optional 0.000050″

Wheelhead Vertical Infeed:

Handwheel per Revolution: 0.05″

Handwheel per Graduation: 0.0001″

Rapid Travel: approx. Optional 13 IPM

Micro Feed: per Revolution: 0.001″, per Graduation: 0.00005″

Grinding Spindle Drive:

Speed: 60Hz/3, 450 RPM / 50Hz/2, 850 RPM

Power Rating: 2 HP

Standard Grinding Wheel: 8″ x 1″ x 1 1/4″

Standard Features:

Table traverses on linear ball bearings and D2 hardened and ground guideways

Reinforced ribbed column with hardened and ground guideway system

Elevating and crossfeed leadscrews are hardened and ground

Saddle travels on Turcite-B coated and hand scraped double-V guideways

Vertical hand wheel at waist level

Permanently lubricated and sealed cartridge-type spindle

Uses two pairs of class 7 angular contact ball bearings

2 HP dynamically balanced spindle motor

Automatic lubrication system

Meehanite cast iron

A mirror surface can be accomplished on these machines accurately and efficiently

Mechanical Specifications:

Floor Space: 80″ x 53 1/2″ x 84″ H

Shipping Dimensions: 58″ x 48 1/2″ x 84″ H

Weight: approx. 2,314 lbs.

Contact us for special pricing and availability

FOB Factory

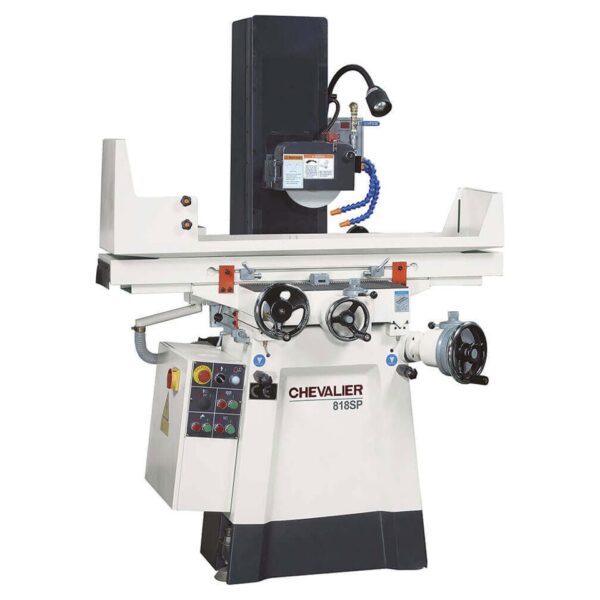

Please Note: Photo is of Model FSG-818SP and is for Representation Only. Actual Product Purchased May Vary in Appearance

Additional information

Weight 3000 lbs
