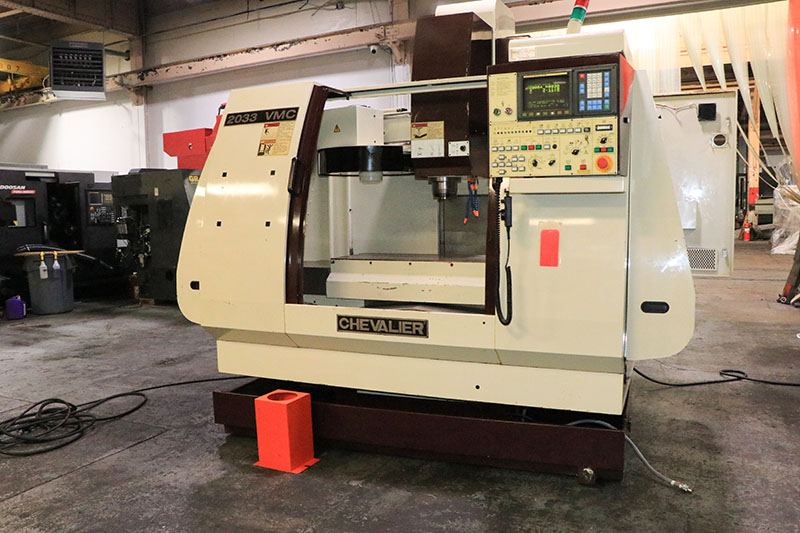

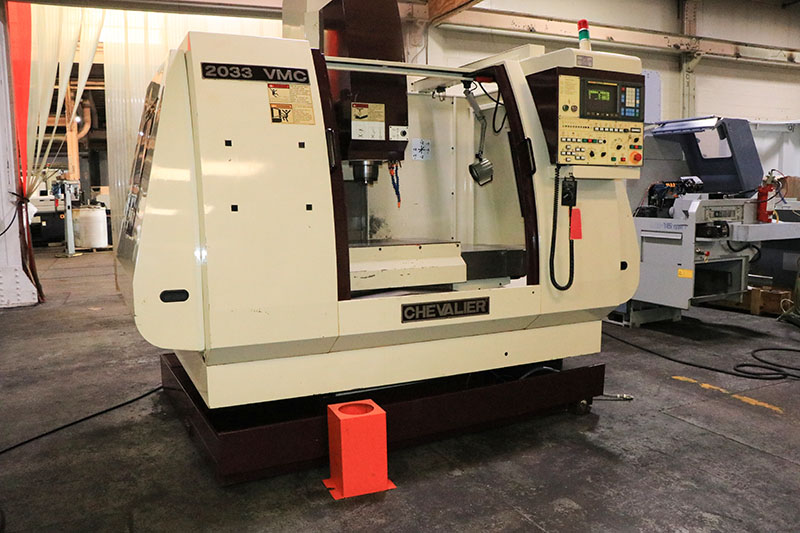

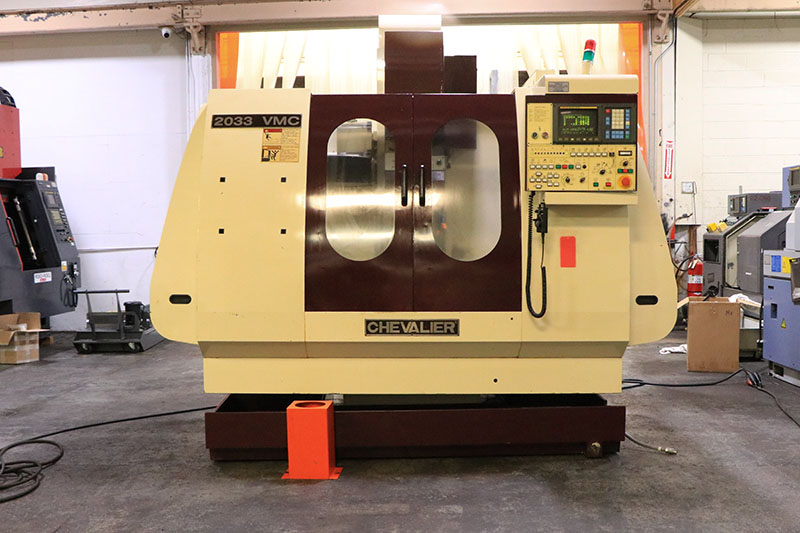

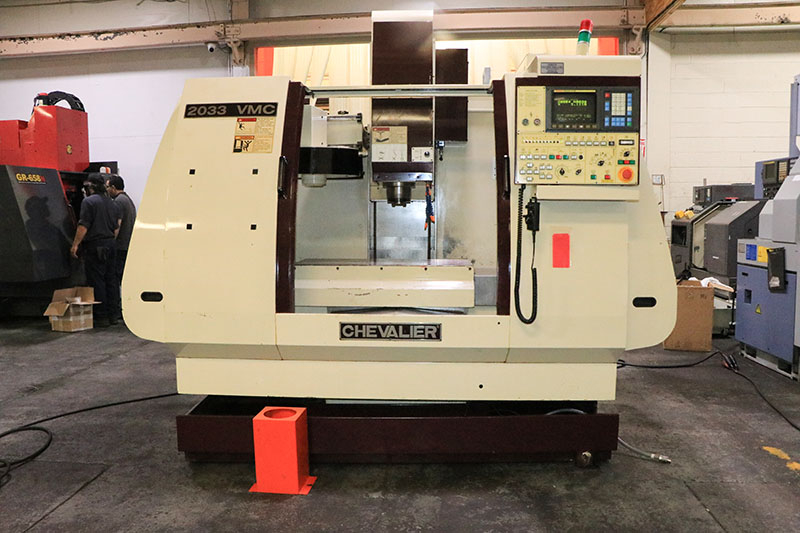

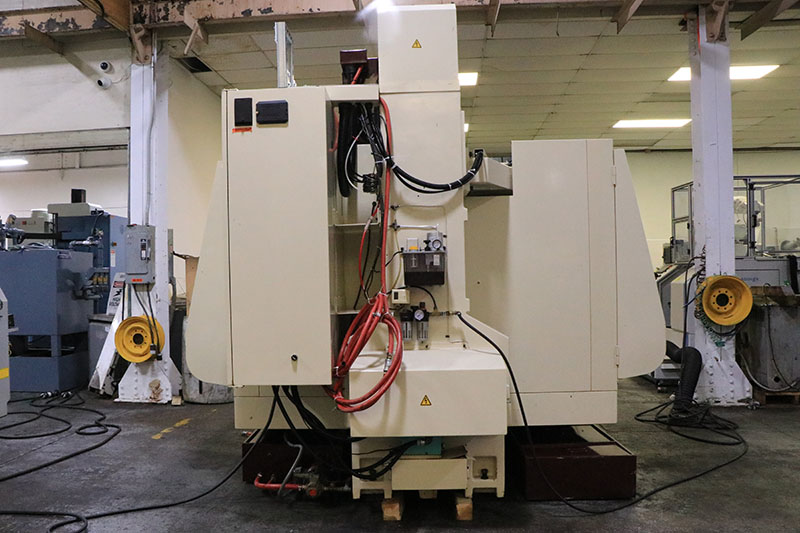

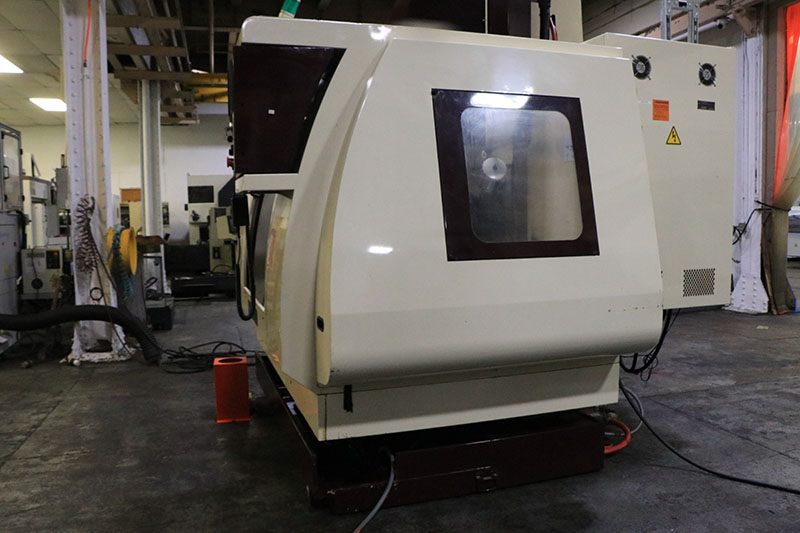

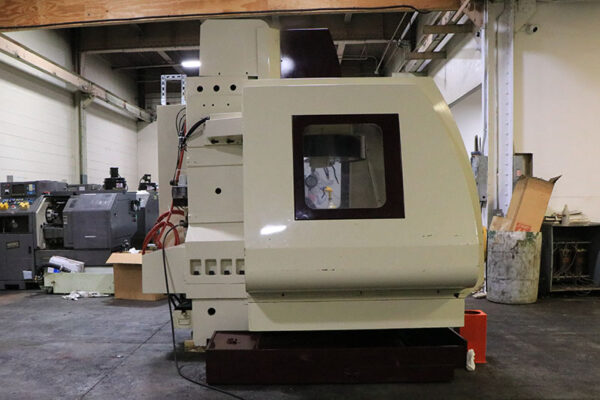

Chevalier 19″ x 33″ Vertical Machining Center, Falcon 2033
Inventory # 9929-P

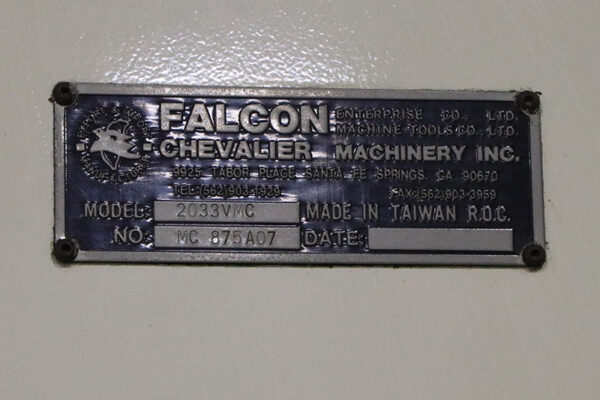

Model: Falcon-2033
S/N: MC 875A07
Specifications:
Travels:
X-Axis: 33 1/2″
Y-Axis: 19.7″
Z-Axis: 19.7″
Table Size: 39.4″ x 17.7″
Max. Table Load: 1,100 lbs.
Spindle Nose to Table Top: 5.9″ – 25.6″
Max. Spindle Speed: 8,000 RPM
Spindle Taper: 40 CAT
Automatic Tool Changer: 20 Tools
Rapid Traverse Rates: X – 590 IPM / Y+Z – 472 IPM
Motor: 15 HP
Equipment Included:

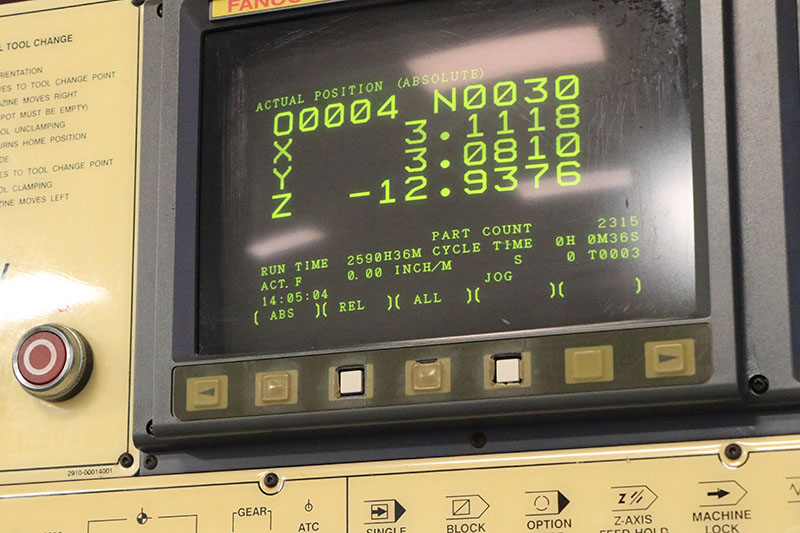

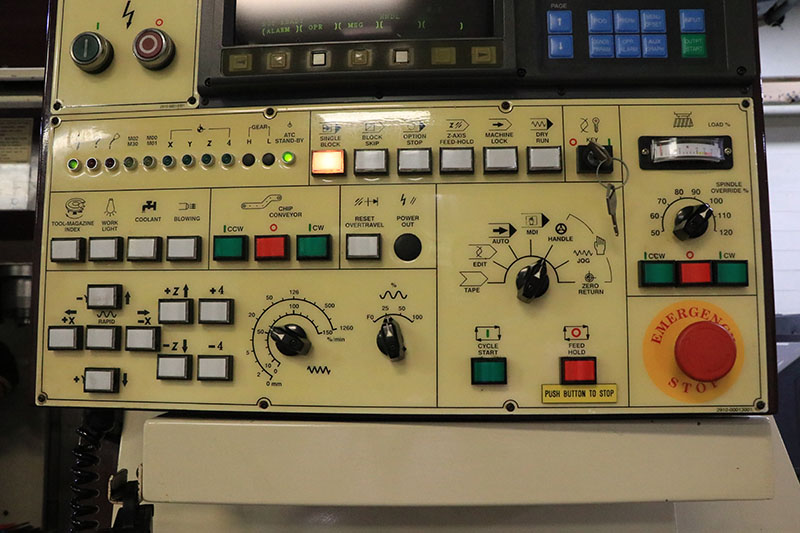

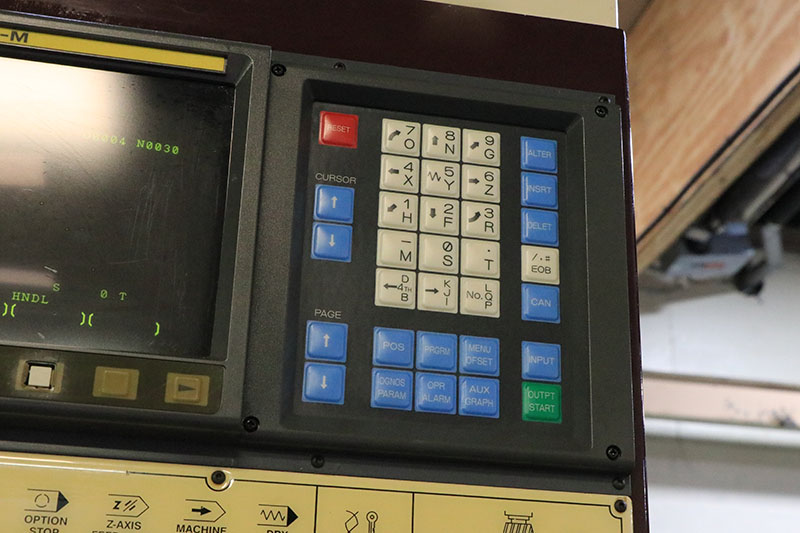

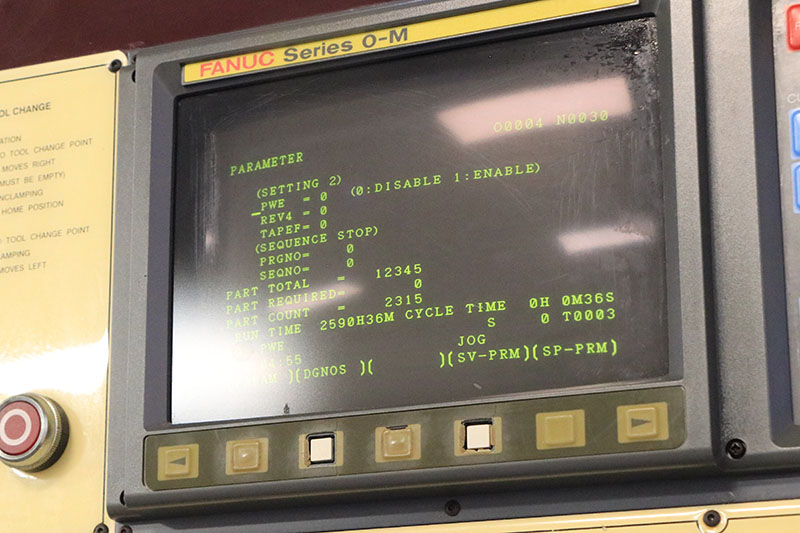

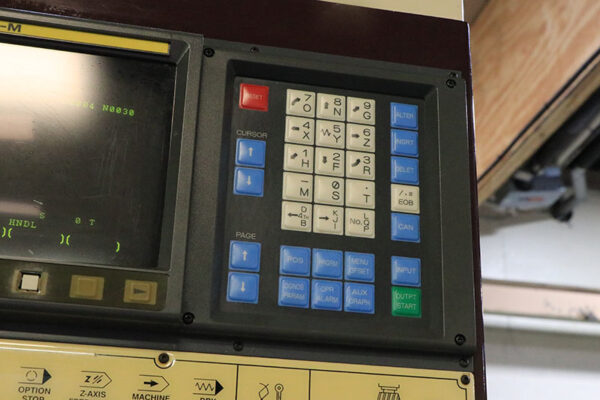

Fanuc Model 0-MC CNC Control

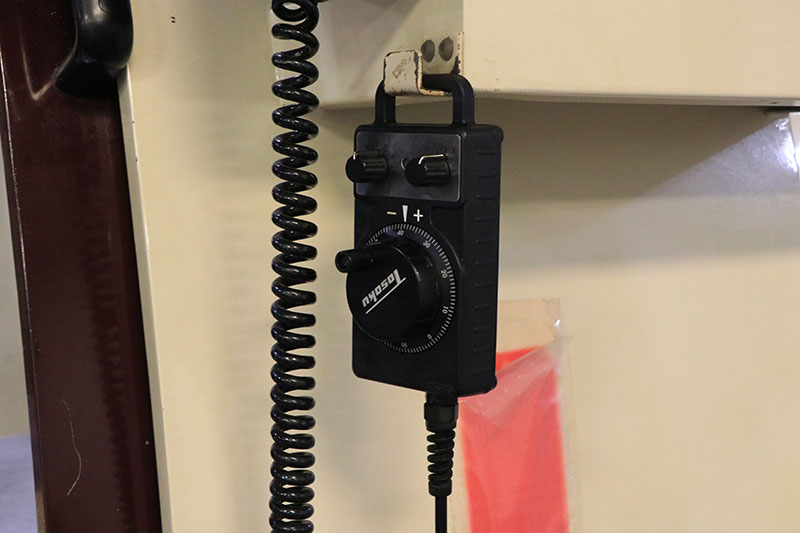

Manual Pulse Generator

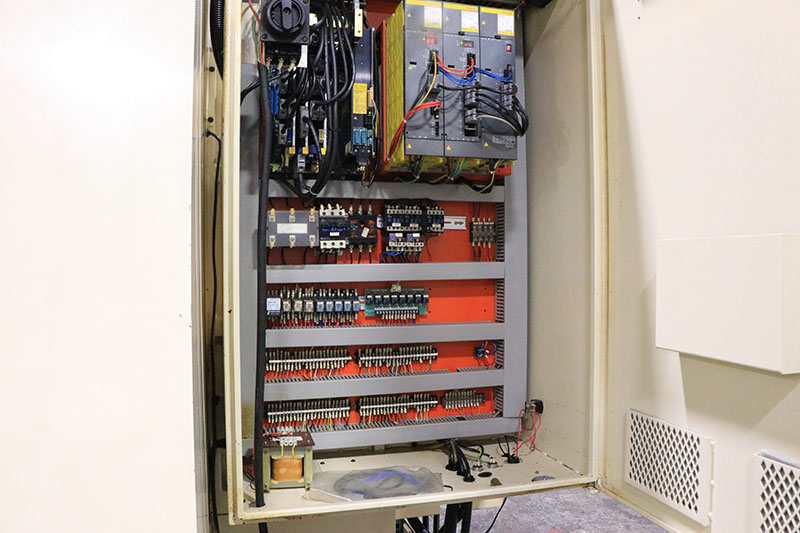

Fanuc Motors and Drives – All Axes
Rigid Tapping

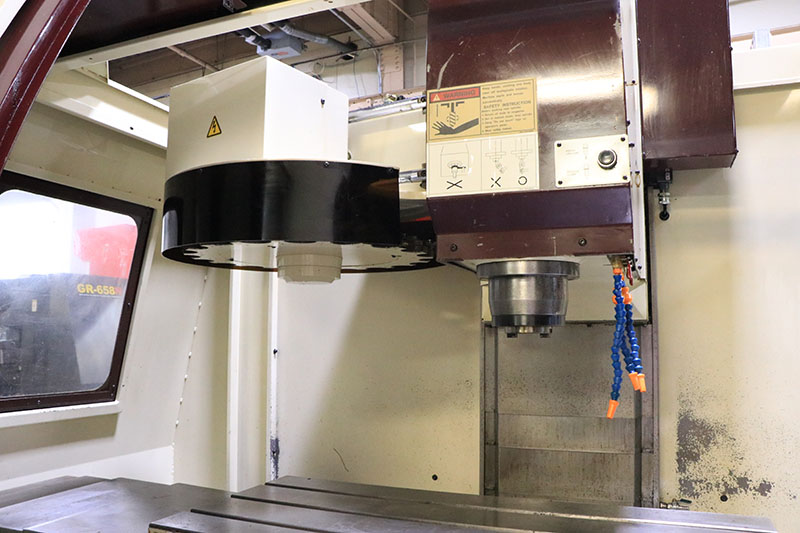

20 Station ATC
Coolant System
Box Ways
Chip Conveyor

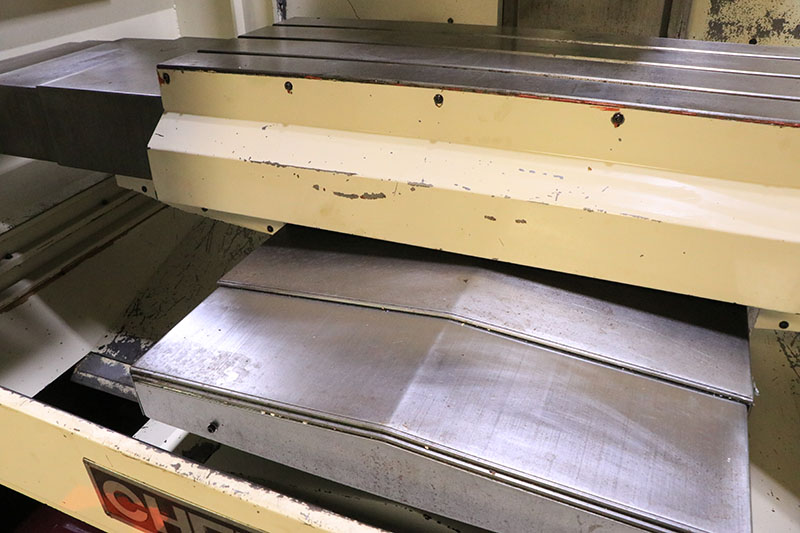

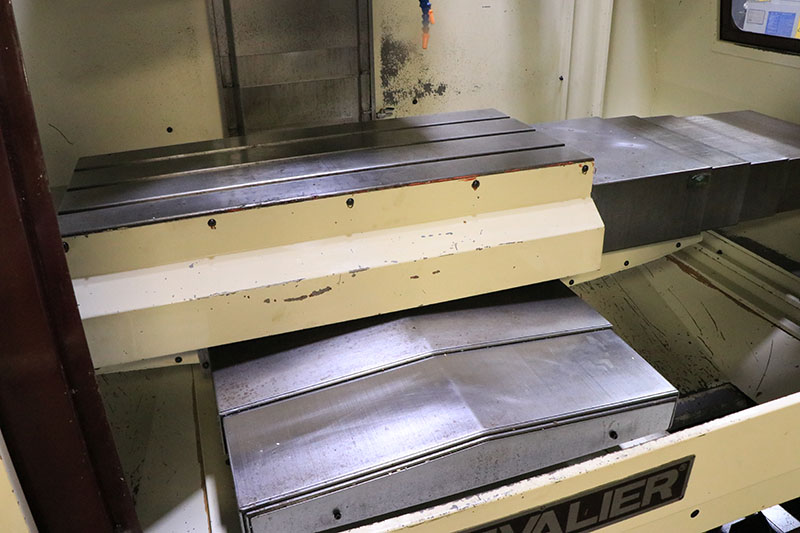

Steel Telescopic Way Covers
15 HP Fanuc AC Spindle Motor
Mechanical Specifications:
Dimensions: 108″ x 99″ x 109″ H
Weight: approx. 10,560 lbs.
FOB Harrison, NJ Warehouse
