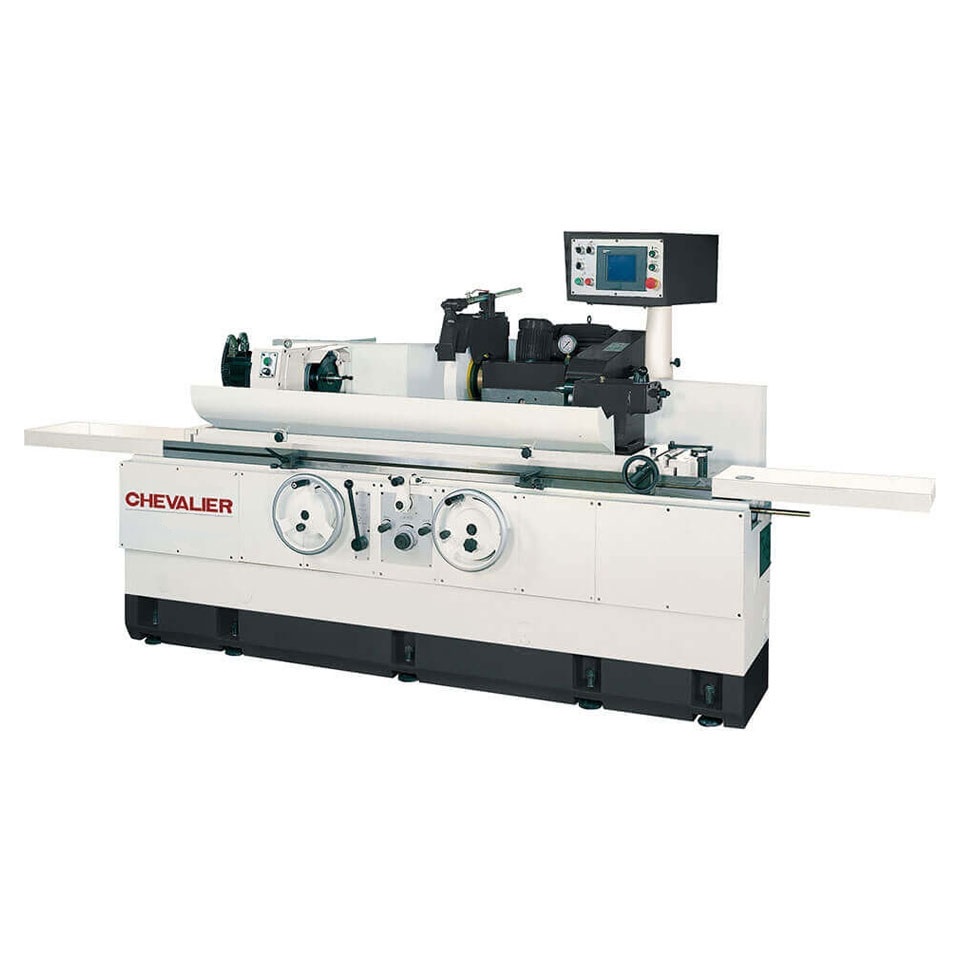

Chevalier 12″ x 24″ Cylindrical Grinder, CGP-1224

Shipping: Add to Cart to Calculate

SKU: CGP-1224

Inventory #: 2251

Categories: ,

Condition:

Type:

Brand:

Description

Chevalier 12″ x 24″ Cylindrical Grinder, CGP-1224

Inventory # 2251

Model: CGP-1224

Specifications:

Hydraulic Tank Capacity: 16 Gallons

Max. Workpiece Weight: 30 lbs.

Workhead Speed Range: 25 – 350 RPM (Variable)

Spindle Center: M.T. # 4

Max. Swing Over Bed: 12.598″

Max. Grinding Length: 23.6″

Table Min. Traverse Length: .3″

Table Speed: 2 – 155 IPM

Table Hand-Wheel Per Revolution: .5″

Grinding Wheel: 14″ x 2″ x 5″

Grinding Wheel Speed (Standard): 1,780 RPM

Max. Infeed Travel: 9.64″

Quill Travel: 1″

Wheel-Head Motor: 5 HP

Standard Features:

Friction-free hydrostatic spindle bearing for precision grinding

Precision ball screw driven by AC digital servo motor

Mitsubishi PLC control with touch screen operation

High-grade Nichrome steel SNCM-220 wheel head

Table travels on one V, one flat guideway

Machine castings are fully ribbed and are made of dense, high-grade Meehanite cast iron

Tailstock center is capable of absorbing thermal expansion of work piece

Rough grinding, fine grinding and spark-out in one automated cycle

Wheel-head retracts to park unload point after grinding cycle is completed

Mechanical Specifications:

Shipping Dimensions: 97″ x 73″ x 75″ H

Shipping Weight: approx. 6,600 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 6600 lbs
