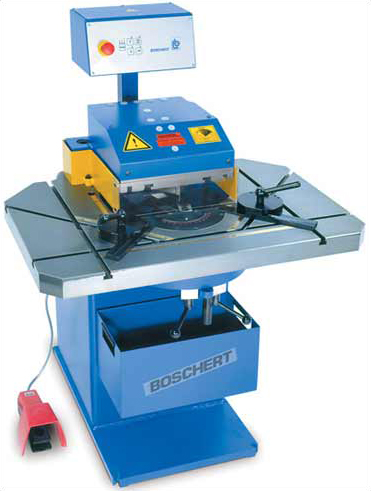

Boschert 5/32″ Hydraulic Variable Angle Notcher, Vari-IV with Punch

Shipping: Add to Cart to Calculate

SKU: Vari-IV with Punch

Inventory #: 7588

Categories: ,

Condition:

Type:

Brand:

Description

Boschert 5/32″ Hydraulic Variable Angle Notcher, Vari-IV with Punch

Inventory # 7588

Model: Vari-IV with Punch

Made in Germany

Description:

With a 90° fixed angle, the Vari-IV Hydraulic Variable Angle Notcher is a powerful Boschert notcher offer superior performance, clean cuts and high accuracy. Enjoy front-to-back cutting to hold material against stop, two 30° upper blades working directly with two corresponding lower blades, four material hold-downs, and a milled bed surface for no-float or no-stick operation

Boschert Varibale Angle Notchers offer a unique approach to notching that directly couples the upper and lower blades. This system guarantees longer blade life when compared to other systems. Paired with Boshcert’s world-renowned commitment to impeccable German engineering, safety, and user-focused design, our family of variable angle notchers offer something for every notching project on every assembly floor

How the Boschert System Works:

A 30° upper blade is directly connected to two corresponding lower blades. All notches of more than 30° are accomplished automatically with a right and left notch. Pneumatic power rotates the blades after each stroke

Specifications:

Cutting Capacities:

Mild Steel: 5/32″

Stainless Steel: 11 Gauge

Cut Length: 5.9″ x 5.9″

Cut Angle: 30° – 120°

Table Dimensions: 39″ x 44 1/2″ H

Motor: 6.5 HP / 220v / 3ph

Standard Features:

Front to back cutting to hold material against stop

Milled bed surface for no float or stick operation

Two 30° upper blades working directly with two corresponding lower blades

Blades are automatically shifted by pneumatic power

Hi-Carbon, Hi-Chrome blades that overlap on the cutting edge to eliminate blade chipping

T-slots and engraved brass scales on the table

Two heavy duty adjustable stops with 12″ sliding bars

Engraved brass scales

Solid-state circuitry with moveable electric foot pedal

Jog, single or continuous mode

Ability to notch into the bend of a 90° angle

Clear view of the blades tips

Scrap bucket

Mechanical Specifications:

Dimensions: 51″ x 39″ x 51″ H

Weight: approx. 2,200 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 2200 lbs
