Description
Baileigh Industrial 9″ x 48″ Small Piece Wide Belt Sander, B-948WBS
Inventory # 10178
Model: B-948WBS
Specifications:
Belt Size: 9″ x 48″
Belt Speed: 1,400 FPM
Number of Belt Speeds: 1
Conveyor Gearbox Ratio: 1/100
Conveyor Motor: 1/4 HP

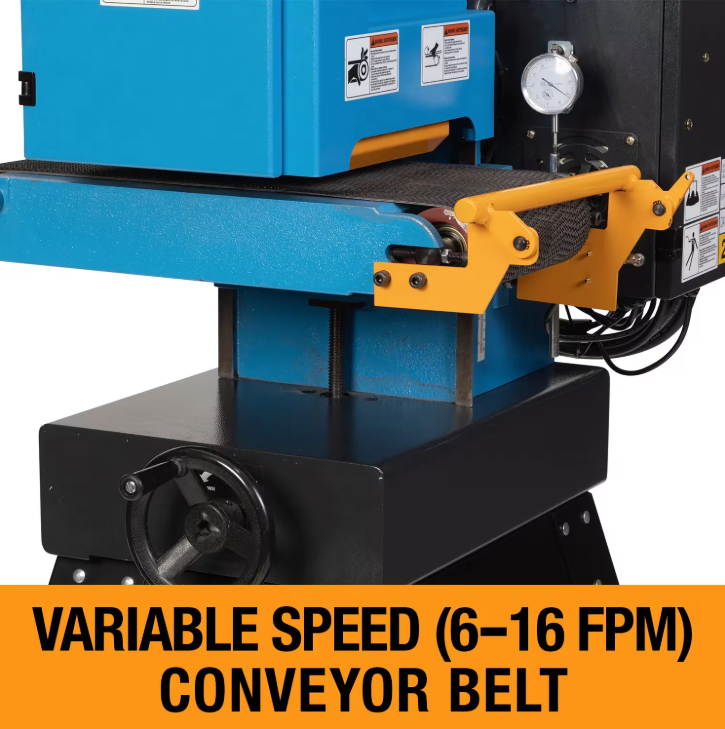

Conveyor Speed: 6 – 16 FPM, Variable Speed
Infeed Table Length: 19.3″
Max. Material Width: 9″
Min. Height: 1/16″
Min. Material Length: 5.9″
Min. Material Thickness: 0.012″
Motor: 5 HP / 230v / 1ph, 25 Amps
Standard Features:
Uses a 9″ x 48″ abrasive belt for versatile sanding operations
Powered by a 5 HP industrial motor
Operates on 230v single-phase electrical service
1,400 FPM belt speed for consistent finish quality
1/4 HP conveyor motor with variable speed
6 – 16 FPM variable speed for matched feed control
Supports 9″ maximum material width
4″ maximum workpiece height for small part finishing

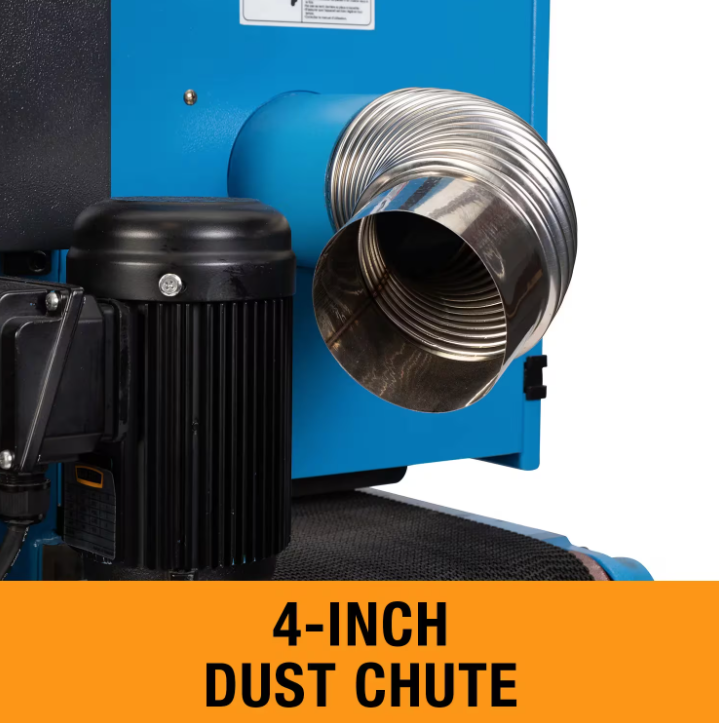

4″ dust port for connection to extraction systems
Backed by Baileigh’s 1-year parts warranty and lifetime technical support
Mechanical Specifications:
Dimensions: 37 1/2″ x 30″ x 77″ H
Weight: approx. 705 lbs.
FOB Factory
