Description

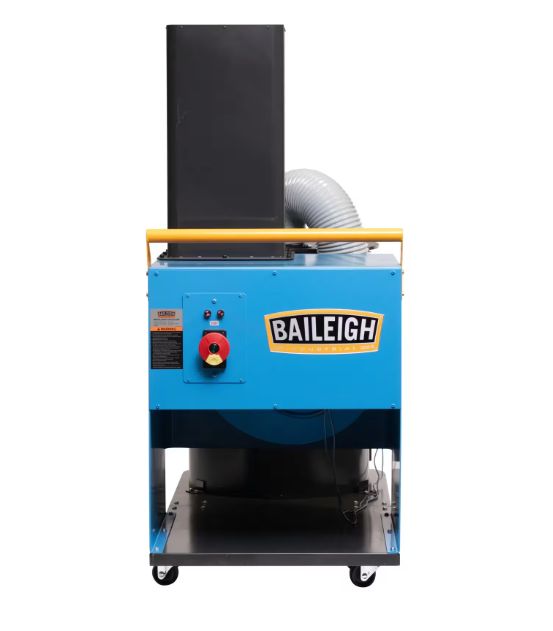

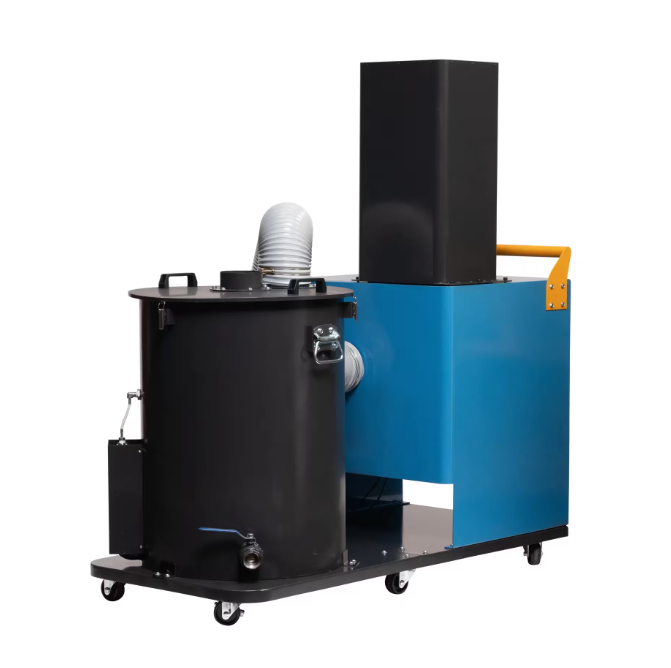

Baileigh Industrial 5 HP Wet Dust Collector, MWDC-550
Inventory # 10181
Model: MWDC-550
Specifications:
Filter Type: 5 Micron Filter Paper, Anti-Spark/Fireproof
Max. CFM: 3,103
No. of Ports x Port Size: 1 x 5″
Motor: 5 HP / 230v / 3ph – Optional: 460v (MWDC-550H +$500)
Standard Features:

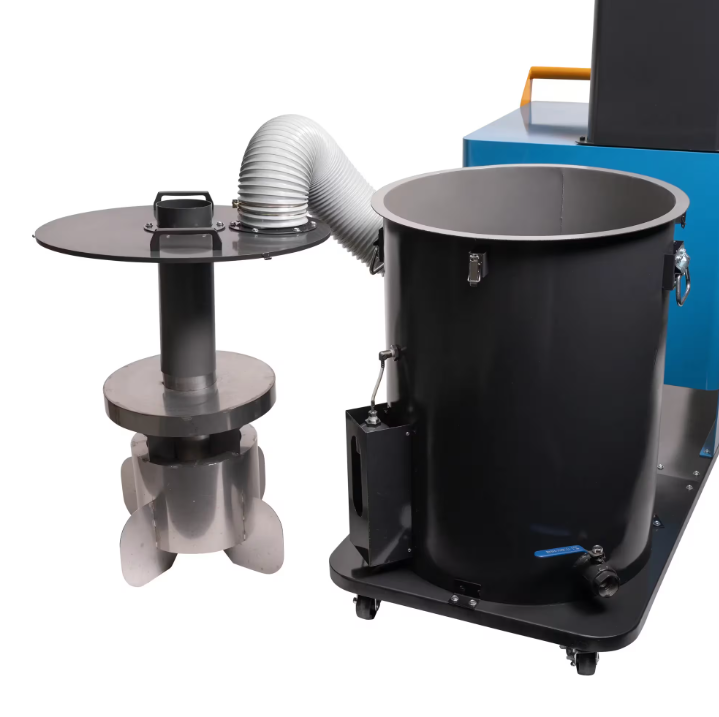

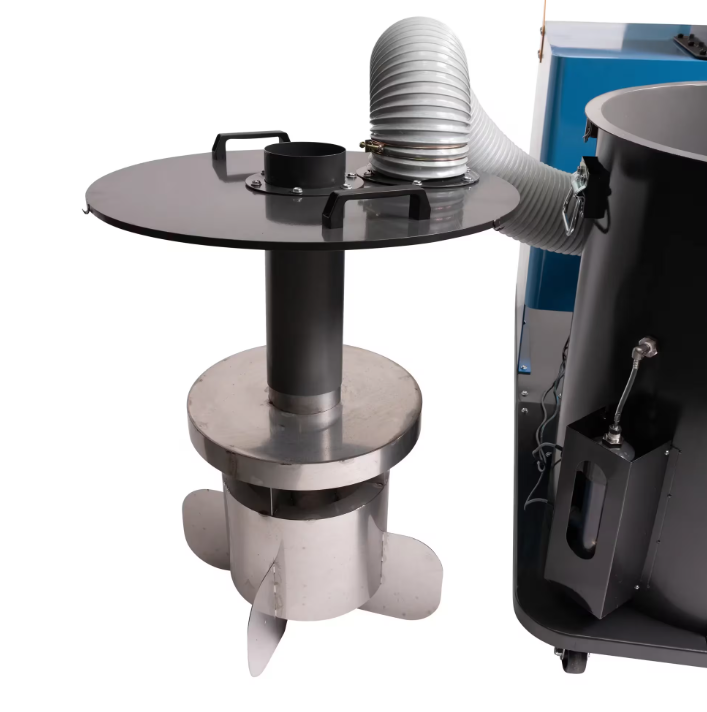

Wet separation system captures sub-5-micron particles and polishing fumes that can slip past dry filters
Helps reduce spark ignition and fire risk when collecting reactive or combustible metal dust
3,100 CFM airflow and 15,151 FPM velocity deliver strong extraction for demanding polishing operations
Runs at just 75 dB from 5′ – quieter than Baileigh’s dry dust collector line

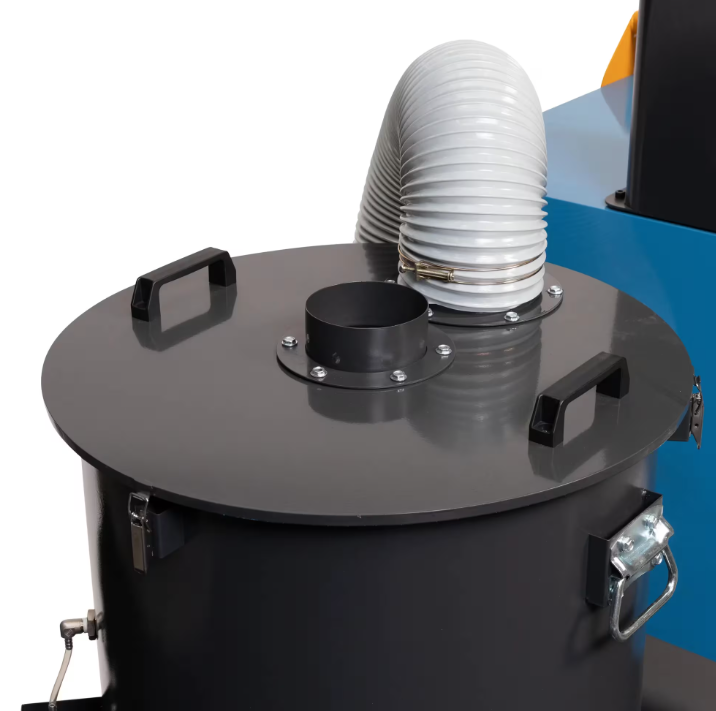

45L/70L capacity drum with easy-view water level window simplifies monitoring
Supports a shop’s path to NFPA 660 combustible dust compliance
230v/3-phase operation with 9A full load amps and a 20A recommended breaker

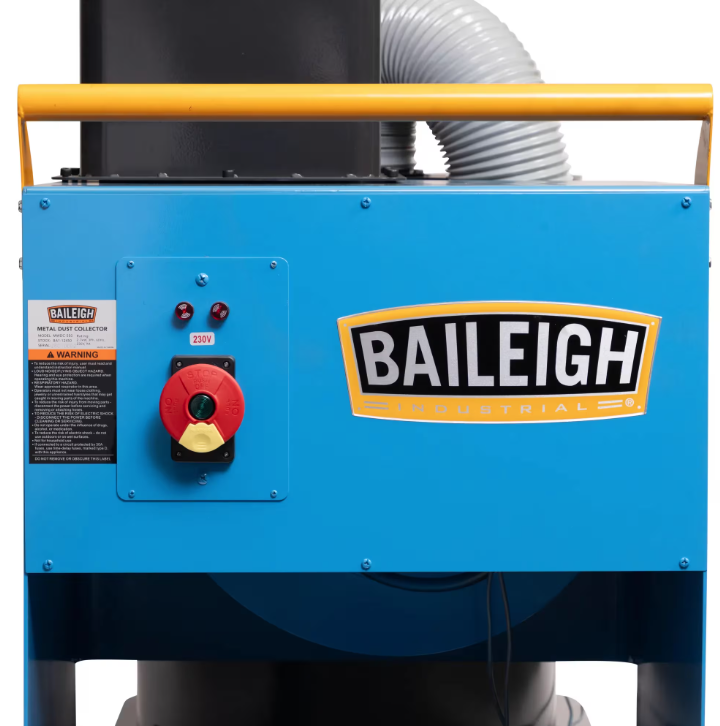

Removable-key start/stop switch doubles as a multi-function E-stop for operator safety
1-year parts warranty plus Baileigh Lifetime Technical Support for long-term uptime
Mechanical Specifications:
Dimensions: 58″ x 33″ x 37″ H
Weight: approx. 495 lbs.
FOB Factory
