Description
Baileigh Industrial 5 HP Dry Dust Collector, MDC-550
Inventory # 10182
Model: MDC-550
Specifications:
Filter Size: 19 3/8″ x 25″ x 1 25/32″
Filter Type: 5 Micron Filter Paper, Anti-Spark/Fireproof
Max. CFM: 3,103
No. of Ports x Port Size: 2 x 5″
Motor: 5 HP / 230v / 3ph – Optional: 460v (MDC-550H +$500.00)
Standard Features:
5 HP motor and 3,583 CFM airflow (10″ inlet) deliver strong extraction for demanding metalworking shops

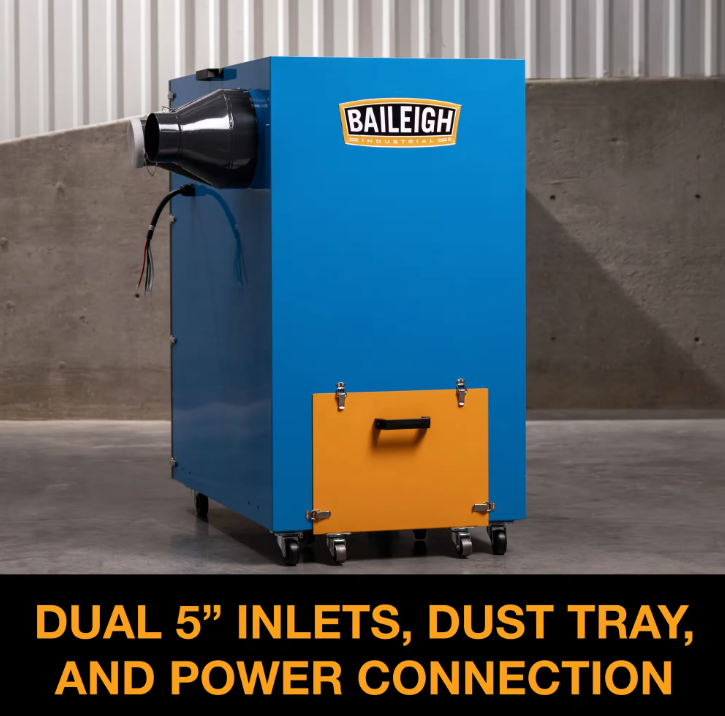

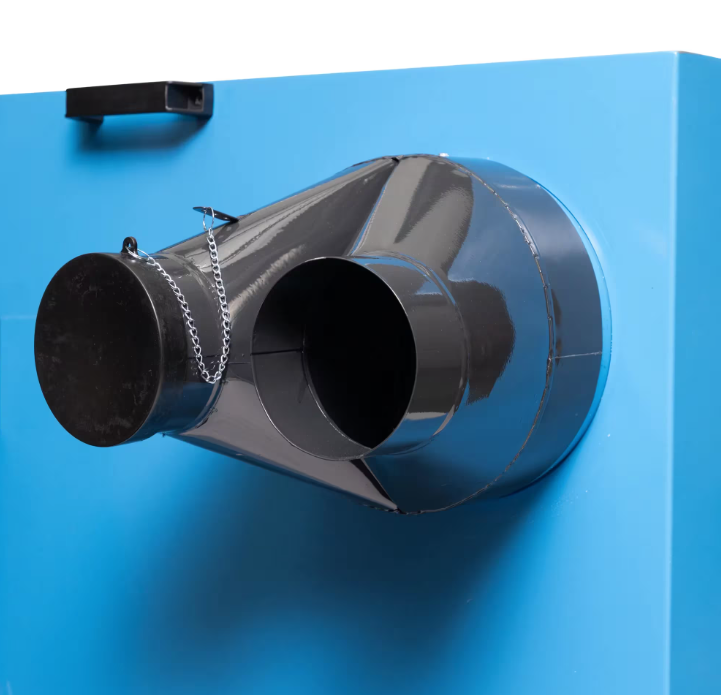

Dual 5″ inlet ports let one collector service two wide-belt sanders or polishing stations at once

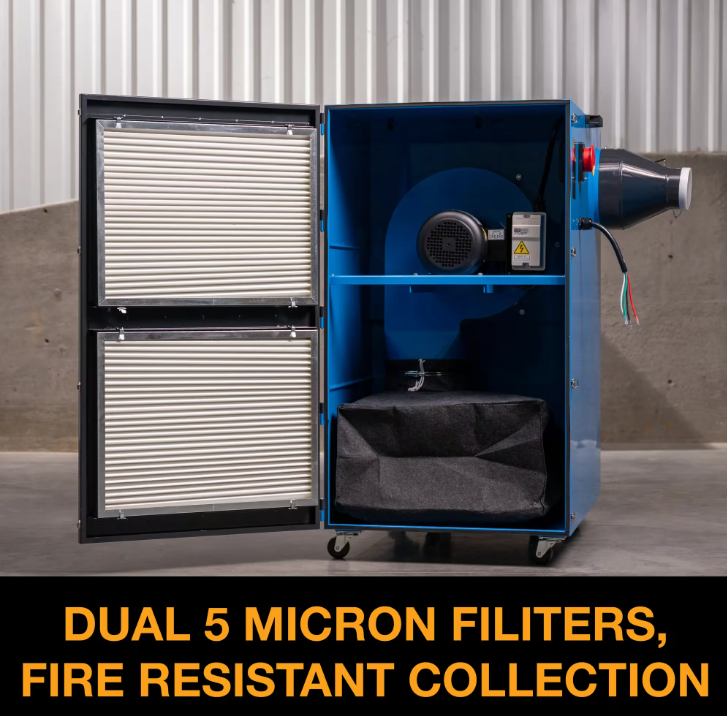

Two 5-micron paper filters capture 95.4% of 3-10 micron particles, keep shop air cleaner
UL 1017 certification supports NFPA 660 compliance and electrical safety confidence

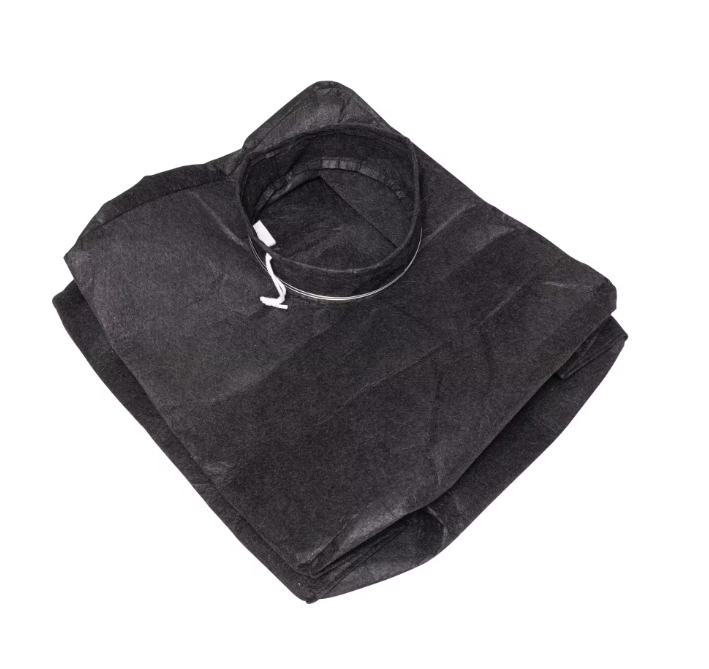

126L fireproof, non-woven dust bag simplifies collection and safe disposal
230v/3-phase operation with 14A full load amps and a 30A recommended breaker
Removable-key start/stop switch doubles as a multi-function E-stop for operator safety
Integrated casters make it easy to reposition the collector for cleaning or shop layout changes
1-year parts warranty plus Baileigh Lifetime Technical Support for long-term uptime
Mechanical Specifications:
Dimensions: 50″ x 42″ x 51″ H
Weight: approx. 320 lbs.
FOB Factory
