Description

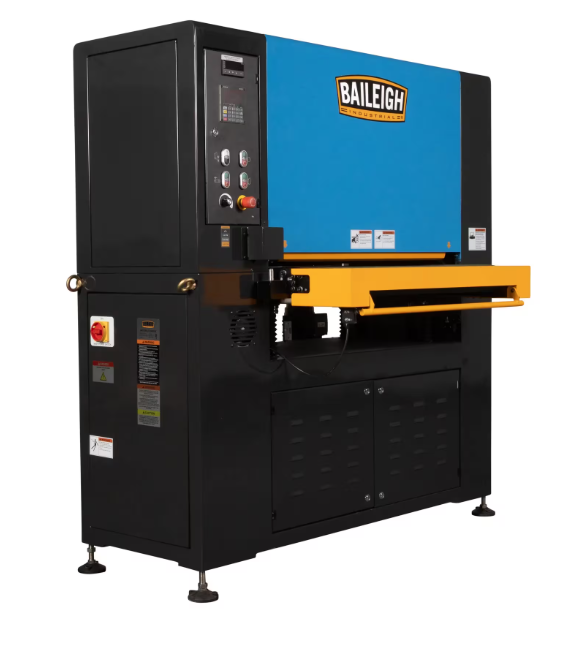

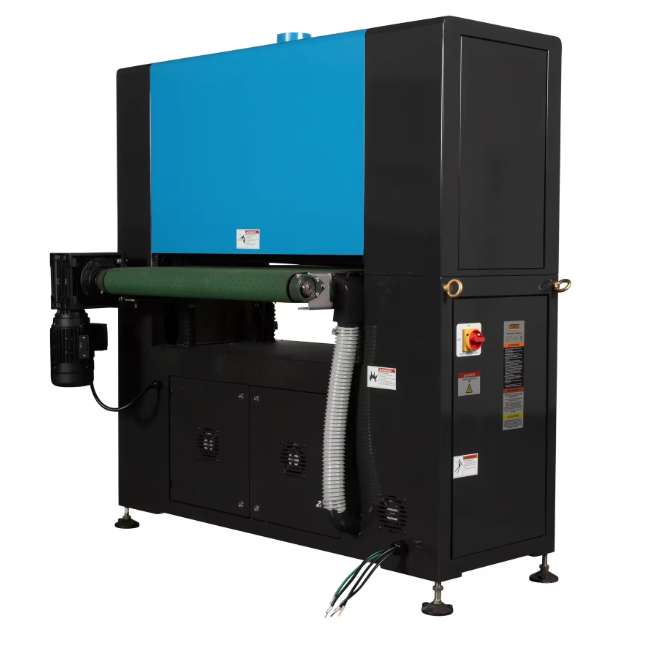

Baileigh Industrial 37″ x 60″ Wide Belt Sander with Vacuum, WBS-37V
Inventory # 10180
Model: WBS-37V
Specifications:
Belt Size: 37″ x 60″
Belt Speed: 1,720 FPM
Conveyor Gearbox Ratio: 1/100
Conveyor Motor: 1/4 HP
Conveyor Speed: 2 – 16 FPM, Variable Speed
Dust Port Outside Diameter: 5″
Infeed Table Length: 19.3″
Max. Material Width: 37″
Min. Material Length: 8″
Min. Material Thickness: 1/64″
Motor: 10 HP / 230v / 3ph, 25 Amps – Optional: 460v (WBS-37VH +$500)
Standard Features:
5 HP vacuum hold-down system enables a class-leading 2″ x 2″ minimum part size for small-part sanding

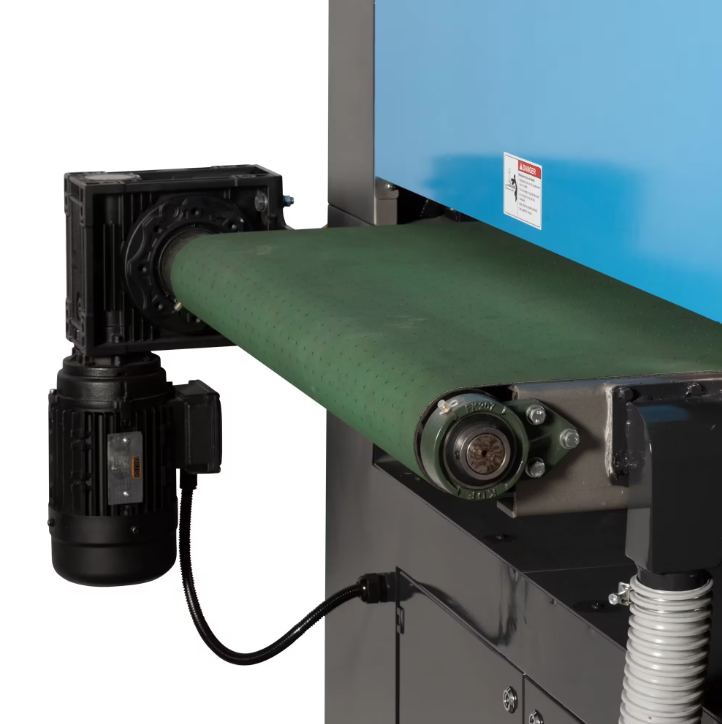

Vacuum conveyor holds down small or lightweight parts that would otherwise require manual polishing benches
10 HP main motor and 37″ x 60″ belt provide the same finishing power as Baileigh’s standard WBS-37
Handles material from 1/64″ to 6″ thick, finer than the non-vacuum WBS-37

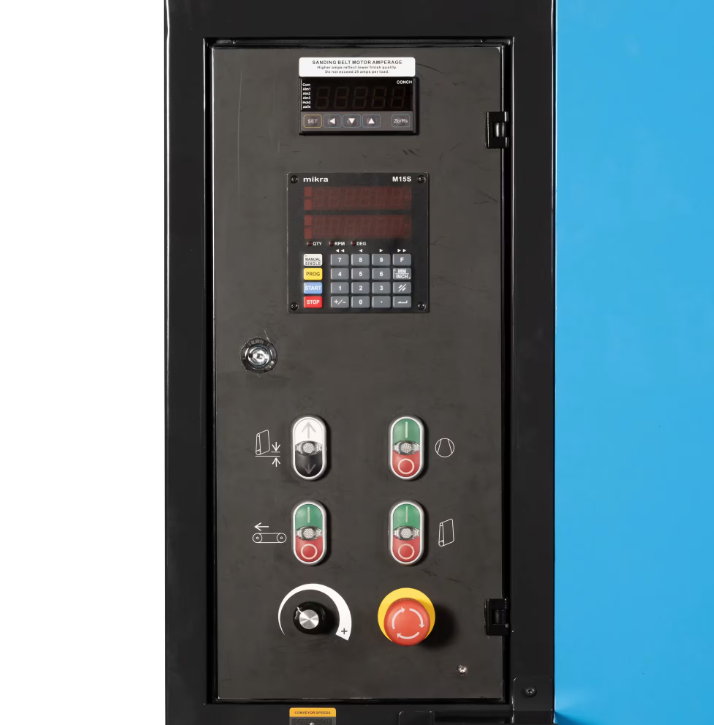

Auto sanding height adjustment with 10 programmable presets speeds repeat setups
Auto belt tracking keeps the abrasive centered, reducing uneven wear

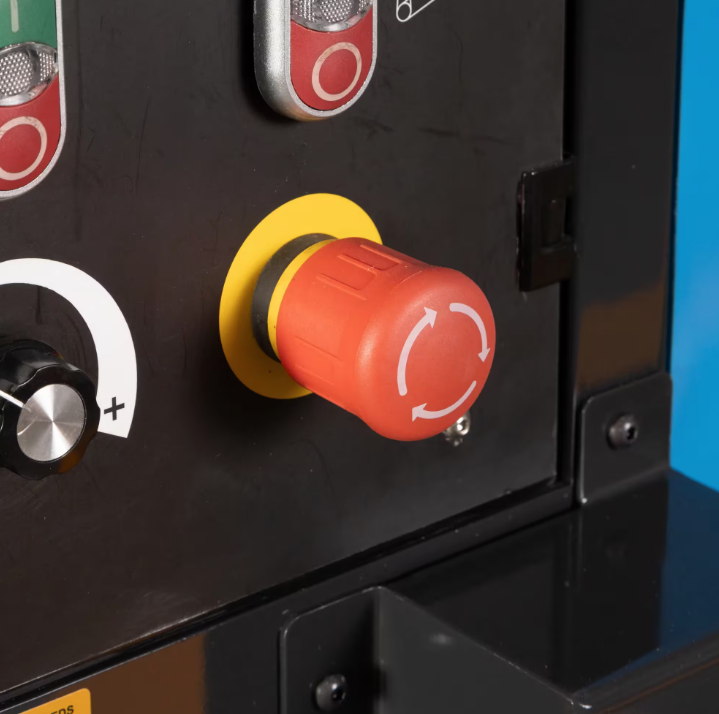

UL 987-certified door interlocks, E-stop, and quick-stop abrasive belt e-brake protect operators
5″ dust port mounts overhead to a Baileigh dust collector for efficient dust and chip removal
1-year parts warranty plus Baileigh Lifetime Technical Support for long-term uptime
Mechanical Specifications:
Dimensions: 66″ x 53″ x 74″ H
Weight: approx. 1,720 lbs.
FOB Factory
