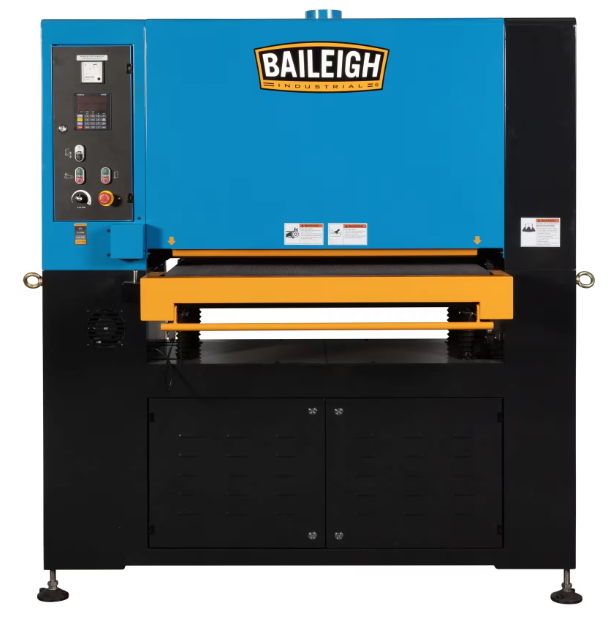

Baileigh Industrial 37″ x 60″ Wide Belt Sander, WBS-37
Inventory # 10179
Model: WBS-37
Specifications:
Belt Size: 37″ x 60″
Belt Speed: 1,720 FPM
Conveyor Gearbox Ratio: 1/100

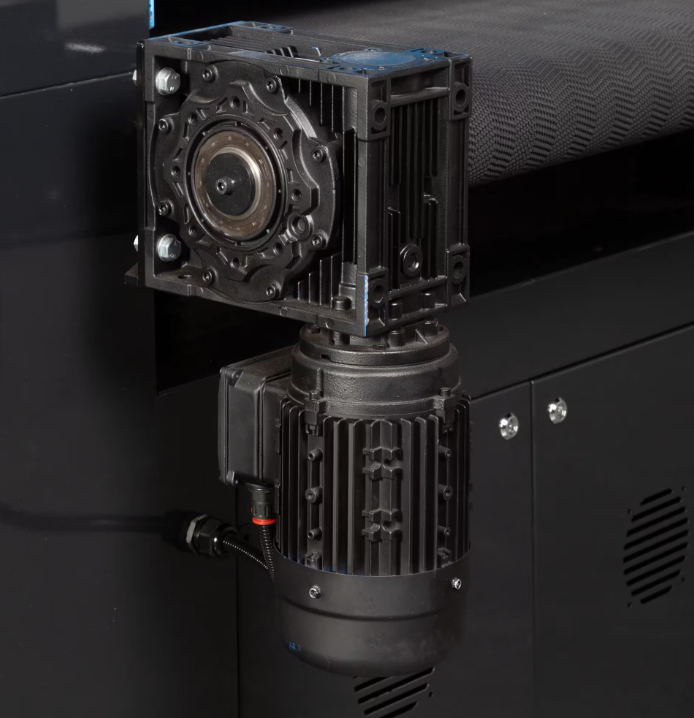

Conveyor Motor: 1/4 HP
Conveyor Speed: 2 – 16 FPM Variable Speed
Dust Port Outside Diameter: 5″

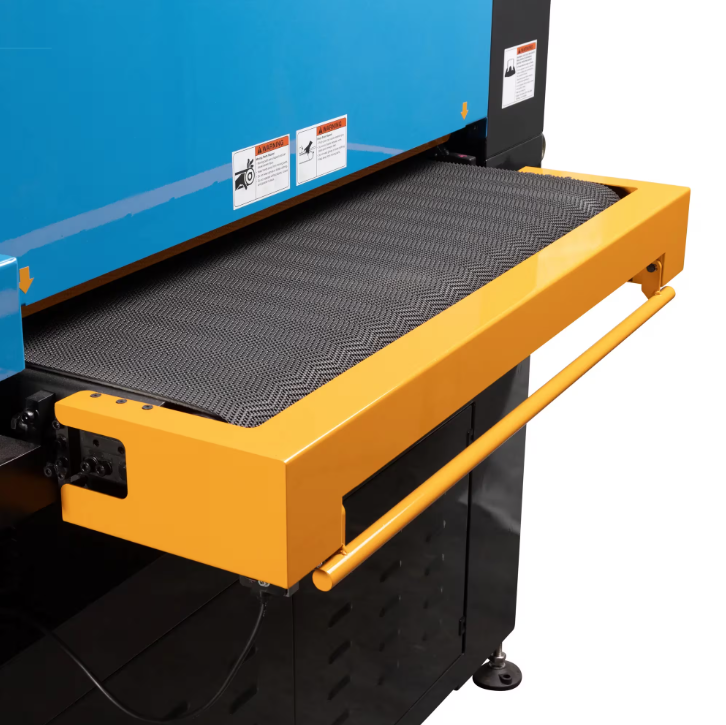

Infeed Table Length: 19.3″
Max. Material Width: 37″
Min. Material Length: 8″
Min. Material Thickness: 1/32″
Motor: 10 HP / 230v / 3ph, 25 Amps – Optional: 460v (WBS-37H +$500)
Standard Features:
37″ x 60″ sanding capacity with a 10 HP main motor handles large workpieces and heavy material removal

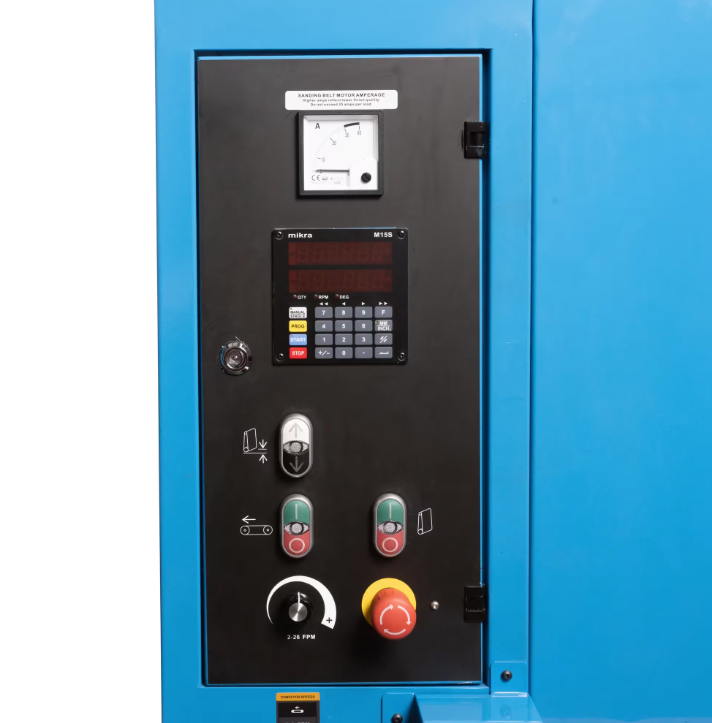

Auto sanding height adjustment with digital readout and 10 programmable presets for speed changeovers between parts
Auto belt tracking keeps the abrasive centered, reducing uneven wear and extending belt life
Variable 2 – 26 FPM conveyor speed adapts to material and finish requirements
Handles material from 1/32″ to 6″ thick, with an 8″ x 2″ minimum workpiece size

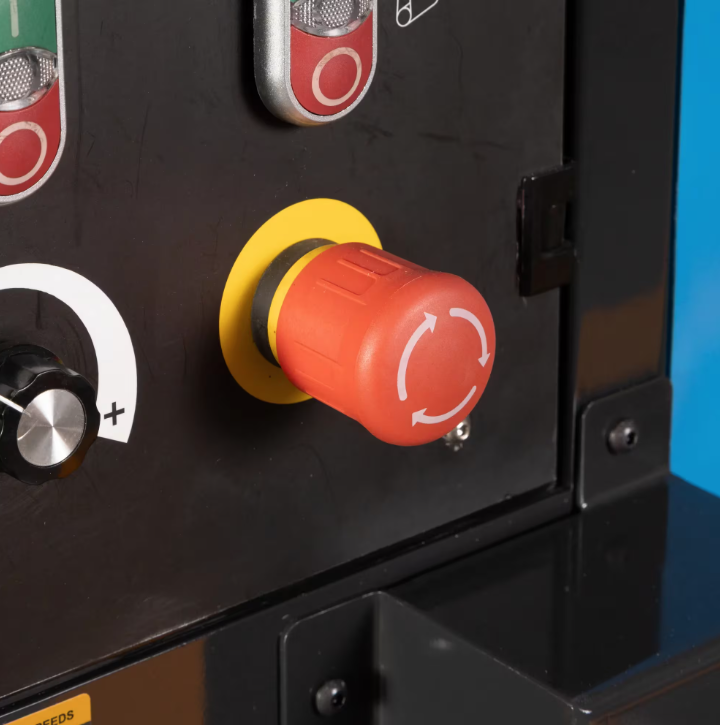

UL 987-certified safety systems include door interlocks, E-stop, and a quick-stop abrasive belt e-brake
5″ dust port mounts overhead to a Baileigh dust collector for clean, efficient chip and dust removal
Ideal for deburring, slag removal, precision grinding, and surface finishing on mixed metal materials
1-year parts warranty plus Baileigh Lifetime Technical Support for long-term uptime
Mechanical Specifications:
Dimensions: 70″ x 53″ x 74″ H
Weight: approx. 1,590 lbs.
FOB Factory
