Description

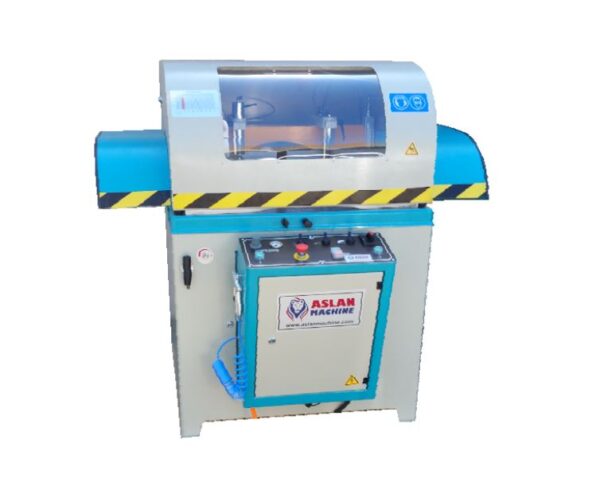

Aslan 28″ Semi-Automatic Non-Ferrous Aluminum Upcut Saw, US1-700
Inventory # 8223
Model: US1-700
Specifications:
Cutting Angles: All angles from 0° to 75°
Saw Blade Diameter: 28″
Saw Blade Bore Diameter: 1.496″
Saw Blade Rotation: 3,000 RPM
Motor: 5.5 HP / 220v, 440v / 3ph
Standard Features:
For cutting aluminum, vinyl profiles, and wood
Can cut profiles at all angles from 0° to 75°
Adjustable saw blade rising speed
Multiple profile cutting in one sequence
Cooling system to cut aluminum
Safety guard for protection
Standard pneumatic profile clamping system
Easy-to-use control panel
Two dust ports
Two horizontal clamps
One saw blade, installed on the machine
Pneumatic and hydraulic systems for smooth cutting
Interior lighting
The top cover opens and closes automatically by a pneumatic system
Anti-tie down, two-hand operation for worker safety
Top cover with a safety switch to stop the machine when opened
Front door with a safety switch to stop the machine when opened
Mechanical Specifications:
Dimensions: 48″ x 56″ x 72″ H
Weight: approx. 1,100 lbs.
FOB Factory – Contact us for Availability
Optional Equipment:
Right and Left Conveyor System
