Description

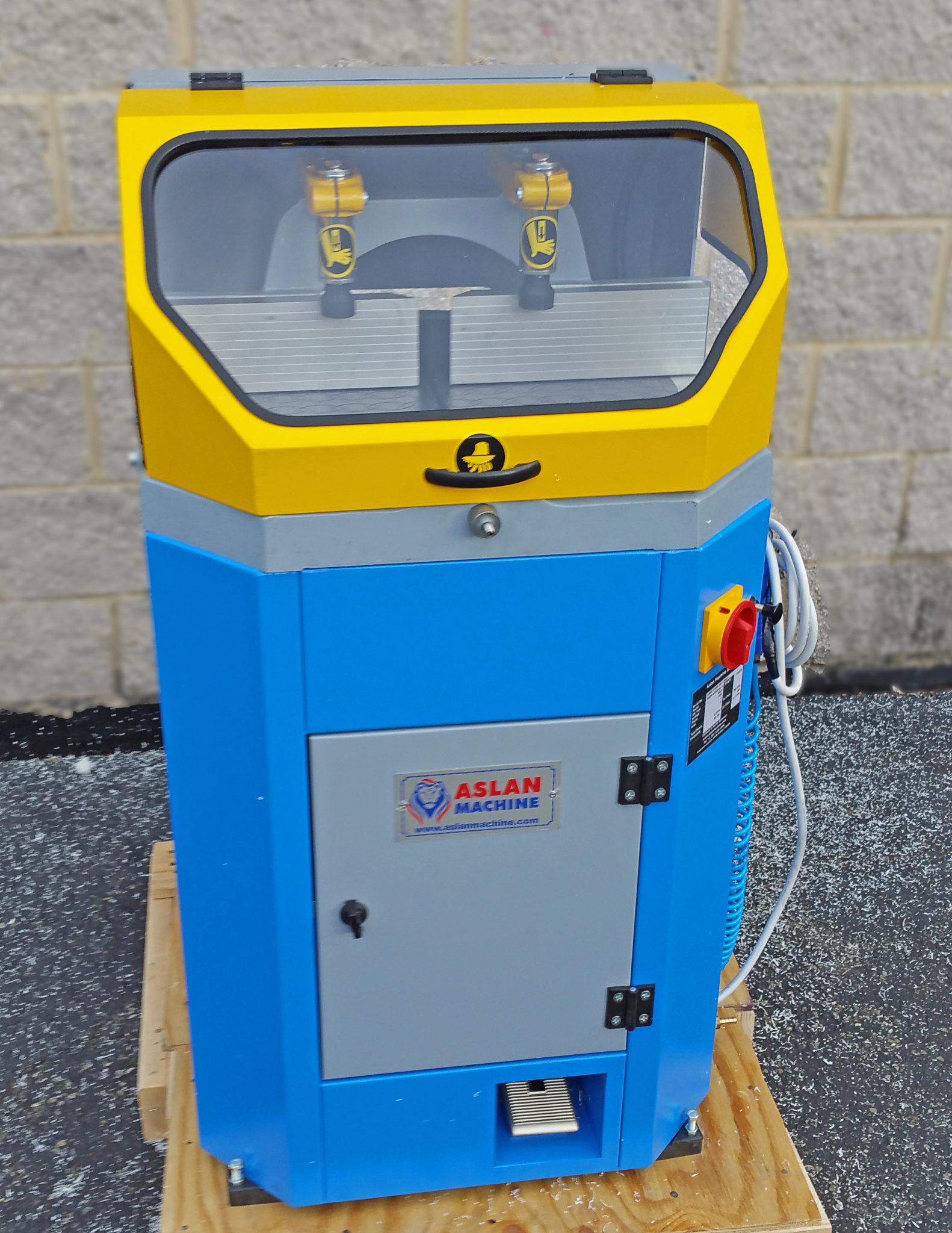

Aslan 18″ Semi-Automatic Non-Ferrous Aluminum Upcut Saw, PKS-503
Inventory # 8219
Model: PKS-503
Specifications:
Cutting Angles: All angles from -45° left to +45° right
Saw Blade Diameter: 18″
Saw Blade Bore Diameter: 1.259″
Saw Blade Rotation: 3,000 RPM
Motor Rotation: 3,000 RPM
Motor: 2 HP / 220v, 440v / 3ph – Optional: 1.5 HP or 2 HP / 220v or 110v / 1ph (Single phase is an additional cost, request quote for current pricing)
Standard Features:
The capacity of the PKS-503 depends on the height of your part:
For Cutting Aluminum and Vinyl Profiles
Can cut Profiles at all Angles from -45° Left and +45° Right
Adjustable Saw Blade Rising Speed
Safety Guard for Protection
Cooling System for Cutting Aluminum
(1) Set of Horizontal Clamps
(1) Saw Blade Installed on the Machine
Standard Vertical Clamps
Pneumatic System for Smooth Cutting
Easy-to-Use Control Panel
Mechanical Specifications:
Dimensions: 30″ x 26″ x 48″ H
Weight: approx. 245 lbs.
FOB Factory – Contact us for Availability
Optional Equipment – Contact us for Pricing:
Dust Collector Ports
Clamp Pressure Adjuster for Thin Profiles
(2) Hand Switches Instead of a Foot Pedal
Anti-Tie Down (2) Hand Buttons Instead of a Foot Pedal
Laser Guide for Blade Location
Right and Left Conveyor System
Single Phase Motor (220v/1ph or 110v/1ph in 1.5 HP or 2 HP)
Side Electric Box Ready for Certification Inspection per Canadian Industrial Requirements
