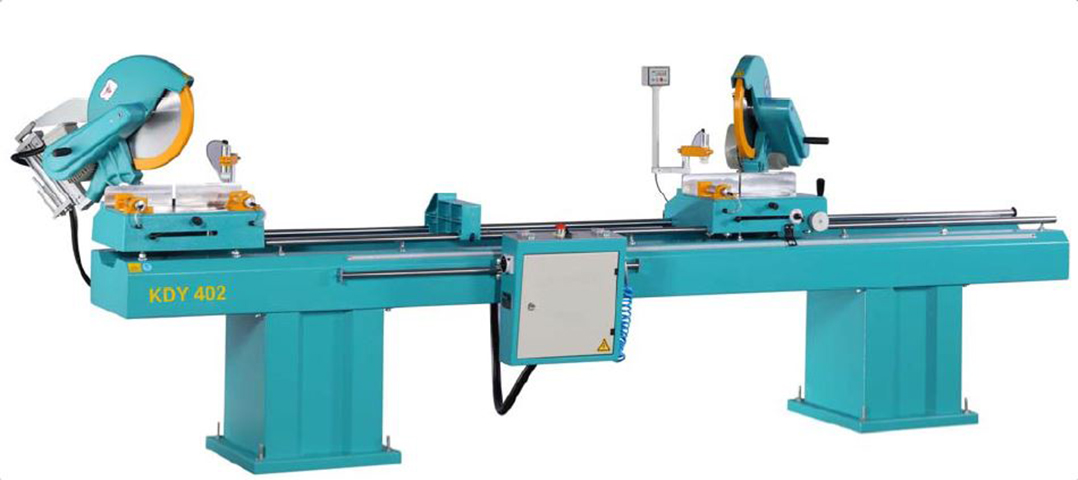

Aslan 16″ Semi-Automatic Double Miter Non-Ferrous Aluminum Saw with Digital Display, KDY-402

$19,950.00


Shipping: Add to Cart to Calculate

SKU: KDY-402

Inventory #: 8226

Categories: , , ,

Condition:

Type:

Brand:

Description

Aslan 16″ Semi-Automatic Double Miter Non-Ferrous Aluminum Saw with Digital Display, KDY-402

Inventory # 8226

Model: KDY-402

Specifications:

Max. Profile Height: 4.92″

Max. Profile Width: 7.8″

Max. Cut Length: 136″

Min. Cut Length: 20.87″

Cutting Angles: 15°, 22.5°, 30°, 45°, 0°

Saw Blade Diameter: 15 3/4″

Saw Blade Bore Diameter: 1.18″ – 1.26″

Saw Blade Rotation: 3,000 RPM

Motor Rotation: 3,000 RPM

Motor: 6 HP / 220v / 3ph

Standard Features:

For cutting vinyl and aluminum profiles

Saw blade movement is hydro-pneumatically controlled for smooth cutting of aluminum

Adjustable cutting speed

Can cut profiles at fixed angles 0° (straight cut), 15°, 22.5°, 30°, and 45° with a locking system

Can cut profiles at all other angles with manual setting

The left head is fixed, the right head is movable manually

Easy and fast manual control of the right cutting head for the required size

Pneumatic profile clamping system

Mister/cooling system for cutting aluminum

Equipped with a digital length reader

Safety guards for saw blade protection

Double push-button cutting operation for operator safety

Mechanical Specifications:

Dimensions: 161″ x 35″ x 67″ H

Weight: approx. 1,400 lbs.

FOB Factory – Contact us for Availability

Additional information

Weight 1450 lbs
