Amada Marvel Spartan 71 Ton Ironworker, MSIW71D

Inventory # 7786

Model: MSIW71D

Made in Turkey

Description:

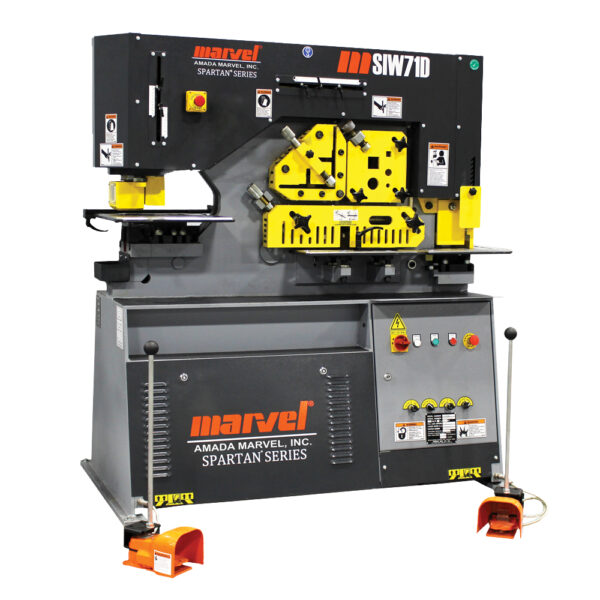

Marvel Spartan MSIW71D heavy-duty, dual cylinder, completely integrated Ironworker with 71 ton capacity, 5 work stations and simultaneous dual operation

Specifications:

Punching:

Punch Pressure: 71 Tons

Standard Tooling: 1 1/2″ in 9/16″ Material

CPD Series: 26 Punch, 62 Die

Large Tooling: 2″ in 7/16″

CPD Series: SP51P Punch, SP80D Die

Optional Oversize Tooling: 4 5/16″ in 3/16″ Material

Throat Depth: 12″

Stroke Length: 2 5/32″

Cycles per Minute in 3/4″: 25

Punching Station Work Height: 40 9/16″

Flat Bar Shearing:

Flat Bar Shear Capacity: 14″ in 5/8″

Max. Width x Thickness: 12″ in 3/4″

Blade Length: 15″

Angle Flange Trim: 4″

Flat Bar Shear Work Height: 35 1/2″

Angle Shearing:

Capacity:

@ 90°: 5″ x 5″ x 1/2″

@ 45°: 2 1/2″ x 2 1/2″ x 3/8″

Angle Shear Work Height: 44 7/8″

Bar Shearing:

Max. Round Bar Capacity: 1 3/4″

Max. Square Bar Capacity: 1 3/4″ x 1 3/4″

Six Cavity Round and Square Bar:

Round: 1/2″, 1″, 1 3/4″

Square: 3/4″, 1 3/4″

Max. Channel Shear (Optional): 5″

Max. H-Beam Shear (Optional): 5″

Bar Shear Work Height: 44 7/8″

Notching:

Rectangular Notcher: 1 3/4″ x 3 9/16″ x 3/8″

Notcher Work Height: 35 1/2″

Motor: 7.5 HP / 230v, 460v / 3ph

Standard Features:

Punch Holder and Jog Mode

Punch Work Table: Includes back gauge and adjustable stops

Adjustable See-Through Punch Stripper: For fast and easy set up. With electronic safety interlock

Die Holder: Adjustable for quick punch and die alignment

Lower Blade: Four usable edges

Support Table: Includes guides for accurate positioning and indicator lines at 30° and 45° left and right

Upper Shear Blade: Provides for minimum distortion. Two usable edges

Shearing with No Material Loss and Minimum Deformity

Shear Blades: Four usable Edges

Cover equipped with electronic safety lock

Gauge table with stops

Five Sets of Punches and Dies:

Punches: 9/16″, 11/16″, 13/16″, 15/16″, 1 1/16″

Dies: 19/32″, 23/32″, 27/32″, 31/32″, 1 3/32″

CPD Series: 20 Punch, 55 Die

Scrap Boxes at Punching and Notching Stations

Adjustable Back Gauge – Electric (3′)

Adjustable Stroke Depth at Punch Station

Full-Control Foot Pedals

Two Piece Gauging Table at Punch Station

Keyed Punch Holder for Shaped Tooling

Mechanical Specifications:

Dimensions: 70″ x 39″ x 74″ H

Weight: approx. 3,520 lbs.

FOB Factory – Contact us for Availability
