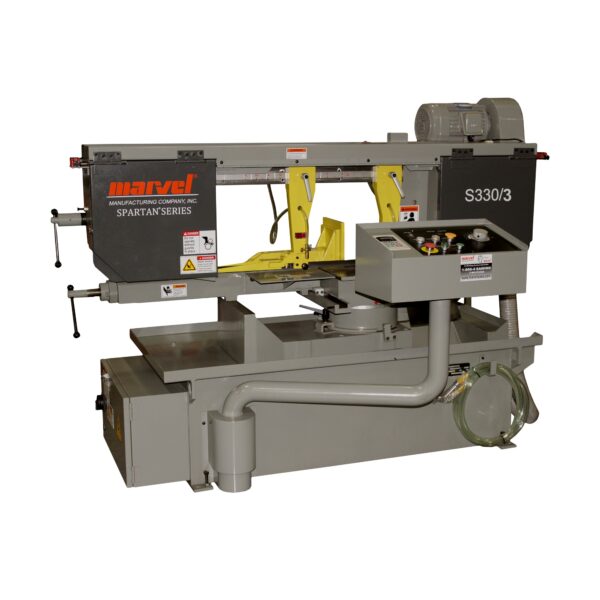

Amada Marvel Spartan 11″ x 12″ Horizontal Mitering Band Saw, S330/3/HV

Shipping: Add to Cart to Calculate

SKU: S330/3/HV

Inventory #: 7808

Categories: ,

Condition:

Type:

Brands: , ,

Description

Amada Marvel Spartan 11″ x 12″ Horizontal Mitering Band Saw, S330/3/HV

Inventory # 7808

Model: S330/3/HV

Specifications:

Capacity:

@ 45°:

Rectangle: 11″ x 12″

Round: 13″

@ 60°:

Rectangle: 11″ x 8″

Round: 9 1/2″

@ 90°:

Rectangle: 12″ x 18″

Round: 13″

Table Height: 30 1/2″

Blade Speed: 85, 150, 230, 330 FPM (Step Pulley)

Blade Size: 162″ x 1″ x .035″

Cast Iron Blade Wheels: 16″ Diameter

Machine Vise: Manual Quick Position with Cam Lock

Motor: 3 HP / 230v / 3ph

Standard Features:

Blade Tension: Manual tension (30,000 PSI) provides consistent square cutting accuracy

Speed Range: Blade speed is variable through a precision balanced step pulley and heavy-duty worm gear transmission. The broad speed range allows for optimum cutting of a large variety of materials

Hydraulic Down Feed: Infinitely variable feed rate is hydraulically controlled for fast, accurate cutting. Settings are made at the operator’s control station

Hydraulic Frame Return: The saw frame is raised hydraulically using a push button mounted on the operator’s control panel

Blade Guides: Carbide blade guides provide reduced vibration, heat, and blade stress providing longer blade life and accuracies of +.002 per inch of cut material

Chip Brush: Powered from the drive wheel of the saw, the brush changes speed with the blade to assure that chips are being removed from each gullet, improving cutting performance and blade life

Vise Jaw: Hydraulic vise design clamps and holds the work piece securely. The vise is operated by a selector switch located on the operator’s control panel. Maximum vise opening is 18″

Swivel: The saw frame swivels a full 60° to the rear and 45° to the front for optimum miter cutting capability. The pivot shaft has sealed bearings for maintenance free operation, while a pointer and angle scale (-60° to +45°) make set up fast and easy. Stops are provided at -60° and +45°

Operators Control Panel: Operation of the machine is safe and convenient from the swing arm pedestal mounted on the machine base

Mechanical Specifications:

Dimensions: 82 1/2″ x 86 1/2″ x 53 1/4″

Weight: approx. 3,000 lbs.

FOB Factory – Contact us for Availability

Additional information

Weight 3300 lbs
