Amada Marvel 18″ x 22″ Vertical Tilting Band Saw with Power Tilting Head Option, Series 8 Mark III

Shipping: Add to Cart to Calculate


Inventory #: 2338

Categories: , ,



Brands: ,


Amada Marvel 18″ x 22″ Vertical Tilting Band Saw with Power Tilting Head Option, Series 8 Mark III

Inventory # 2338

Model: Series 8 Mark III



@ 90°:

Horizontal: 18″

Vertical: 22″

@ 45°(Right):

Horizontal: 18″

Vertical: 14.5″

@ 45° (Left):

Horizontal: 18″

Vertical: 13″

@ 60° (Right):

Horizontal: 18″

Vertical: 9.7″

@ 60° (Left):

Horizontal: 18″

Vertical: 7.3″

Column in 3° Forward Cant Position:

Horizontal: 17 1/2″

Vertical: 22″

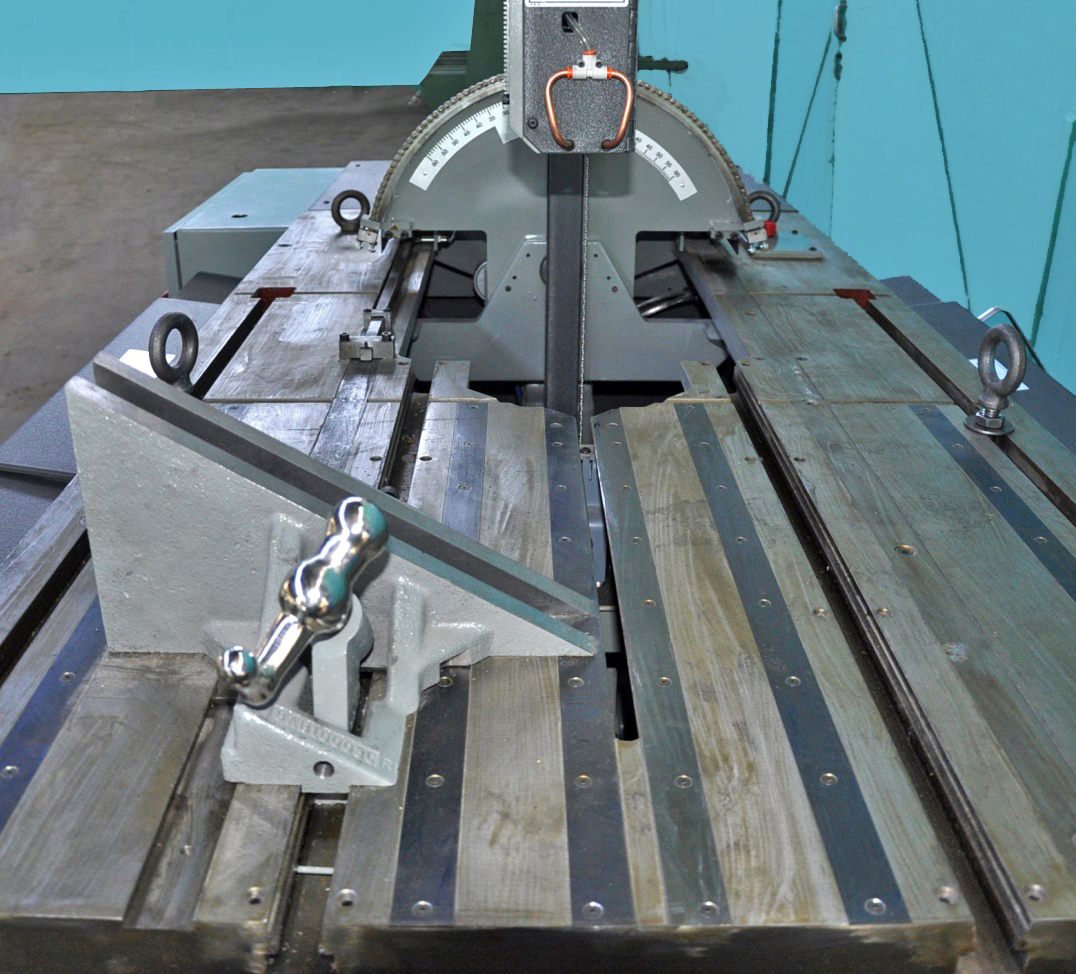

T-Slotted Work Table:

Work Area: 24 1/4″ x 33″

Table Height: 38″

Speed Range: 50 – 450 FPM (Variable with Inverter Drive)

Feed Range: 0 – 250 lbs.

Wheel Diameter: 19″

Quick-Action Vise: 12″ x 18″ x 6″

Blade: 15′ 4″ x 1 1/4″ x .042″

Blade Tension: 40,000 PSI

Motor: 5 HP / 208v, 240v, 480v / 3ph (Please Specify Desired Voltage at Time of Order)

Standard Features:

Front mounted speed control allows blade speed to be adjusted from operator’s control station

Feed range in infinitely variable with control on operator’s panel and automatic column return

Column feed is mechanical with Marvel clutch power feed

One manual vise

Two machined t-slots

Cast iron wheels

Blade break/stall detection shuts off machine in the event of blade breaking or stalling

For miter cutting, column and blade tilt up to 60° right and left of vertical; work always stationary

Electric power tilt

Marvel patent pending quick change column is standard and allows column to be set either upright or at a 3° forward cant

Column travels on recirculating linear ball bearing rails

Adjustable stops can be pre-set to stop advance and return of blade and also stop motor at any location within the 18″ travel of the blade

Coolant system is built in with flood system and is controlled by an on/off selector switch at the opertor’s station

A flushing hose washes chips from hard to get places reducing your clean-up time

Power chip brush together with blade wipers and flood coolant keep blade teeth free of chips

Solid carbide post design equipped with patent pending Marvel easy load guide blocks. Upper and lower guides have preloaded carbide faced back-up blocks to support back edge of blade

IEC fused disconnect switch and magnetic motor starters with overload and low-voltage protection

Disconnect is NFPA79 compliant

DC power supply provides low voltage control to all push buttons at operator’s control panel and machine lighting circuits

PLC control and components mounted in moisture proof NEMA 12 compartment

Electrical panel is UL labeled

Mechanical Specifications:

Dimensions: 102″ x 72″ x 90″

Weight: approx. 3,000 lbs.

FOB Factory – Contact us for Availability

Additional information

Weight 3000 lbs
