Akyapak 5′ x 9/32″ 4-Roll Plate Roll, AHS 15/05

Shipping: Add to Cart to Calculate

SKU: AHS 15/05

Inventory #: 8131

Categories: ,

Condition:

Type:

Brand:

Description

Akyapak 5′ x 9/32″ 4-Roll Plate Roll, AHS 15/05

Inventory # 8131

Model: AHS 15/05

Description:

As well as being reliable, AHS increases productivity with its high speed rolling ability and it overcomes the most challenging bends thanks to its ease of use. Since the plate is pinched during rolling, skidding and slipping of materials are prevented. In AHS plate rolling machines, one of the side rolls can be used as a squaring roll, thus the plate can be easily and precisely aligned along the roll across the input direction

In AHS 4-roll machines, it is possible to achieve a full cylinder at a single pass because the material can be pinched with the lower-roll during pre-bending and bending. AHS model allows for precise pinching of the plate between upper and lower rolls

Specifications:

Working Length: 5′

Max. Thickness: 9/32″

Pre-Bending Thickness: 6 Gauge

Top Roll Diameter: 6.3″

Bottom Roll Diameter: 5 1/2″

Slide Roll Diameter: 4.7″

Motor: 3 HP

Standard Features:

Cone bending device

Induction hardened rolls

Digital display for side rolls

Fully welded steel construction body

Separate moving control panel

Two rolling speeds

Electro-hydraulic calibration

All rolls are mounted in roller spherical roller bearings

Safety equipment around the machine

Central rolls are driven by hydraulic motors and planetary gearboxes

Certified by CE, ISO 9001 – 2008, TSEK and TURQUM

Mechanical Specifications:

Dimensions: 144″ x 44.4″ x 40.8″

Weight: approx. 4,630 lbs.

Price on Request

FOB Factory

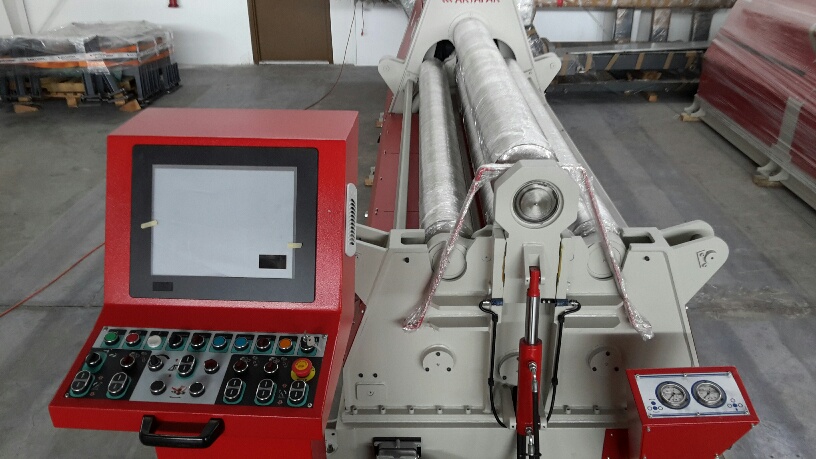

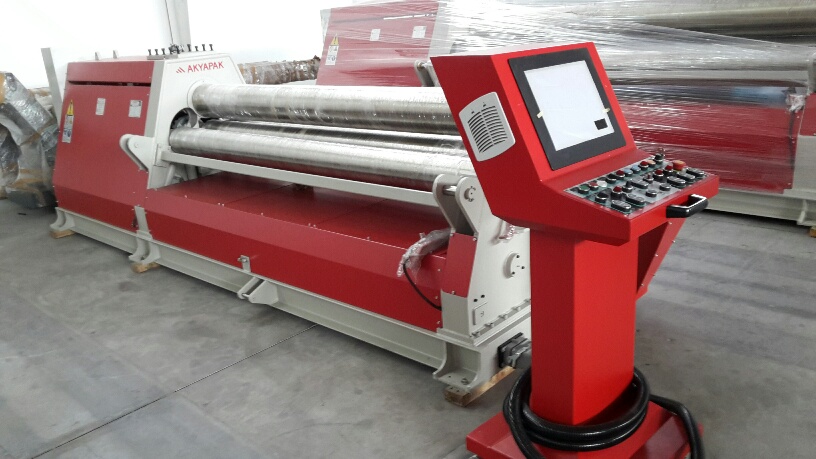

Please Note: Photo is of Model AHS 20/08 and is for Representation Only. Actual Product Purchased Will Differ in Appearance

Additional information

Weight 5000 lbs
