Description

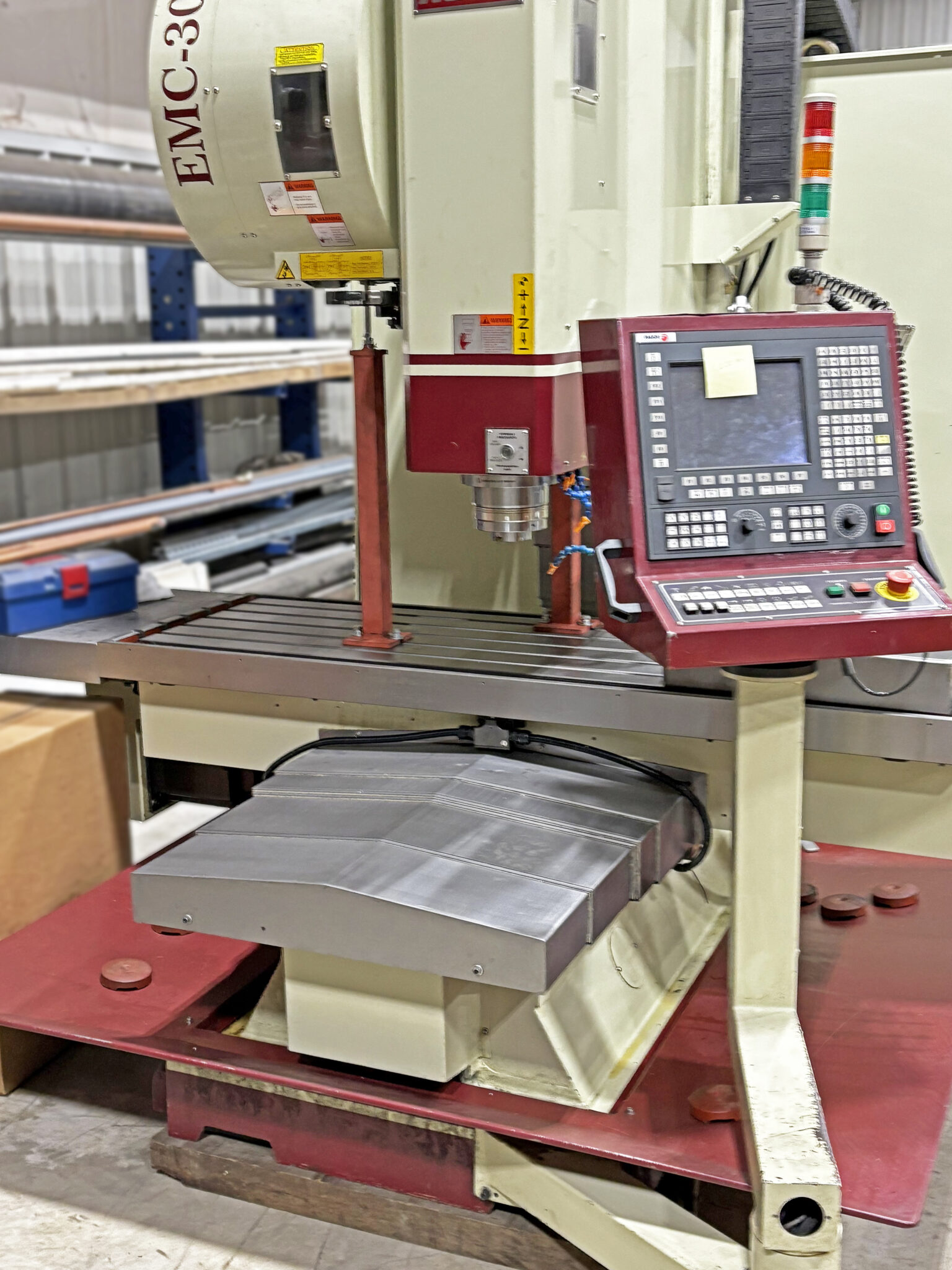

Acer 30″ x 60″ Vertical Machining Center, EMC 3060
Inventory # 9982-B

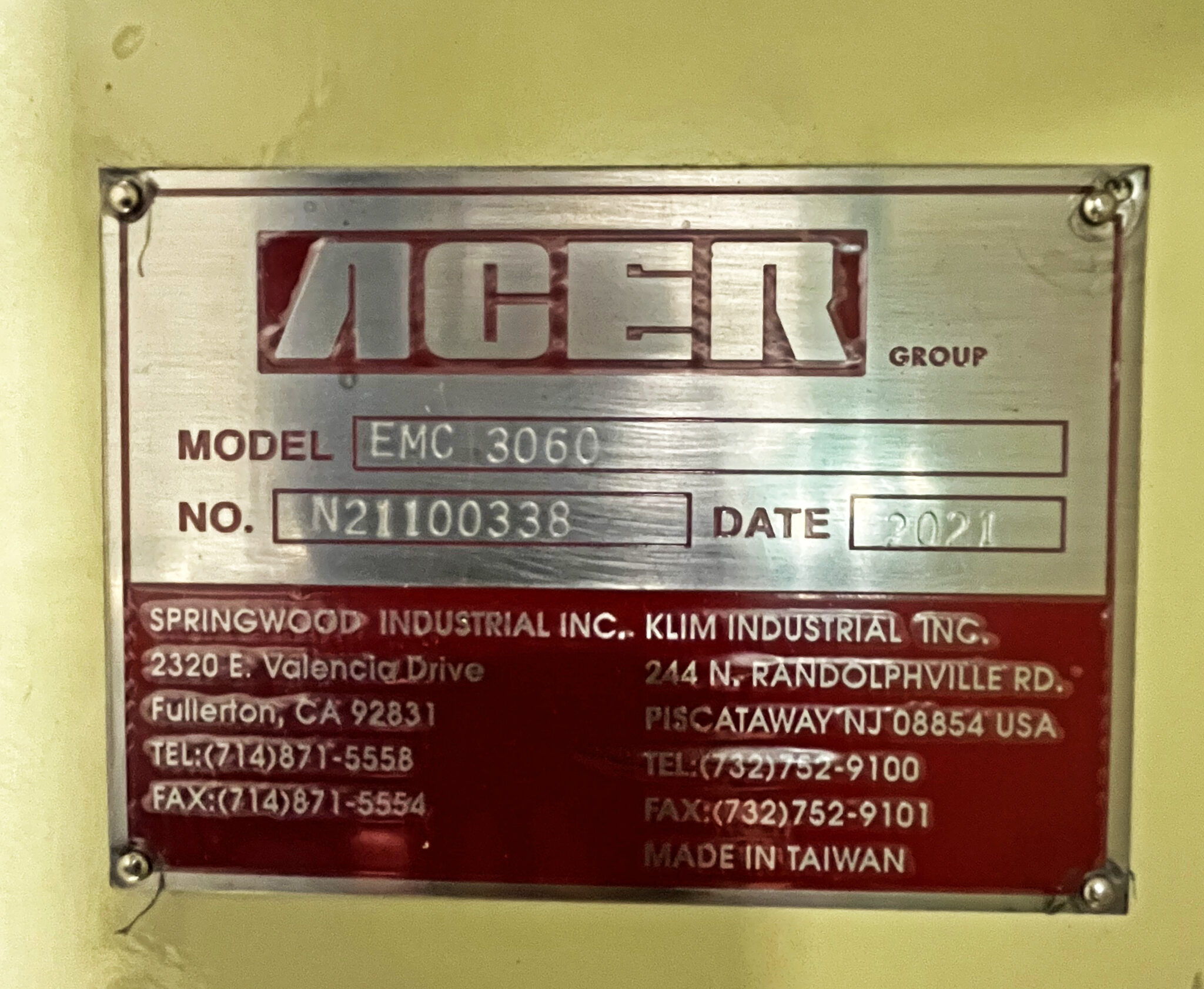

Model: EMC 3060
S/N: N21100338
Specifications:
Travels:
X-Axis: 60″
Y-Axis: 30″
Z-Axis: 28″
Table Size: 24″ x 73″
Max. Load on Table: 3,300 lbs.
Spindle Speed: 60 – 8,000 RPM
Spindle Taper: 40 CAT

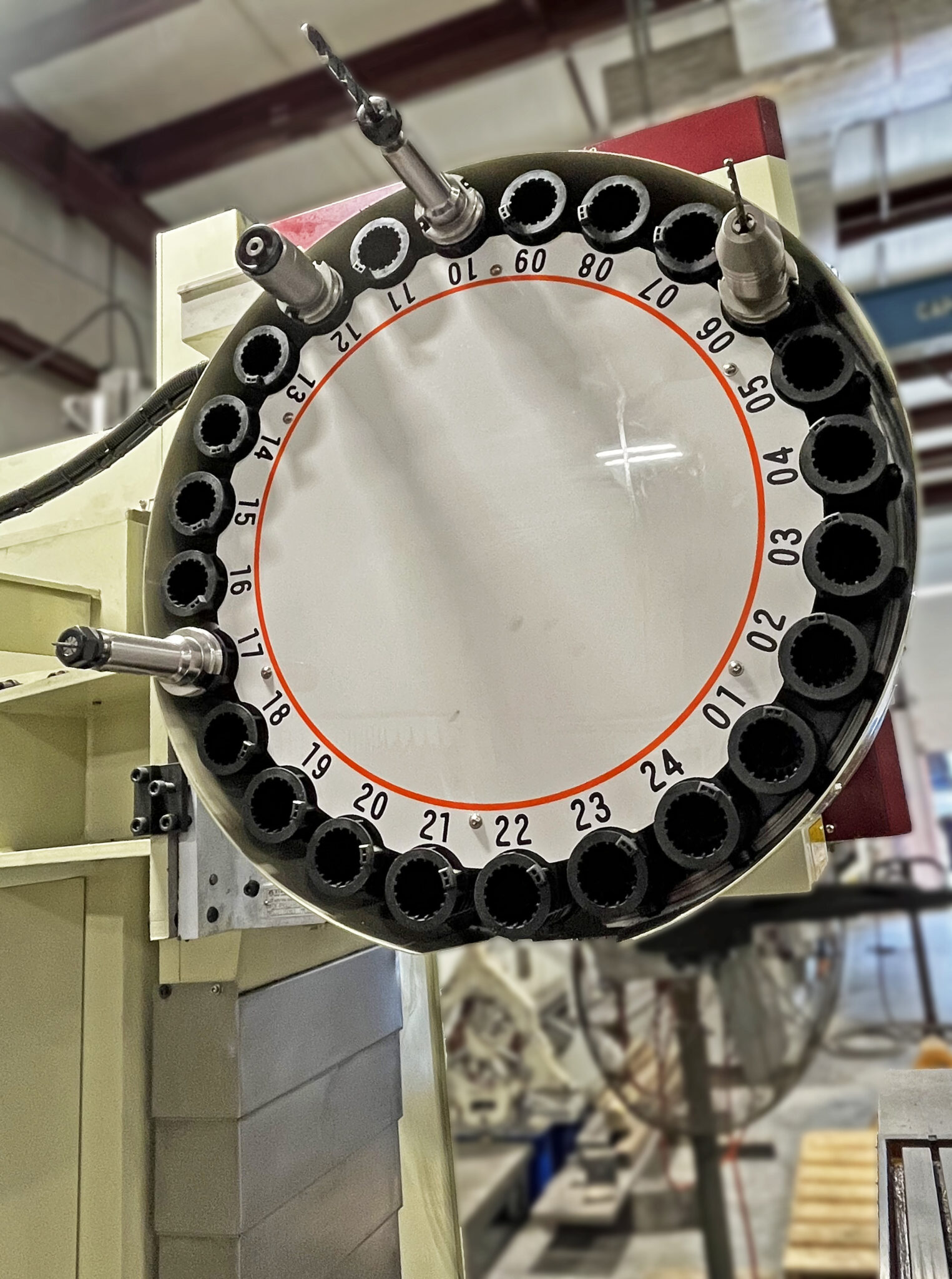

Automatic Tool Changer: 24 Tools
Motor: 10 HP
Standard Features and Accessories:

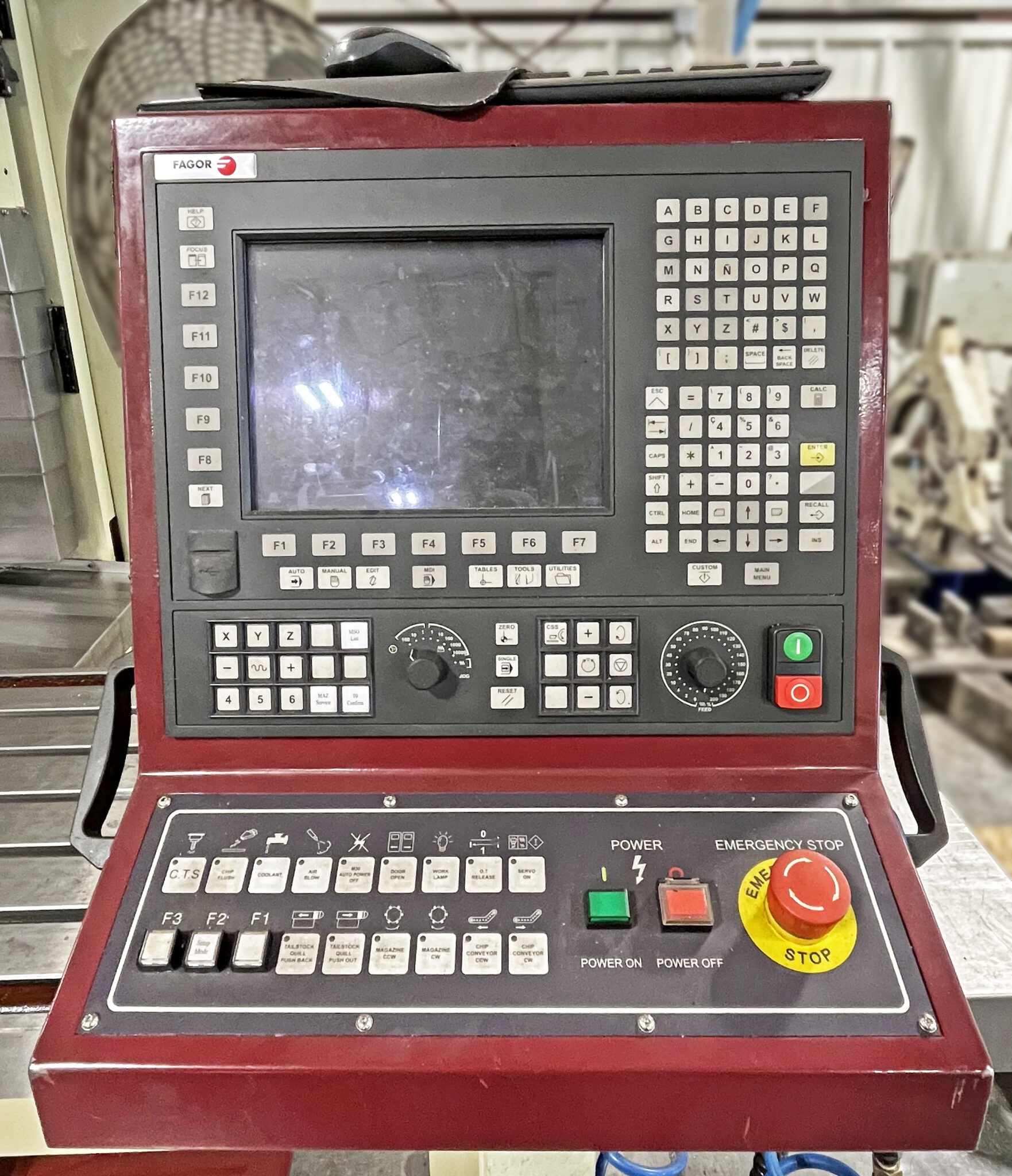

Fagor 8060i/FL-MC 3-Axis CNC Control with 24 Pocket Arm-Type Auto Tool Changer:
– Number Canned Cycles in Conversational and G-Code
– Fill-In the Blanks & Press Cycle to Start
– No Memory Limit on Programs
– 11″ Color TFT LCD Monitor
– Built-In Mini CAD/CAM
– USB Port
– Flash Memory: 1 MB
Tool Clamp/Unclamp Button
Halogen Light
Four Coolant Nozzles Output to Splash the Workpiece Cleanly
Retractable Z-Axis Roller Cover to Block Coolant and Chips from Entering the Slideways
Hard Stop Limit Switch Provides as the Secondary Traveling Limit
Telescopic Steel Way Cover
Y, Z Axes have Square Ways
FC 30 Castings Weighing at an Impressive 8,360 lbs.
2.5 HP German-Made Servo Motor is Joined with C5 Ball Screw through Non-Slip HTD Timing Belt and Pulley
Table Splash Guard with Retractable Doors
Column Side Guard
Every Acer EMC Spindle is Loaded with Five P4 Precision Angular Contact Ball Bearings (NSK or FAG)
20 HP Spindle Motor Made in Germany

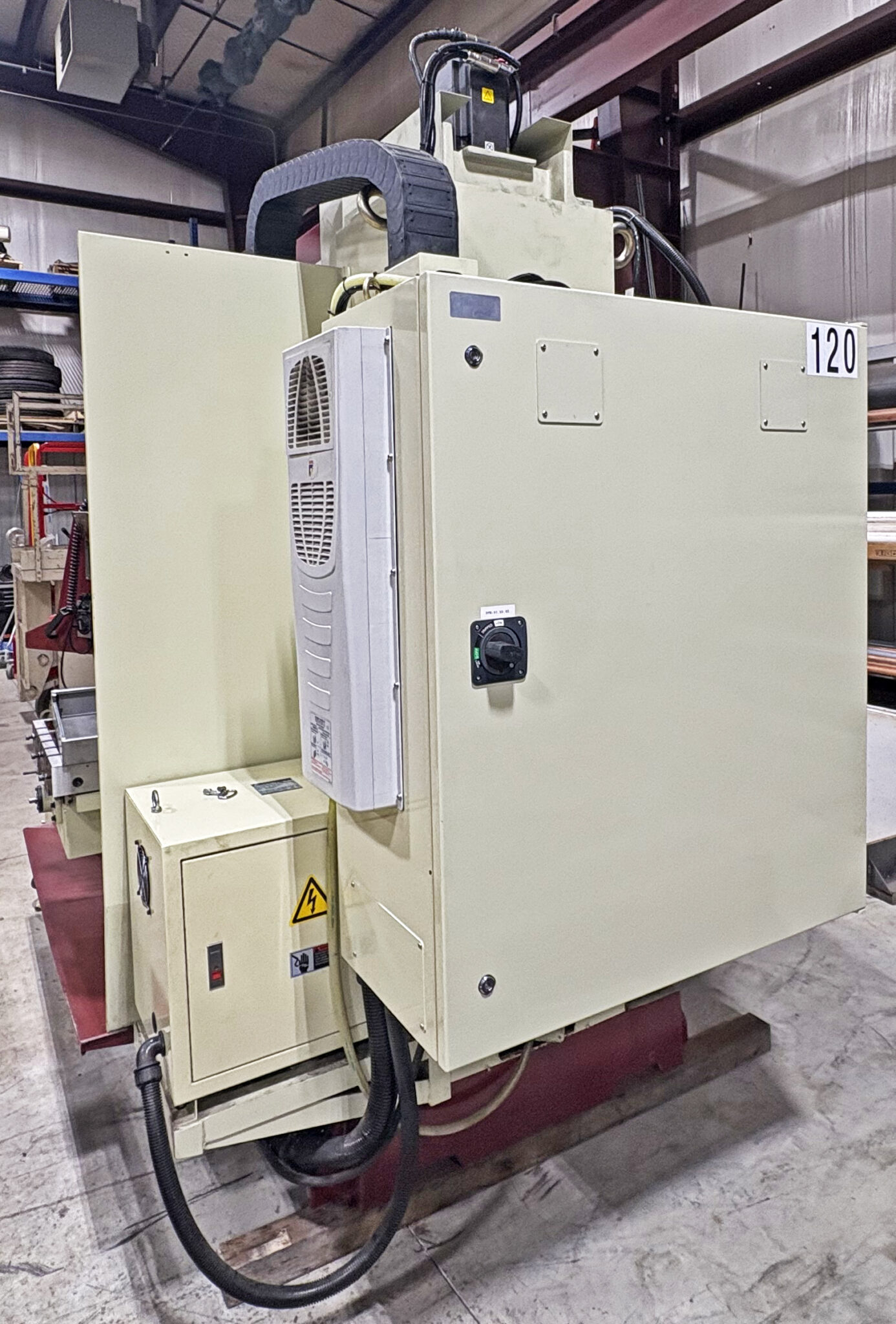

Acer Electric Cabinet is Carefully Laid Out and Ready for More Expansion
90 Degree Swing Overhead Control Arm
Mechanical Specifications:
Dimensions: 113″ x 174″ x 107″ H
Weight: approx. 10,600 lbs.
Located in Winchester, VA Warehouse – Buyer Responsible for Loading
New Replacement Cost: $86,500.00+
Please Note: This Machine is Being Brokered and is Being Sold As-Is, As-Inspected, with No Warranty and No Return Privilege
