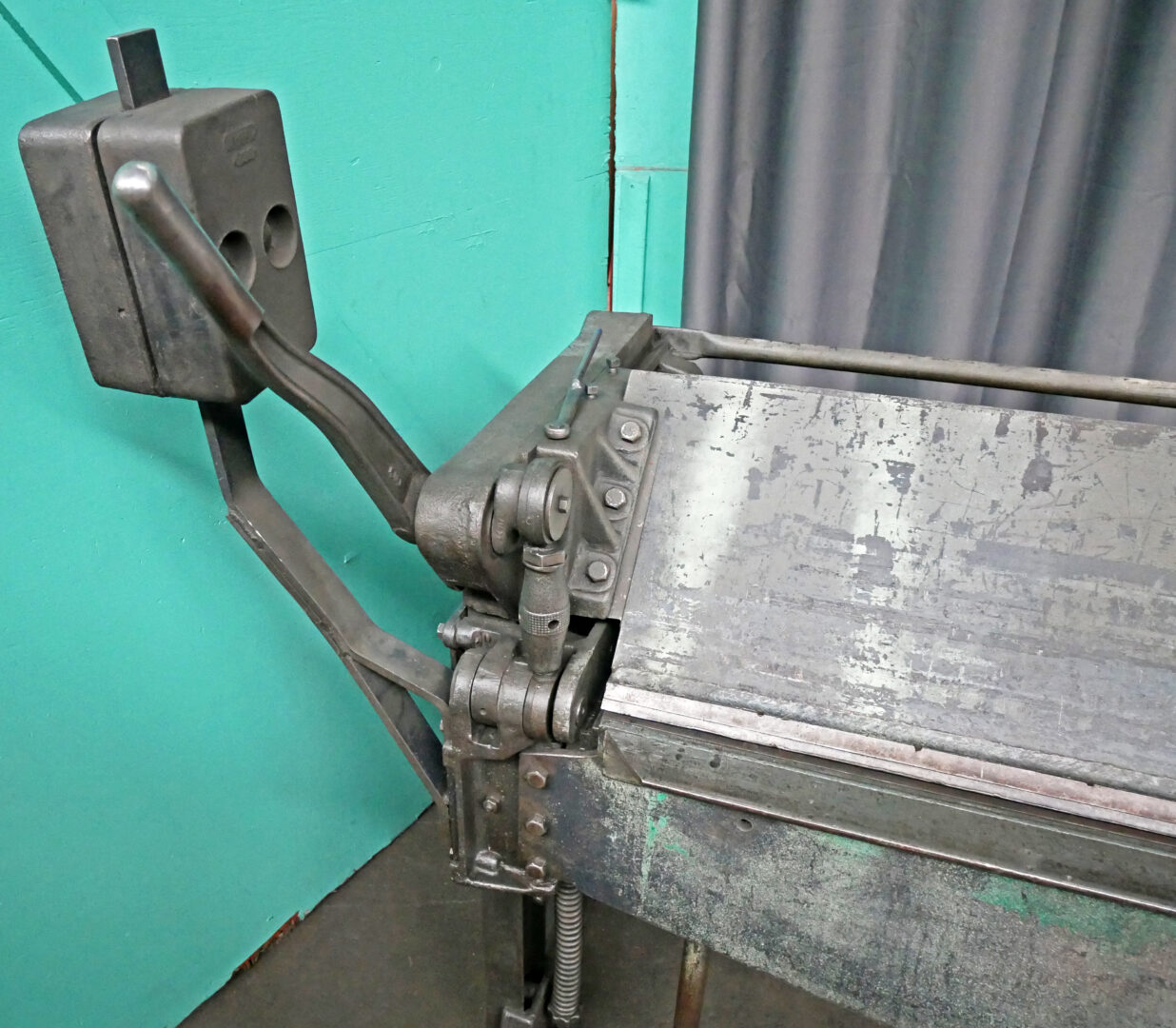

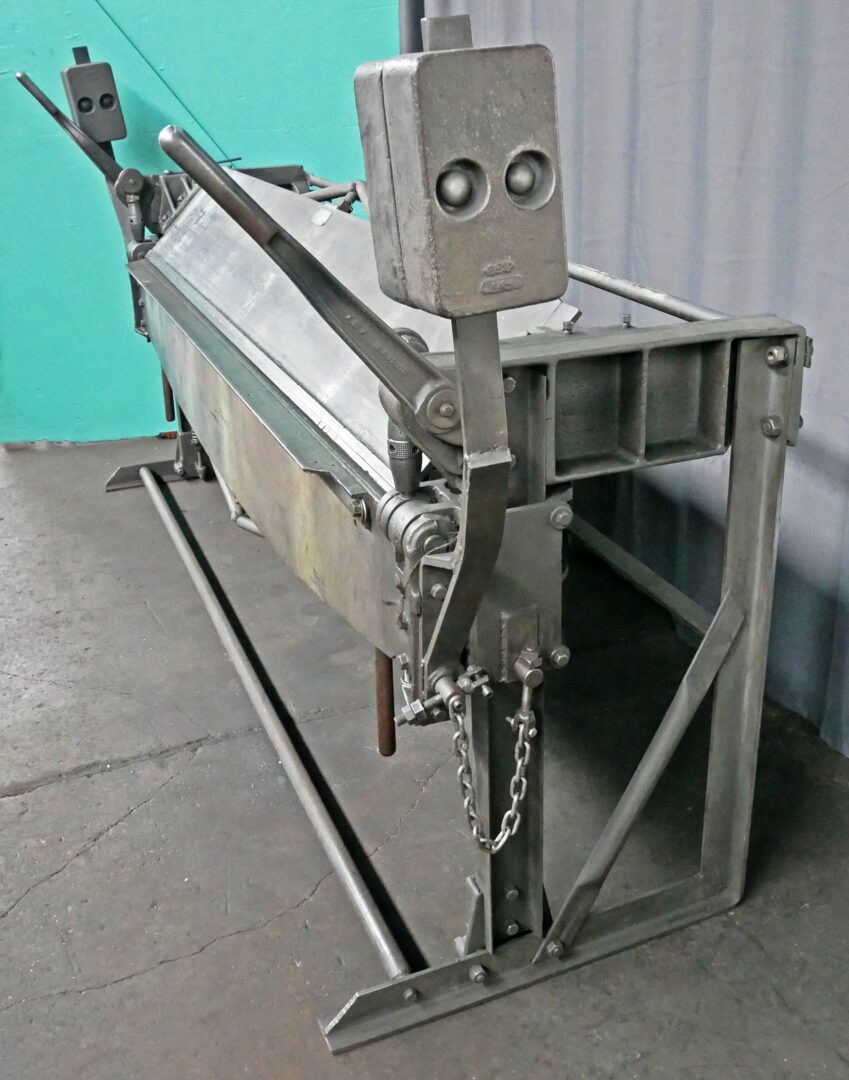

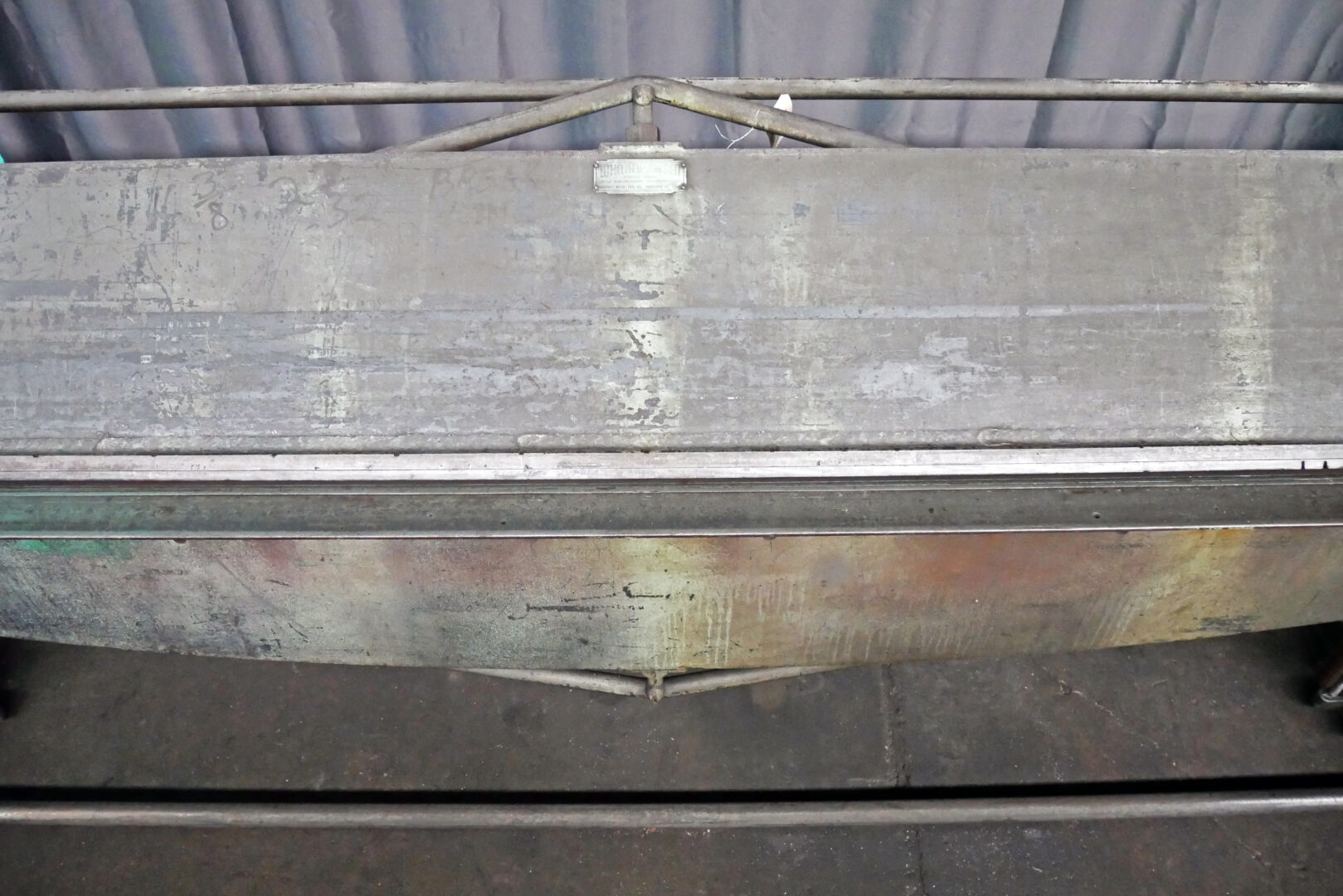

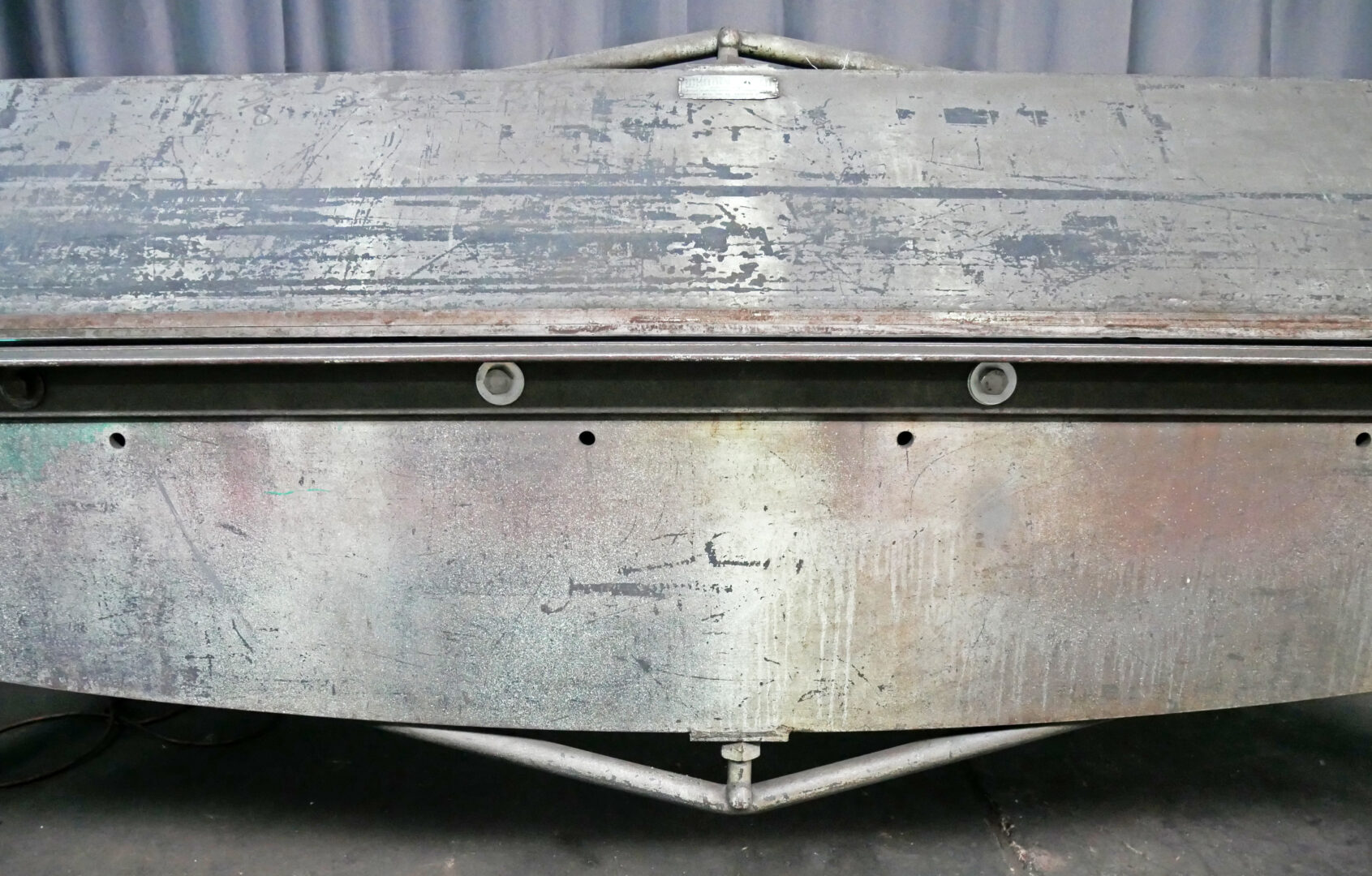

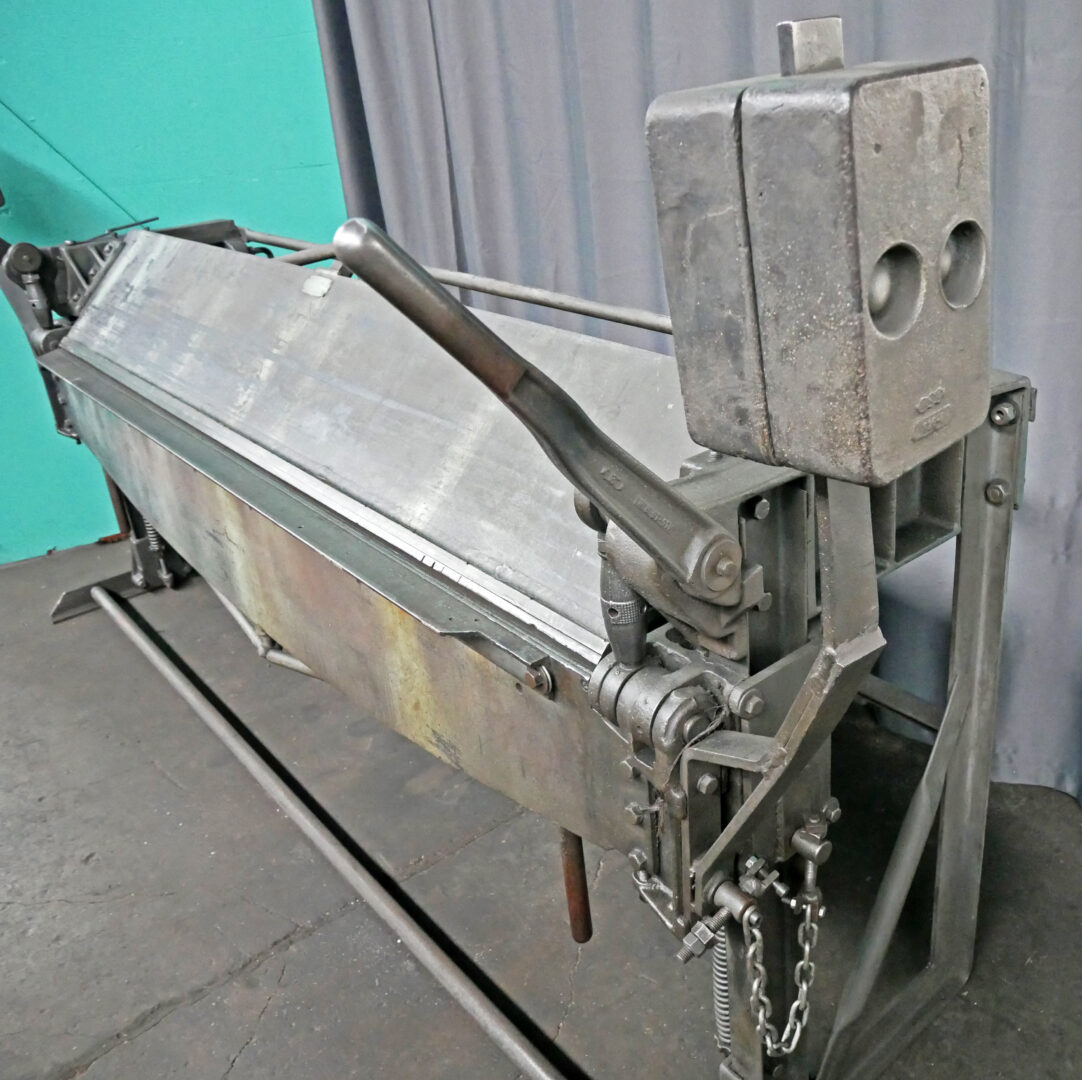

Whitney Jensen 8′ x 16 Gauge Combination Roller-Bearing Bending Brake, 816
Inventory # 10007
Model: 816
Made in USA
Description:
The Whitney-Jensen combination roller-bearing bending brakes represent a departure from the old conventional hand brake design. They are not limited to straight bending and box and pan work alone, but will accommodate inside bending, radius forming, and many other intricate forming operations with special attachments
Specifications:
Max. Working Length: 97″
Capacity:
Mild Steel: 16 Gauge
Stainless Steel: 12 Gauge
Min. Reverse Bend: 1/4″
Max. Lift of Beam: 1 5/8″
Front to Rear Adjustment: 1 1/8″
Mechanical Specifications:
Dimensions: 135″ x 45″ x 62″ H
Weight: approx. 2,200 lbs.
FOB Our Baltimore, MD Warehouse
