Trumpf TrumaBend 100″ x 93 Ton Hydraulic Press Brake, V85SX


Shipping: Add to Cart to Calculate

In stock


Inventory #: 8730-P

Categories: ,

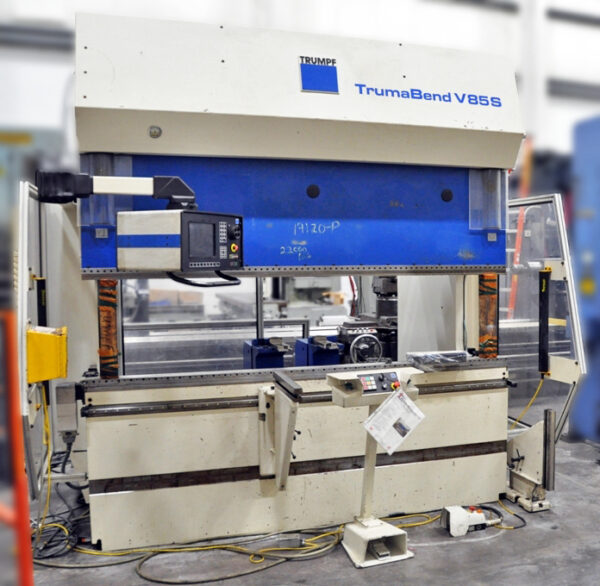

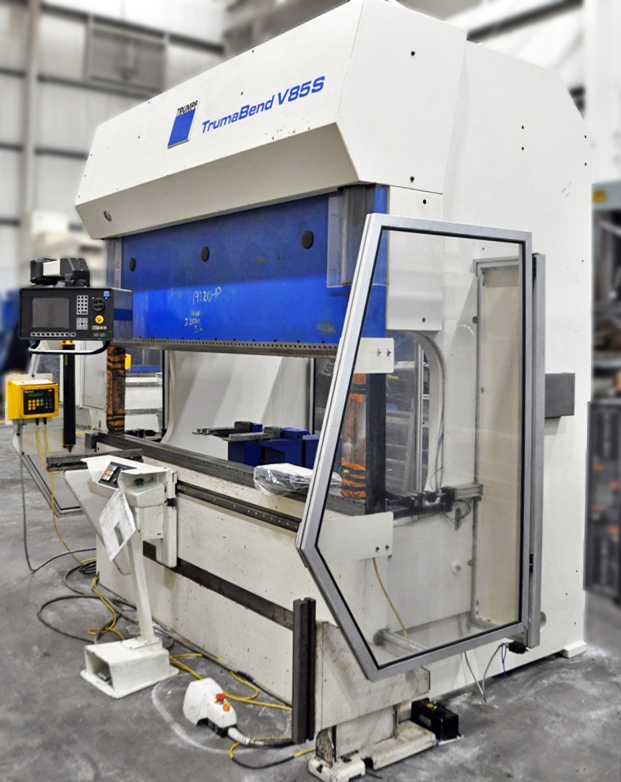

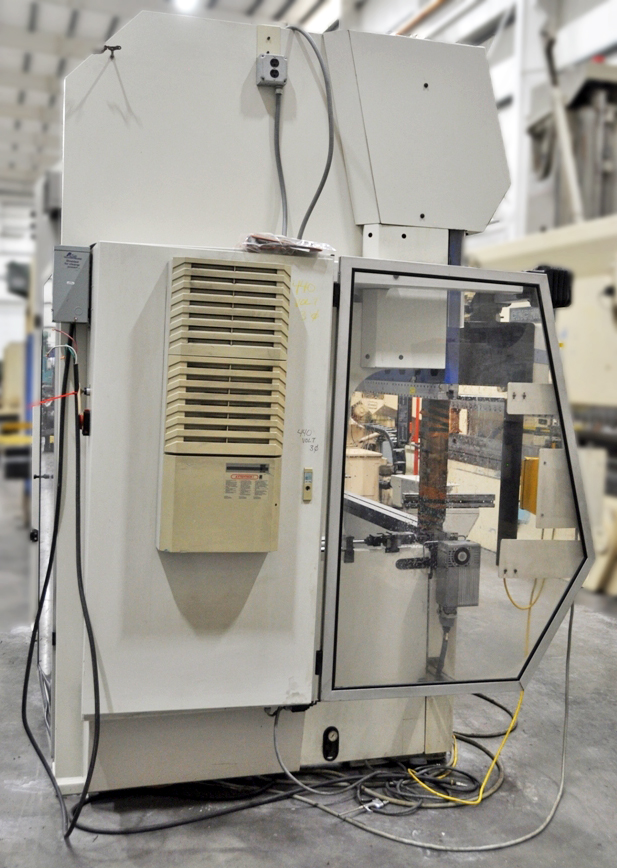

Trumpf TrumaBend 100″ x 93 Ton Hydraulic Press Brake, V85SX

Inventory # 8730-P

Model: V85SX

S/N: 883888


Rated Tonnage: 93.67 Tons

Bed Length: 100″

Distance Between Frames: 89″

Stroke: 14.37″

Max. Bed-Press Beam Distance: 25″

Open Height: 21″

Throat: 16″

Width of Bed: 4 3/4″

Ram: Y-Axis (Y1, Y2)

Rapid Speed: 472″ per Minute

Operating Speed: 2″ to 24″ per Minute

Return Speed: 320″ per Minute

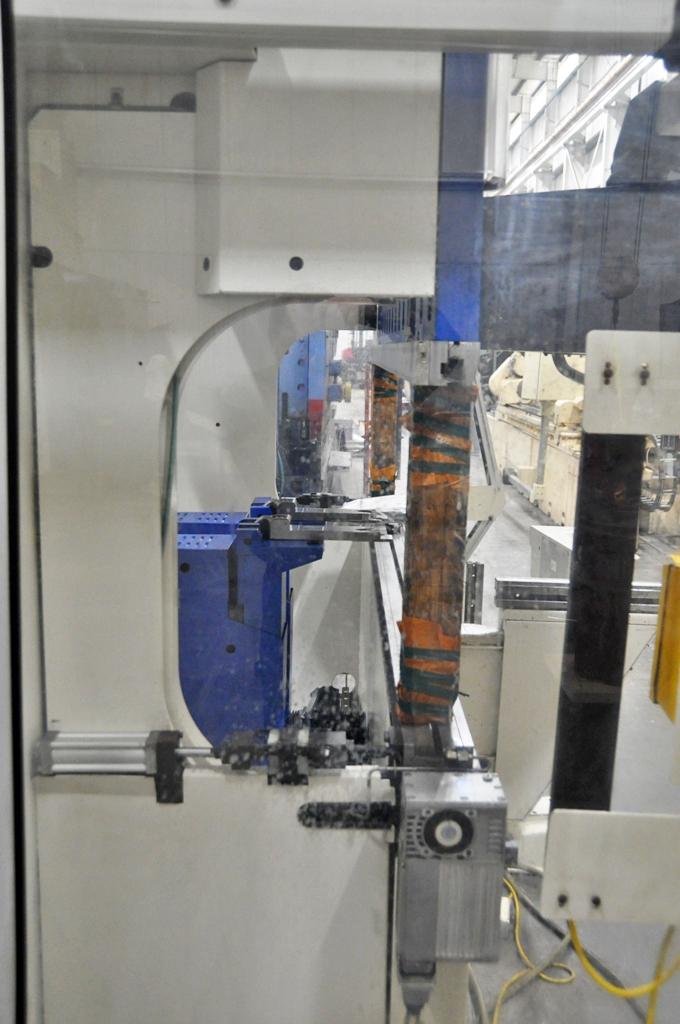

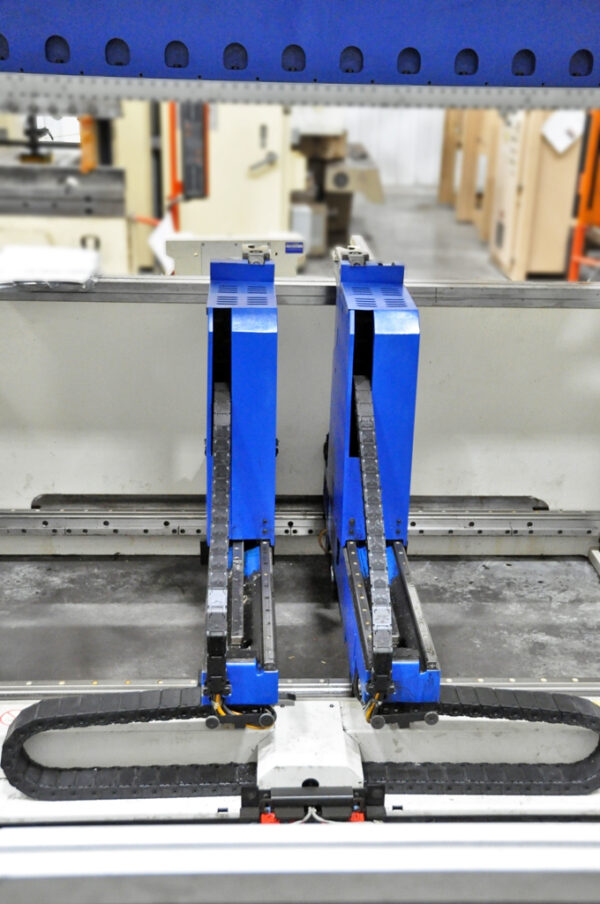

6-Axis Back Gauge:

X-Axis Travel (X1, X2): 23.6″

Max. Distance in X: 33 1/2″

Max. Speed of X-Axis: 1,200″ per Minute

R-Axis Travel (R1, R2): 9.8″

Max. Speed of R-Axis: 710″ per Minute

Max. Speed of Z-Axis (Z1, Z2): 1,900″ per Minute

Oil Capacity: 53 Gallons

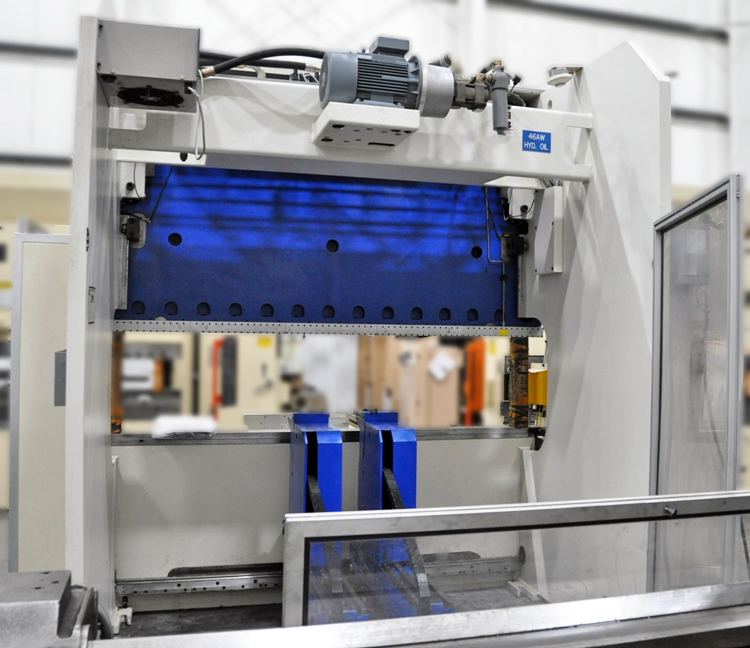

Motor: 15 HP

Equipment Included:

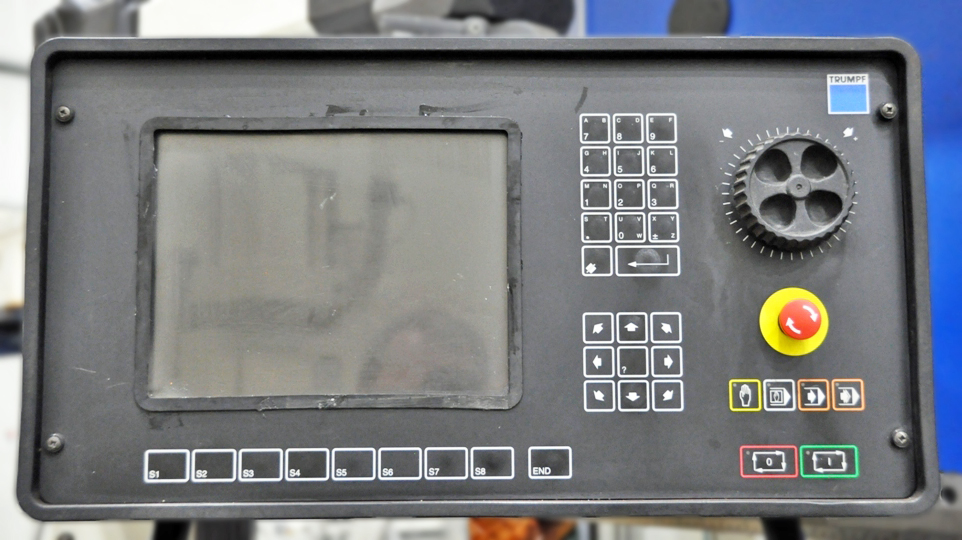

Delem Control

6-Axis Back Gauge

Program Controlled Lower Tool Adjustment (I-Axis)

Hardened Lower Tool Holder

Self-Centering Upper Tool Holder

Power Clamping to Upper Tool

(2) Back Gauge Finger Support Surfaces

Controlled Beam Inclination Crowning

(2) Adjustable Sheet Support Arms

Light Curtains

Mechanical Specifications:

Dimensions: 126″ x 83″ x 114″ H

Weight: approx. 22,000 lbs.

FOB York, PA Warehouse

Additional information

Weight 23500 lbs
