Description

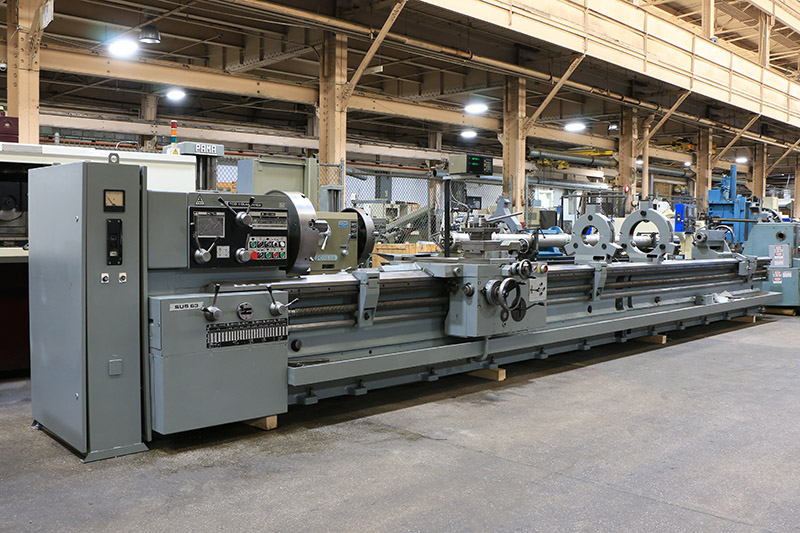

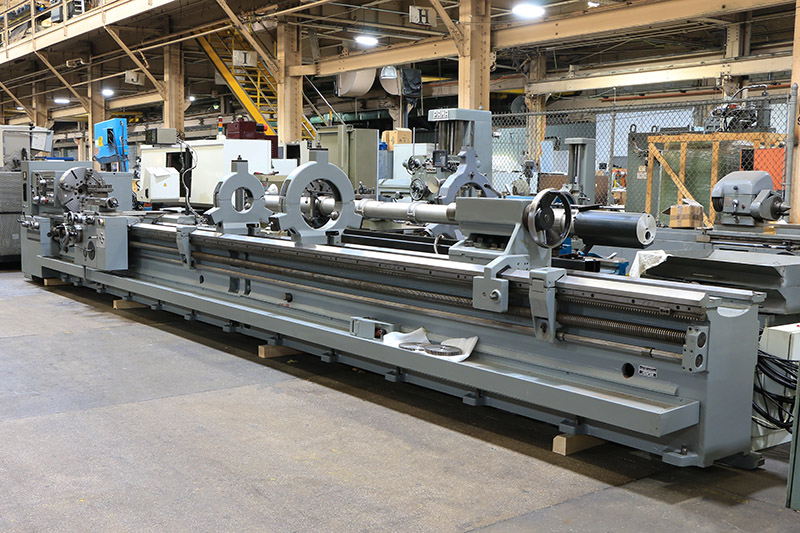

TOS 25″ x 320″ Engine Lathe, SUS-63
Inventory # 10136-P
Model: SUS-63

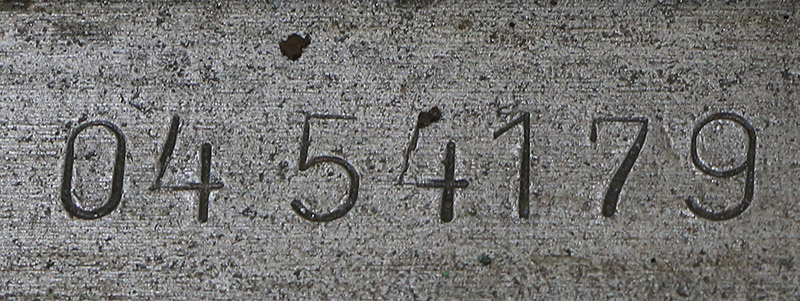

S/N: 0454179 “1991”
Specifications:
Swing Over Bed Ways: 25.8″
Swing Over Cross Slide: 15.4″
Distance Between Centers: 320″
Hole Thru Spindle: 3.3″
Width of Bed: 23″

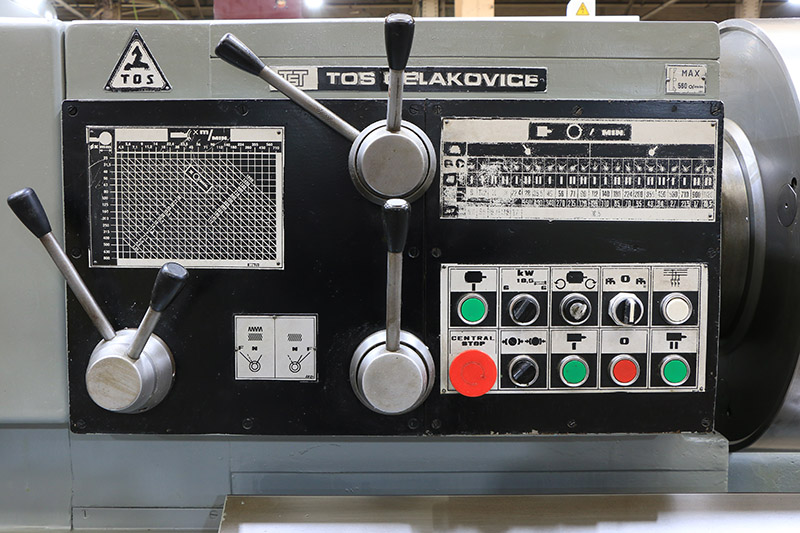

Spindle Speed Range: (22) 9 – 1,120 RPM
Longitudinal Feed Range: .002″ – .12″ IPR
Longitudinal Feed with Spindle Counter Shaft: .004″ – .94″ IPR
Cross Feeds are Half of the Longitudinal Setting
Inch Threading Range: (48) 1/4 – 56 TPI
Metric Threading Range: (40) .5 – 224 mm

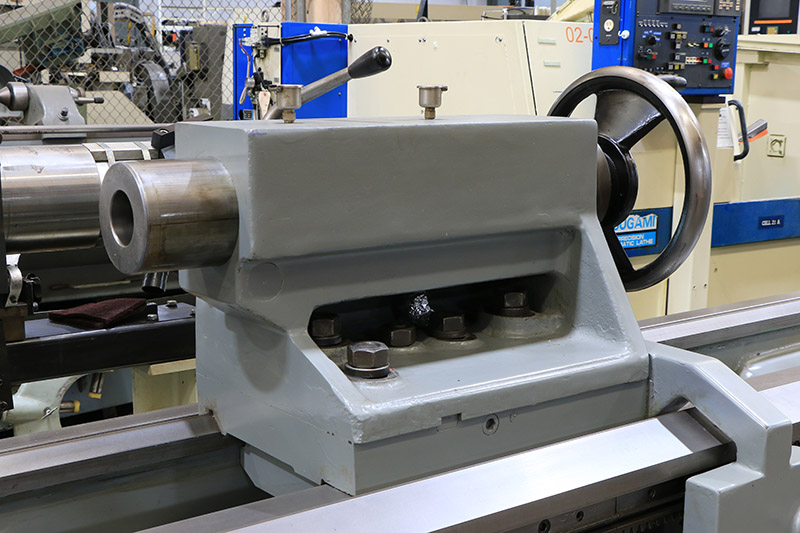

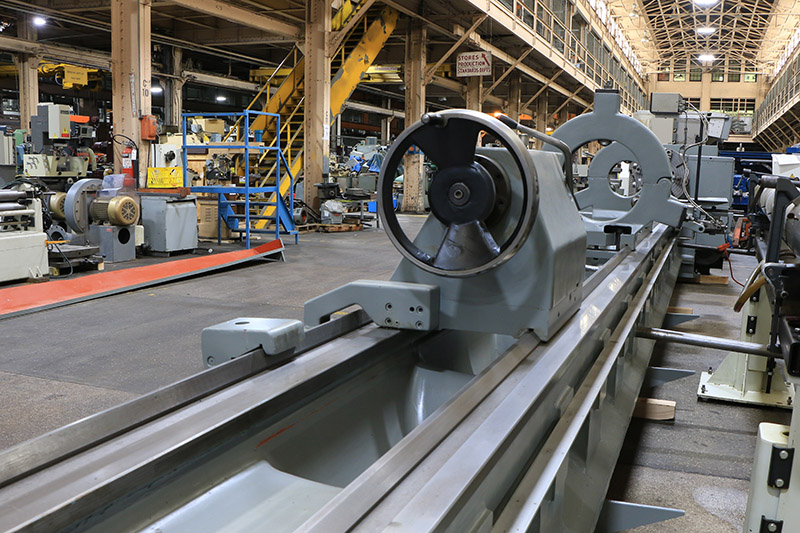

Tailstock Spindle Travel: 11″
Tailstock Spindle Taper: 6 MT
Motor: 25 HP
Equipment Included:

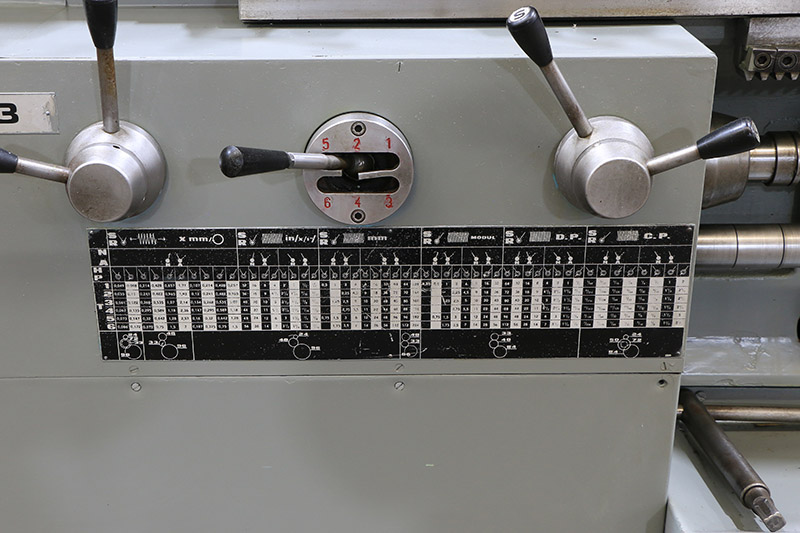

Inch & Metric Threading

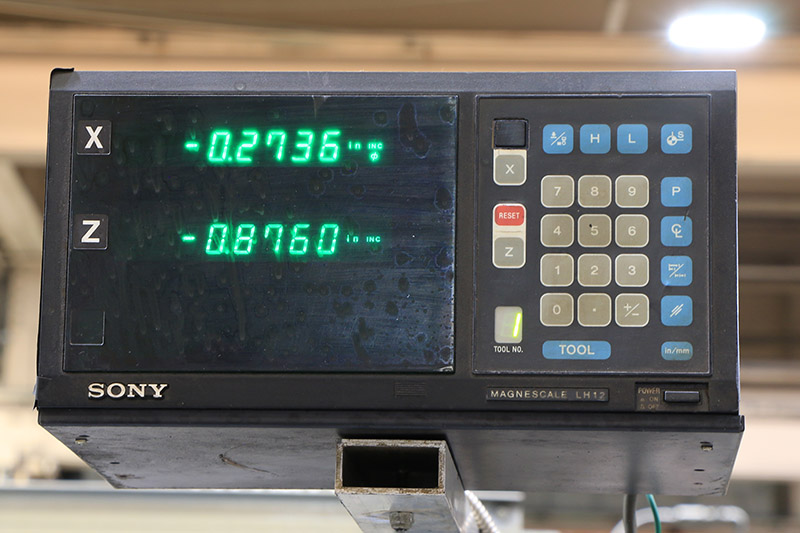

Sony Two-Axis Digital Readout

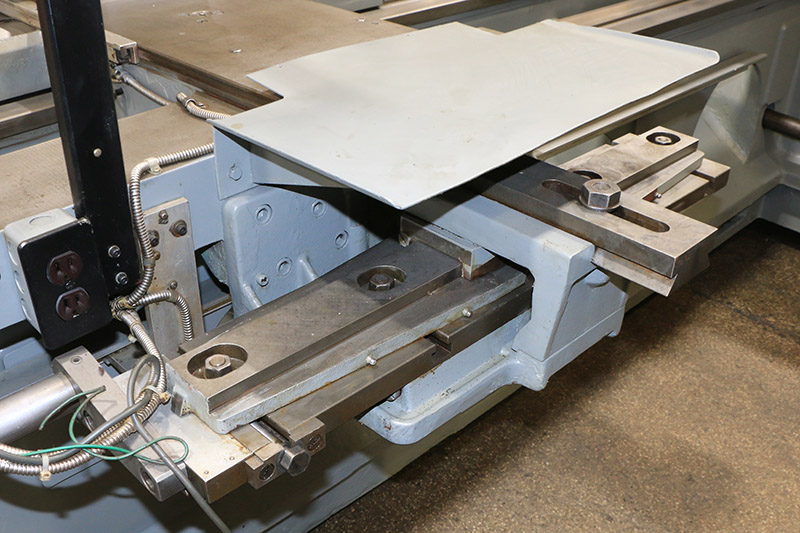

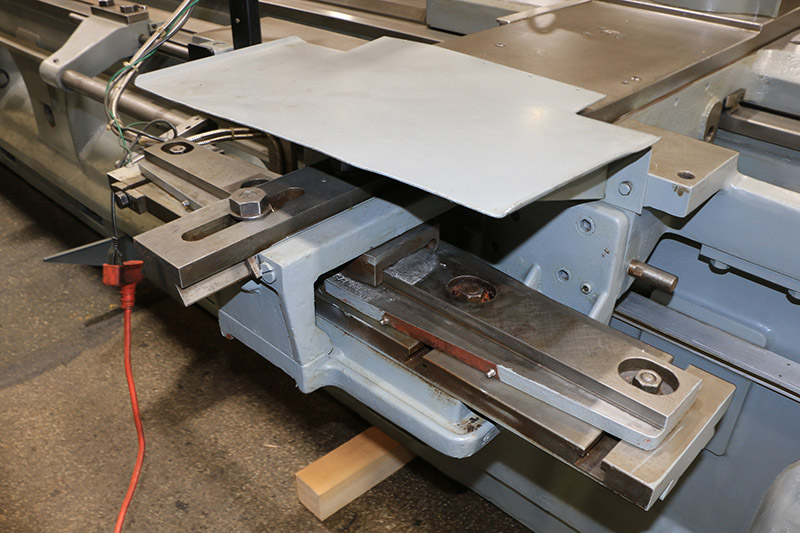

Taper Turning Attachment
Rapid Traverse

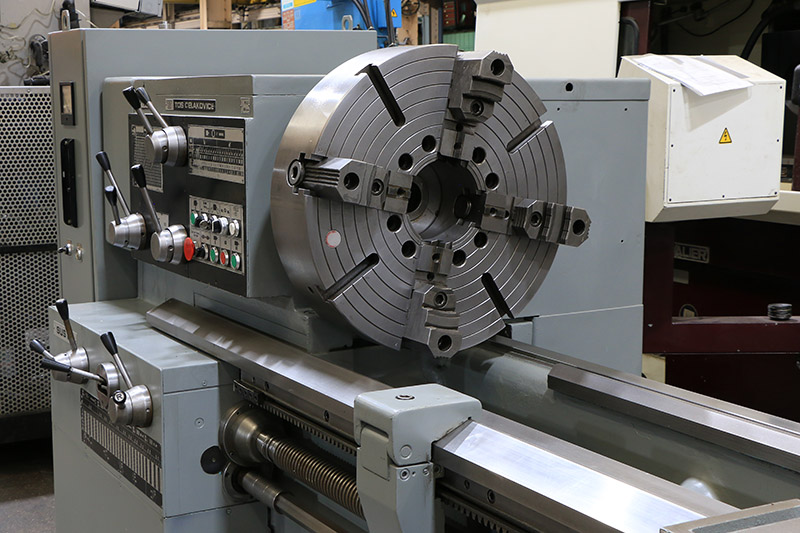

23 1/2″ 4-Jaw Chuck

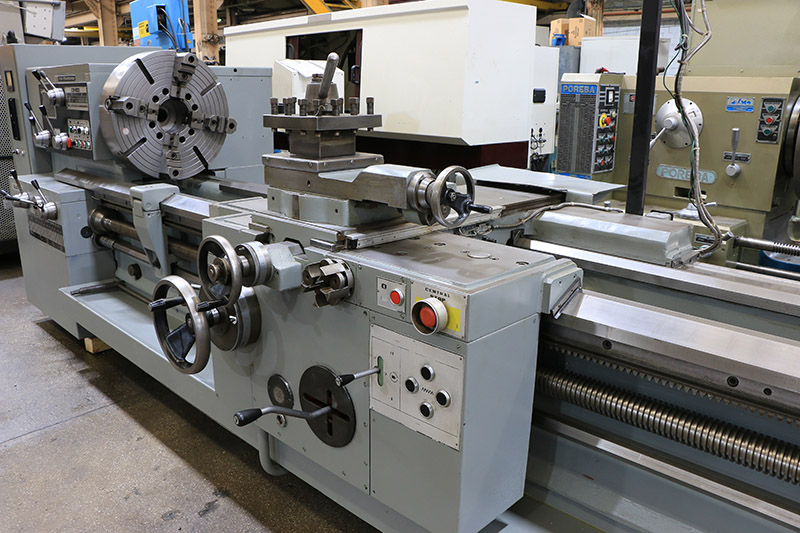

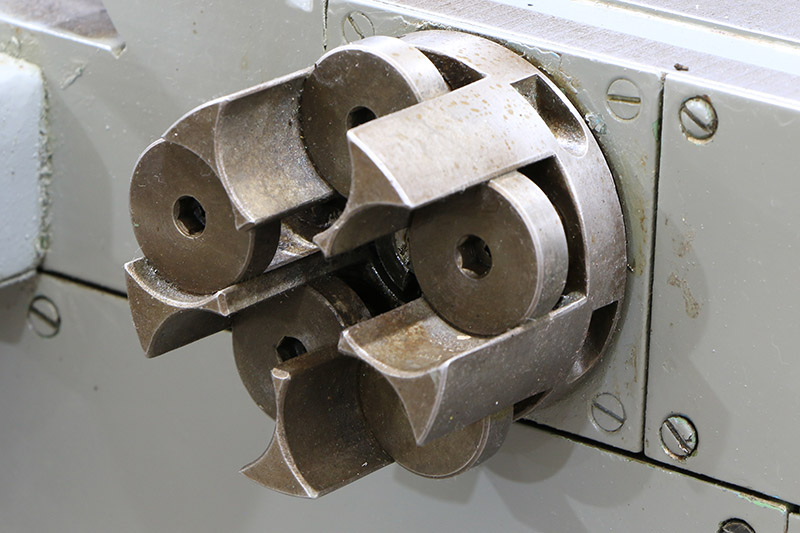

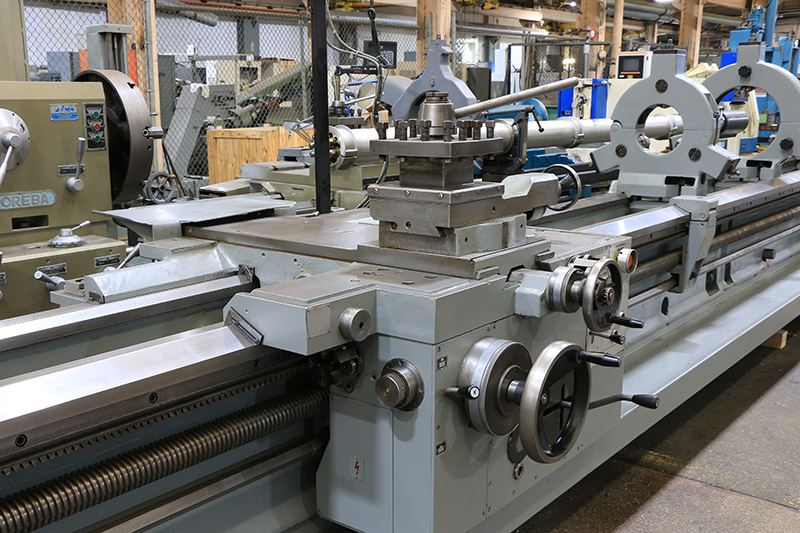

4-Way Turret Tool Post

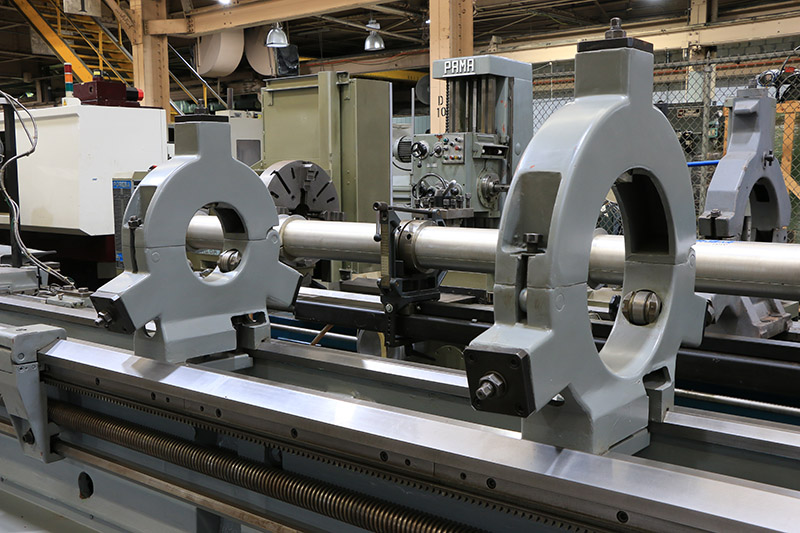

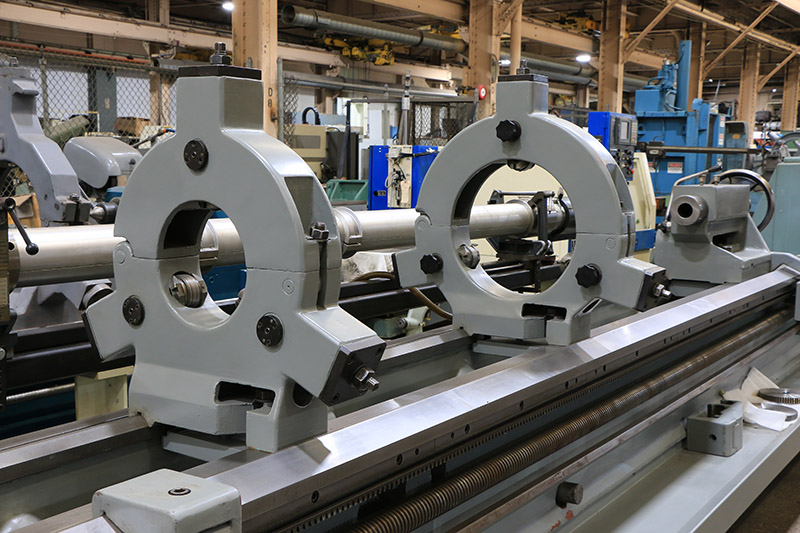

15″ Roller-Type Steady Rest
Coolant System

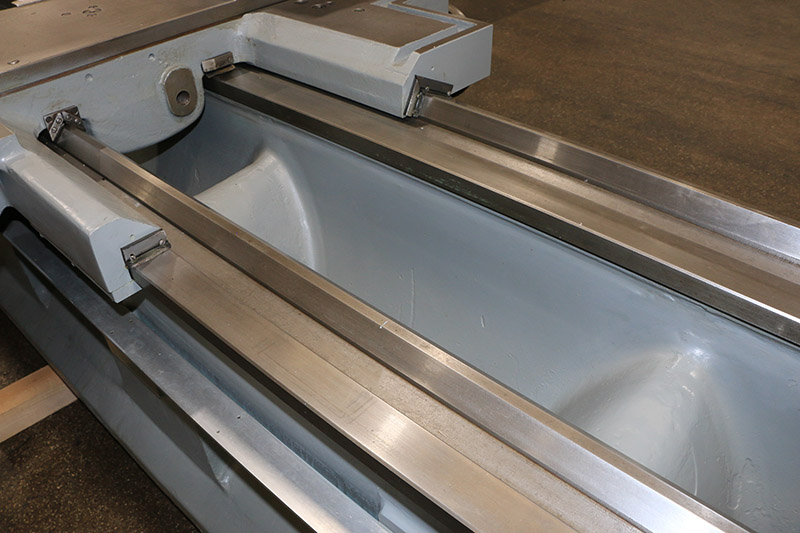

Hardened and Ground Bed Ways
Mechanical Specifications:
Dimensions: 390″ x 74″ x 60″ H
Weight: approx. 26,000 lbs.
FOB Harrison, NJ Warehouse
