Description

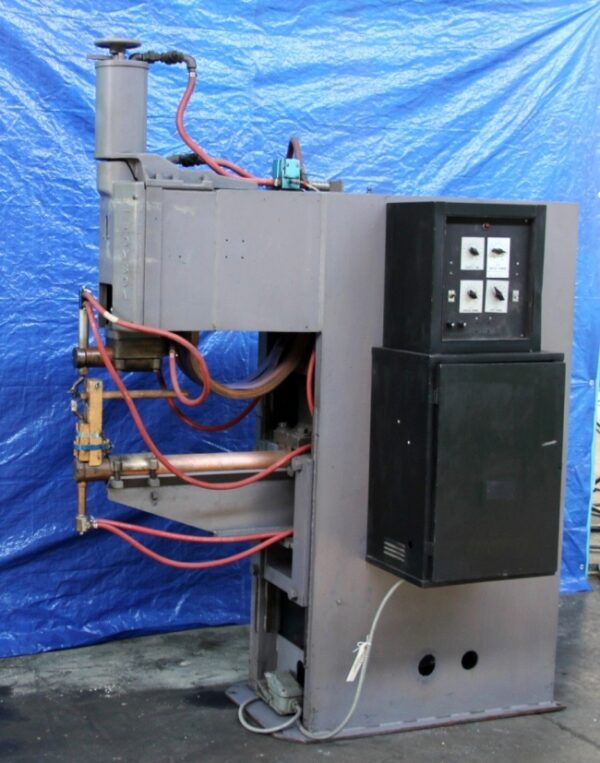

THOMSON 50 KVA PRESS-TYPE SPOT WELDER

INVENTORY # 5338

MODEL:  A1-D

S/N: 19438

MADE IN THE USA

SPECIFICATIONS:

RATED OUTPUT: 50 KVA @ 50% DUTY CYCLE

THROAT:  24″

PRIMARY:

VOLTS:   440 V /SINGLE PHASE

FREQUENCY:  60

SECONDARY:

MINIMUM: 3.3 OPEN CIRCUIT

MAXIMUM: 6.8 OPEN CIRCUIT

ELECTRODE SPACING: 17,300 AMPS/MIN

WELDER IMPEDANCE: 41%

WATER TEMPERATURE: BELOW 70° F

PRESSURE: ABOVE 20 LBS PSI

EQUIPMENT INCLUDED:

(8) POWER SETTINGS

“MENTOR” TIMER CONTROL INCLUDES:

*      WELD TIMER

*      SQUEEZE TIME

*      HOLD TIME

*      OFF TIME

*      REPEAT/NO REPEAT

*      WELD/NO WELD

WATER COOLED

AIR CYLINDER

FOOT SWITCH

PRICE: $9,500.00

FOB OUR BALTIMORE, MD WAREHOUSE
