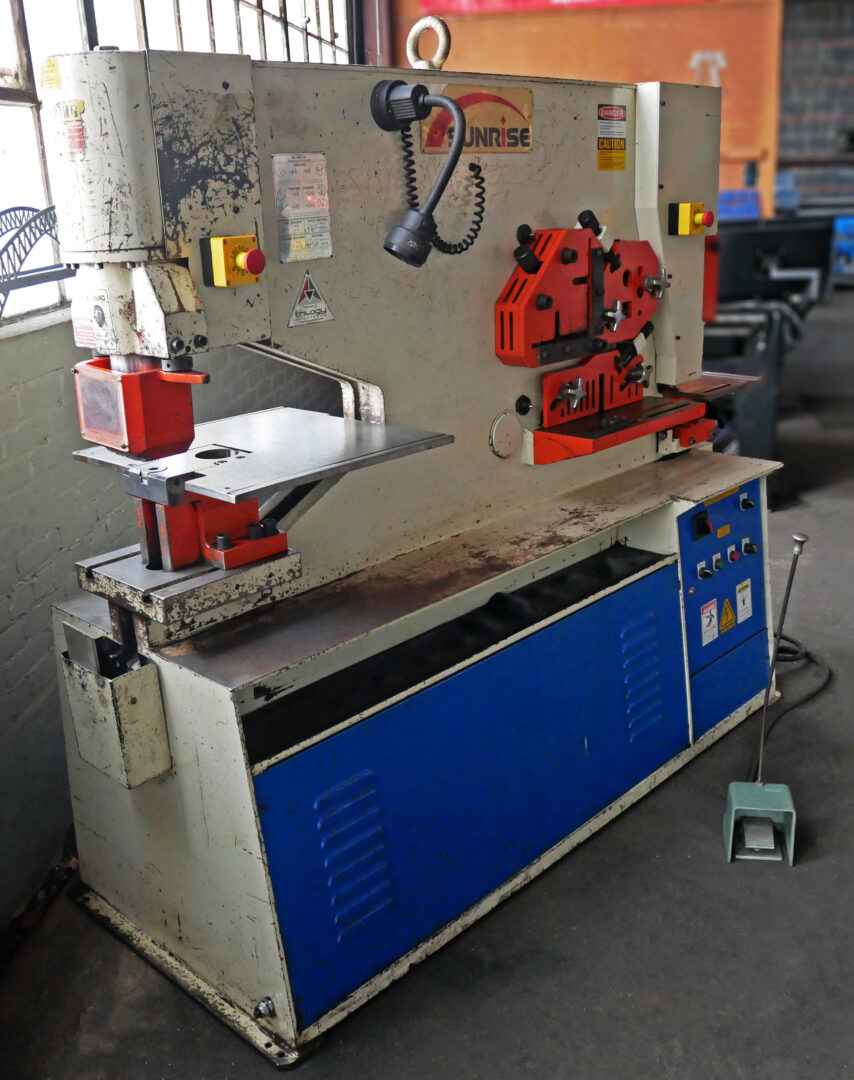

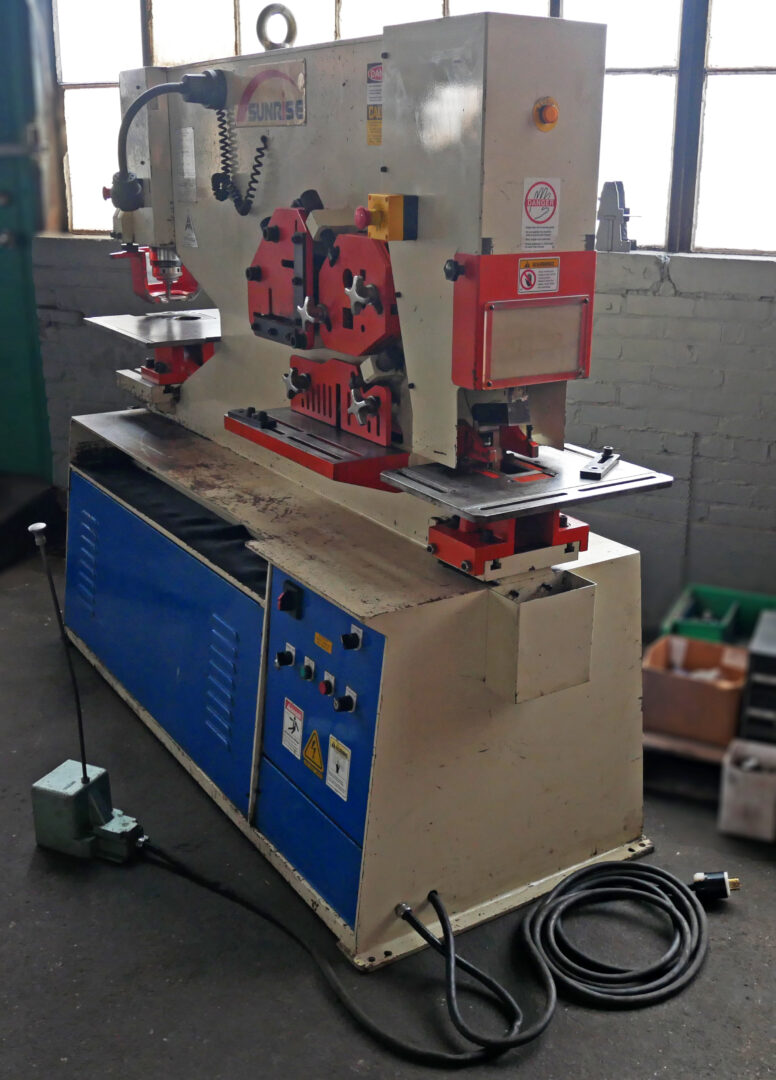

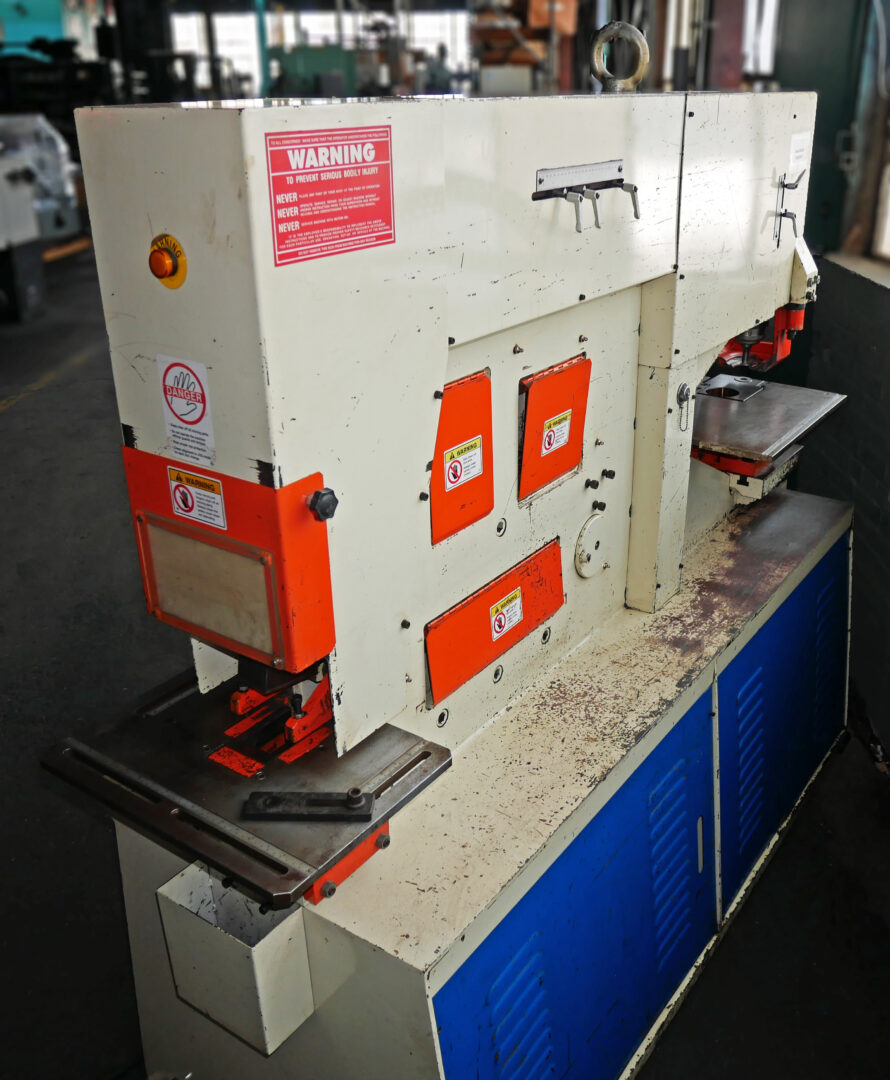

Sunrise 66 Ton Hydraulic Dual-Station Ironworker, IW-66SD
Inventory # 10127-P
Model: IW-66SD
S/N: 12117462

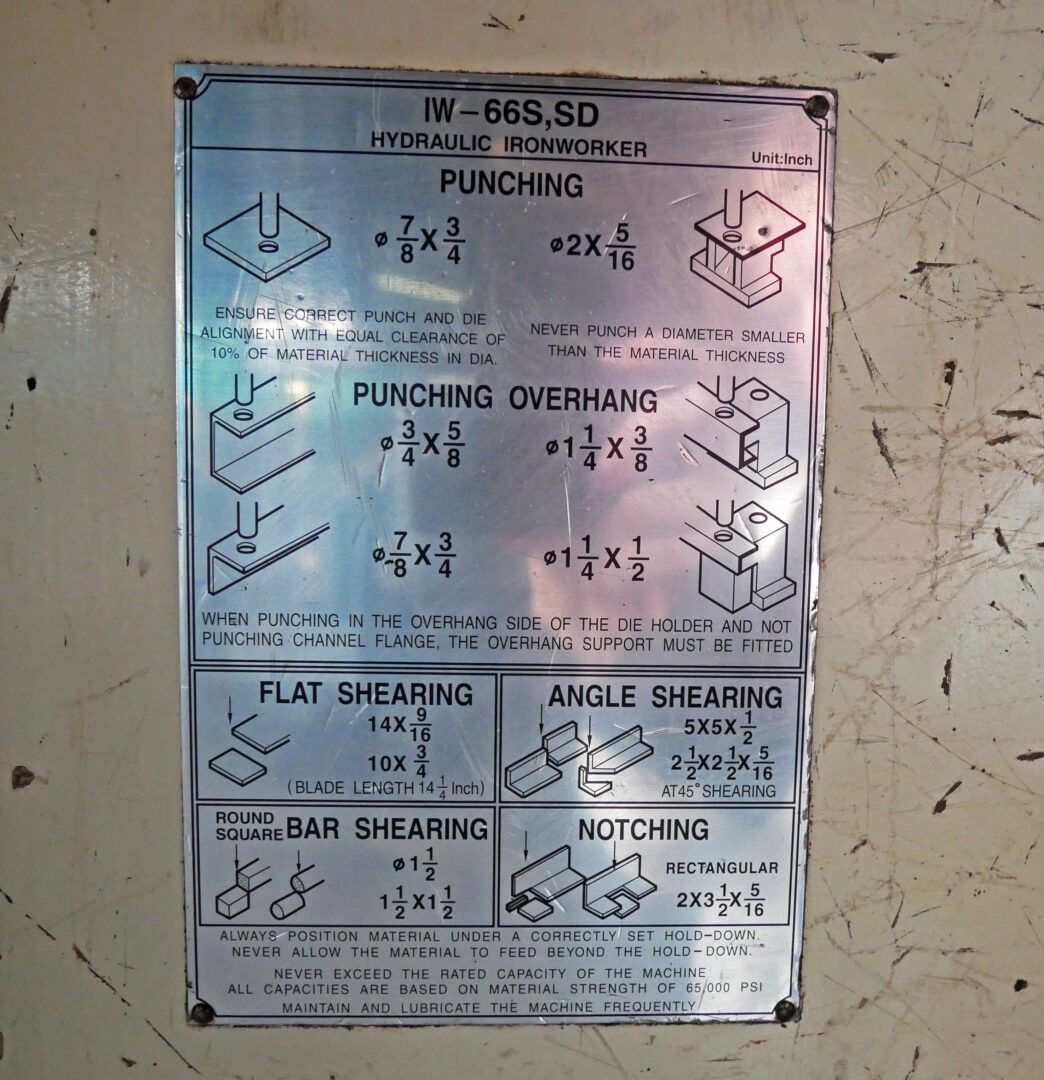

Specifications:
Punch: 66 Tons – 7/8″ in 3/4″ | 2″ in 5/16″
Throat: 20″
Angle Shear: 5″ x 5″ x 1/2″ | 3″ x 3″ x 3/8″ Miter
Plate Shear: 14″ x 9/16″ or 10″ x 3/4″
Notcher: 2″ x 3 1/2″ x 3/8″
Motor: 7.5 HP / 220v, 480v / 3ph
Standard Features:

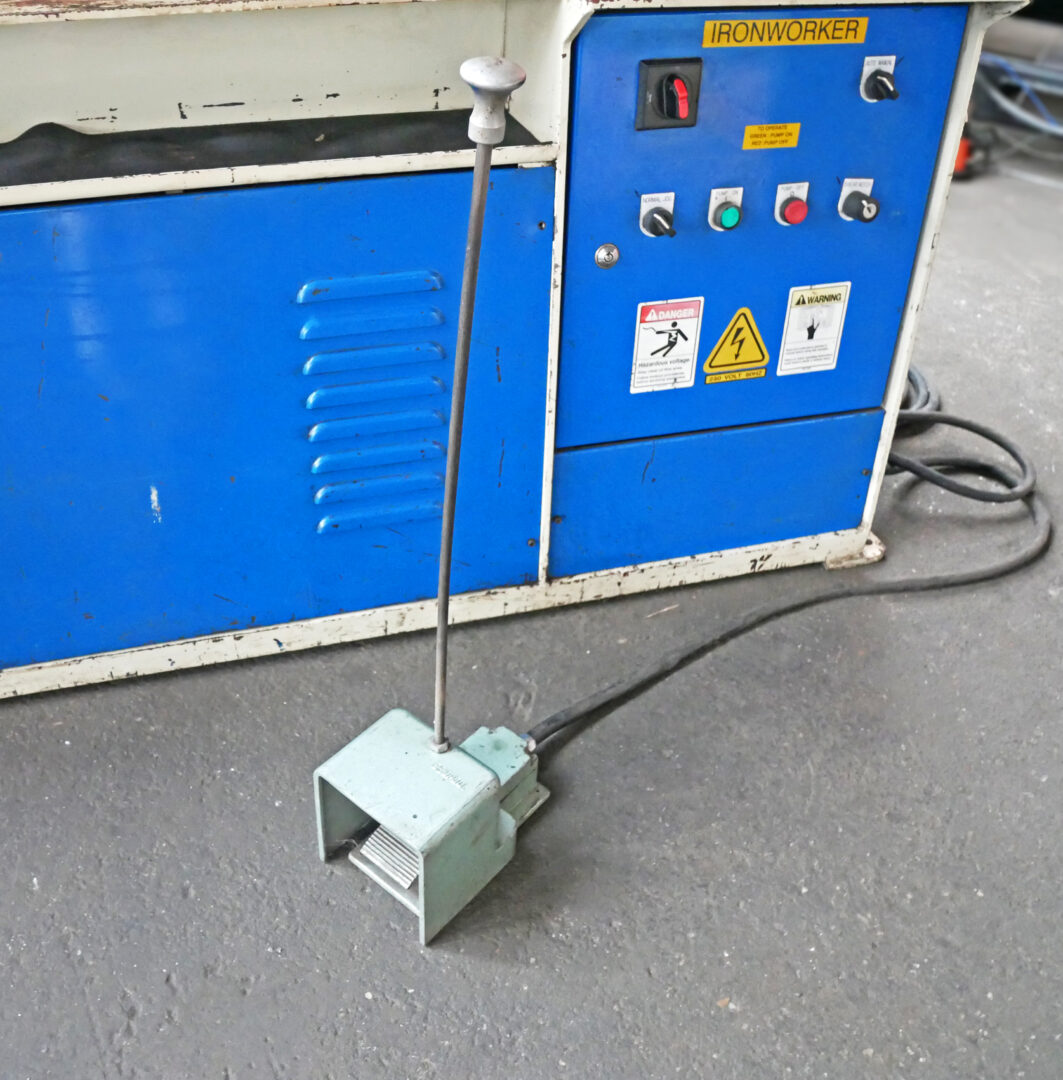

Dual-Cylinder, Dual-Operator with Two Foot Pedals
Five Fully Integrated Working Stations

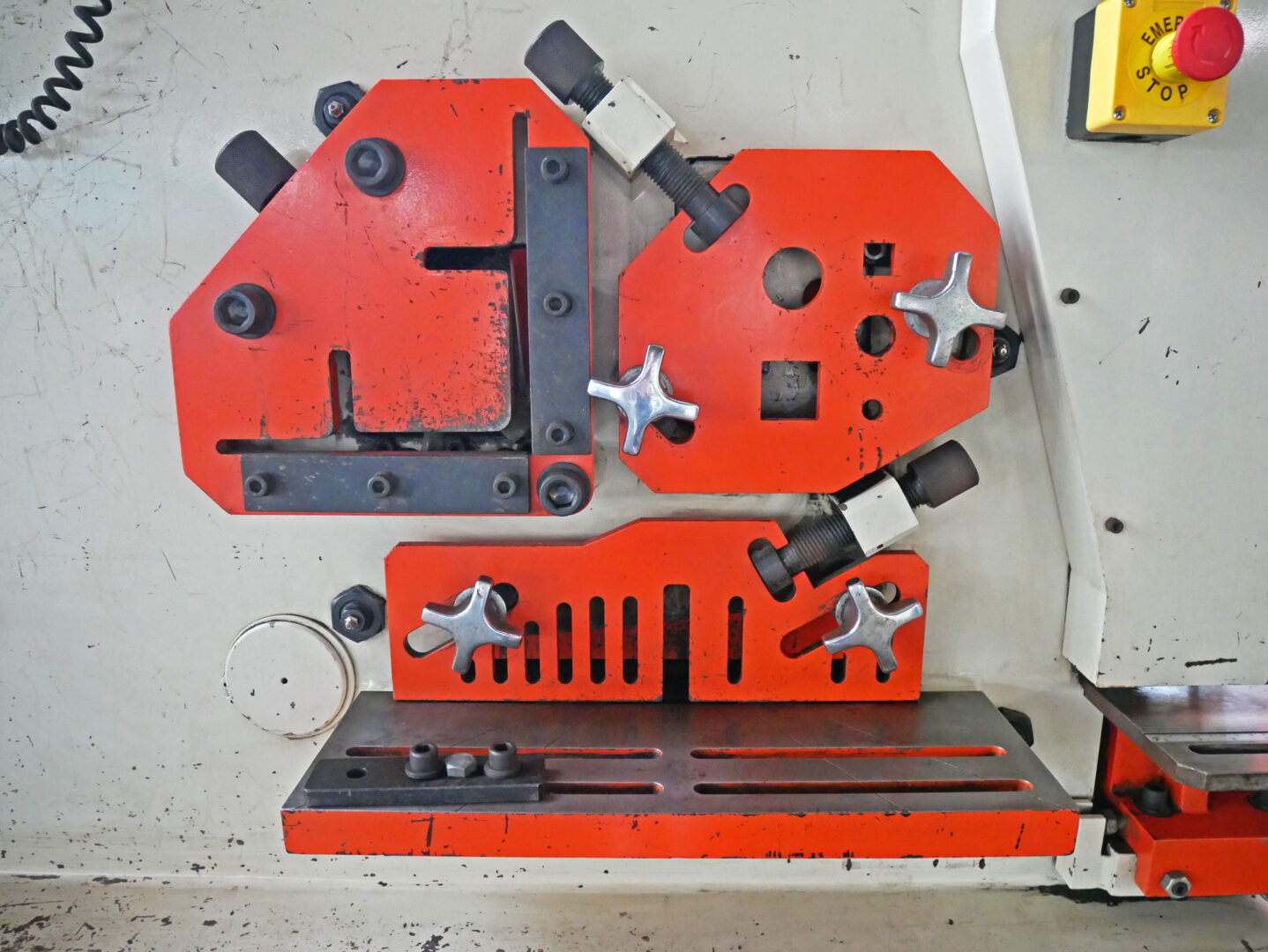

Angle Shear with No Material Loss Cut and Four-Edge Blades
Heavy-Duty Adjustable Punch Stripper with Visibility Window
40″ Touch-and-Cut Electric Back Gauge

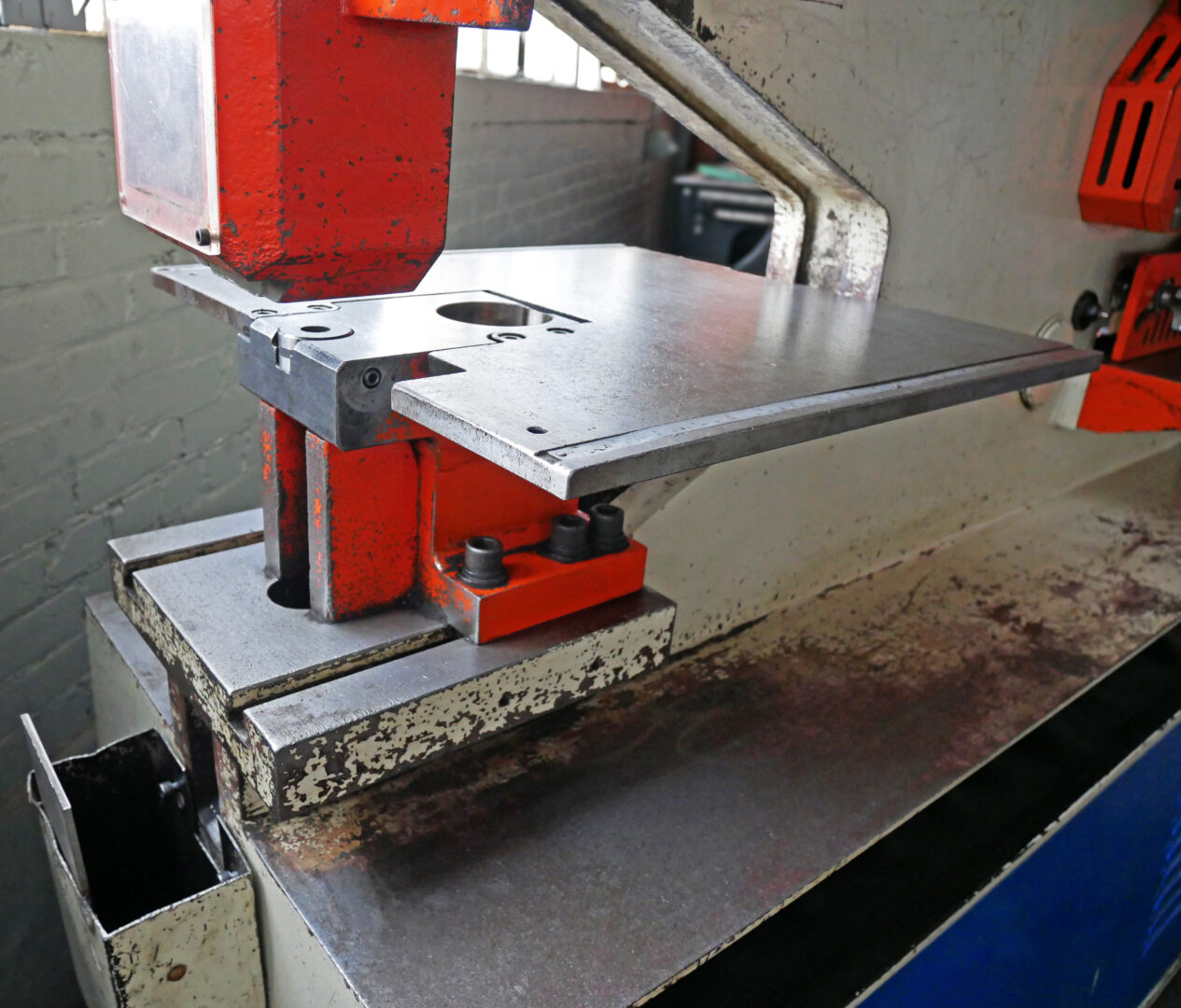

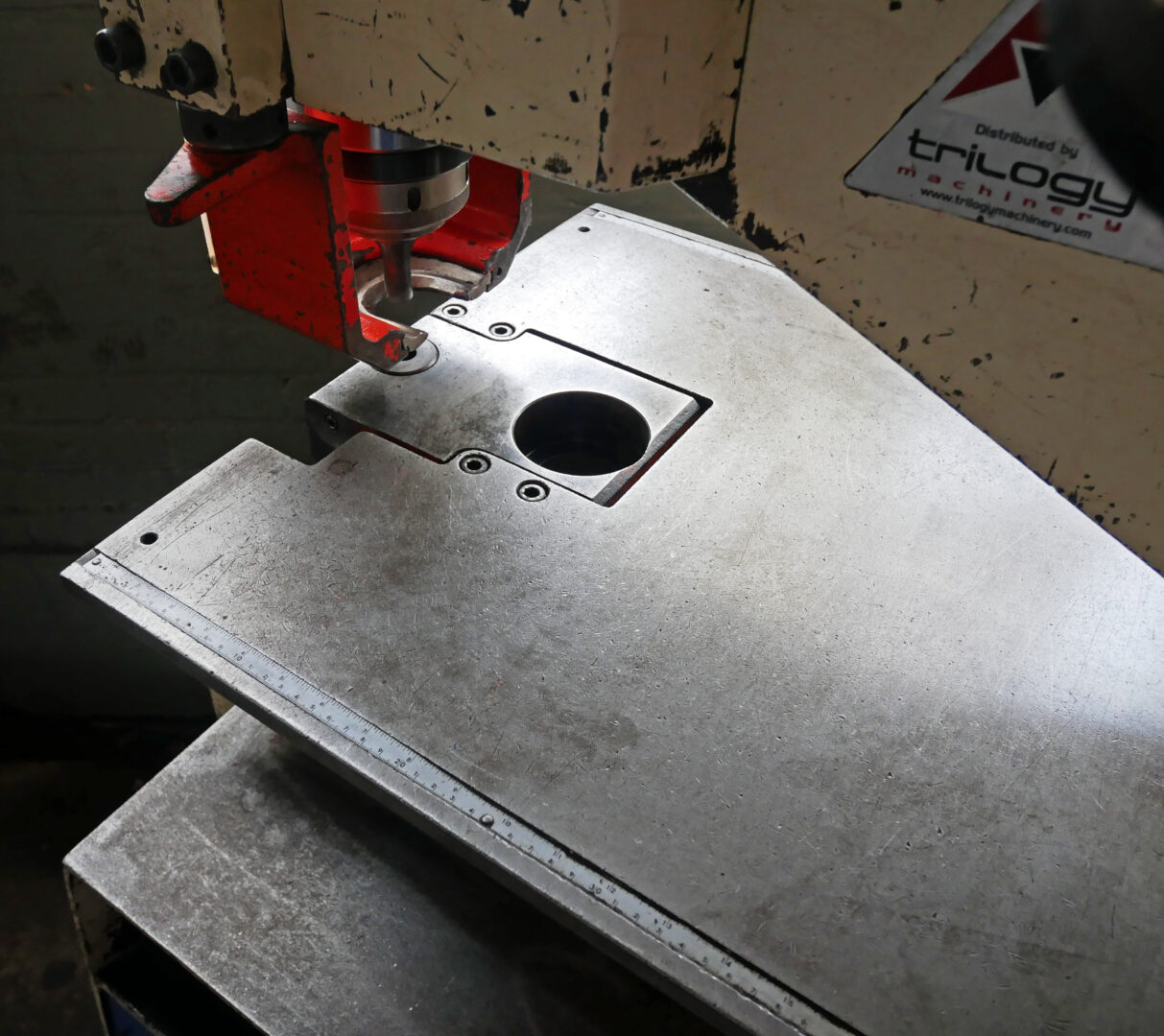

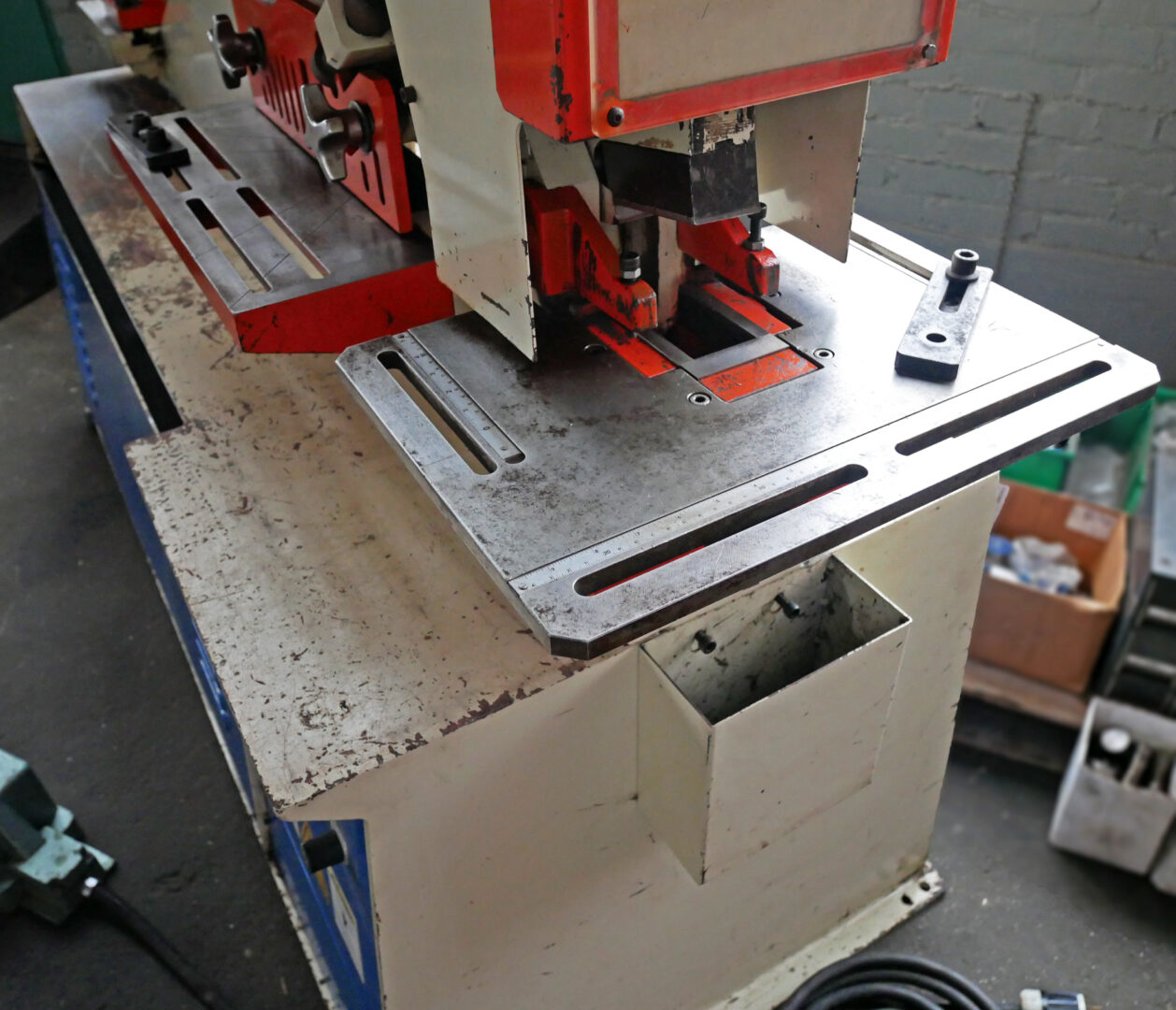

Machined Punch Gauge Table with X-Y Positioning System
Machined Notcher Gauge Table with X-Y Positioning
LED Magnetic Base Work Light
Mechanical Specifications:
Dimensions: 82″ x 32″ x 68″ H
Weight: approx. 4,875 lbs.
New Replacement Cost: $31,995.00
FOB Our Baltimore, MD Warehouse
