Description

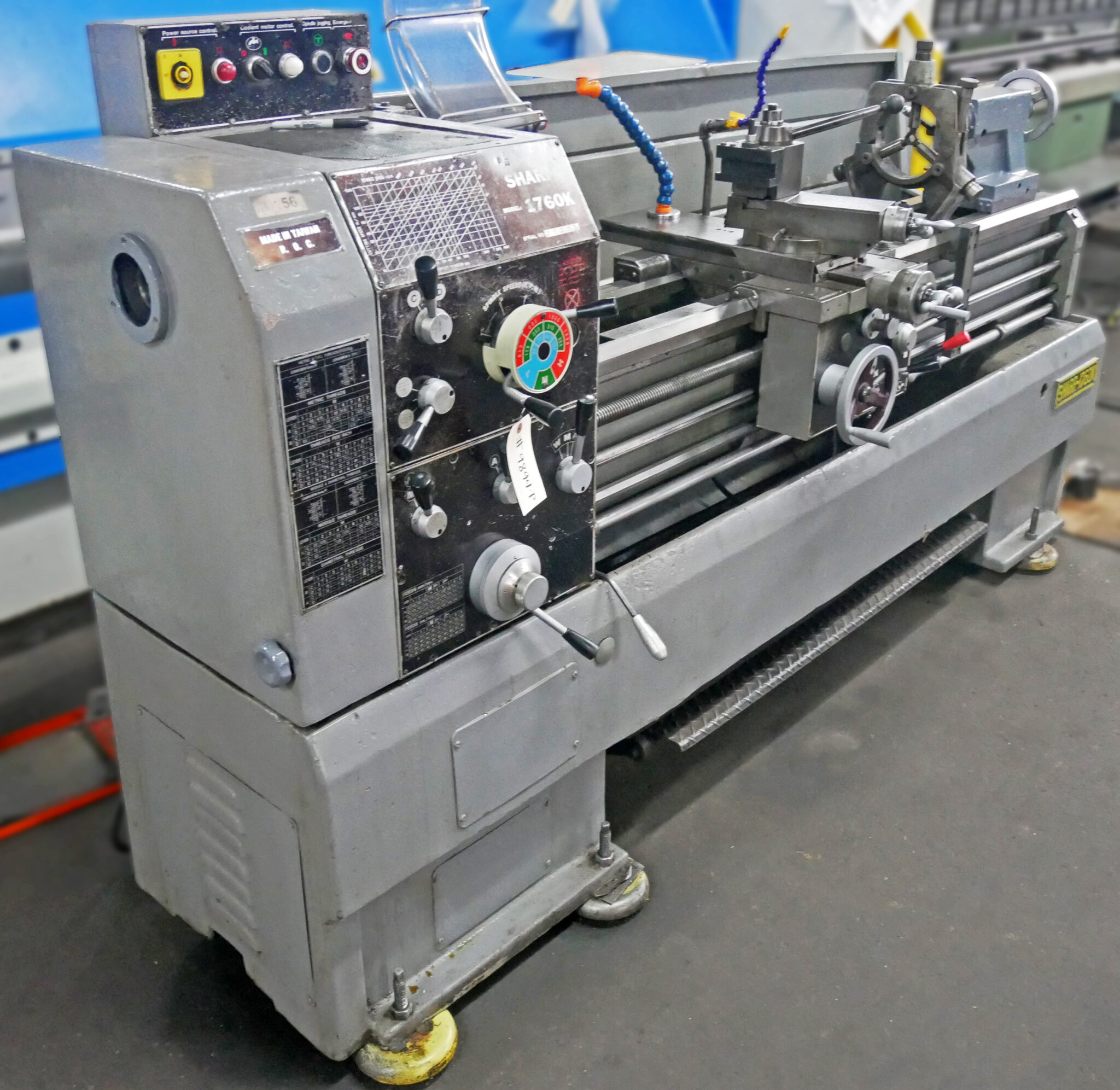

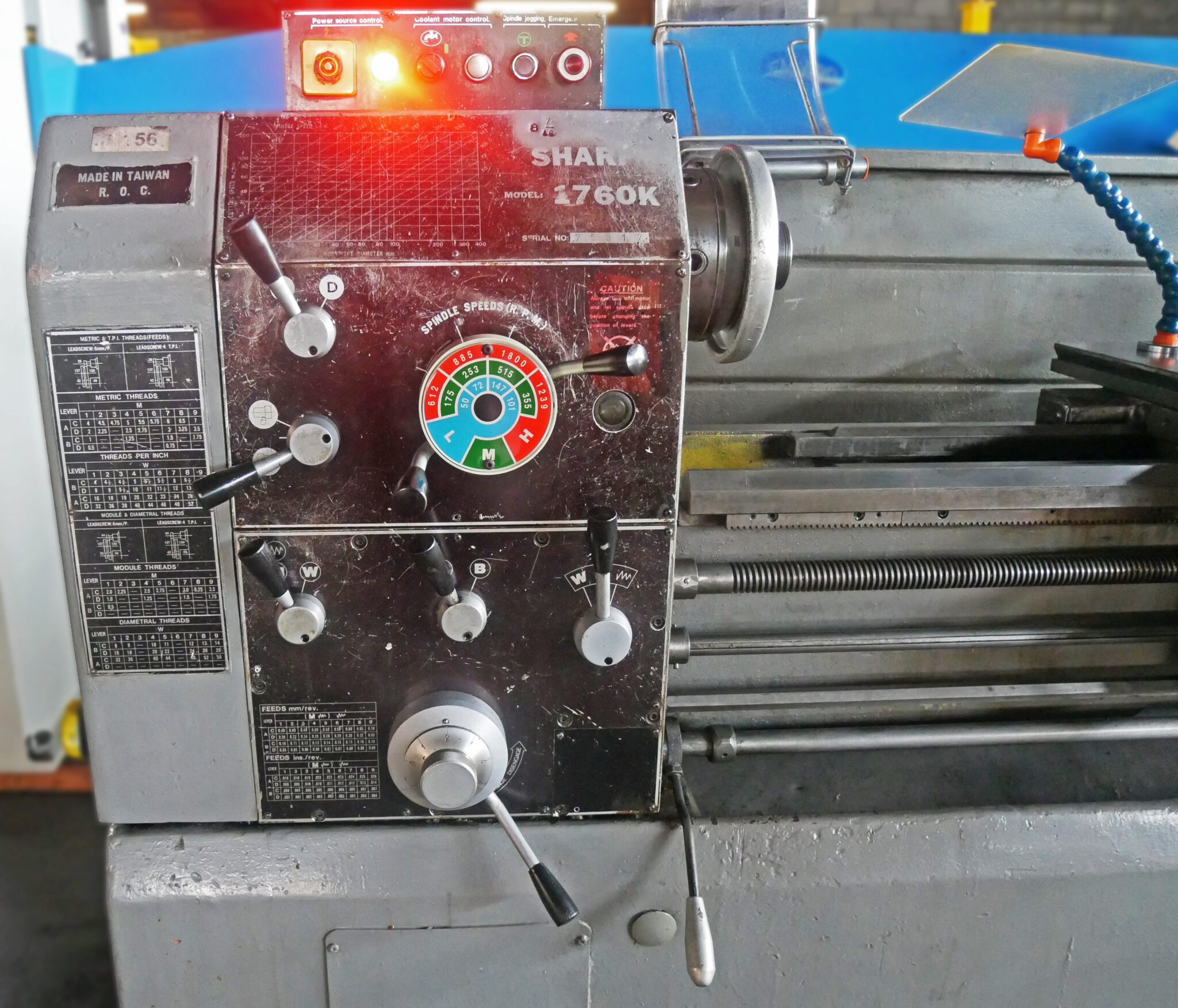

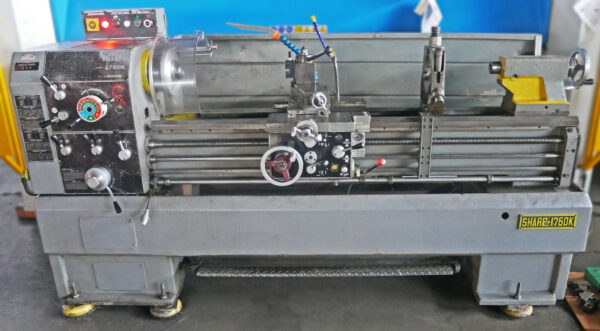

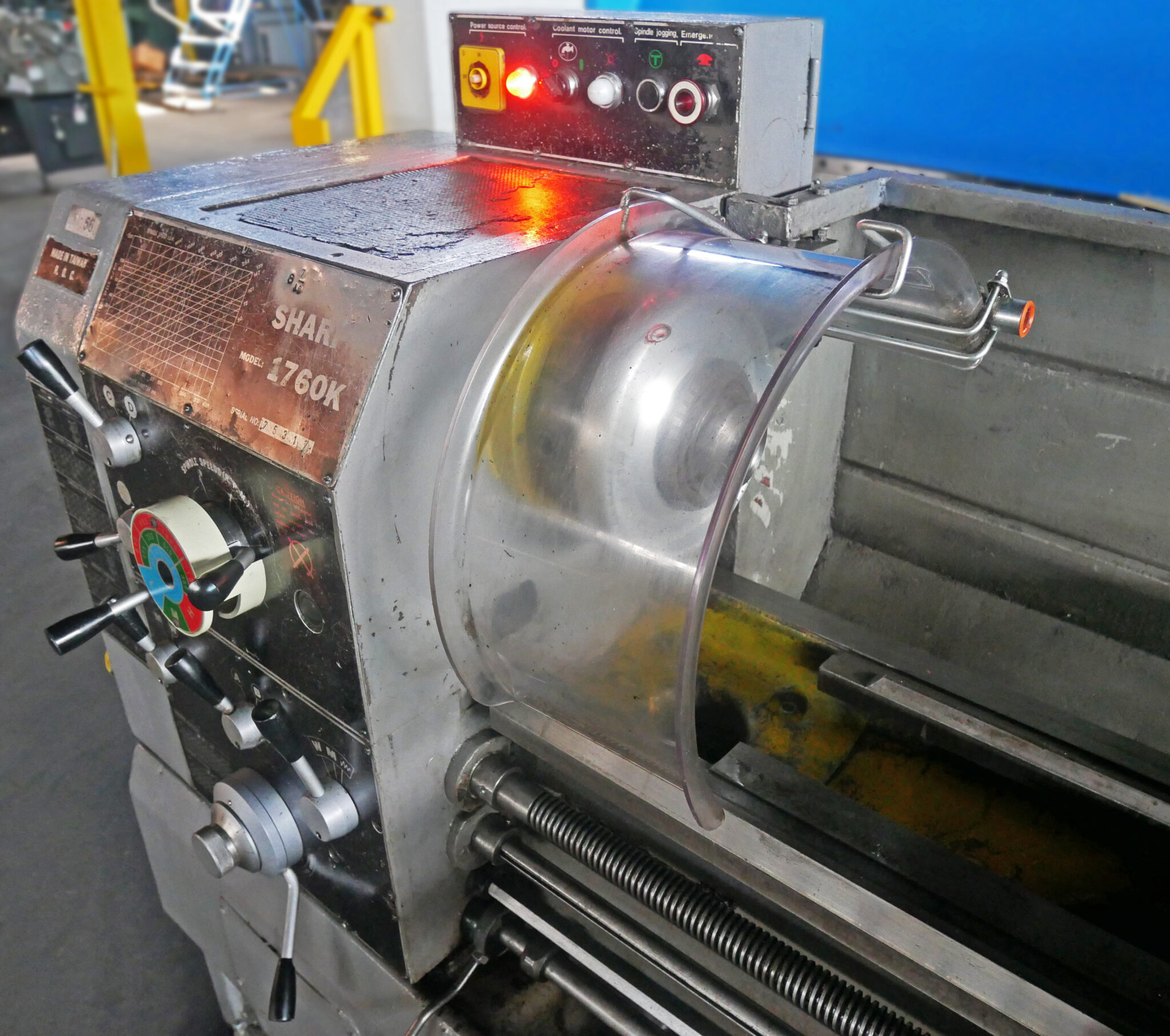

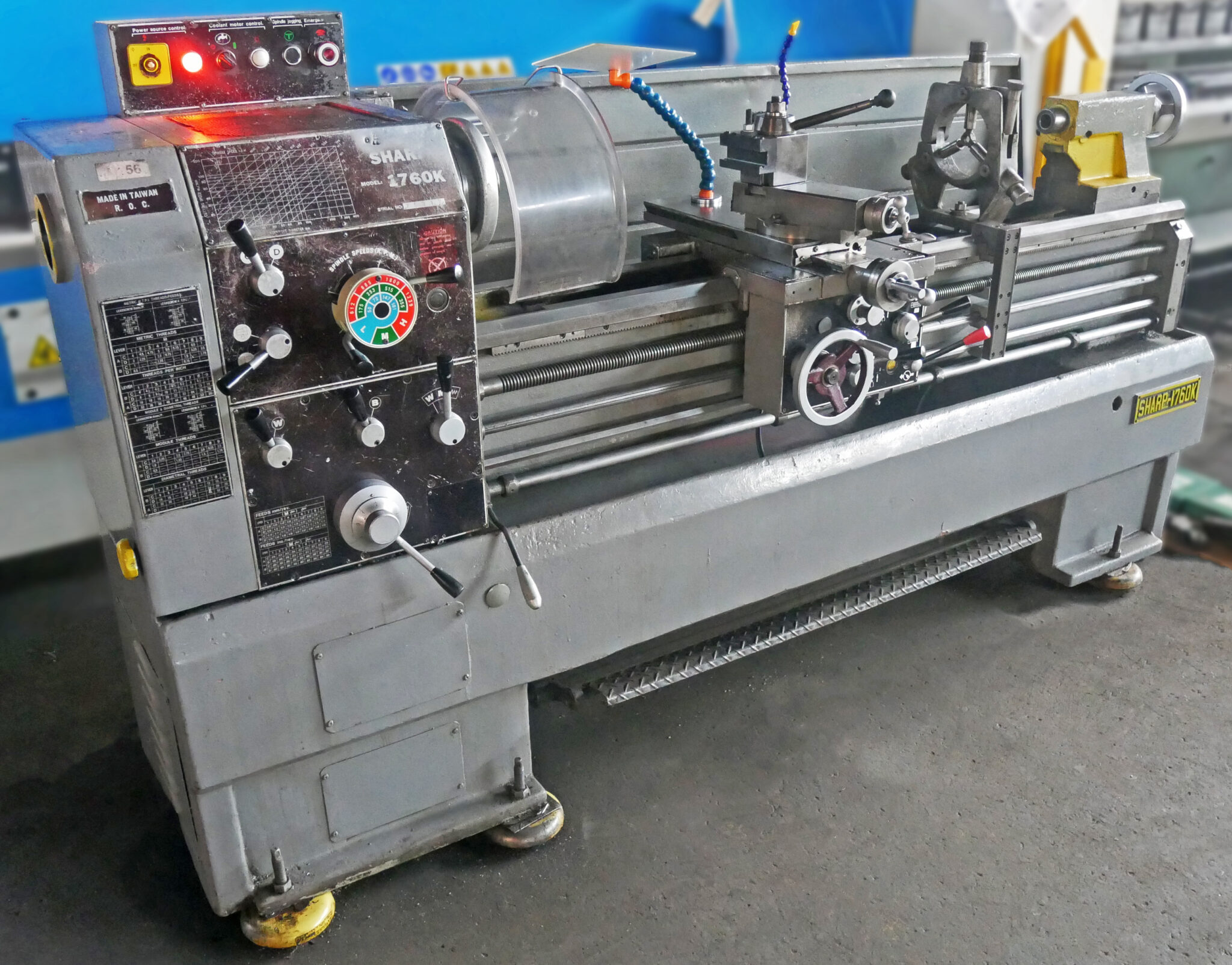

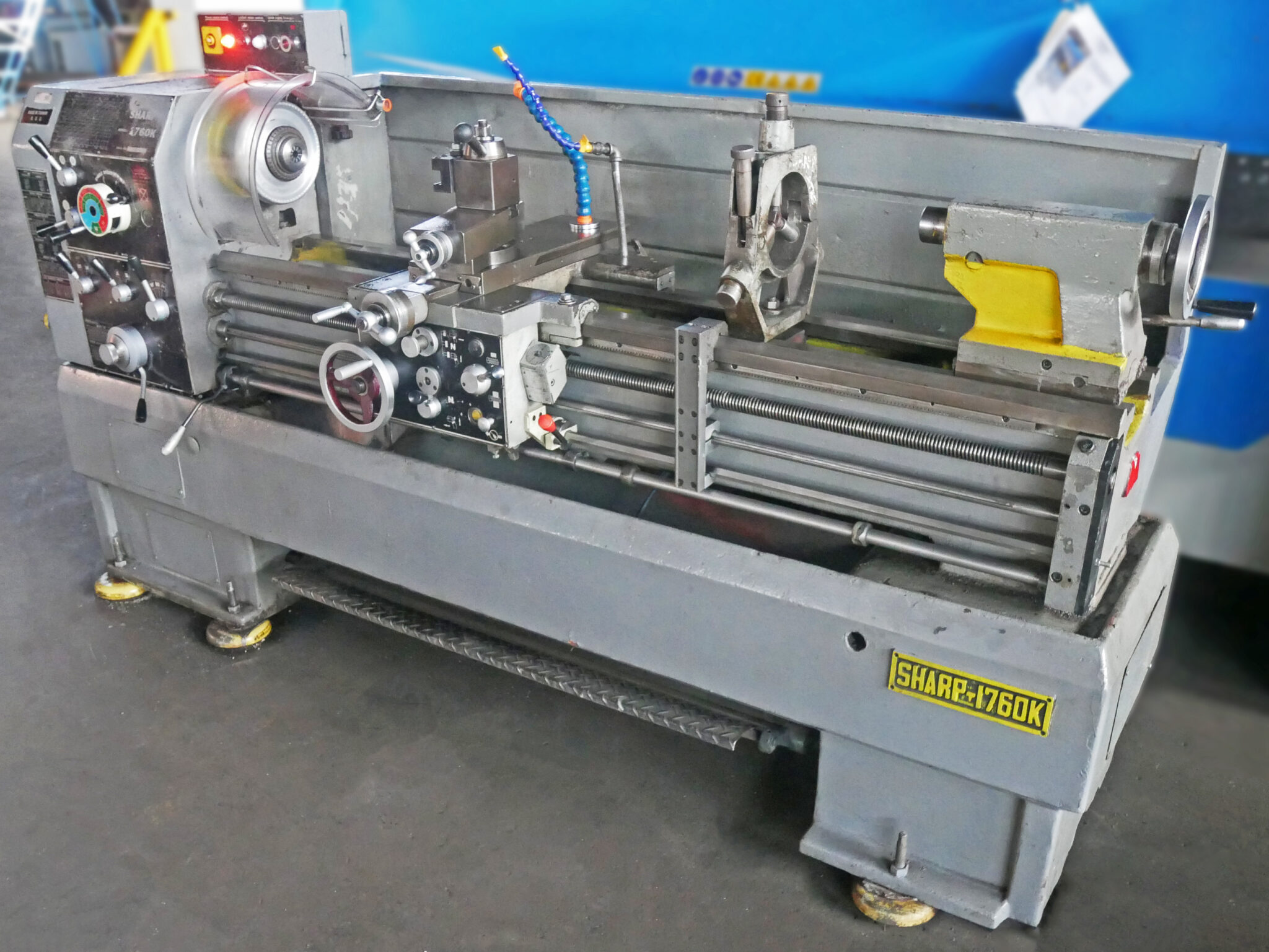

Sharp 17″ x 60″ Gap Bed Lathe, 1760K
Inventory # 9894-P
Model: 1760K
S/N: 75317
Specifications:
Swing Over Bed: 17″
Swing Over Cross Slide: 11″
Swing in Gap: 26″

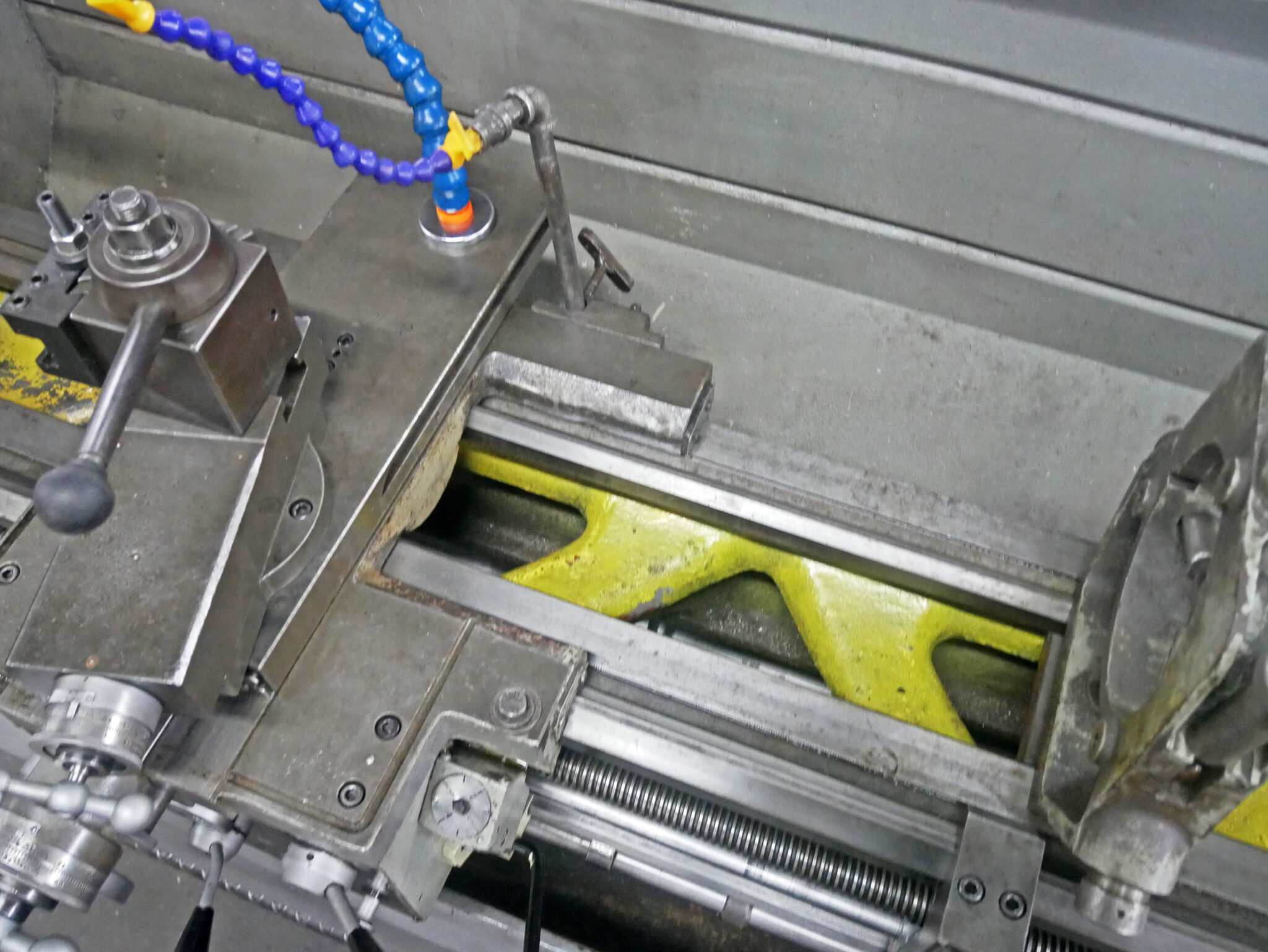

Gap Length: 8 1/2″
Distance Between Centers: 60″
Spindle Bore: 2.04″
Spindle Speeds: (12) 50 – 1,800 RPM
Spindle Nose: D1-6
Inch Threads: (45) 4 – 56 TPI
Metric Threads: (42) 0.5 – 7 mm
Longitudinal Feeds: (32) 0.0002 – 0.028 IPR
Cross Feeds: (32) 0.001 – 0.0200 IPR
Cross Slide Travel: 9″
Compound Travel: 4 1/8″
Length of Taper per Setting: 16″
Bed Width: 12″

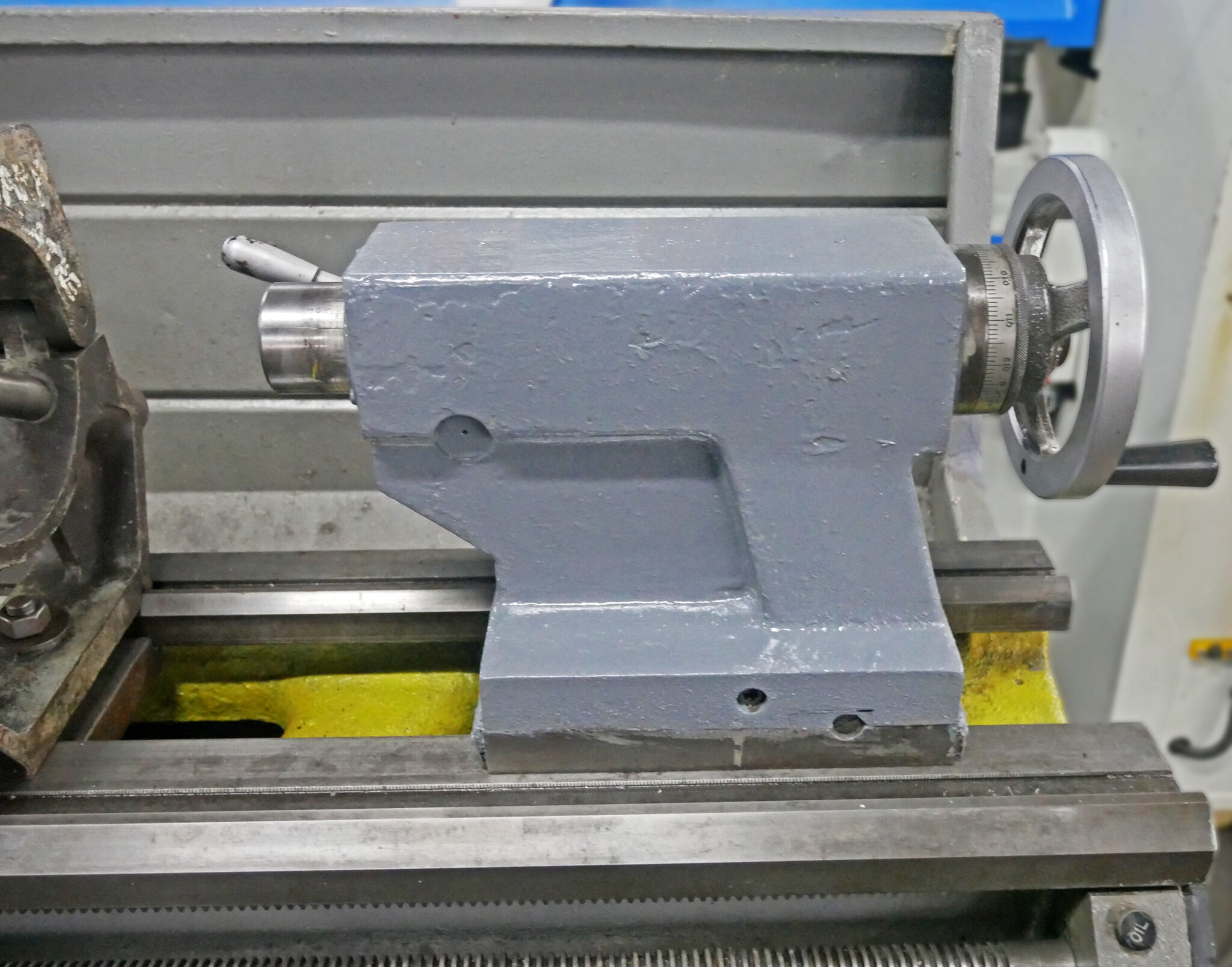

Tailstock Spindle Travel: 6″
Tailstock Taper: # 4 MT
Motor: 7.5 HP
Standard Features & Equipment Included:
Inch/Metric Threading
Mechanical Specifications:
Dimensions: 114″ x 44″ x 63″ H
Weight: approx. 4,500 lbs.
FOB Our Baltimore, MD Warehouse
