Description

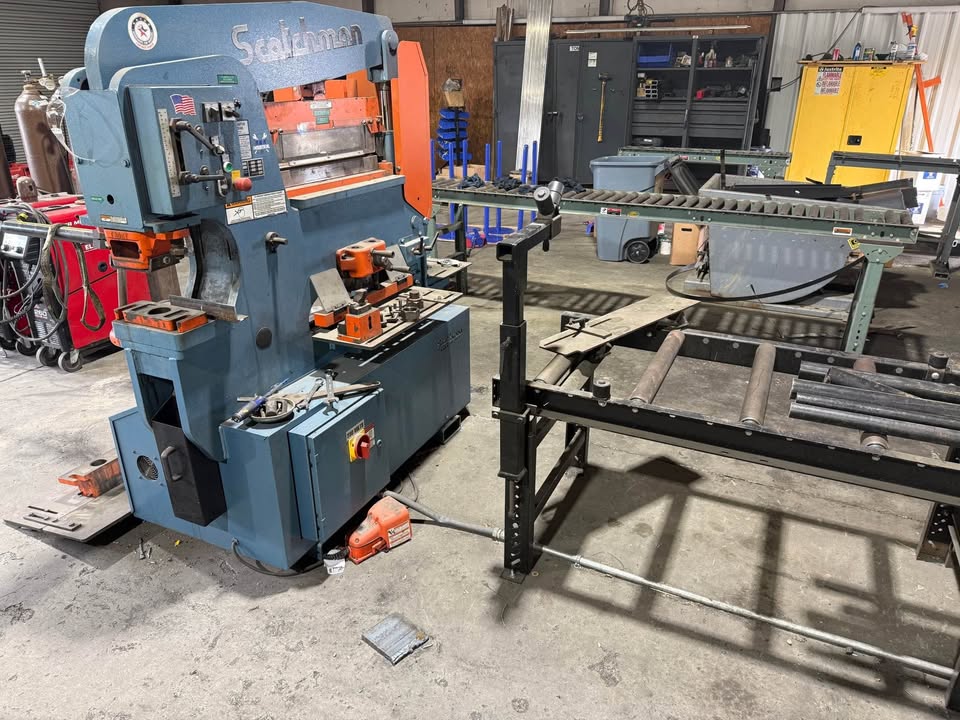

Scotchman 95 Ton 5-Station Dual Operation Ironworker, DO 95/140-24M
Inventory # 10158-B

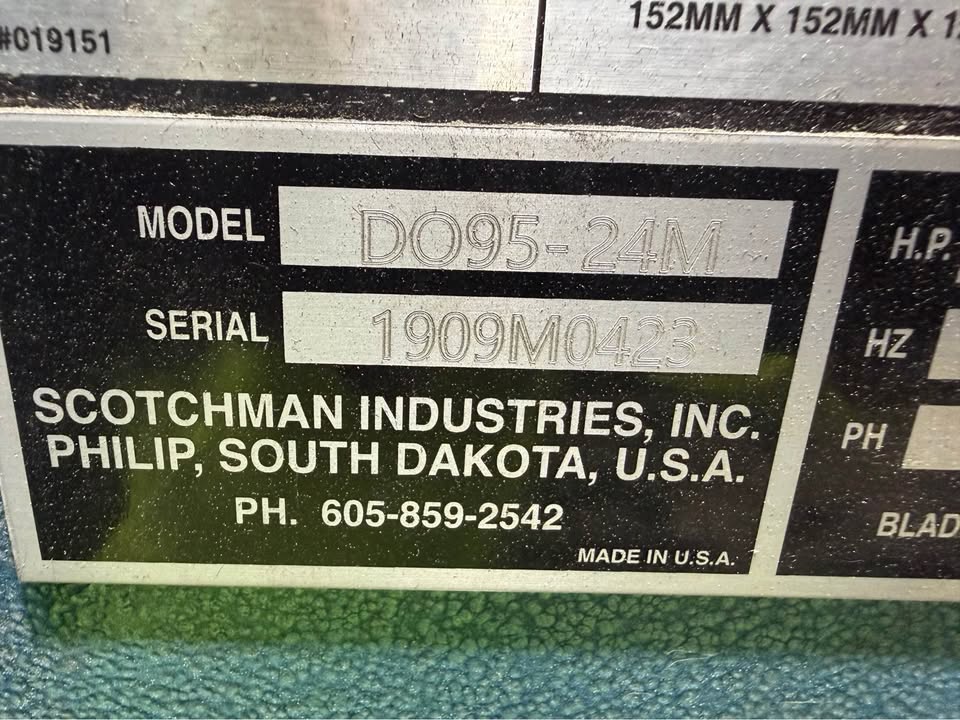

Model: DO 95/140-24M
S/N: 1909M0423
Description:
Bought new in 2023 with all the upgrades. LED light kit, manual back gauge, conveyor table, tool change shelf with slide-out drawer for punches and dies. Laser line for shear
Comes with a full set of punches and dies; some have never been used, slotted punches and dies, hexagon punches and dies, and a complete set of new, never-opened round punches and dies along with square
Has the 2’ press brake, the round and square bar shear, angle shear, and coping attachments for 1-1/4” and 1-1/2” pipe
Machine is under power and can be demoed in Cartersville, Georgia

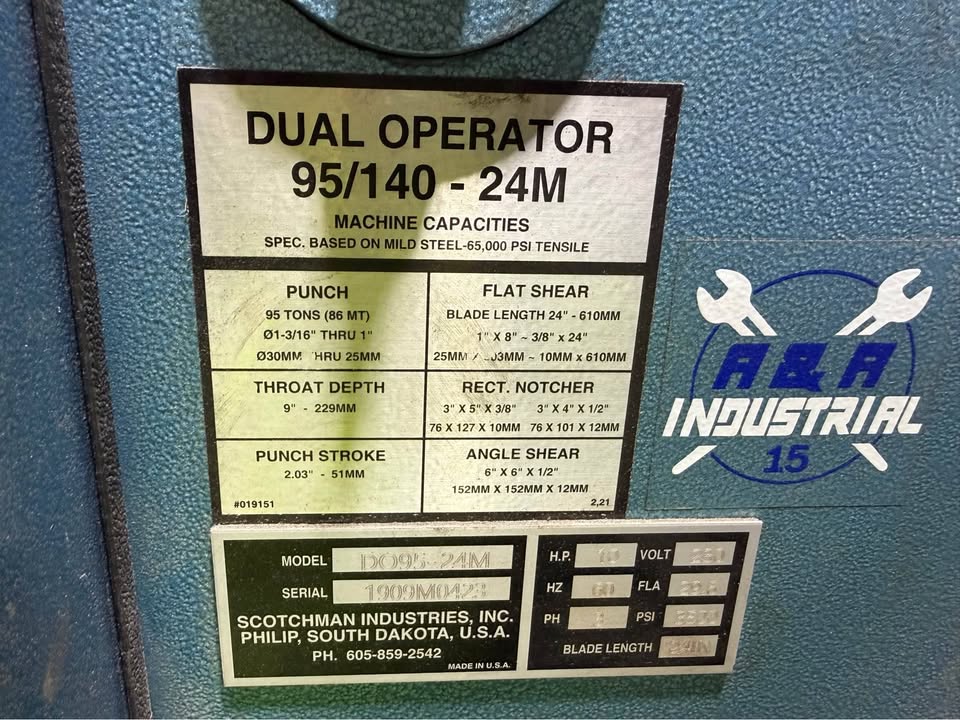

Specifications:
Tonnage: 95 Tons
Punching Capacity: 1 3/16″ in 1″
Special Tooling: 4″
Throat Depth: 9″
Flat Bar Shear: 140 Ton, 24″ Length – 1″ x 8″, 3/4″ x 12″, 1/2″ x 16″, 3/8″ x 24″
Angle Shear:
@ 90°: 6″ x 6″ x 1/2″
@ 45°: 3″ x 3″ x 3/8″, 4″ x 4″ x 1/2″ (with Bar Shear)
Brake: 24″ – 55 Ton
Strokes per Minute:
Light Material: 1/4″ Stroke
Heavy Material: 3/4″ Stroke

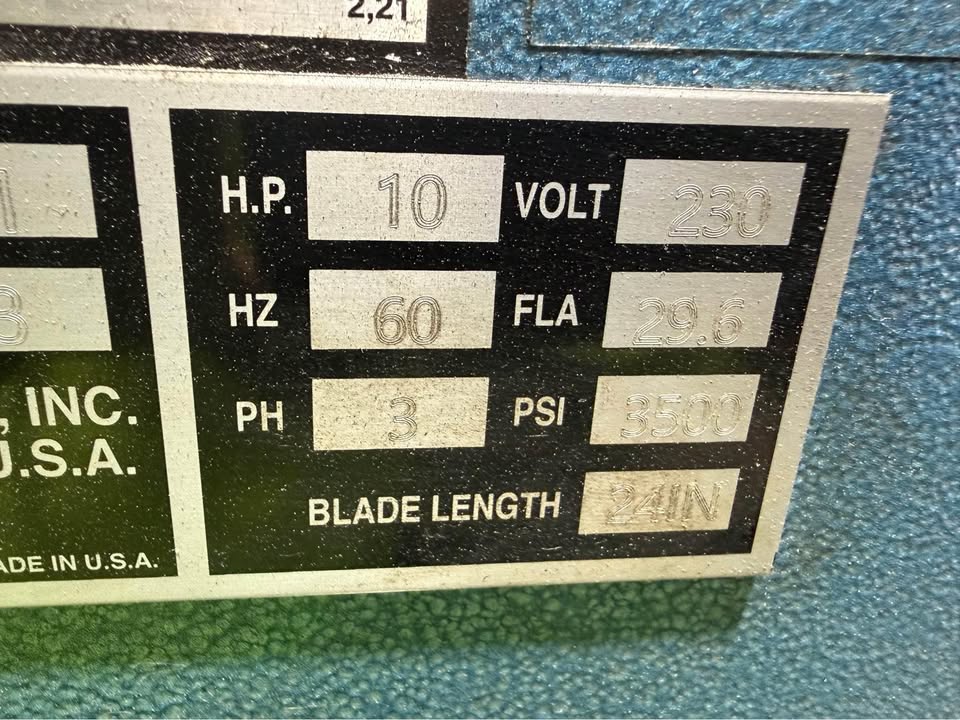

Hydraulics: 3,500 PSI
Motor: 10 HP / 230v / 3ph
Equipment Included:
LED Light Kit
Manual Back Gauge
Conveyor Table

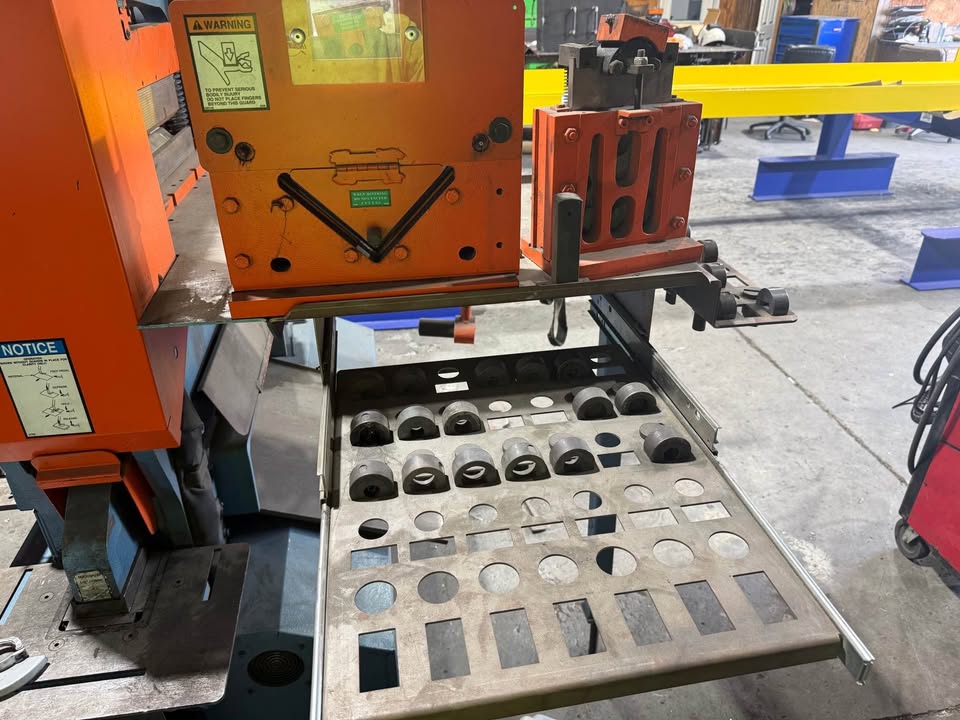

Tool Change Shelf with Slide-Out Drawer for Punches and Dies
Laser Line for Shear
Full Set of Punches and Dies (Slotted, Hexagon, Round, Square)
24″ Press Brake
Round and Square Bar Shear
Angle Shear
Notcher for 1 1/4″ and 1 1/2″ Pipe
Mechanical Specifications:
Dimensions: 30″ x 65″ x 73″ H (Machine Only)
Shipping Weight: approx. 3,800 lbs. (Machine Only)
FOB Cartersville, GA Warehouse
Please Note: This Machine is Being Brokered and is Being Sold As-Is, As-Inspected, with No Warranty and No Return Privilege
