Description

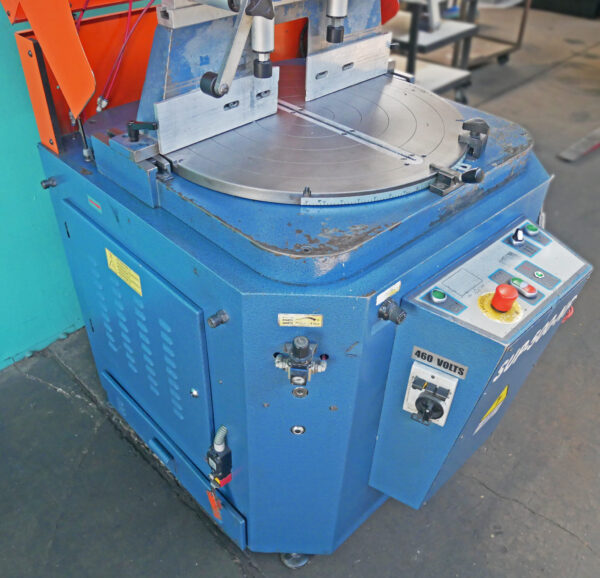

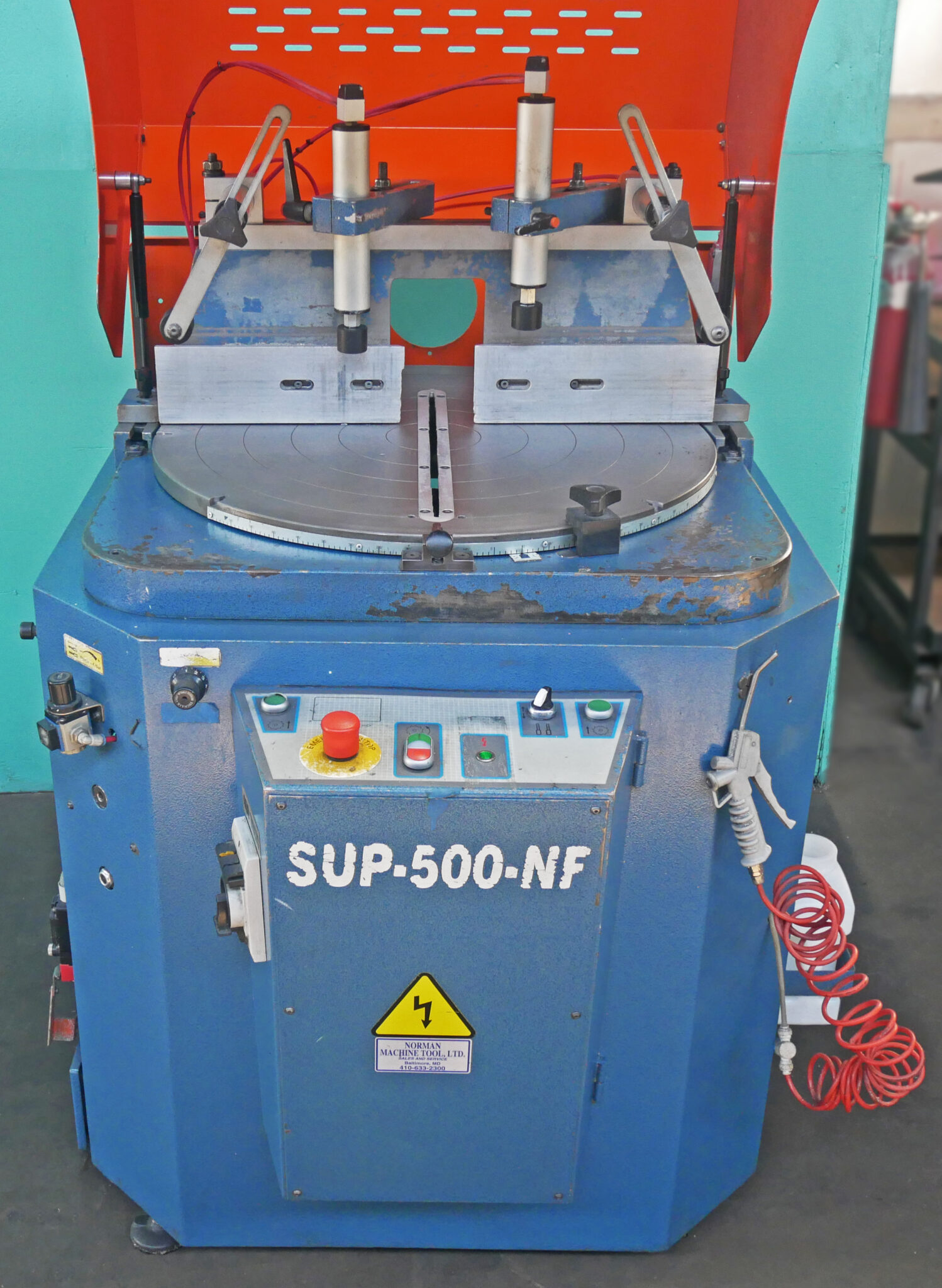

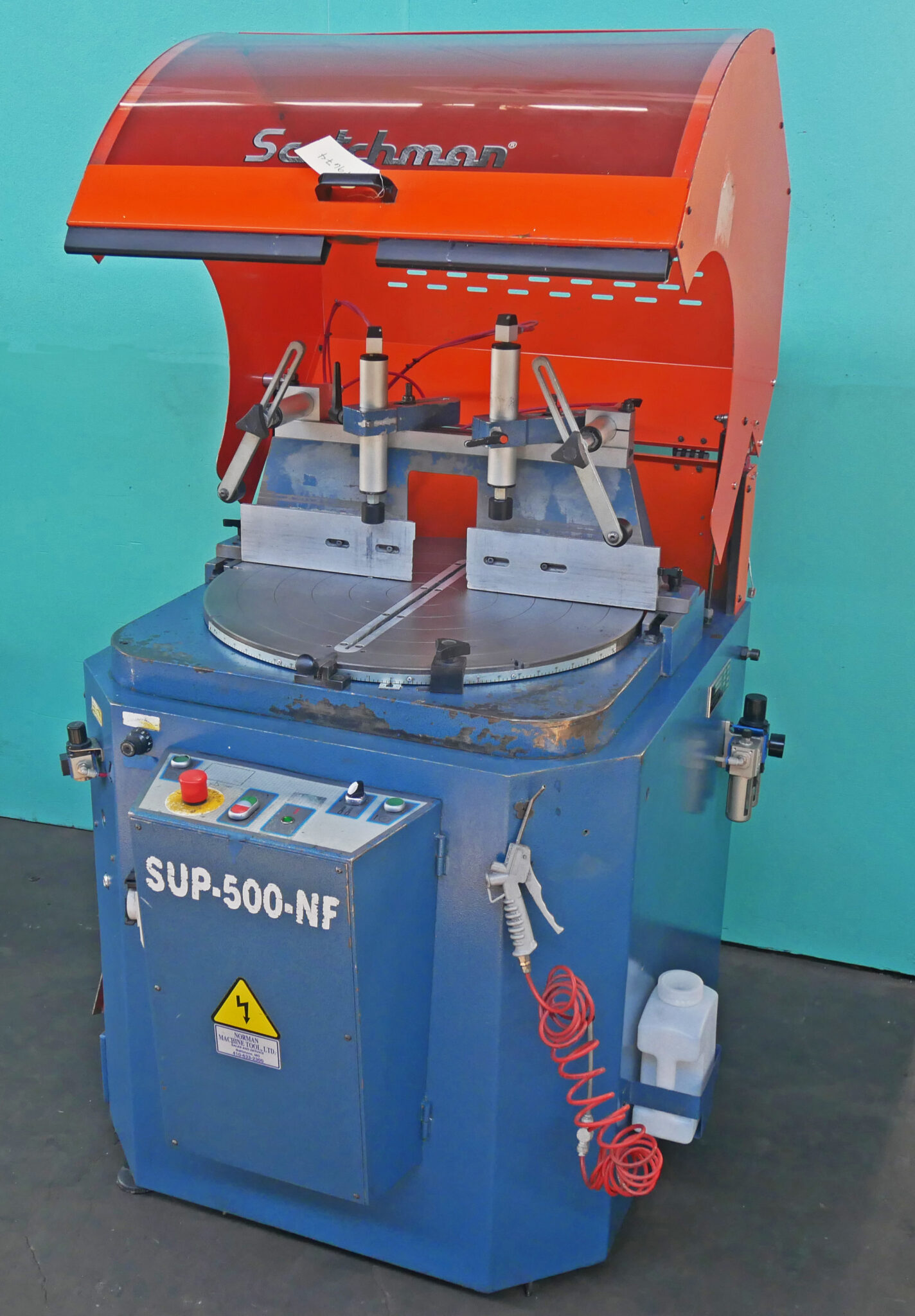

Scotchman 20″ Semi-Automatic Non-Ferrous Cold Saw, SUP-500
Inventory # 9674
Model: SUP-500 NF
S/N: 140402
Specifications:
Capacities:
@ 90°:
Round: 7″
Square: 6″
Rectangle: 11 3/4″ x 5″
@ 45°:
Round: 7″
Square: 4 3/4″
Rectangle: 5 3/4″ x 4 3/4″
Cutting Speed: 3,000 RPM
Air Pressure: 90 PSI
Max. Diameter Blade: 500 mm
Arbor Bore: 50 mm
Height from Floor to Table: 38 5/8″
Motor: 5.5 HP / 460v / 3ph
Features & Equipment Included:
Precision miter up-cut non-ferrous saw

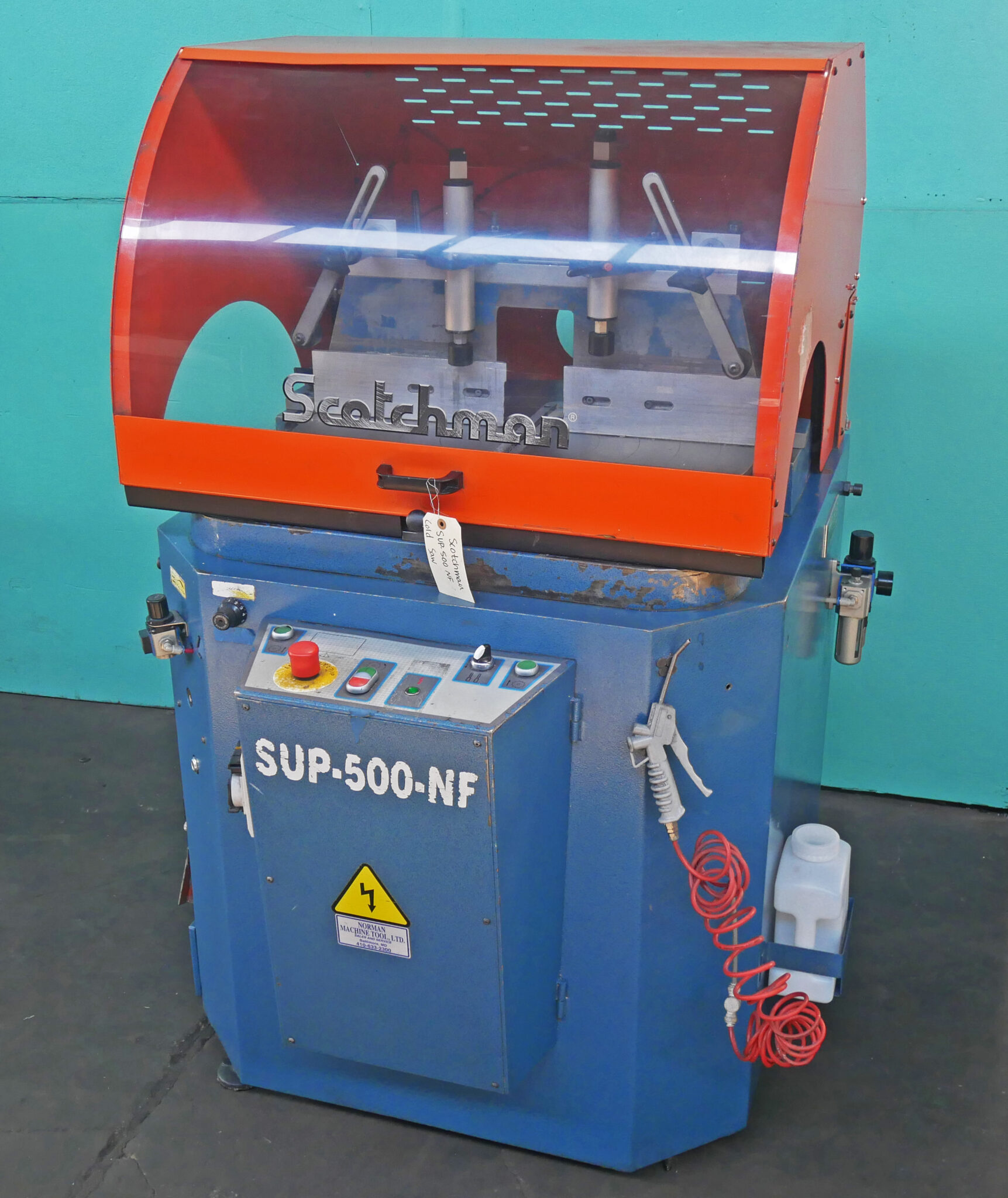

Safety hood with safety switch that will not allow saw to run with hood open
Blade door with safety interlock switch

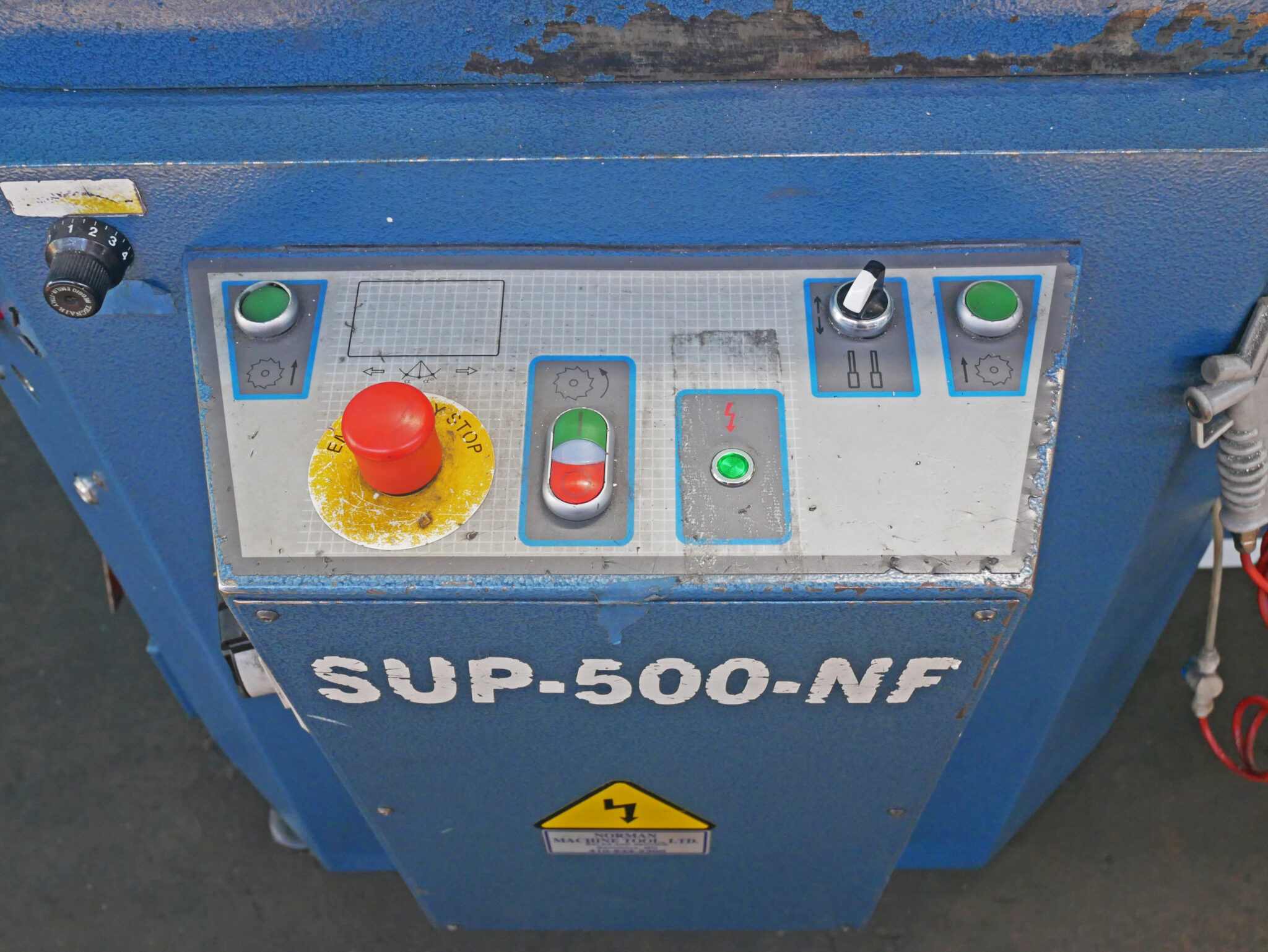

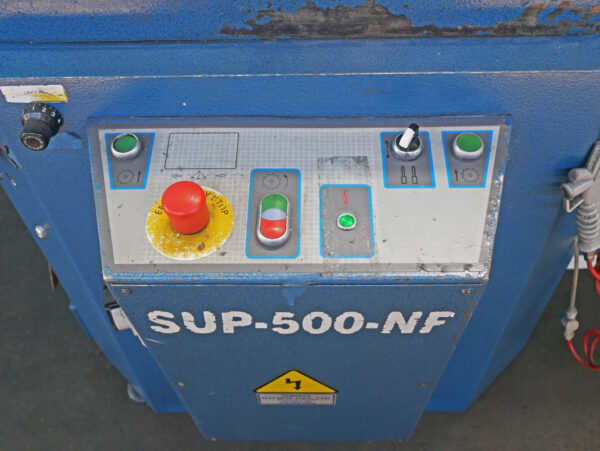

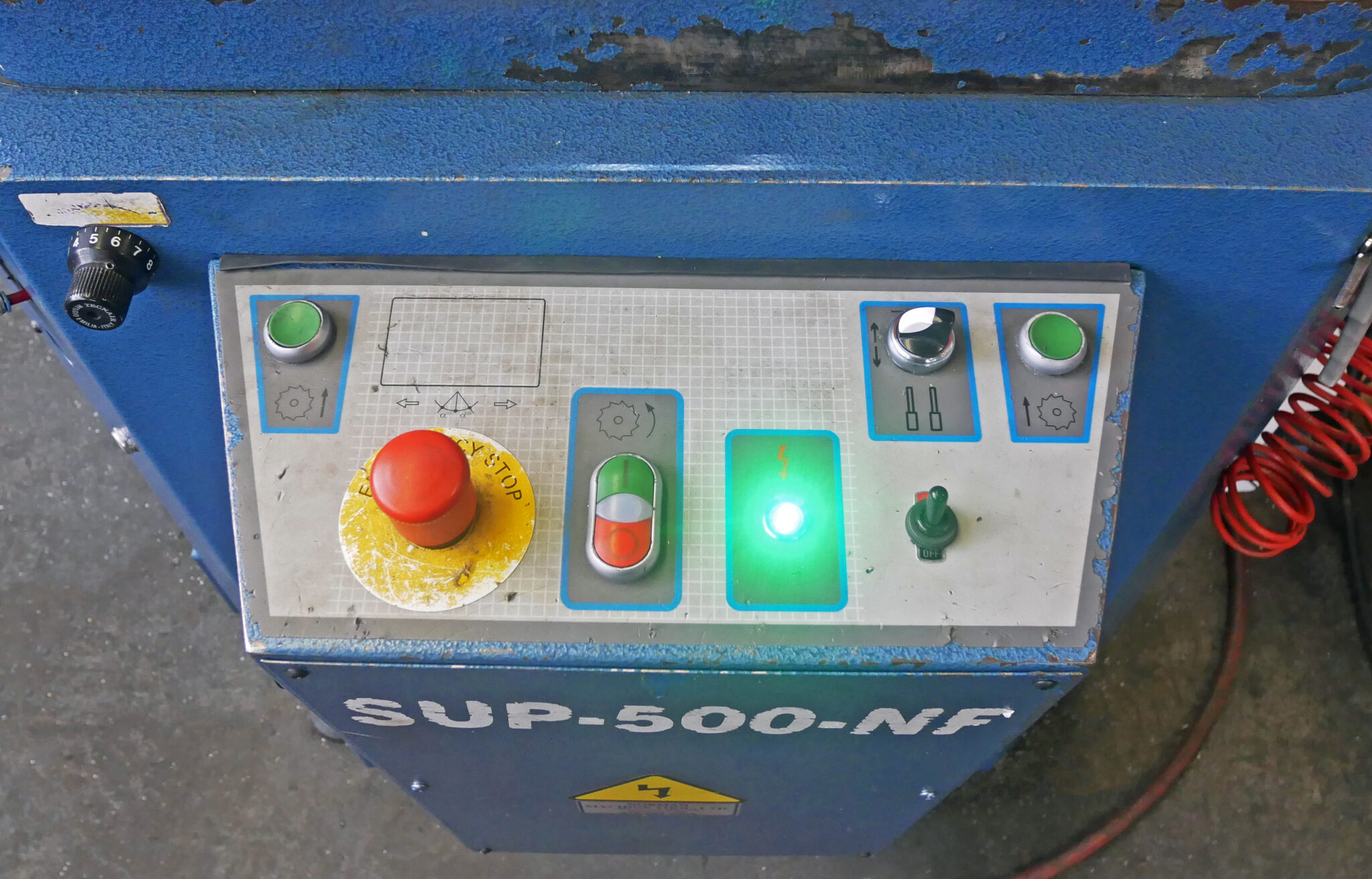

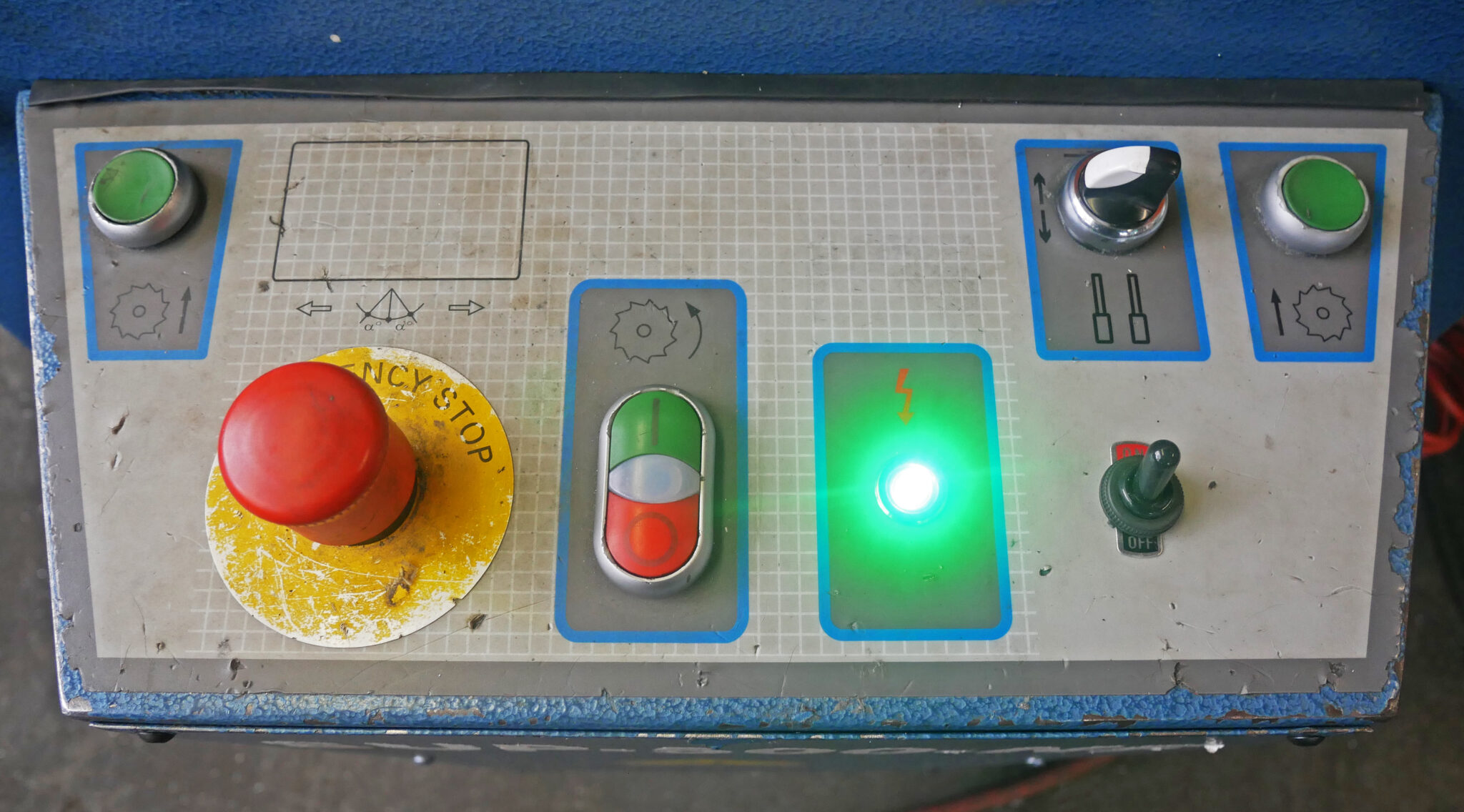

Dual palm buttons
Adjustable feed rate on saw head

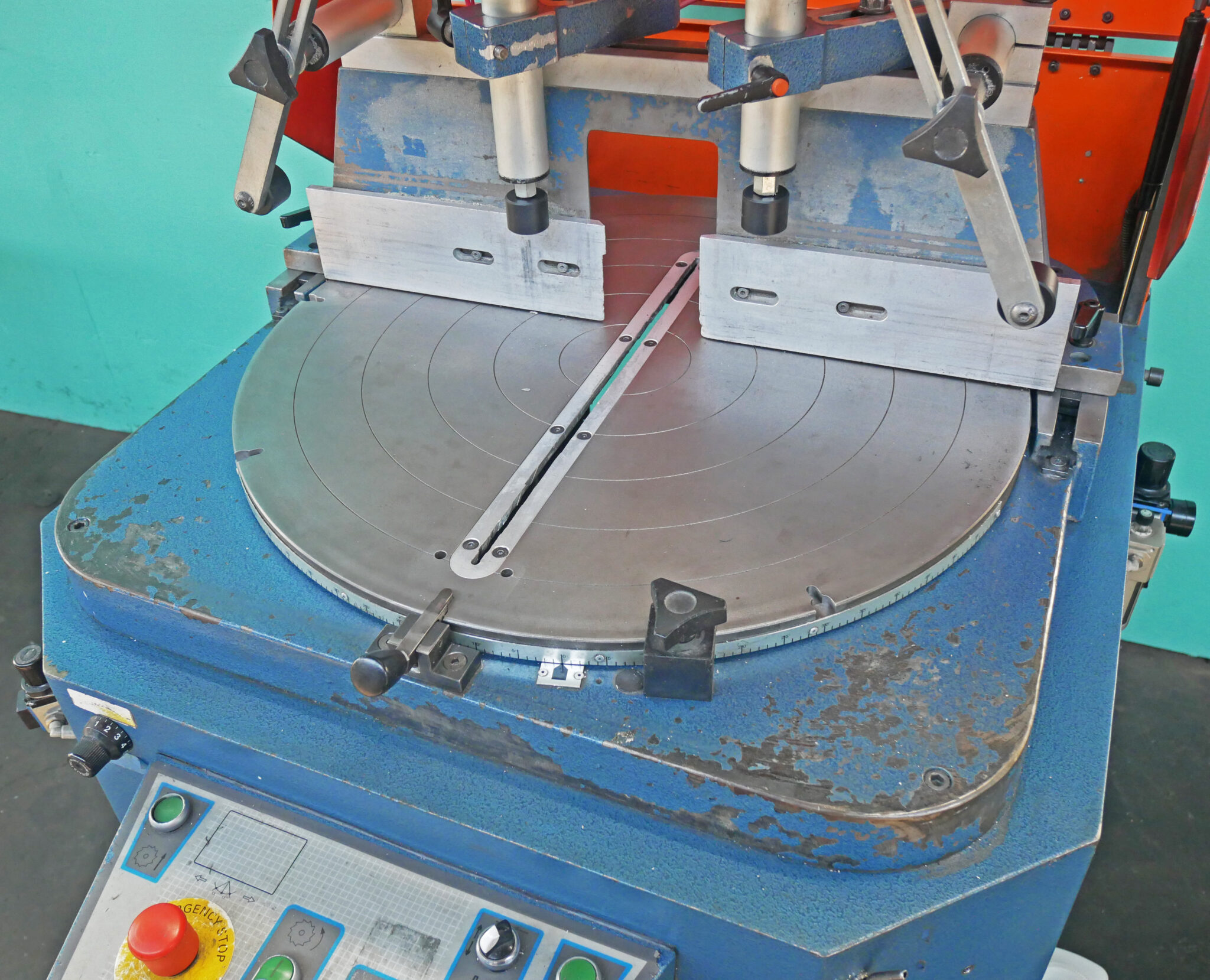

Two horizontal pneumatic clamps
Two vertical pneumatic clamps
Miter capability 30° left, 90° straight, 0° right
Capable of slotting
Moveable back fence for larger capacity
Coolant tank with mist lubrication
Air hose
Chip collection drawer in base and a 4 3/4″ chip collection port
Noise level 68 Db
Mechanical Specifications:
Shipping Dimensions: approx. 46″ x 42″ x 61″ H
Shipping Weight: approx. 1,200 lbs.
New Replacement Cost: $15,590.00+
FOB Our Baltimore, MD Warehouse
