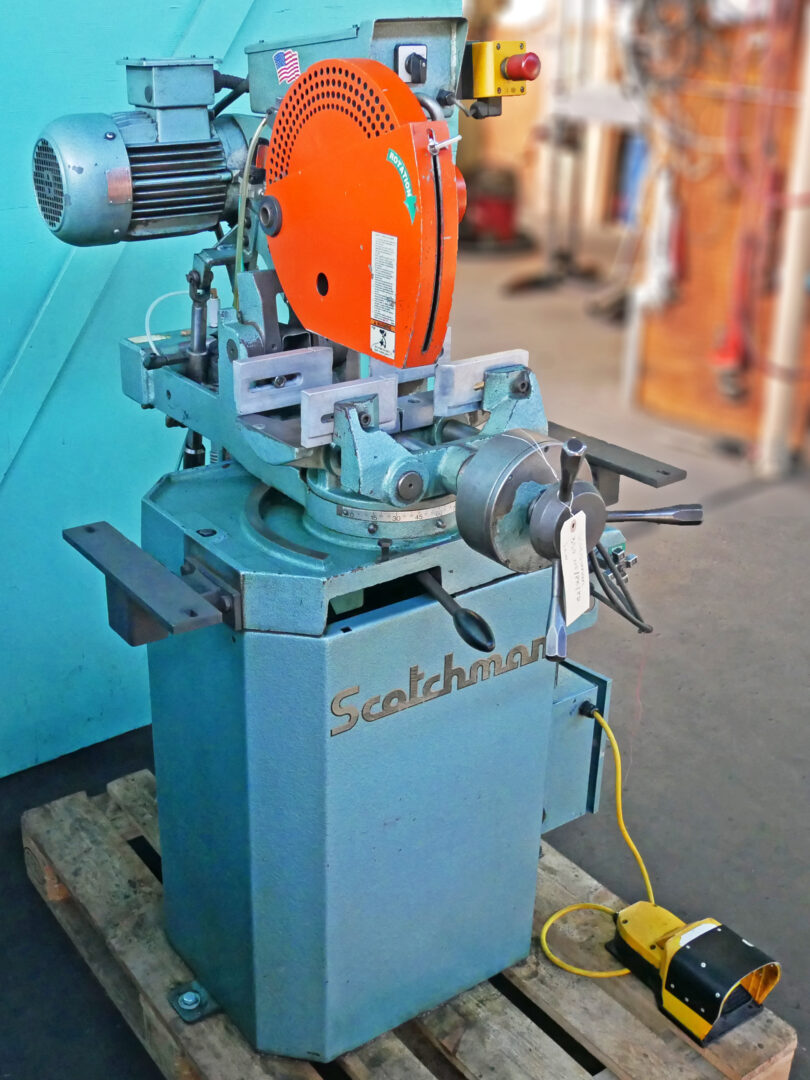

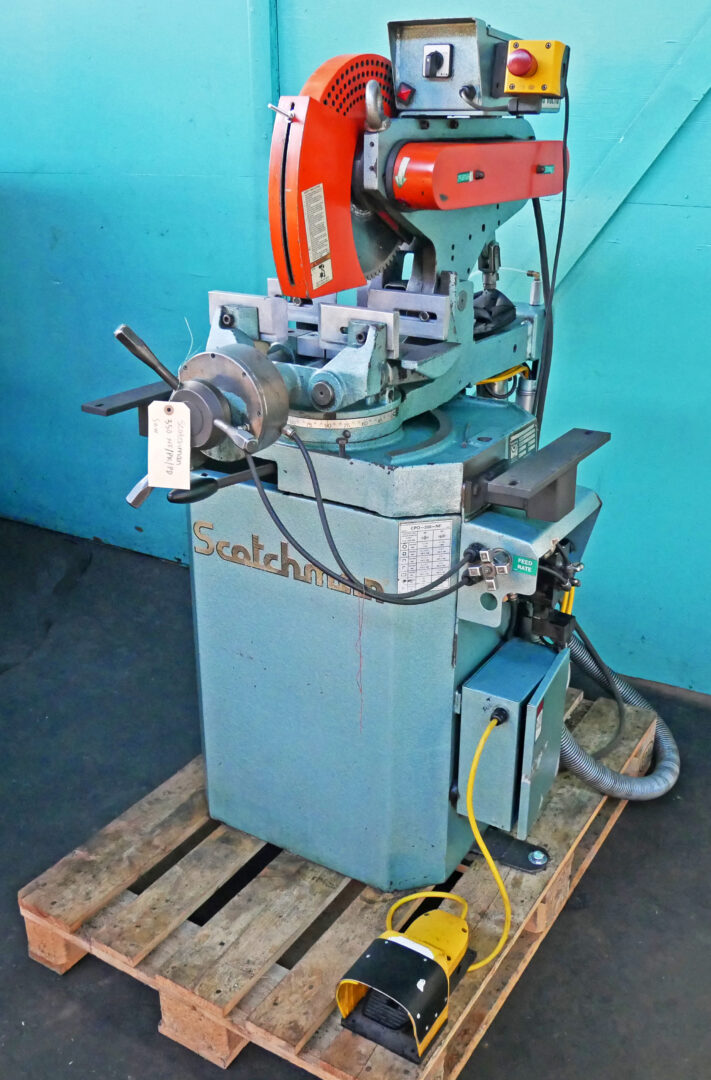

Scotchman 14″ Non-Ferrous Semi-Automatic Cold Saw, CPO 350 NF PKPD
Inventory # 10064
Model: CPO 350 NF PKPD

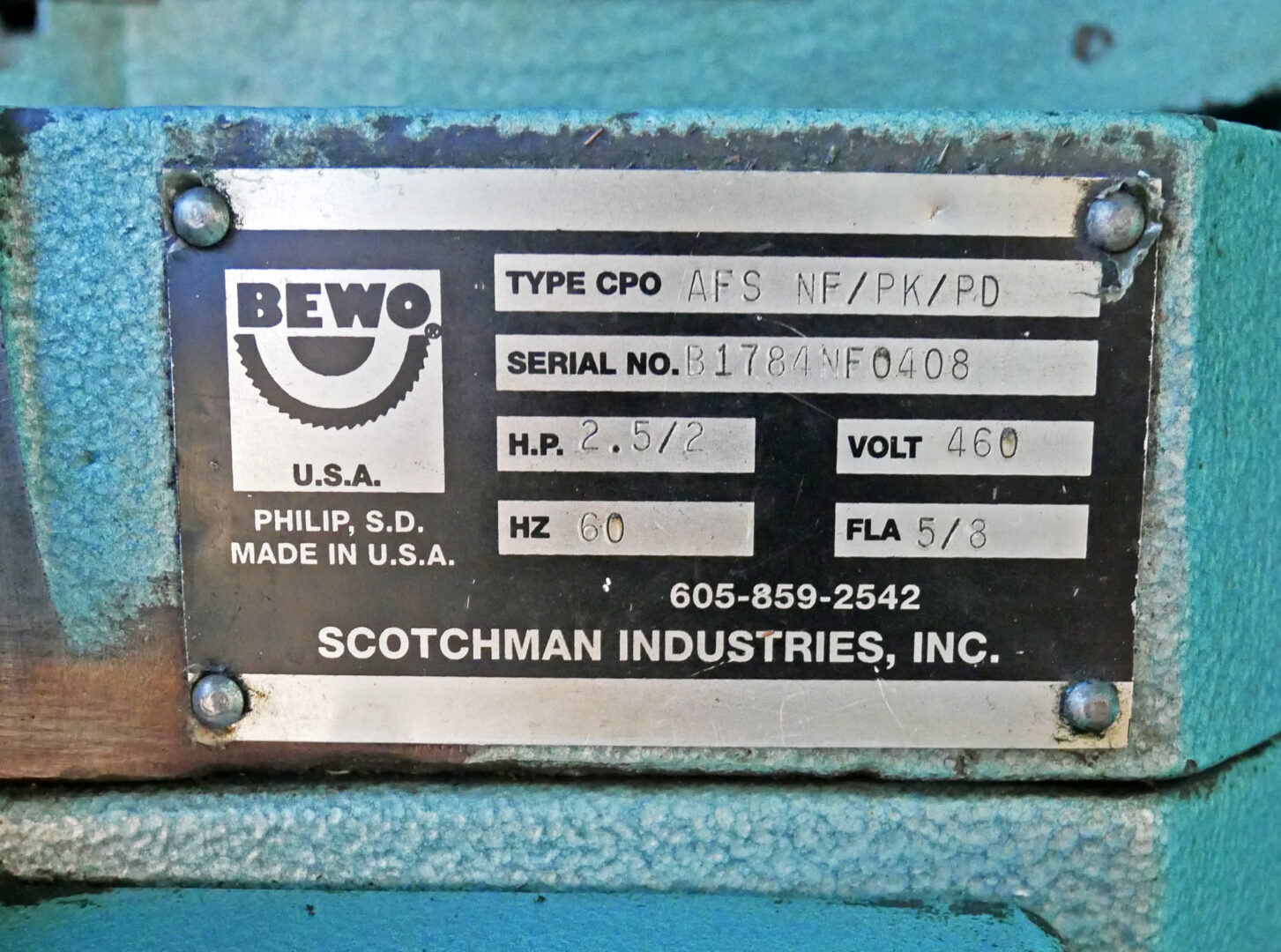

S/N: B1784 NF0408
Made in USA
Specifications:

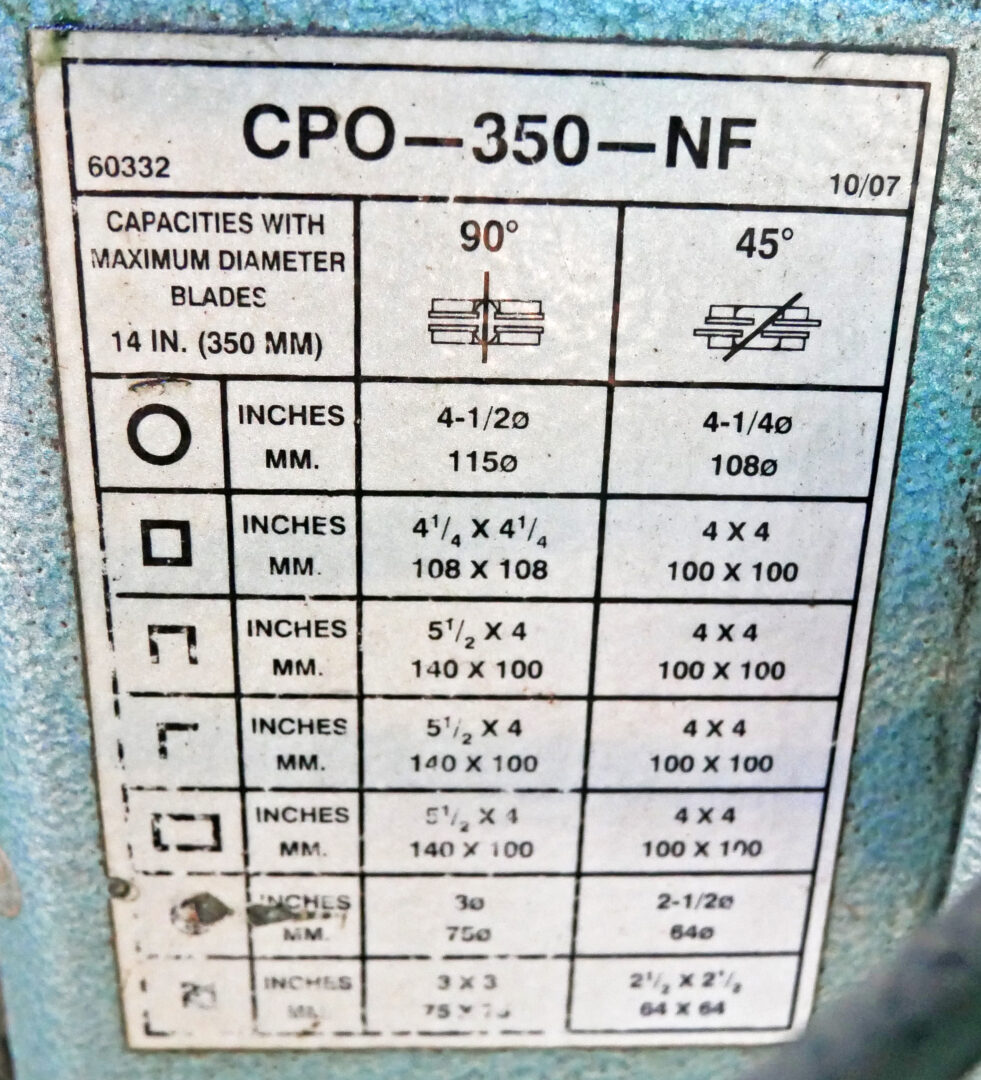

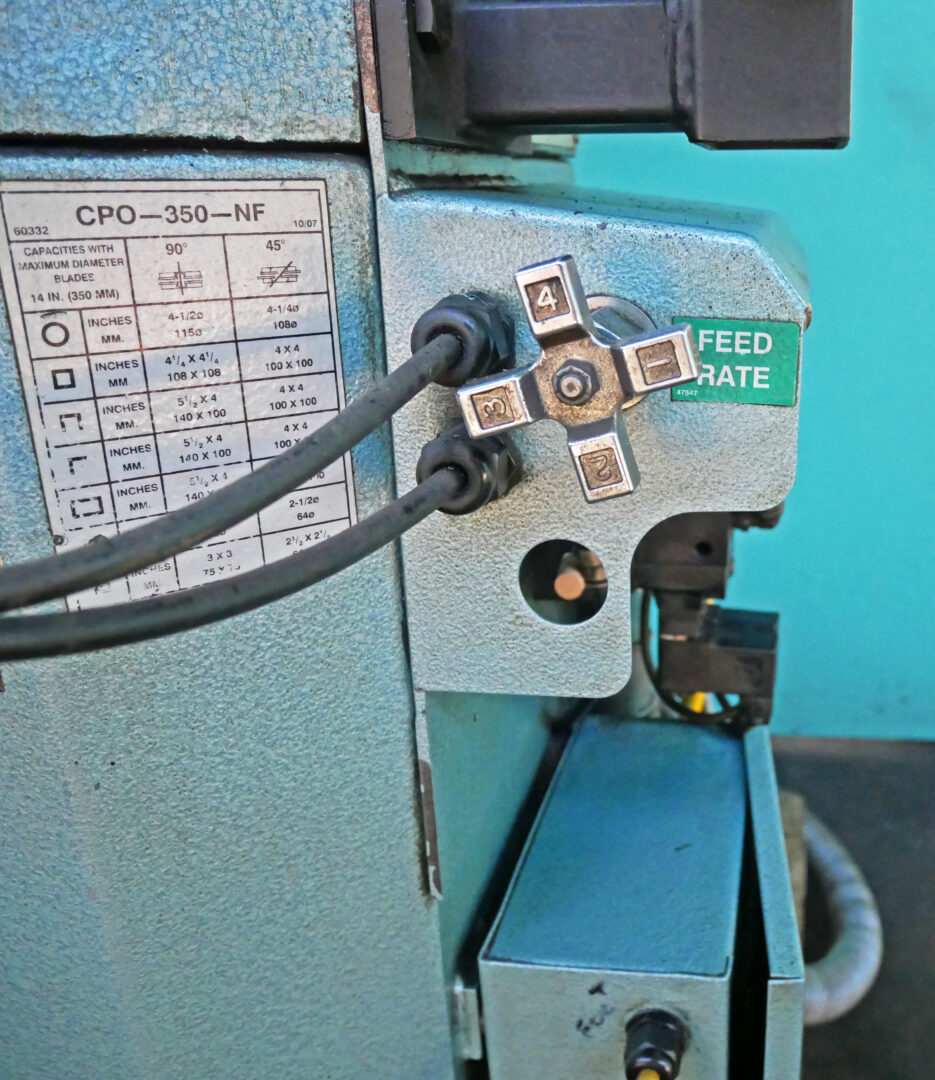

Capacity:
Tubing @ 90°:
Round: 4 1/2″
Square: 4 1/4″ x 4 1/4″
Rectangle: 5 1/2″ x 4″
Tubing @ 45°:
Round: 4 1/4″
Square: 4″ x 4″
Rectangle: 4″ x 4″
Solid @ 90°:
Round: 2 1/2″
Square: 2 1/2″ x 2 1/2″
Cutting Speed: 3,000 RPM
Max. Diameter Blade: 350mm (14″)
Arbor Bore: 40mm (1.57″)
Pin Spacing: 4 / 12 / 64
Motor: 5 HP / 460v / 3ph
Standard Features:
Semi-automatic cycle

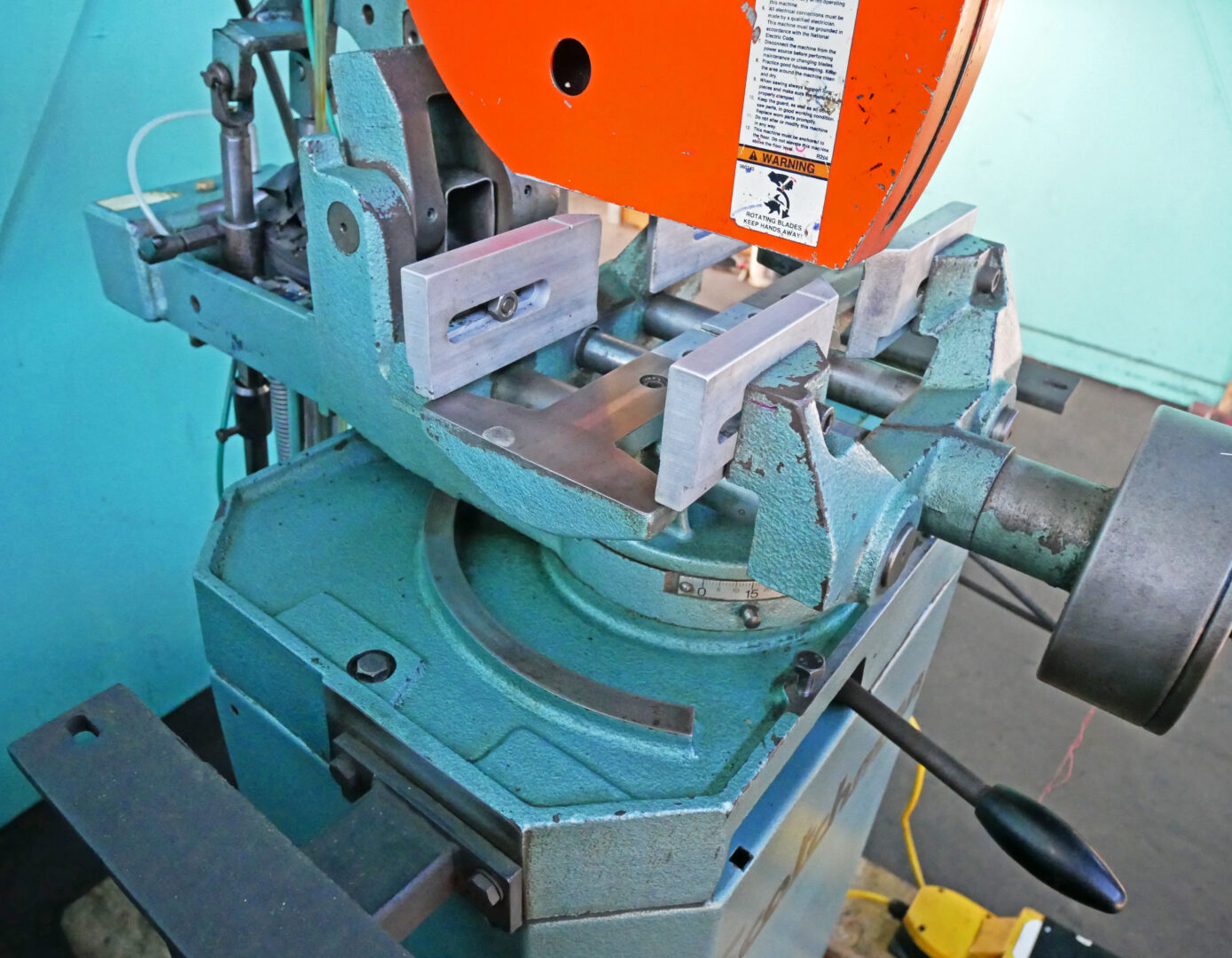

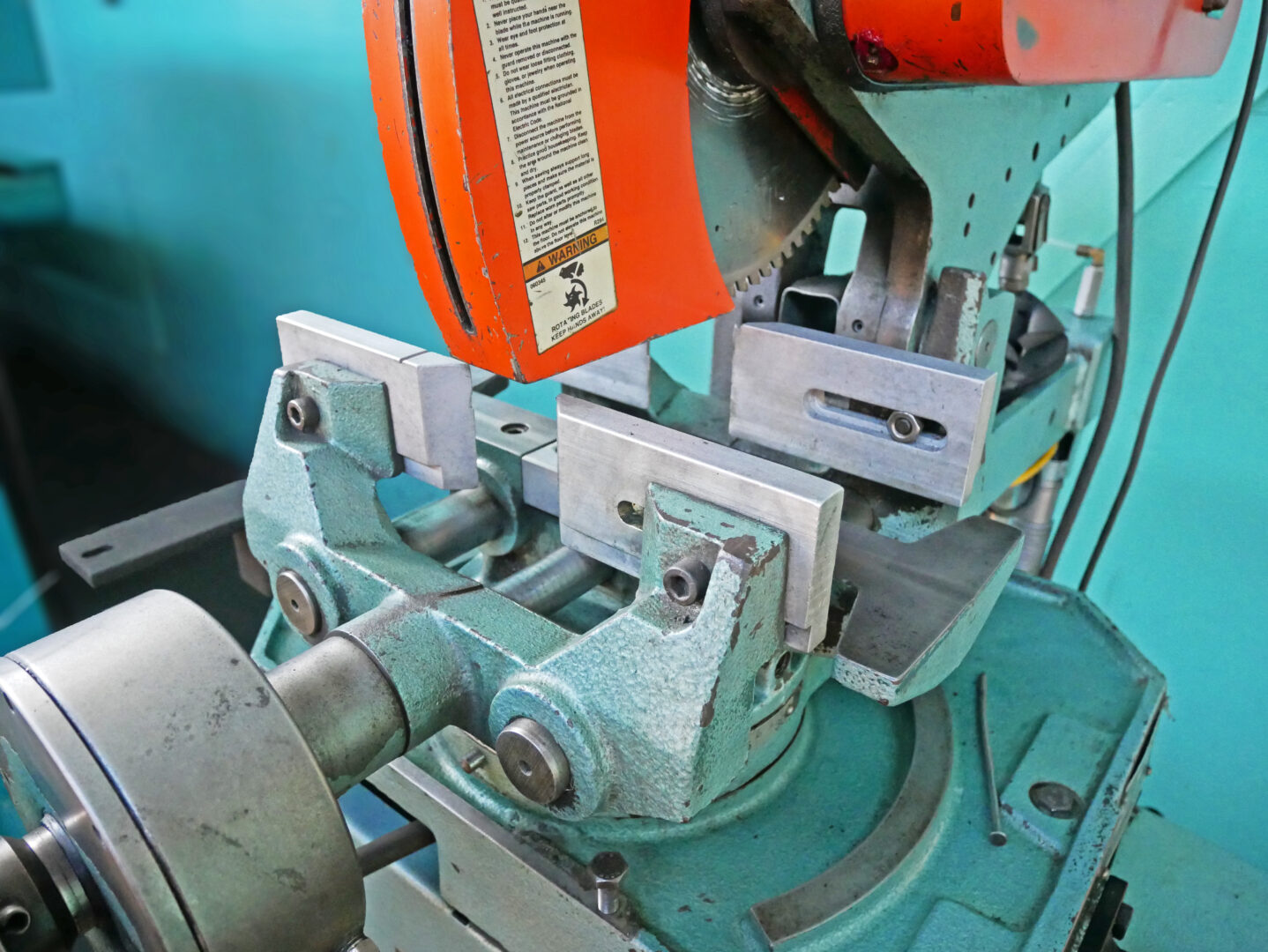

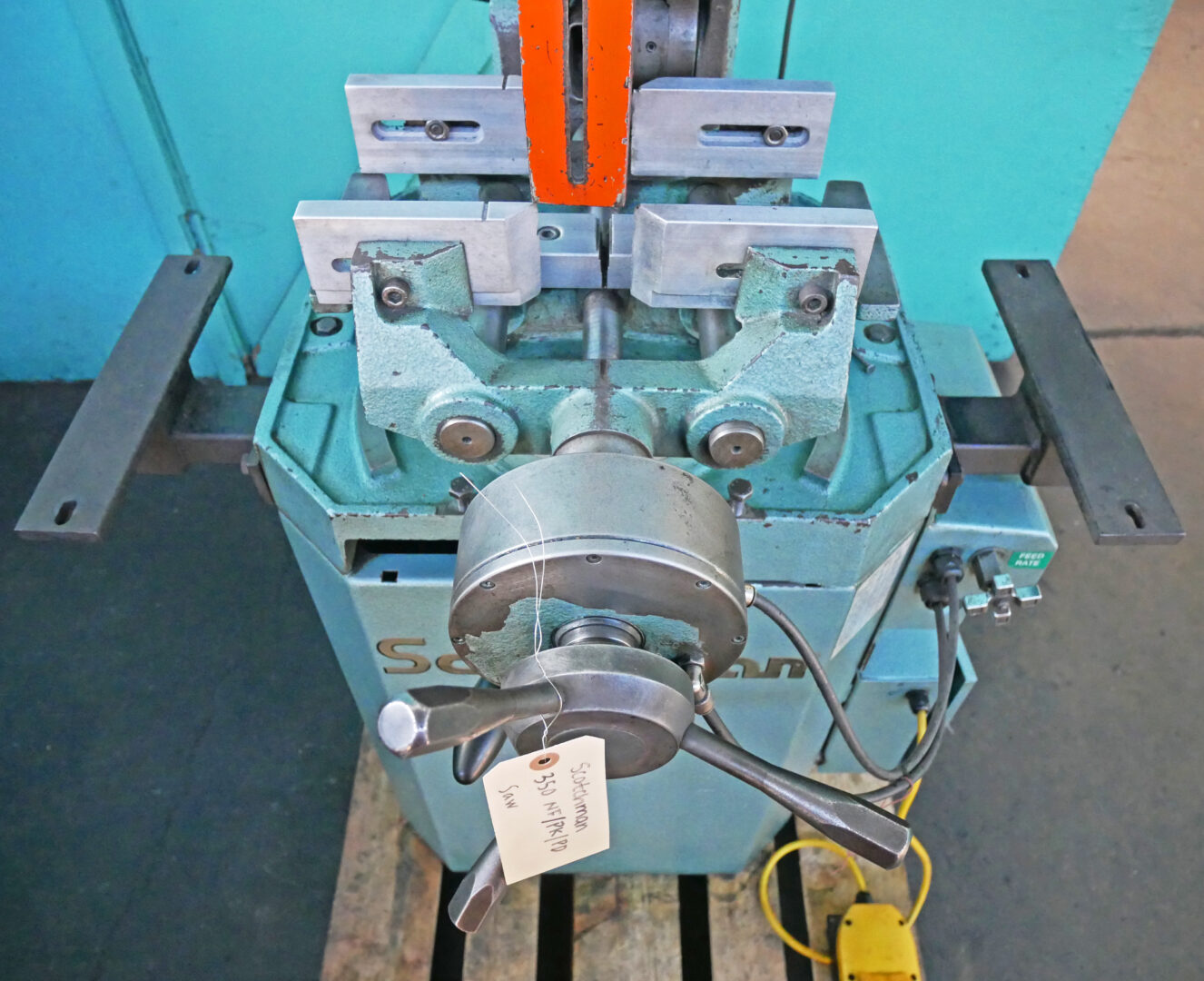

Air-operated double self-centering vise assures burr-free cuts
Pneumatic power down feed with electric controls

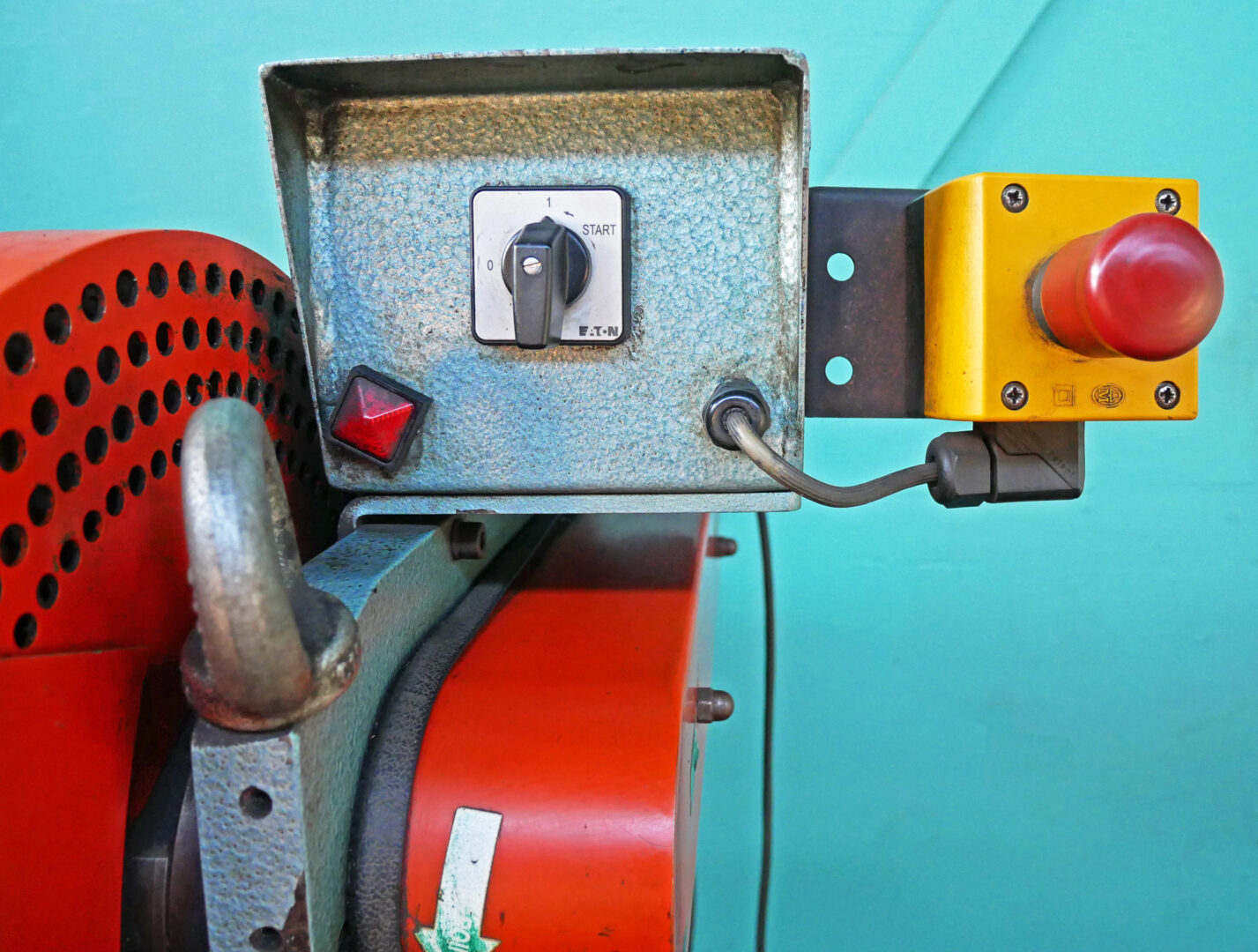

Emergency stop button
Miter capabilities, 45° left to 45° right
Miter locking device: quick, accurate settings – stops at 45° left, 90°, and 45° right
Capable of slotting
Positive-driven cogged belt system

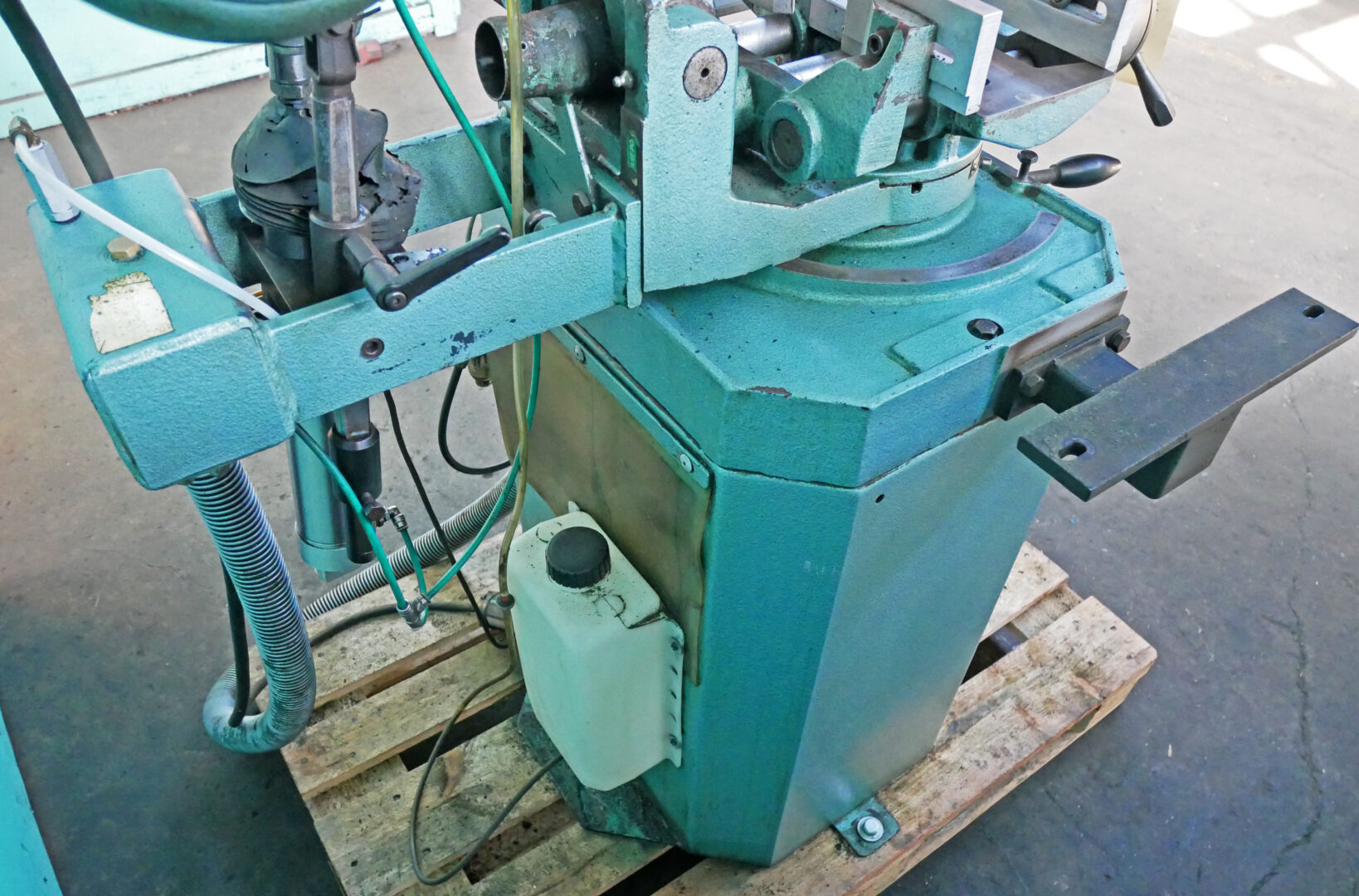

Chip drawer
Mist coolant lubrication system
Mechanical Specifications:
Dimensions: 44″ x 22″ x 57″ H
Shipping Weight: approx. 725 lbs.
New Replacement Cost: $14,650.00
FOB Our Baltimore, MD Warehouse
