Description

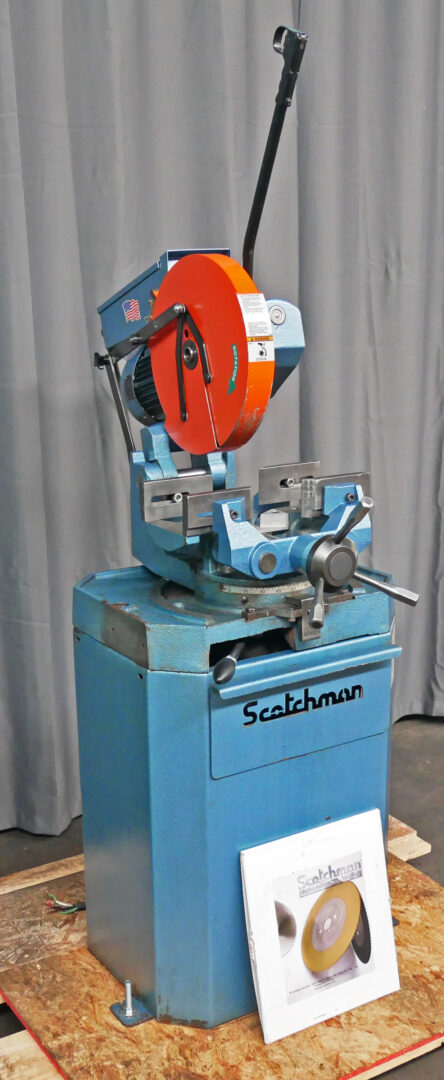

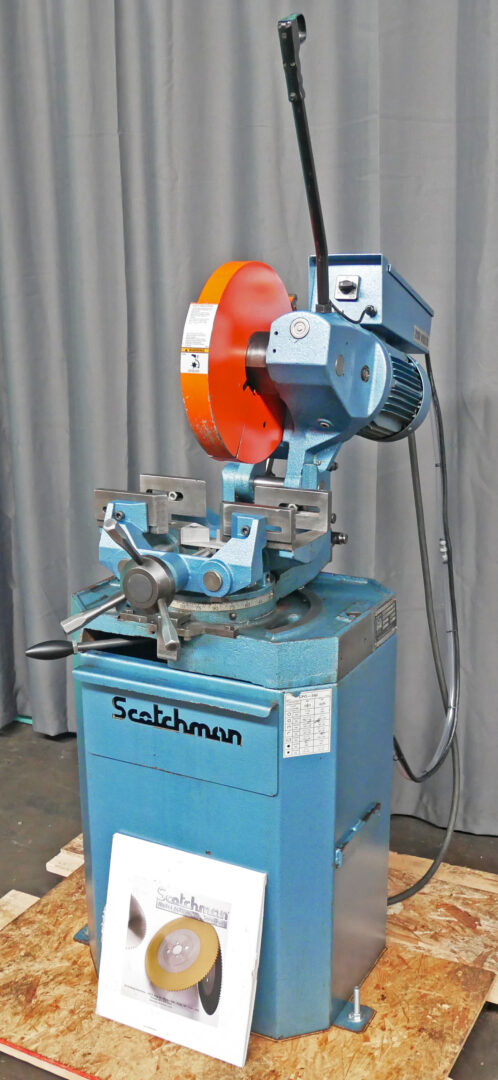

Scotchman 14″ Manual Ferrous Cold Saw, CPO 350 LT
Inventory # 10077
Model: CPO 350 LT
S/N: B103610815
Specifications:

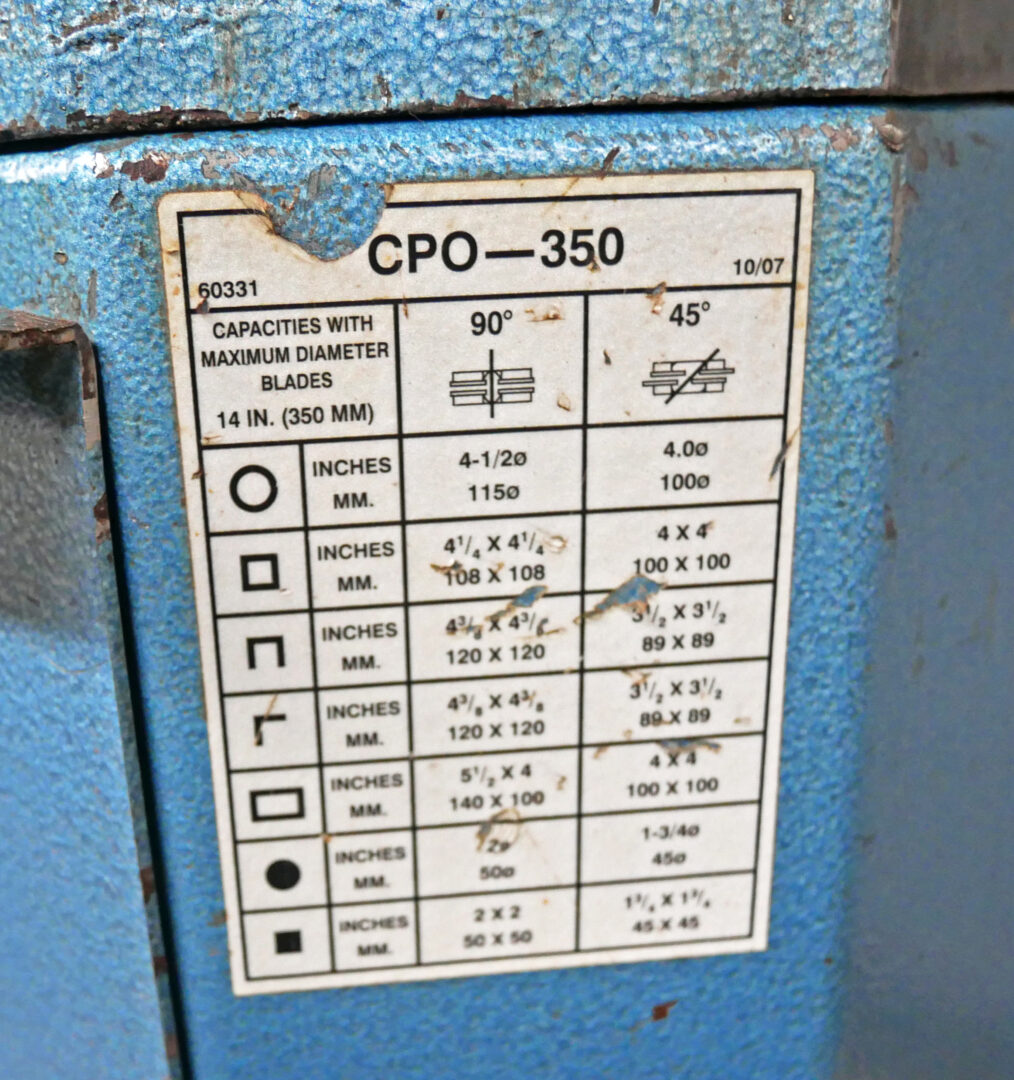

Max. Cutting Capacity:
Tubing @ 90°:
Round: 4 1/2″
Square: 4 1/4″ x 4 1/4″
Rectangle: 5 1/2″ x 4″
Tubing @ 45°:
Round: 4″
Square: 3 3/4″ x 3 3/4″
Rectangle: 3 3/4″ x 3 3/4″
Solid @ 90°:
Round: 1 3/4″
Square: 1 3/4″ x 1 3/4″
Solid @ 45°:
Round: 1 1/2″
Square: 1 1/2″ x 1 1/2″
Cutting Speeds: 22 / 44 RPM (Low Turn)
Max. Diameter Blade: 350mm (13.78″)
Arbor Bore: 40mm (1.57″)
Pin Spacing: 4 / 12 / 64
Height from Floor to Vise: 37 7/16″

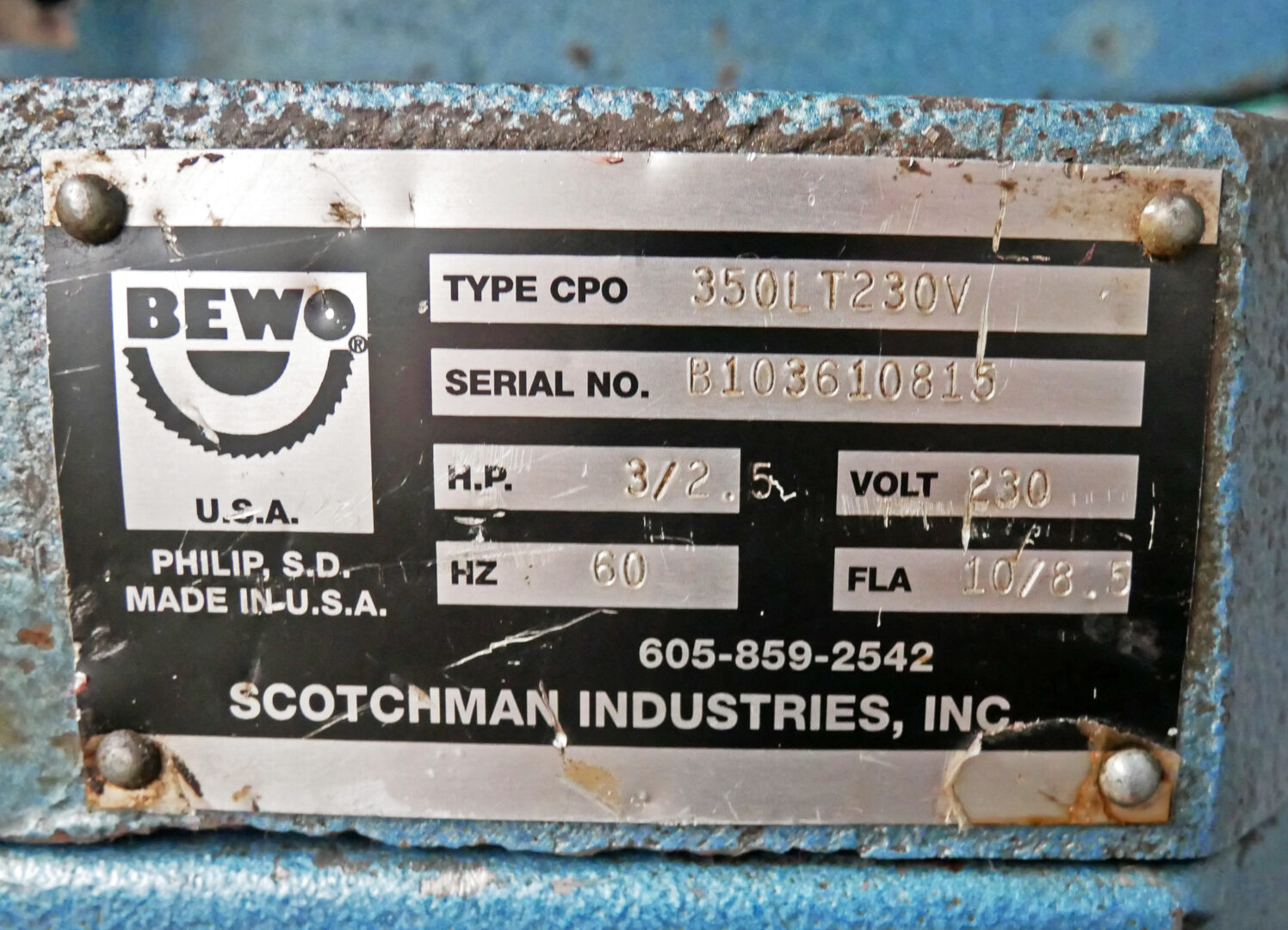

Motor: 3 HP / 230v / 3ph
Equipment Included:
Brand New Saw Blade, Installed on Machine
Mechanical Specifications:
Dimensions: 21 7/8″ W x 43 1/2″ D x 56 1/4″ H (Not Including Feed Handle)
Shipping Weight: approx. 675 lbs.
New Replacement Cost: $10,100.00
FOB Our Baltimore, MD Warehouse
