Description

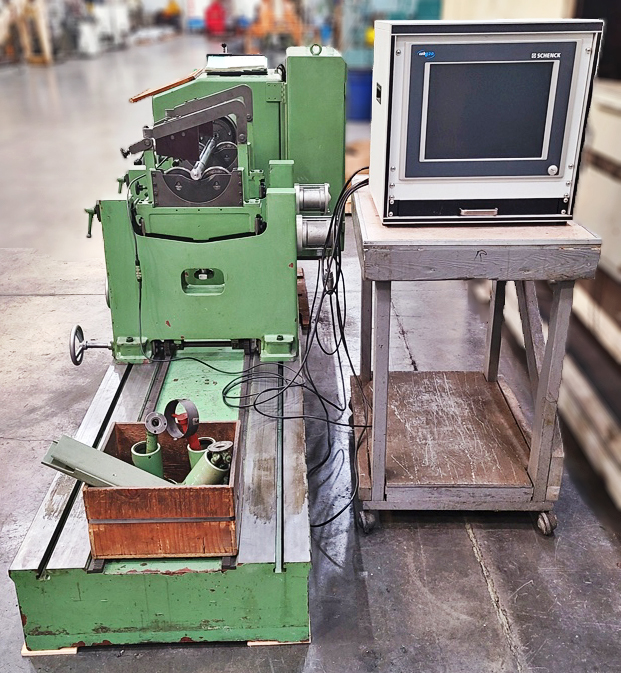

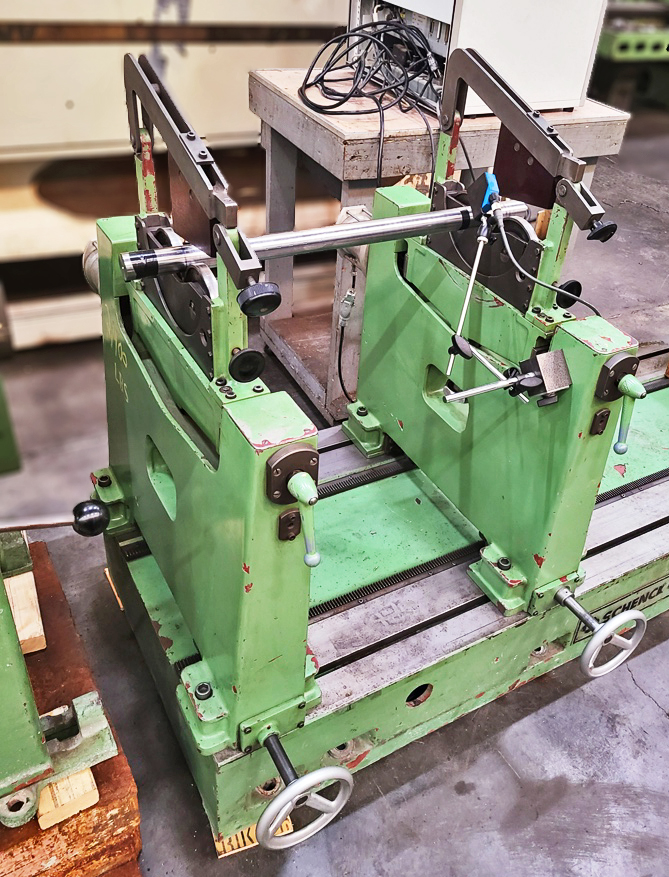

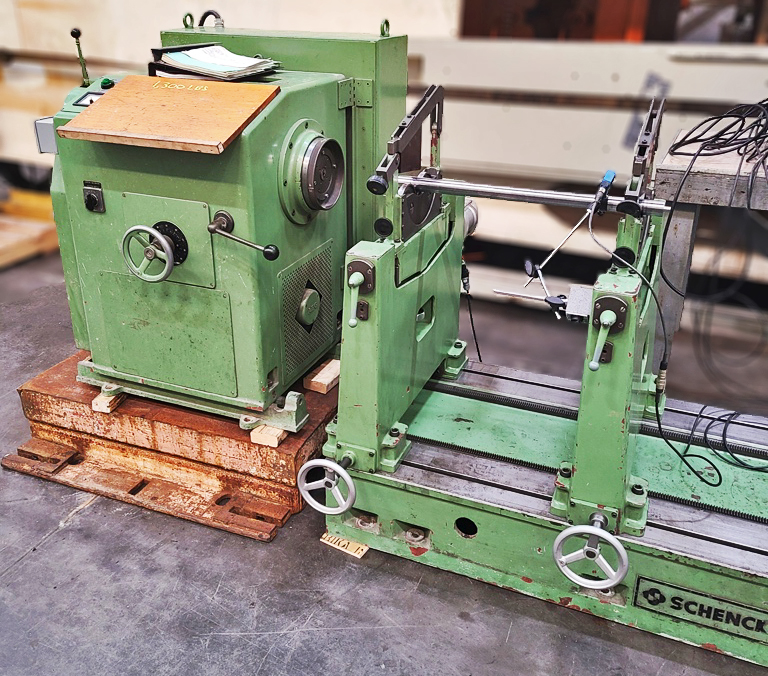

Schenck 2,000 lbs. Soft Bearing Type Displacement Balancer, R54UV
Inventory # 10100-C

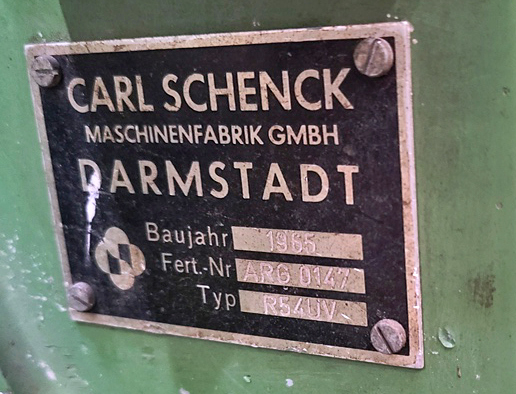

Model: R54UV

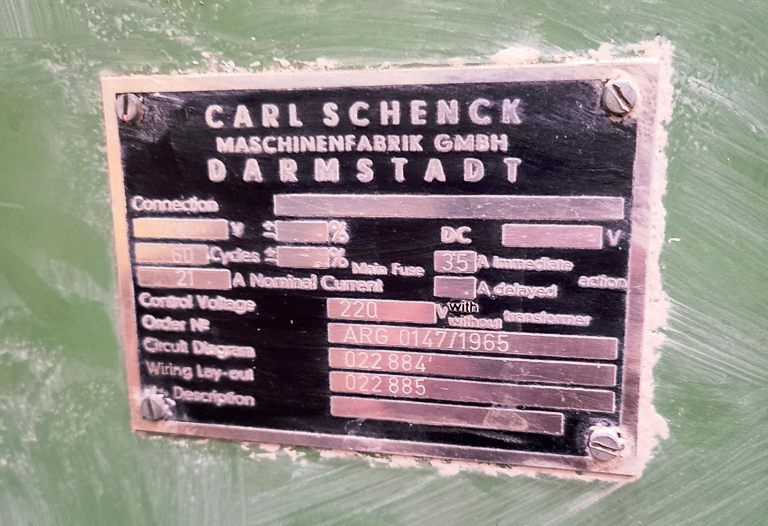

S/N: ARG 0147
Year: 1965 / 2014
Specifications:
Weight Capacity: approx. 2,000 lbs.
Overall Stand Length: 79″
Distance from Top of Stand to Center of Part: 28″ (This can vary slightly due to height adjustment in the bearings)

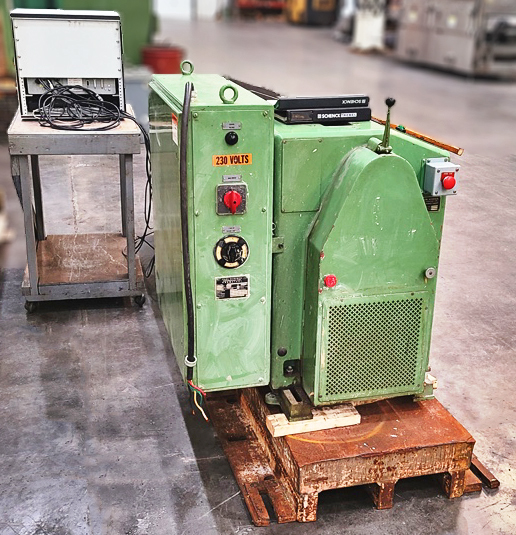

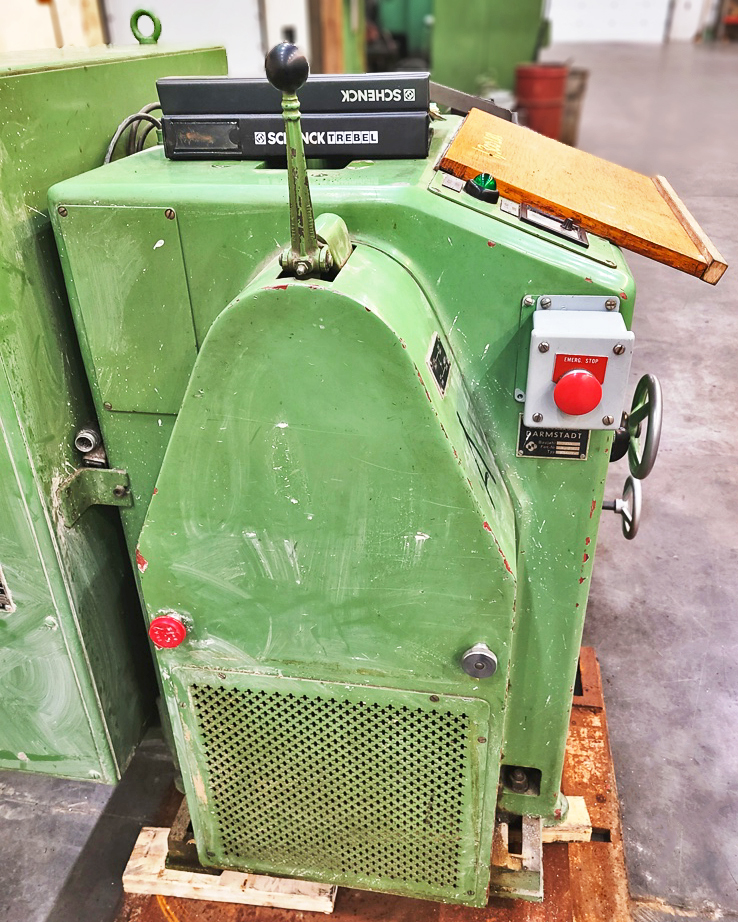

Drive Unit Speeds:
4 Gear Ranges:
400 – 1,200 RPM
750 – 2,200 RPM
1,300 – 3,860 RPM
2,150 – 6,500 RPM

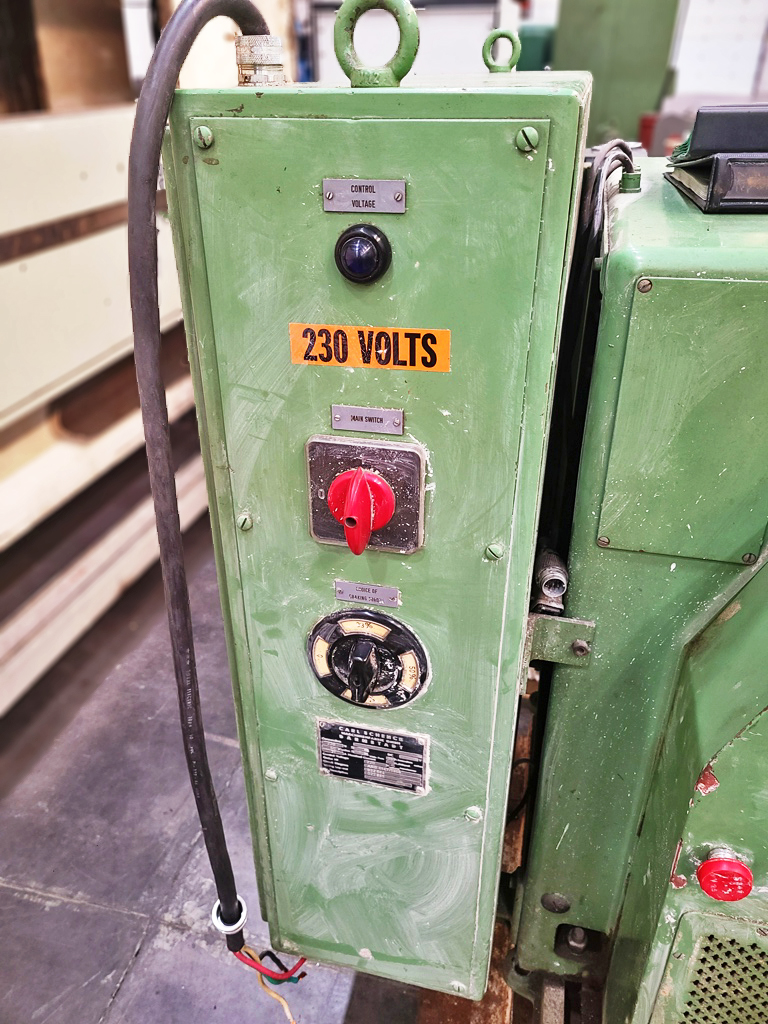

Motor: 220v / 3ph
Equipment Included:

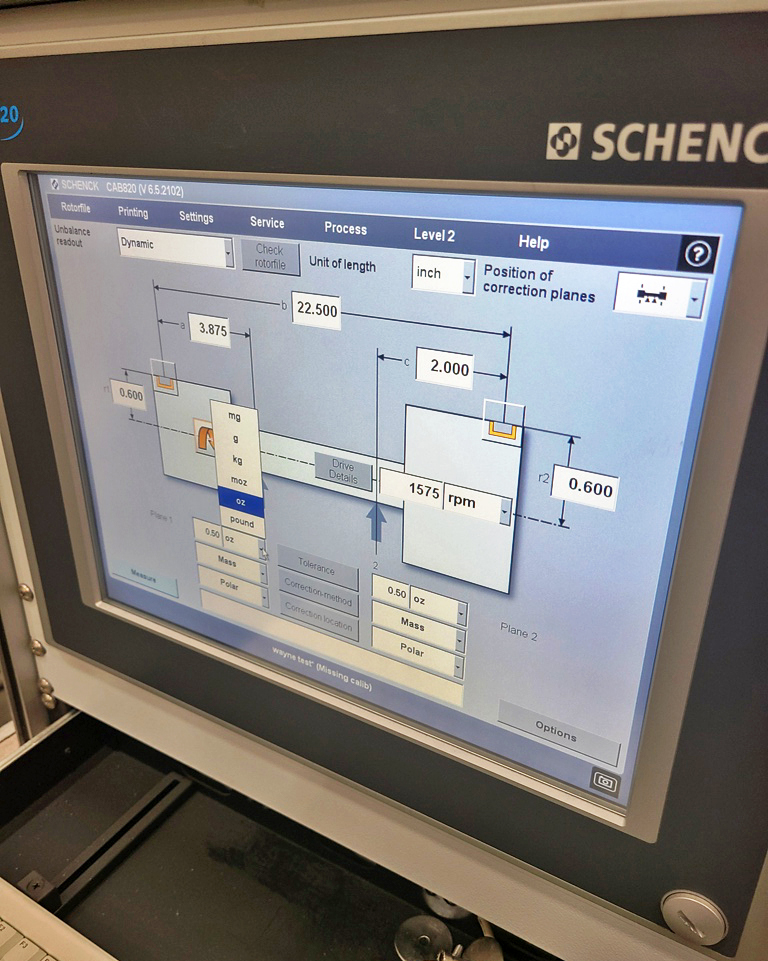

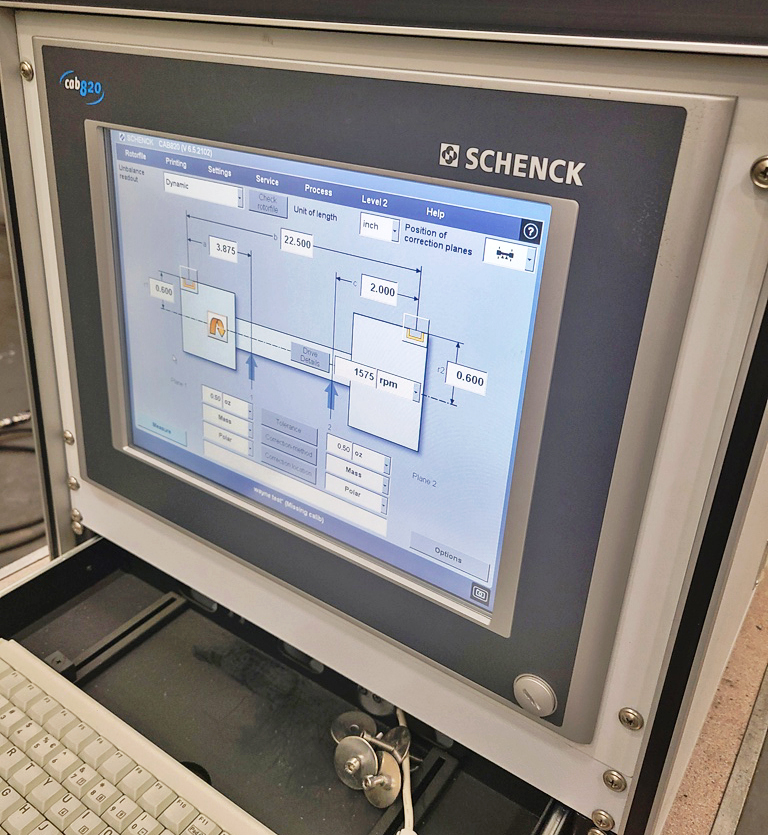

CAB 820 Control:
Model: CAB 820
S/N: 4100221985 – Year: 2014
Options For: Index Balancing, Single Compensation (Biasing), and Key Compensation

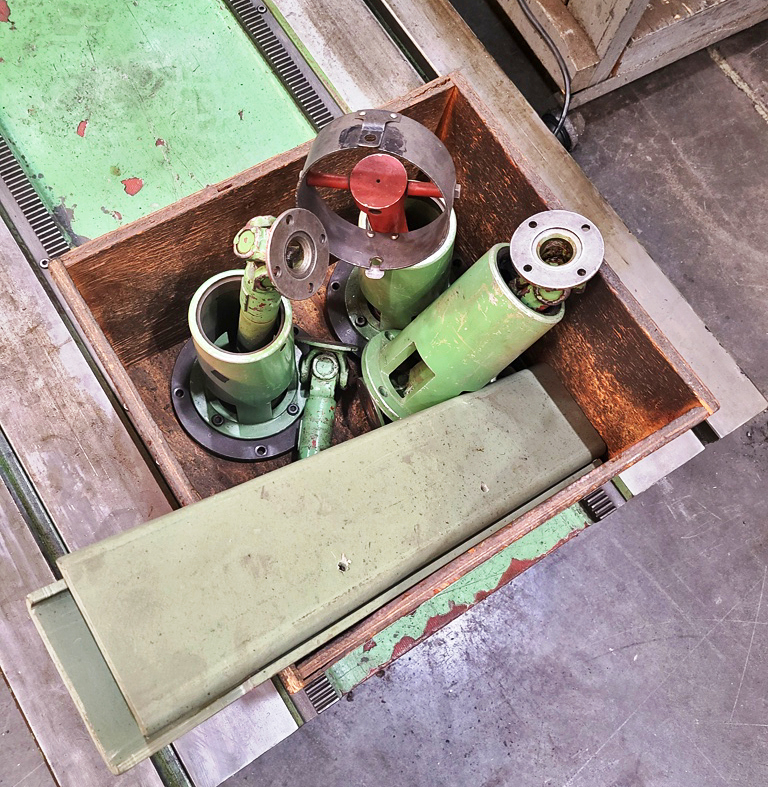

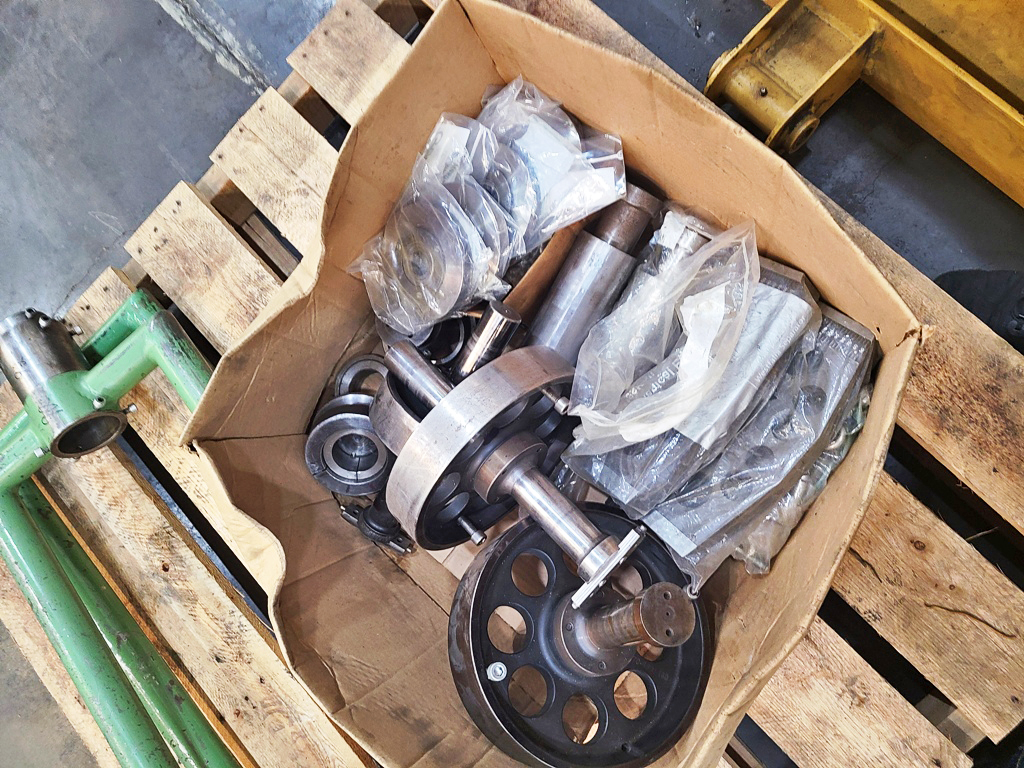

(4) Universal Drive Arms

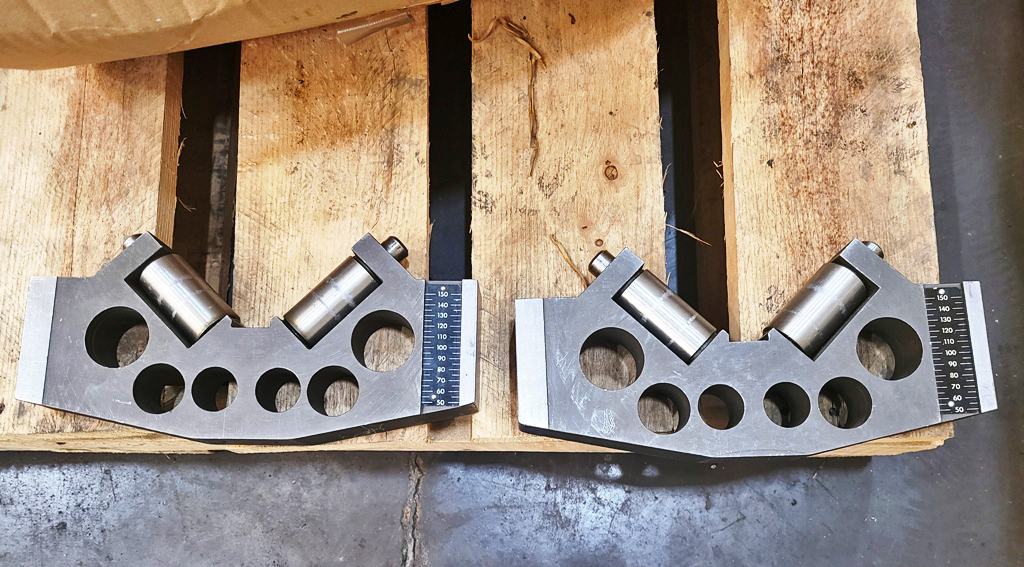

Additional Stand Bearings
Original Manual
Updated Control Manual
Mechanical Specifications:
Dimensions:
Control: 20″ x 20″ x 20″ H
Stand: 79″ x 45″ x 48″
Drive: 40″ x 43″ x 48″ H
Skid: 48″ x 48″ x 20″ H
Weight:
Stand: approx. 2,400 lbs.
Drive: approx. 1,300 lbs.
FOB York, PA Warehouse
