Description

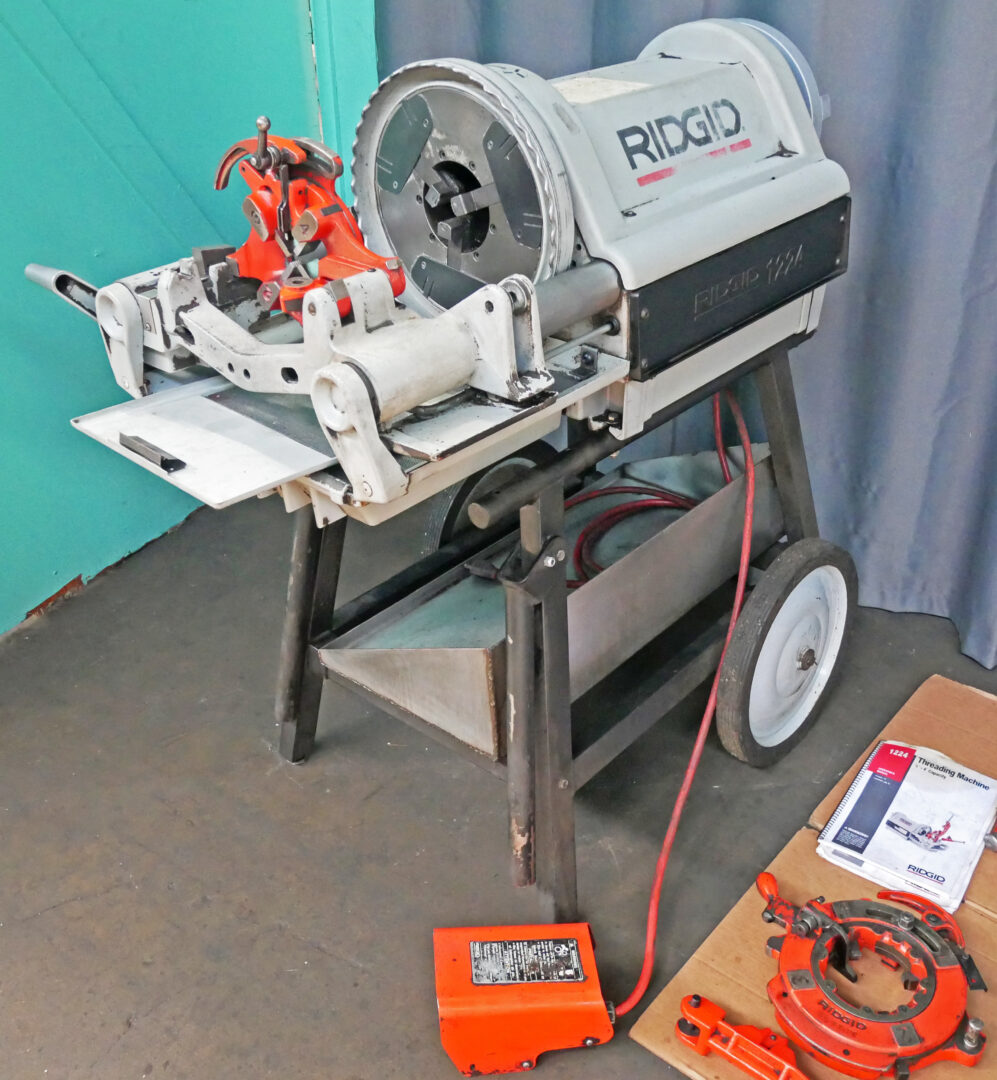

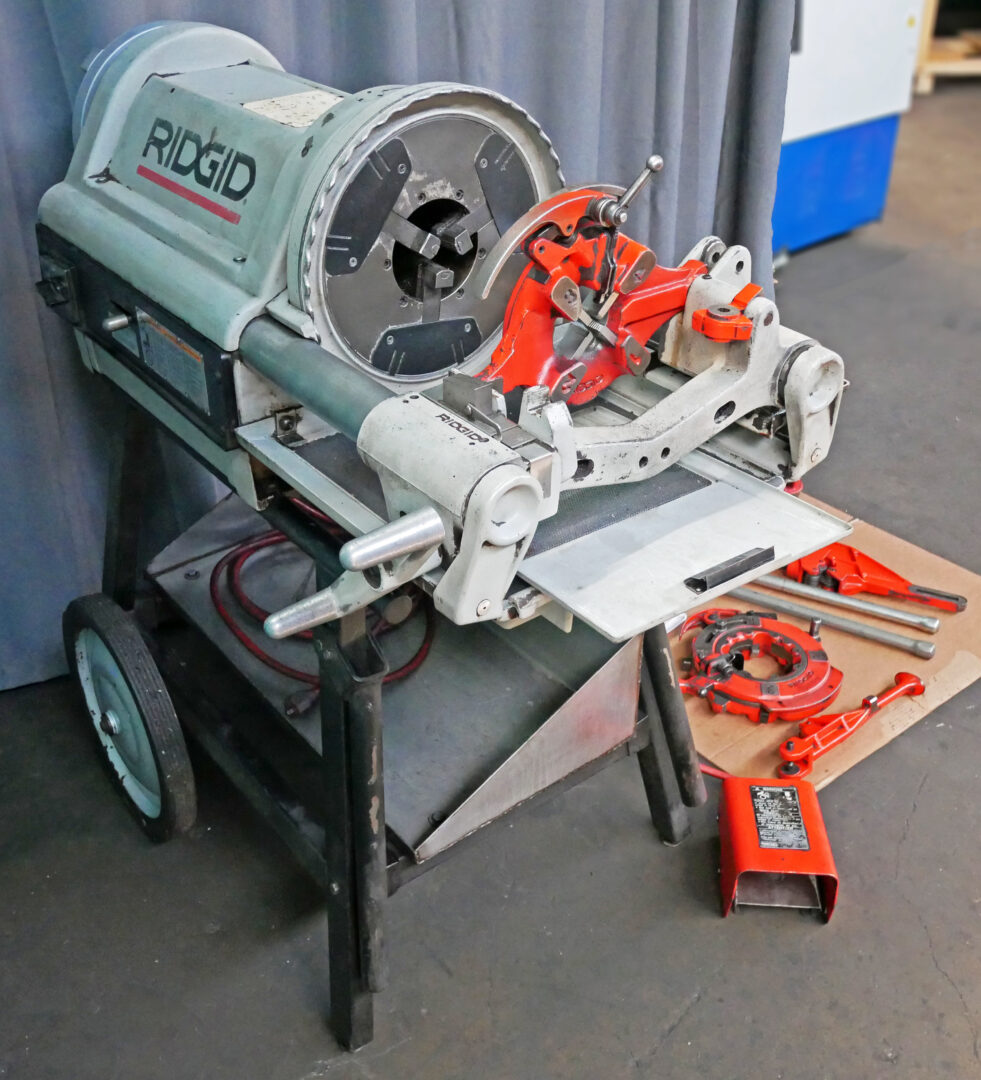

Ridgid Pipe Threader, 1224
Inventory # 10128-P
Model: 1224
S/N: EB07694
Specifications:

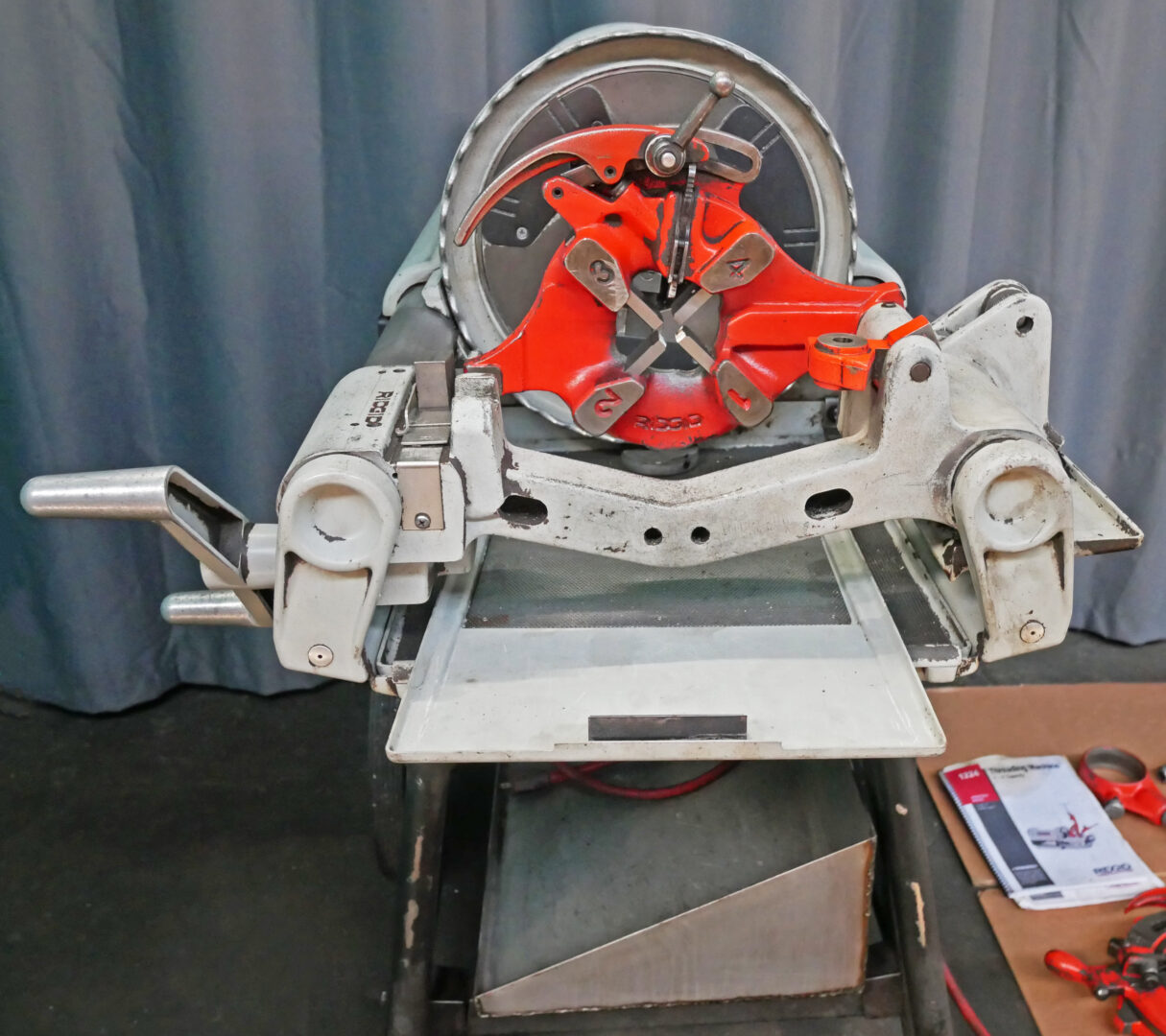

Die Head:
Nominal Pipe Capacity: 1/4″ – 2″ @ 36 RPM, 2 1/2″ – 4″ @ 12 RPM, 4″ – 6″ with 161 Geared Threader
Bolt Capacity: 1/4″ – 2″

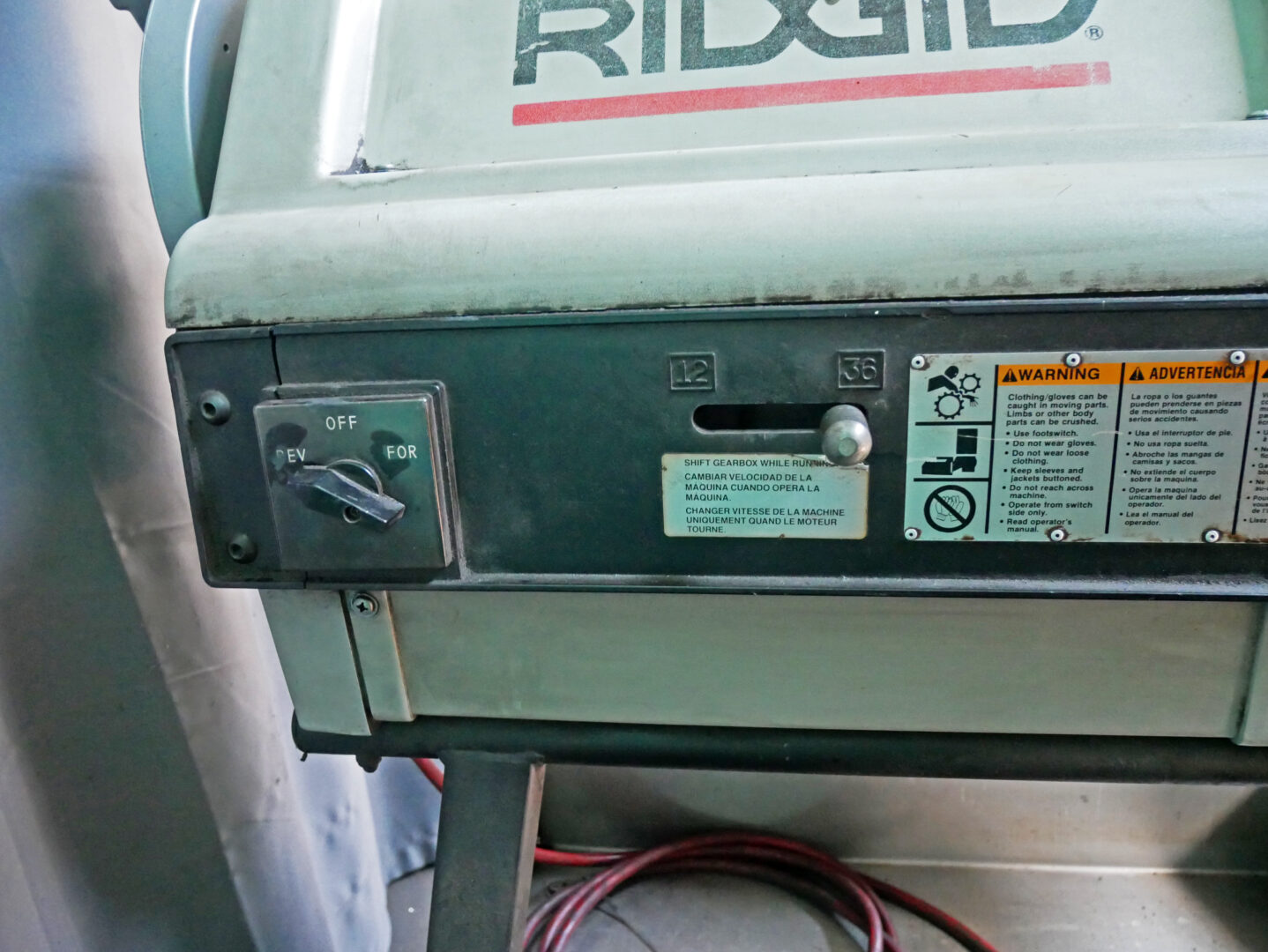

Motor Control: Reverse/Off/Forward, Heavy-Duty Rotary-Type and Integral Foot Switch
Gear Box: Two-Speed Gear Box with 3:1 Ratio

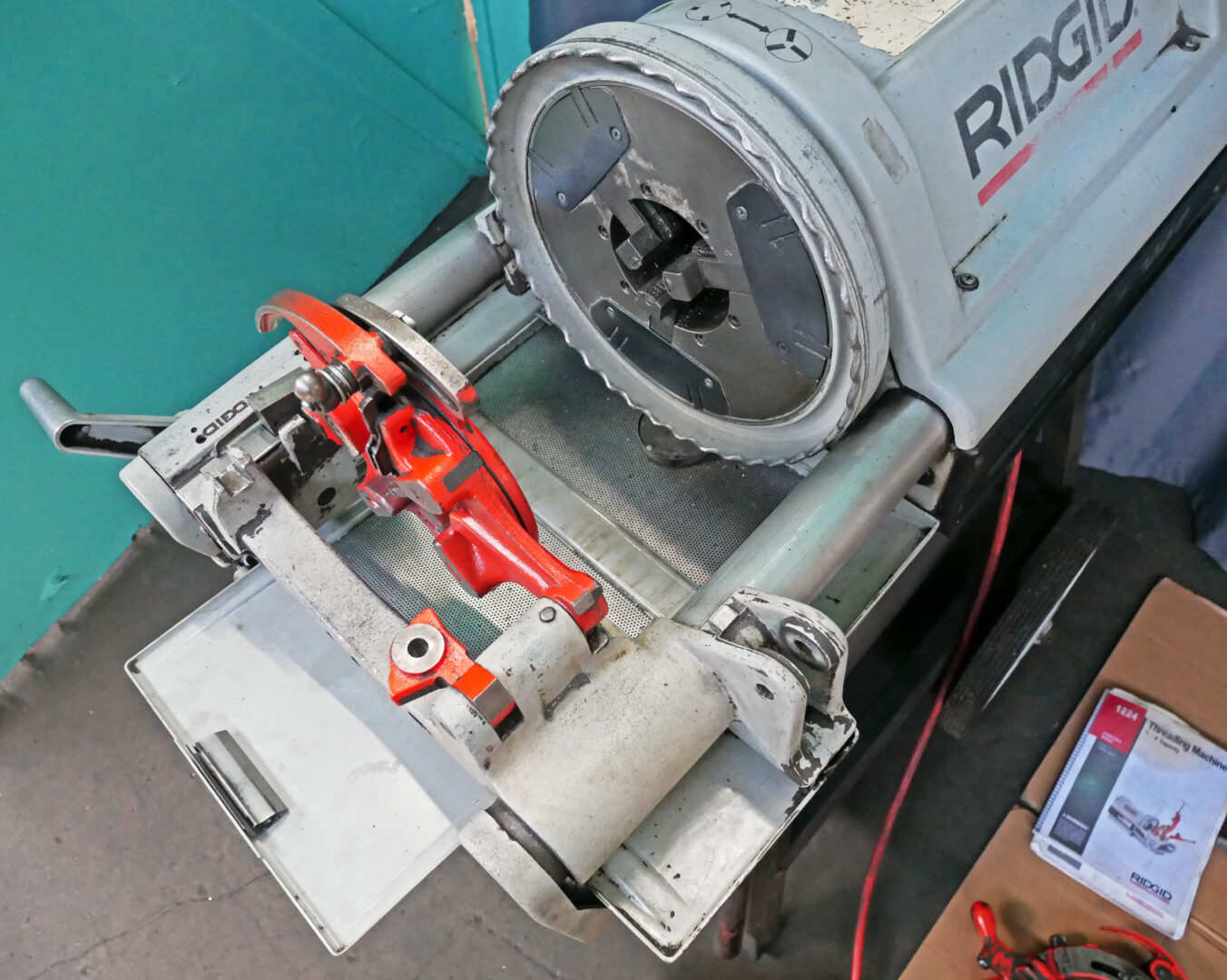

Chuck: Hammer-Type with Replaceable Rocker-Action Jaw Inserts
Rear Centering Device: Cam Action
Oiling Pump: Self-Priming, Gerotor-Type, Automatic-Reversion, Constant-Flow
Oiling: Through Die Head
Motor: TBD
Standard Features:
An Induction Motor Helps Minimize Noise
A Special Capacitor-Start / Capacitor-Run Motor Allows the 1224 to Thread a Full-Range of Material Where Voltage Drop is Experienced
1/4″ – 2″ Universal Die Head; 2 1/2″ – 4″ Receding Die Head Allows Cutting of Tapered or Straight NPT/NPSM or BSPT/BSPP Threads
Constant and Proper Lubrication of Dies and Workpiece with Through-Head Oiling
Mechanical Specifications:
Dimensions: approx. 50″ x 30″ x 50″ H
Weight: approx. 510 lbs.
FOB Our Baltimore, MD Warehouse
