Description

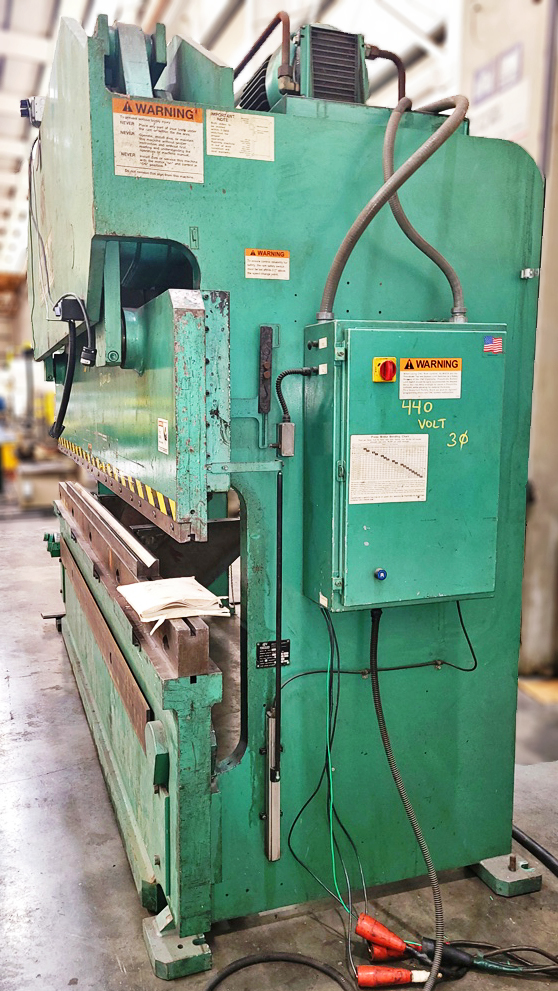

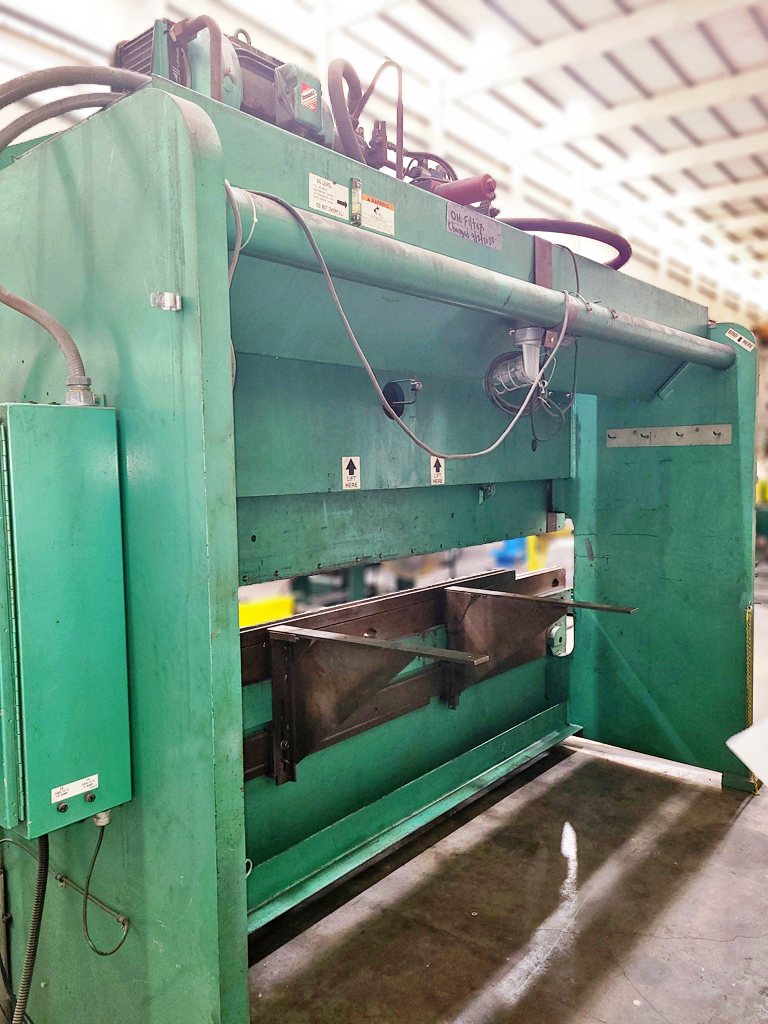

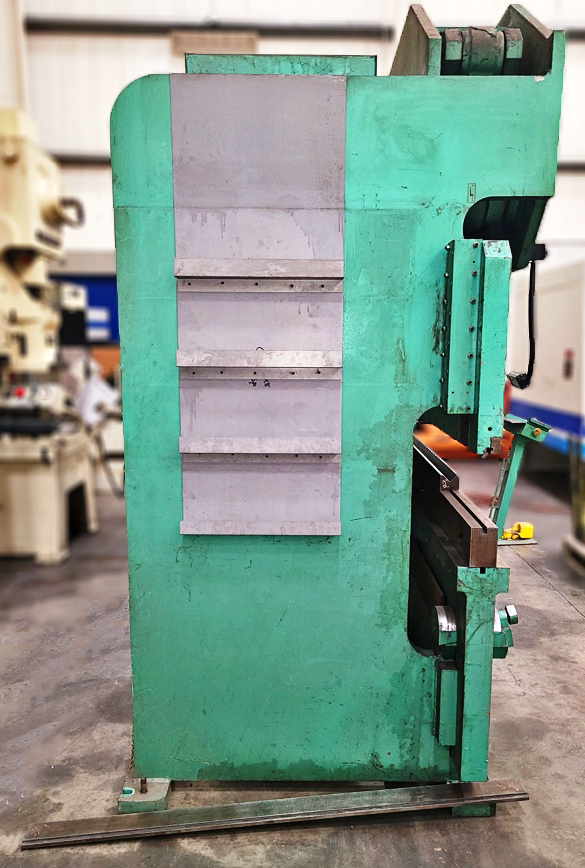

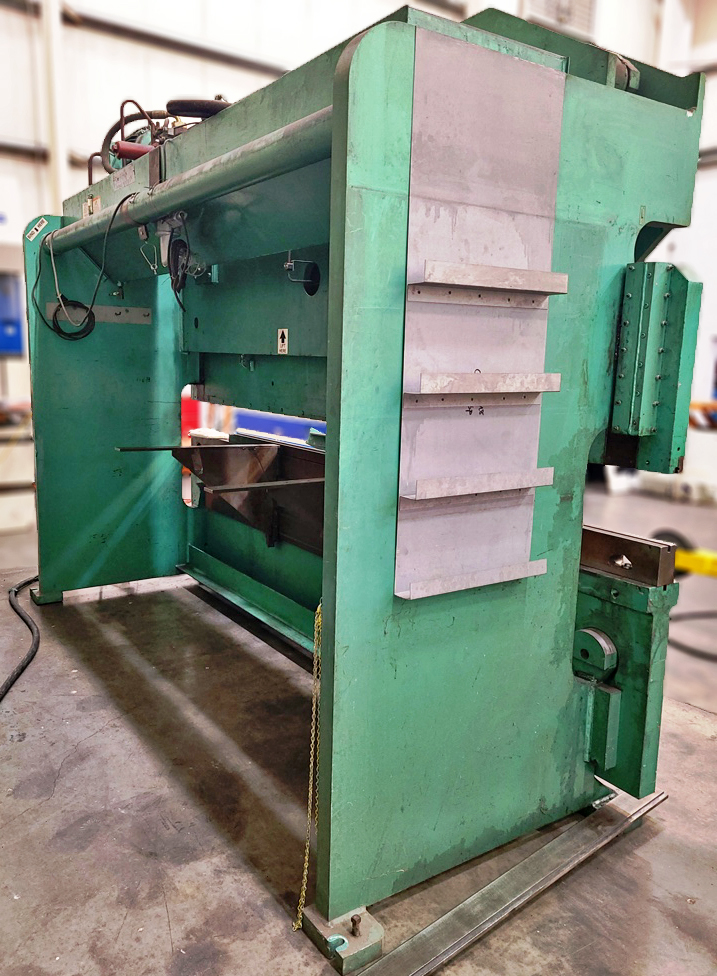

Piranha 12′ x 175 Ton Hydraulic Press Brake, 175-12
Inventory # 10101-C
Model: 175-12

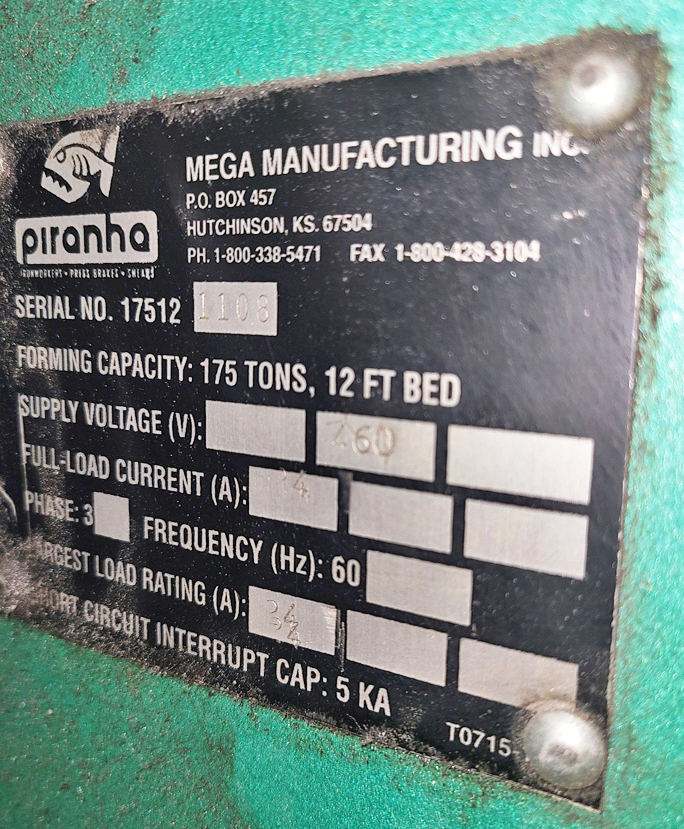

S/N: 17512-1108
Specifications:
Capacity: 12′ x 175 Tons
Stroke: 8″
Open Height: 17″
Approach/Return Speed: 90 IPM
Max. Pressing Speed: 24 IPM
Oil Capacity: 100 Gallons
Motor: 440v / 3ph

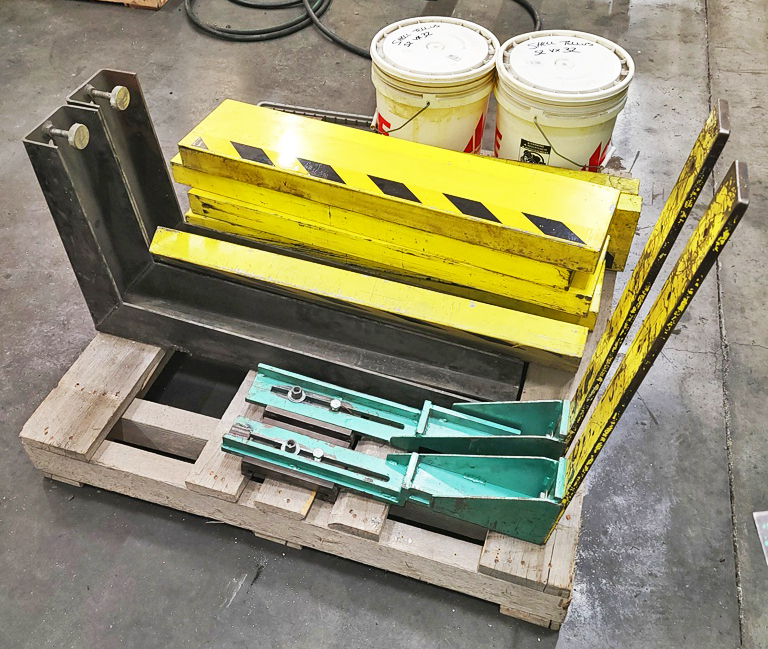

Equipment Included:
Generation II Pedestal Controller
Palm Buttons
Foot Pedal
OEM Manual
Sheet Supports
Lower Die Holder (144″ L x 3 1/4″ W x 5″ H)
*Machine has NO Back Gauge
Mechanical Specifications:
Machine Dimensions: 146″ x 50″ x 113″ H
Skid of Parts: 48″ x 48″ x 36″ H
Machine Weight: approx. 27,000 lbs.
FOB York, PA Warehouse
