Description
Pedrick 2″ Heavy-Duty Bender, MB-10
Inventory # 9899
Model: MB-10
S/N: 991
Specifications:
Bending Moment: 75,000 in/lbs
Pipe Capacity: 2 1/2″ Sch. 40 & 80
Tube Capacity: 2.875″ OD x .187 WT
Round Bar: 2 1/2″ OD
Spindle Diameter: 4 1/2″
Equipment Included:

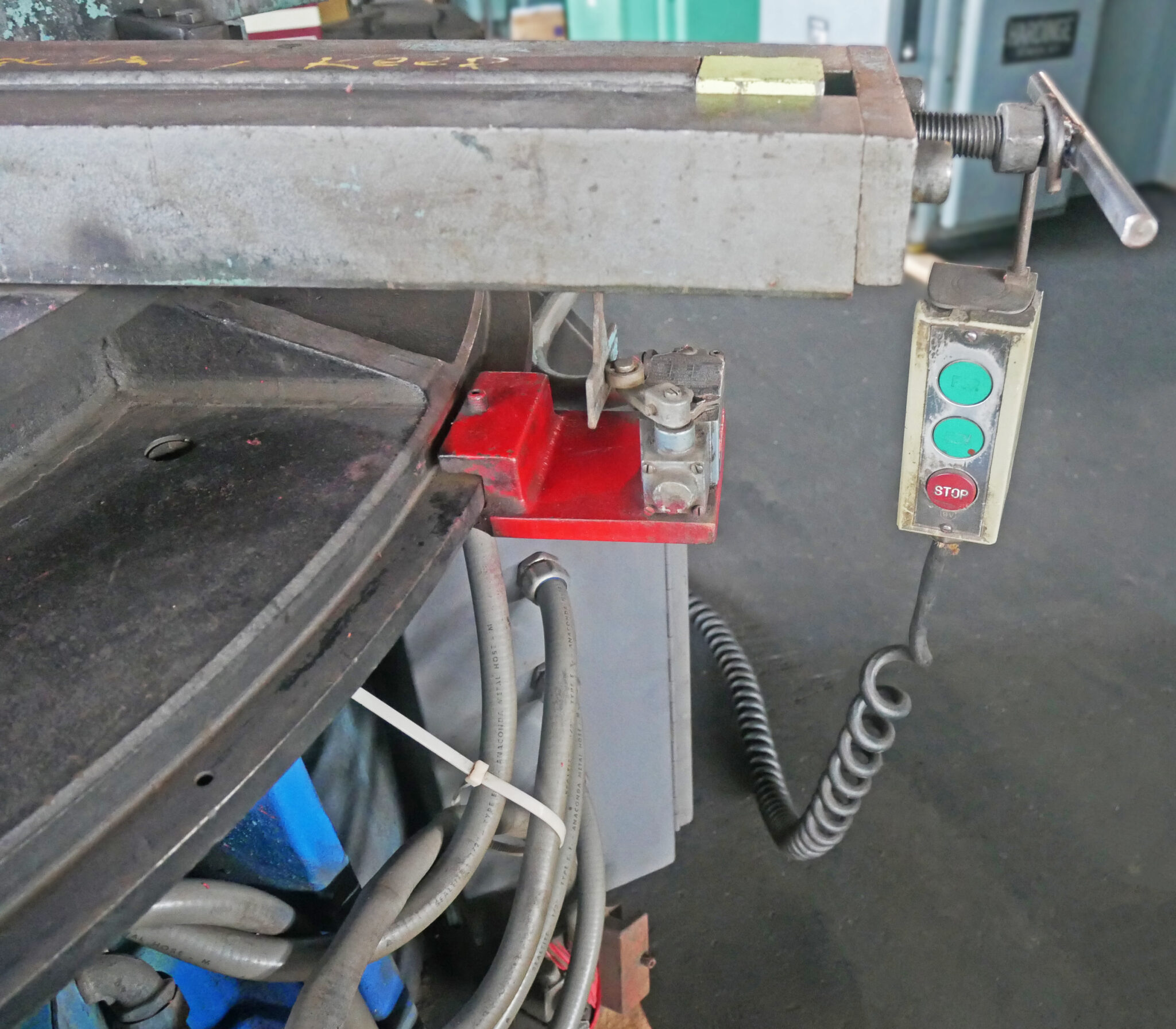

Pendant Control

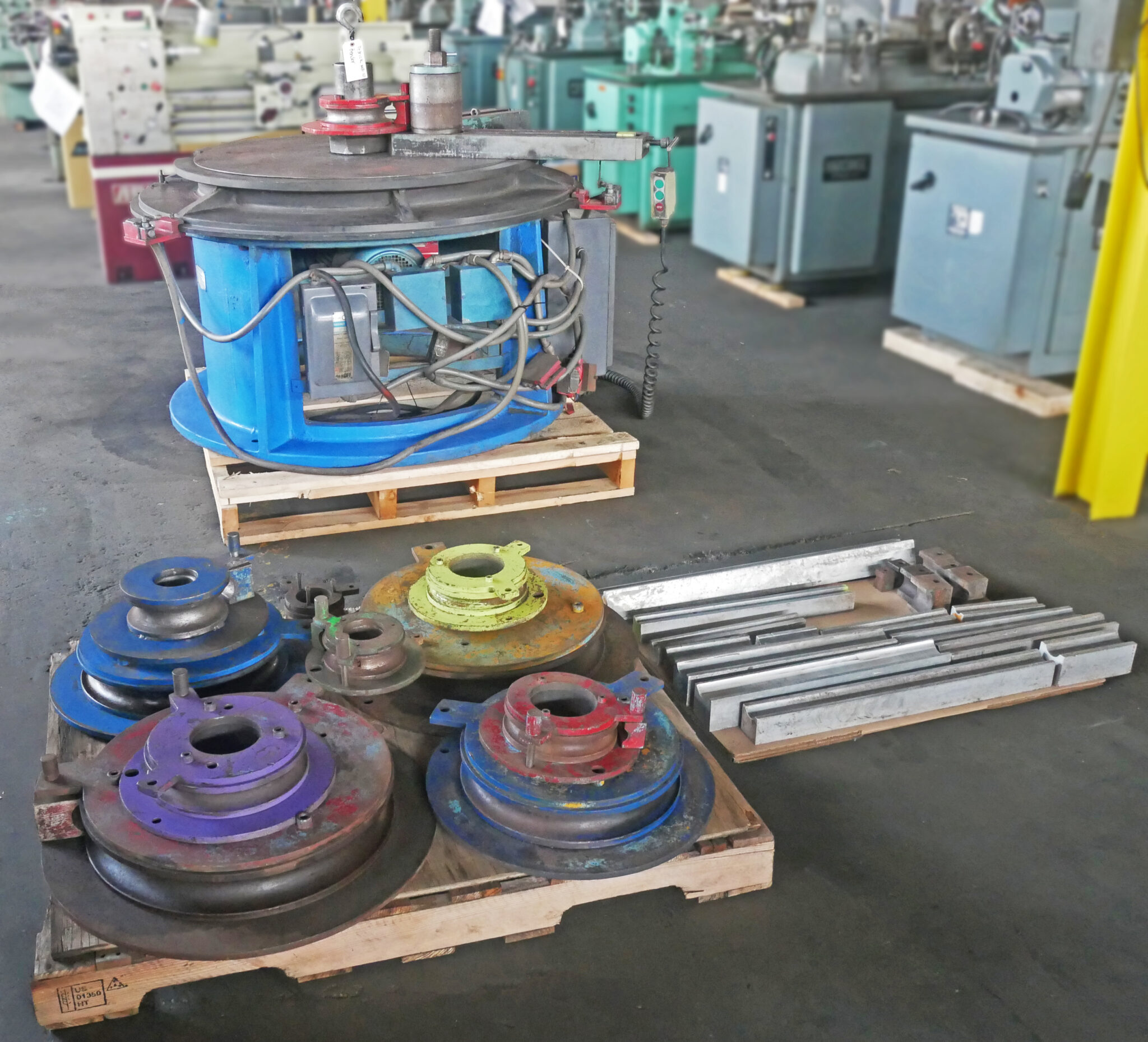

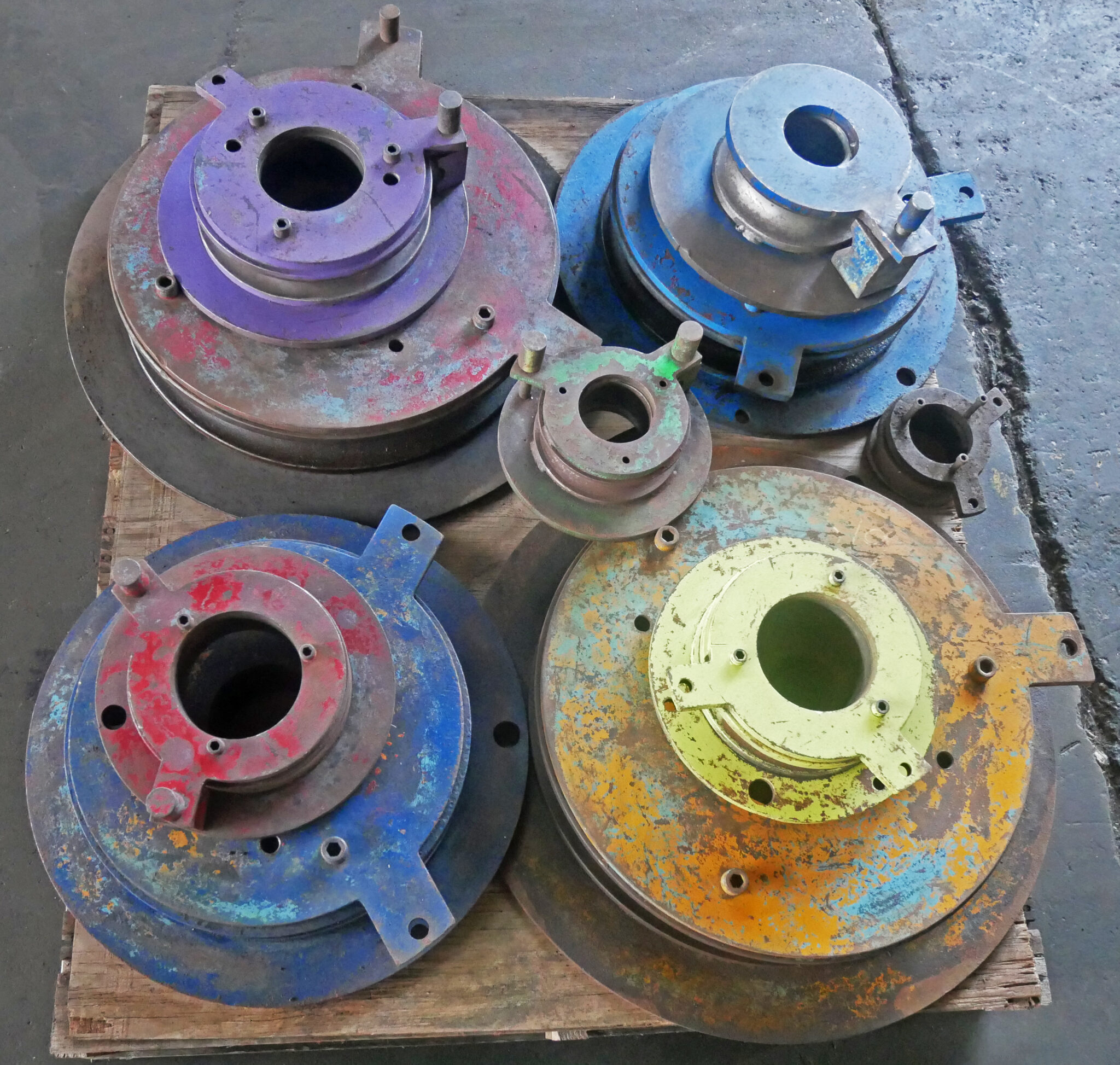

(11) Bending Dies: 5.25″ CLR x .75″, 7.5″ CLR x 1″, 8.5″ CLR x 1″, 10.5″ CLR x 1.25″, 6.25″ CLR x 1.5″, 8″ CLR x 1.75″, 15″ CLR x 2″, 16″ CLR x 2″, 8.5″ CLR x 2″, 20″ CLR x 2.25″, 20″ CLR x 2.5″
(12) Clamp Shoes: (2) 1.25″, 1.5″, (5) 1.75″, 2″, 2.25″, 2.375″, 2.5″

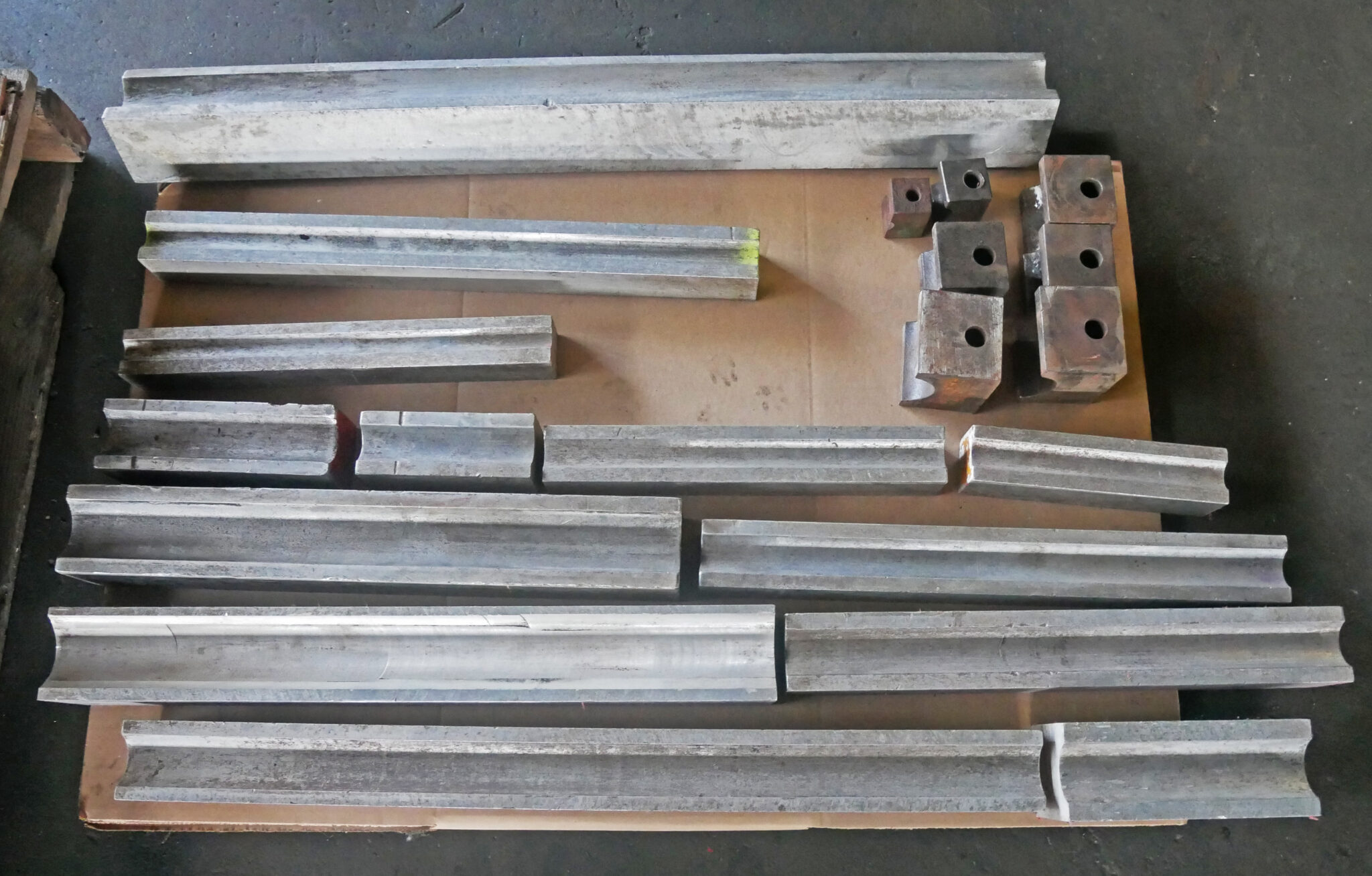

(13) Pressure Dies: .5″, (2) .75″, 1″, 1.25″, (2) 1.5″, (3) 1.75″, 2″, 2.25″, 2.5″
Mechanical Specifications:
Floor Space: 48″ x 48″
Weight: approx. 6,500 lbs.
New Replacement Cost: $63,000.00
FOB Our Baltimore, MD Warehouse
