Description

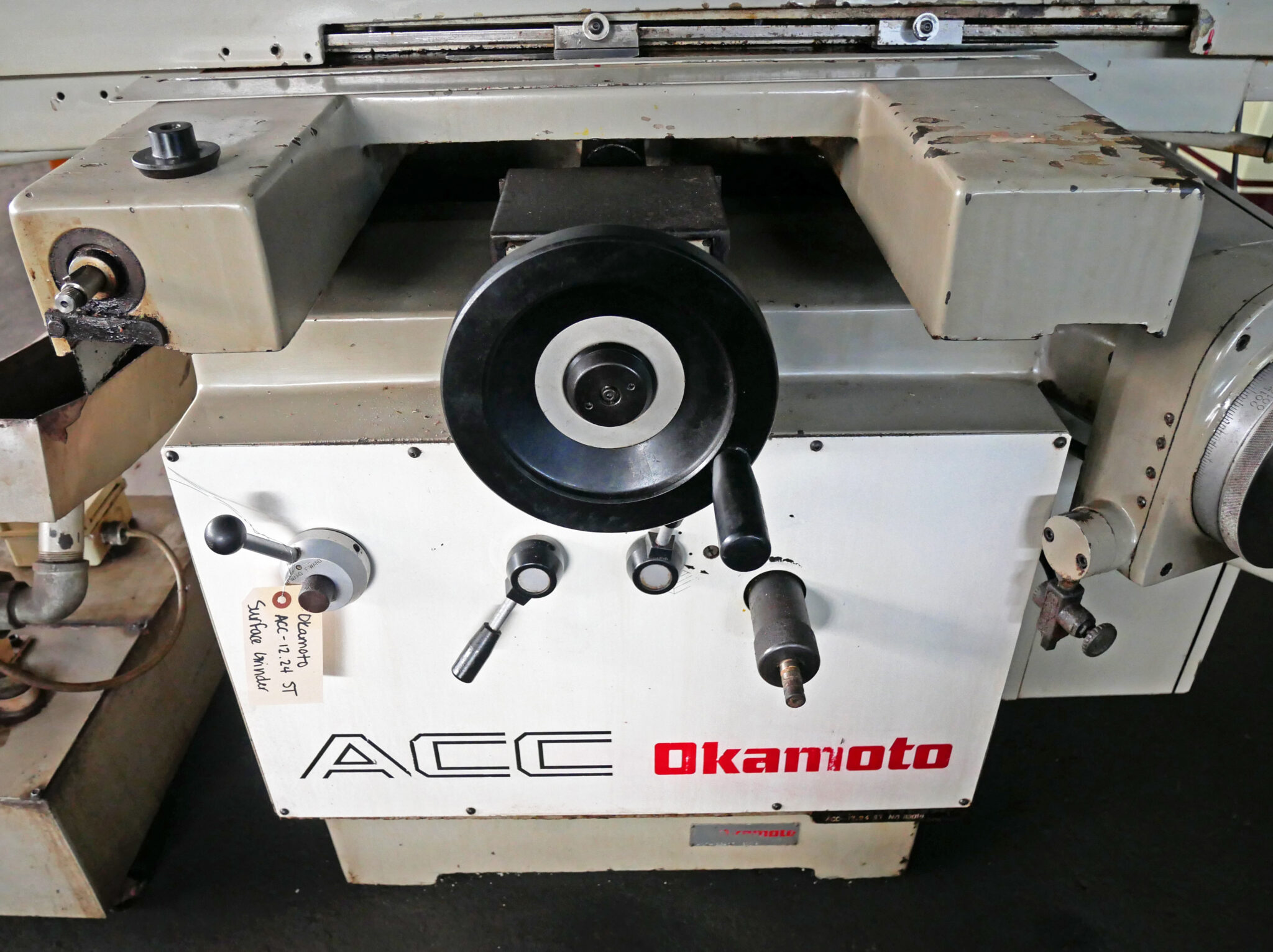

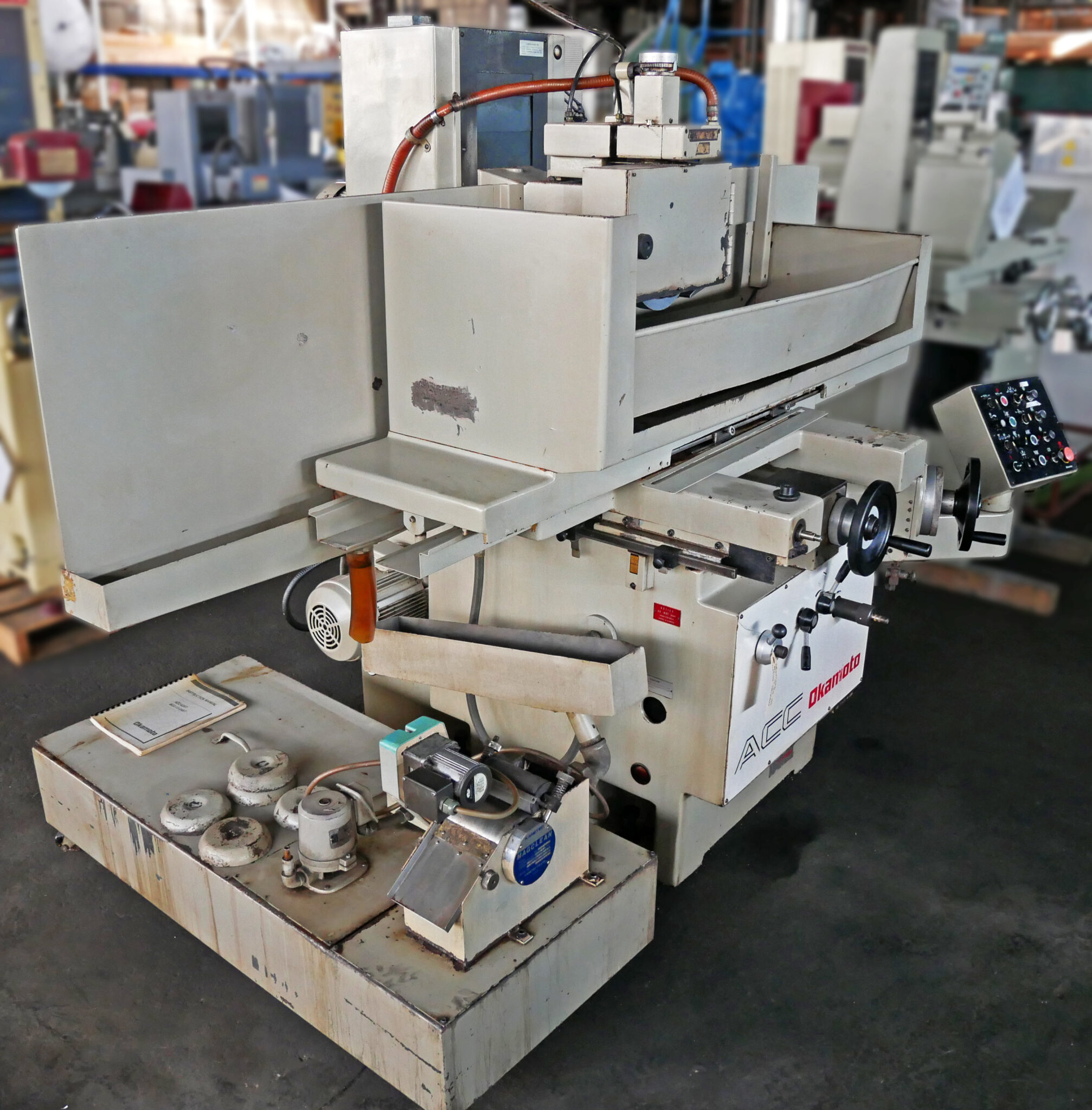

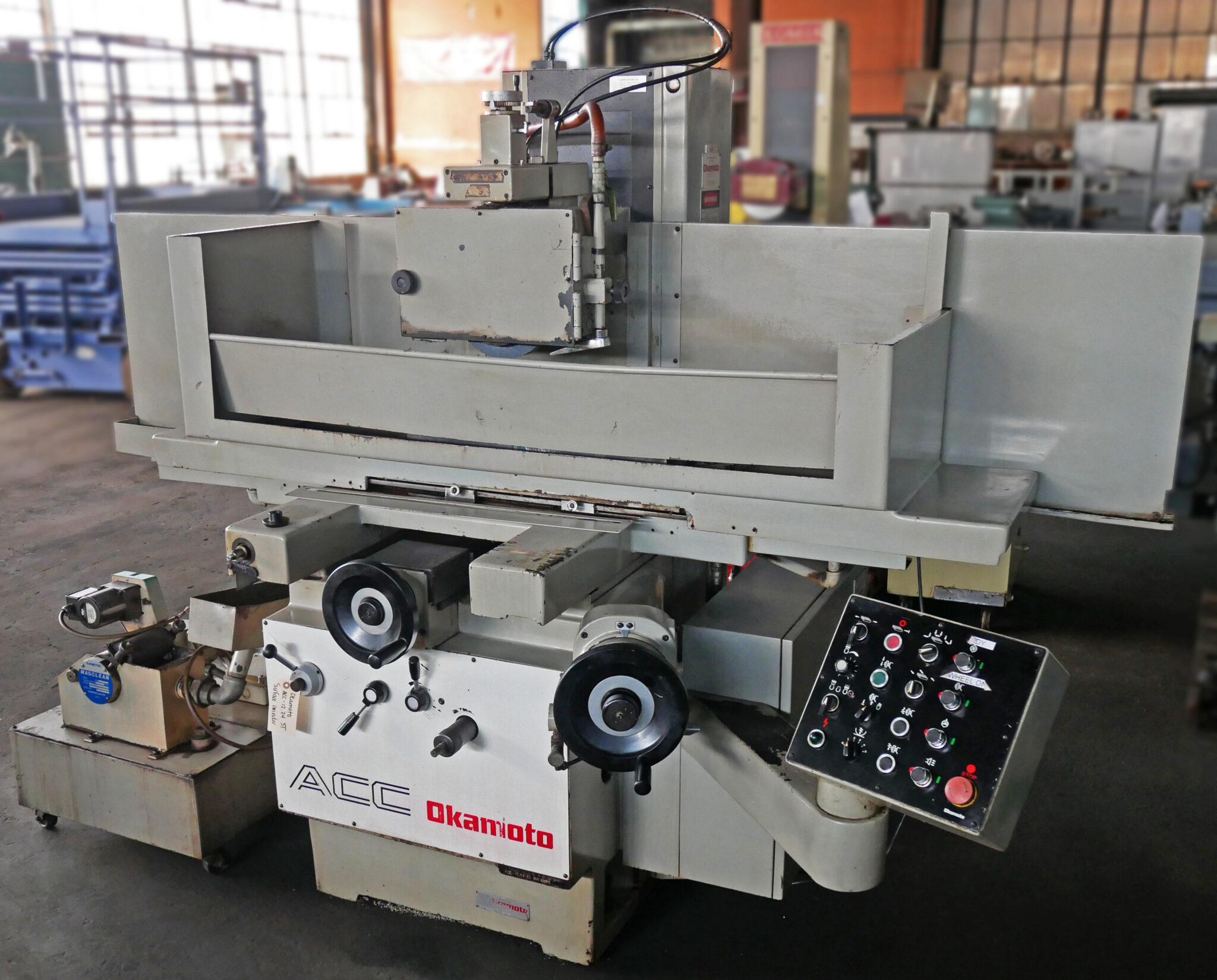

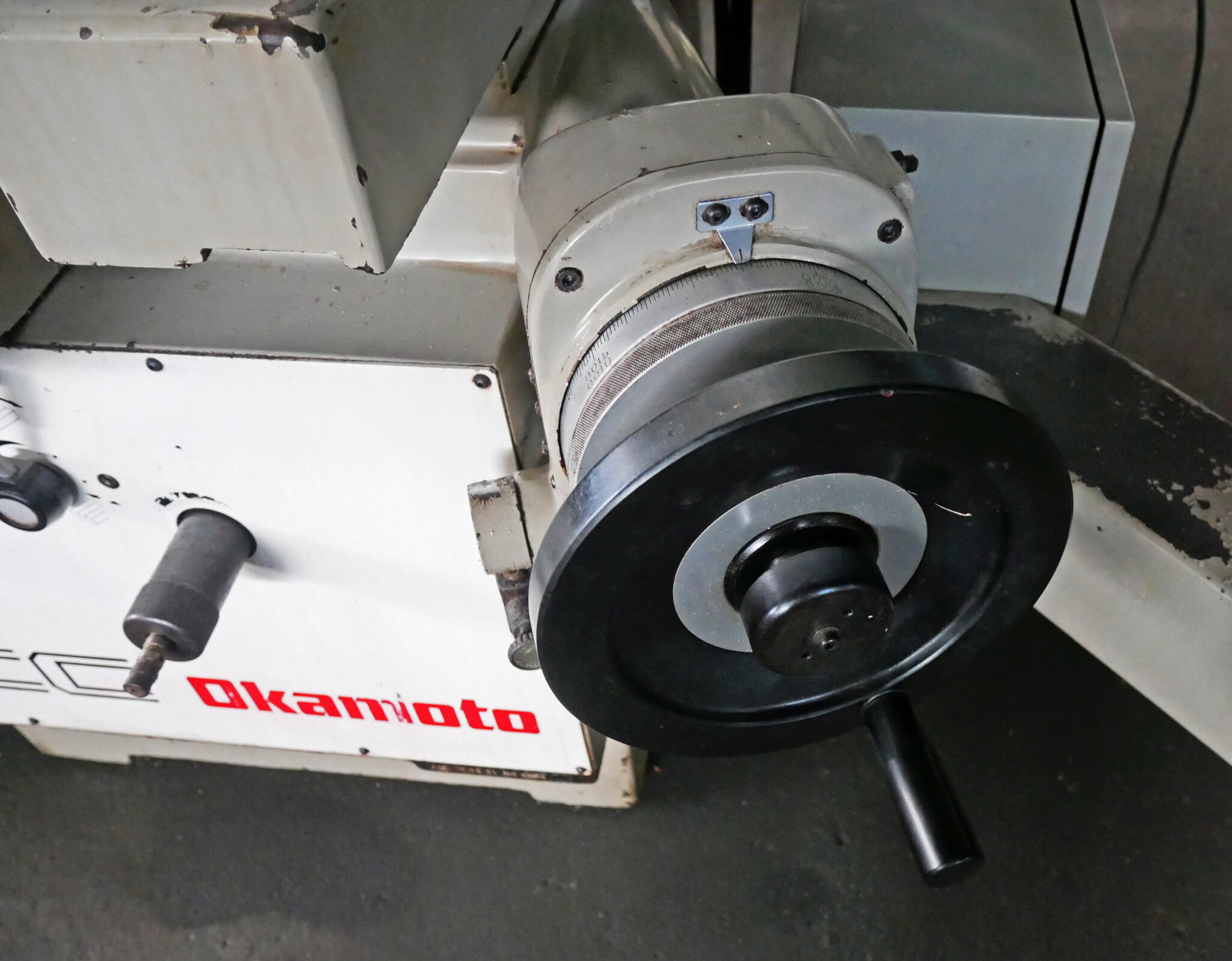

Okamoto 12″ x 24″ Hydraulic 3-Axis Automatic Surface Grinder, ACC-12.24 ST
Inventory # 9968
Model: ACC-12.24 ST
S/N: 33016
Specifications:

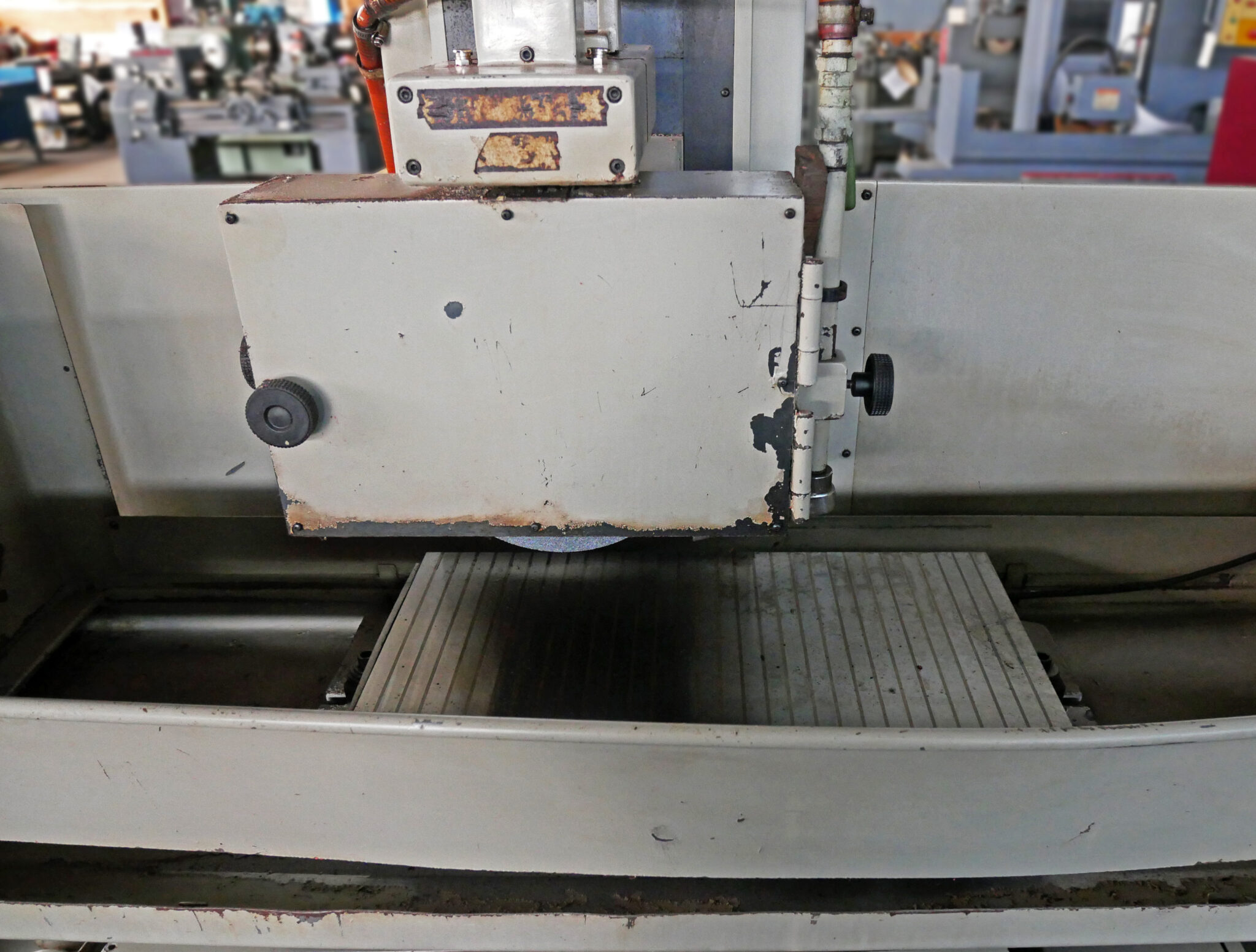

Table Working Surface: 12″ x 24″
Max. Chuck Size: 12″ x 24″
Max. Table Movement, Manual: 29 1/2″
Max. Distance from Spindle Wheel to Table: 13.7″
Max. Table Load, Including Chuck: 925 lbs.
Max. Wheel Size: 12″ x 1 1/2″ x 5″
Wheel Speed: 1,800 RPM
Auto Longitudinal Feed Rate: 1 – 82 FPM
Rapid Wheel Head Feed Rate: 16 IPM
Auto Wheel Head Down Feed Increments: .0001″ – .0015″
Hydraulic Motor: 4 – 40 IPM
Motor: 5 HP / 230v, 460v / 3ph
Standard Features & Equipment Included:
3-Axis Hydraulic Automatic Operation with Automatic Incremental Down Feed as Fine as .0001″

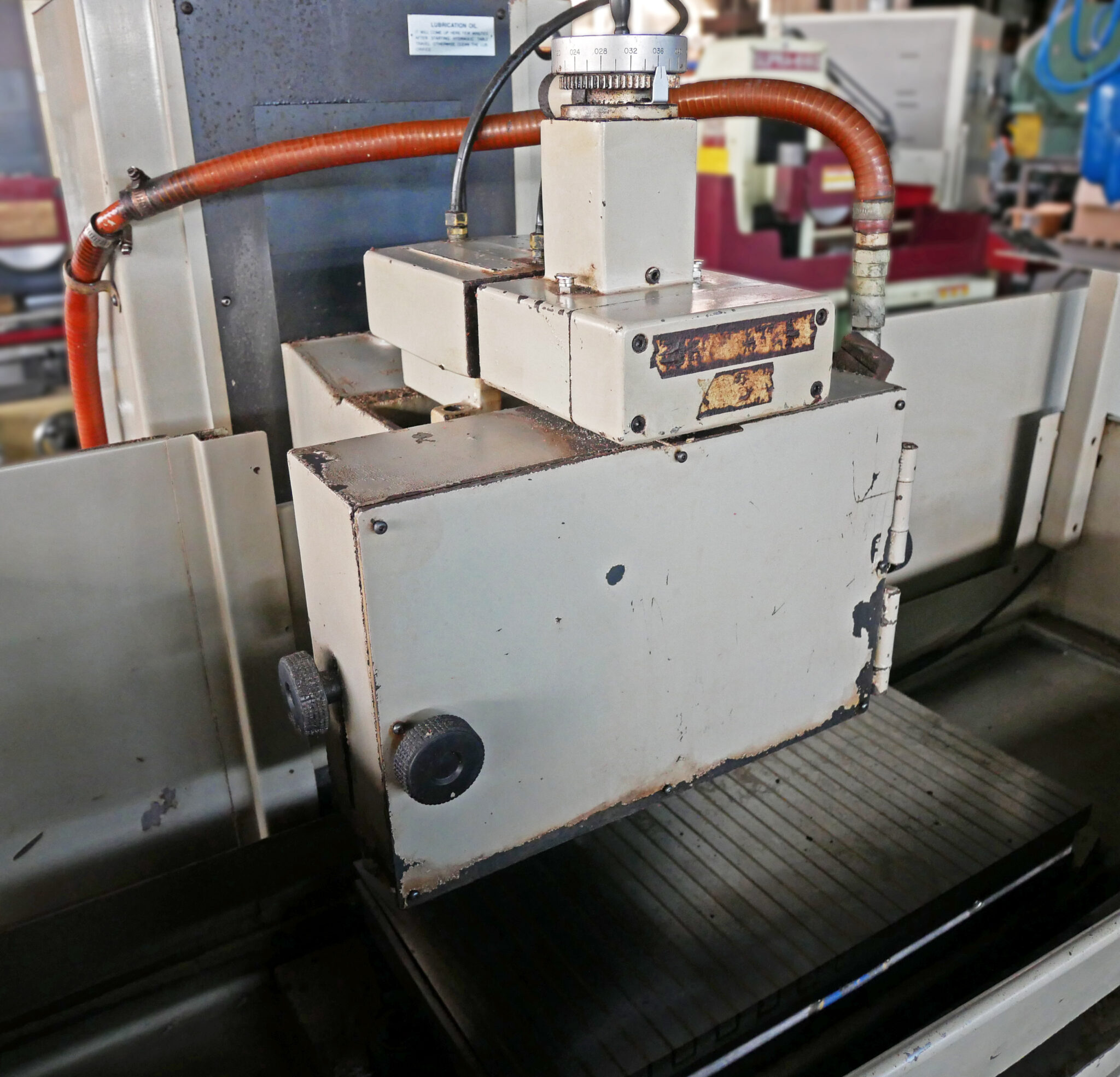

Hydraulic Over-the-Wheel Dresser
Spark Out Timer

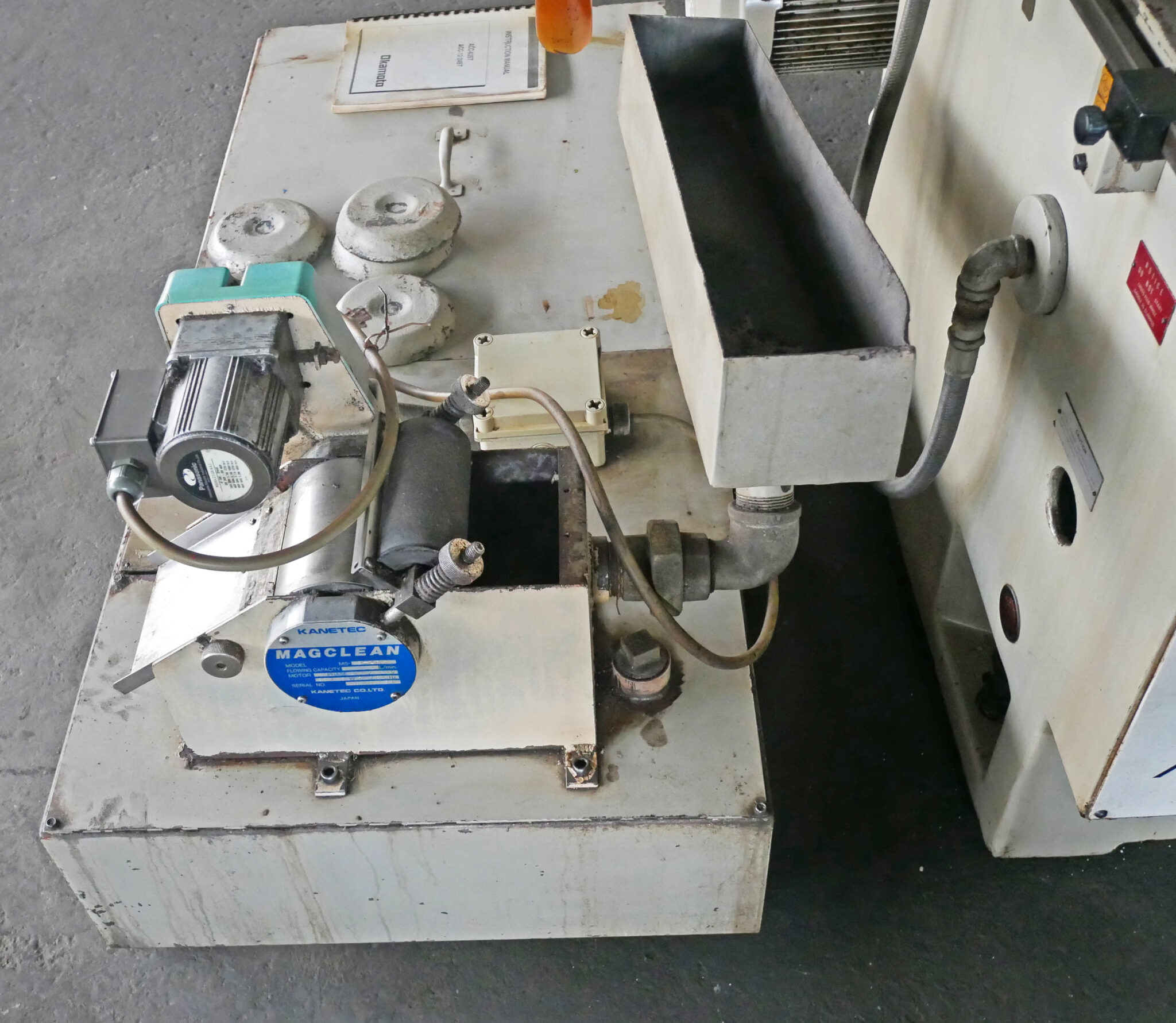

Coolant System with Paper Filtration
Grinding Wheel Hub and Wheel Nut
Mechanical Specifications:
Dimensions: 103″ x 74″ x 70″ H
Weight: approx. 3,900 lbs.
FOB Our Baltimore, MD Warehouse
