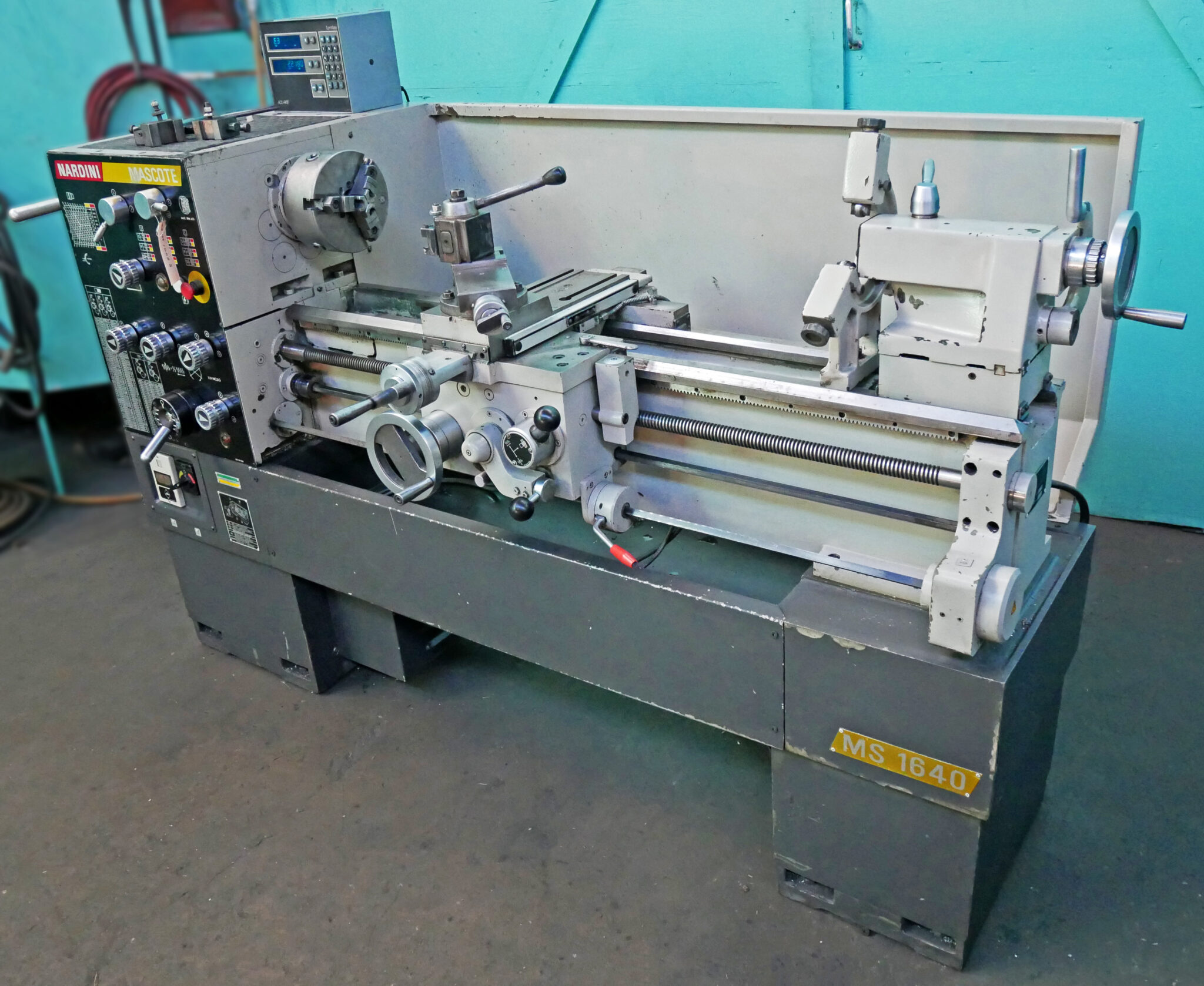

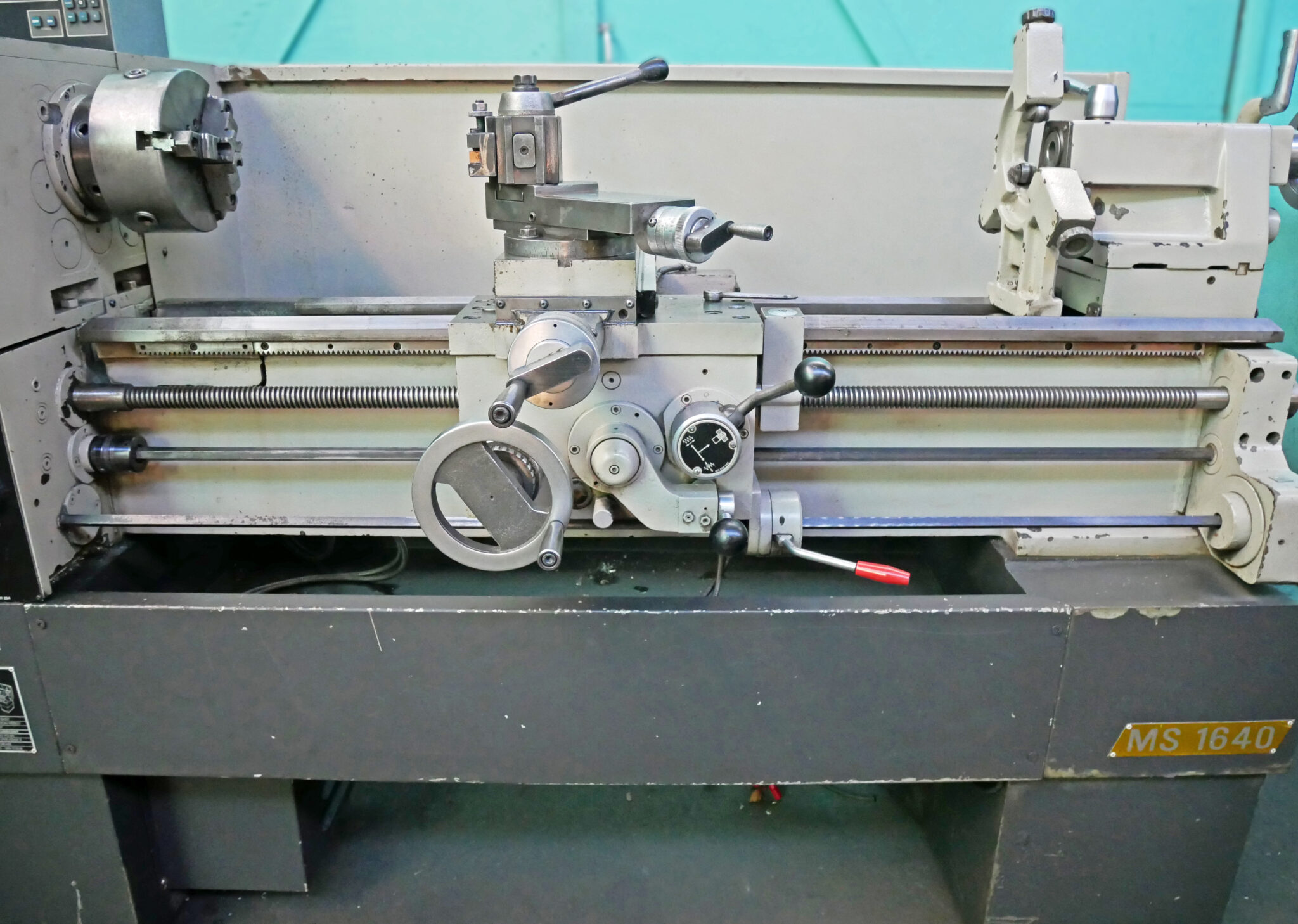

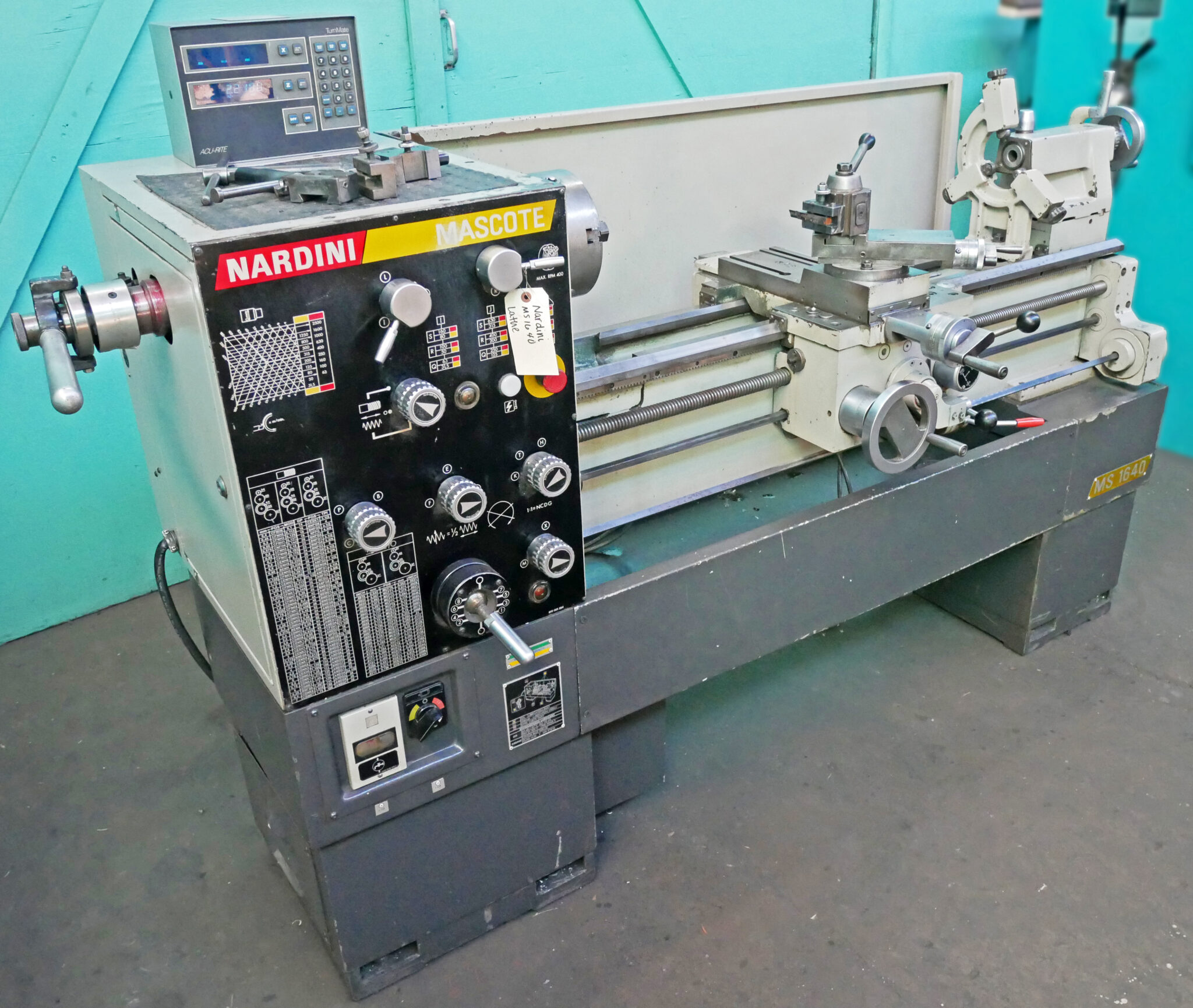

Nardini ‘Mascote’ 16″ x 40″ Engine Lathe, MS-1640
Inventory # 10008
Model: MS-1640 ‘Mascote’
S/N: D5JFL141
*Please Note: Lathe runs as it should. DRO works, but X-axis scale is damaged, and it errors (as shown in the photos & video). There are no replacement parts readily available for this machine, and it is being sold as-is, as-inspected, with no warranty and no return privilege
Specifications:
Swing Over Bed: 16 1/8″
Swing Over Cross Slide: 10 1/4″
Swing In Gap: 22″
Length Of Gap: 4 3/4″
Distance Between Centers: 40″
Cross Slide Travel: 9 1/4″
Spindle Nose: D1-5 Camlock
Spindle Speeds (18): 31.5 – 2,500 Rpm
Spindle Hole: 1.885″
Tailstock Taper: Mt #3
Tailstock Quill Travel: 5 1/8″
Inch Threading Range (48): 3 1/2 – 42 Tpi
Metric Threading Range (48): 0.40 – 7.00 Mm Pitch
Inch Feed Range (48): 0.0016 – .0399 Inch / Rev
Metric Feed Range (48): 0.042 – 1.013 Mm / Rev
Motor: 4.0, 6.3 HP / 220v / 3ph (2-Spd)
Equipment Included:

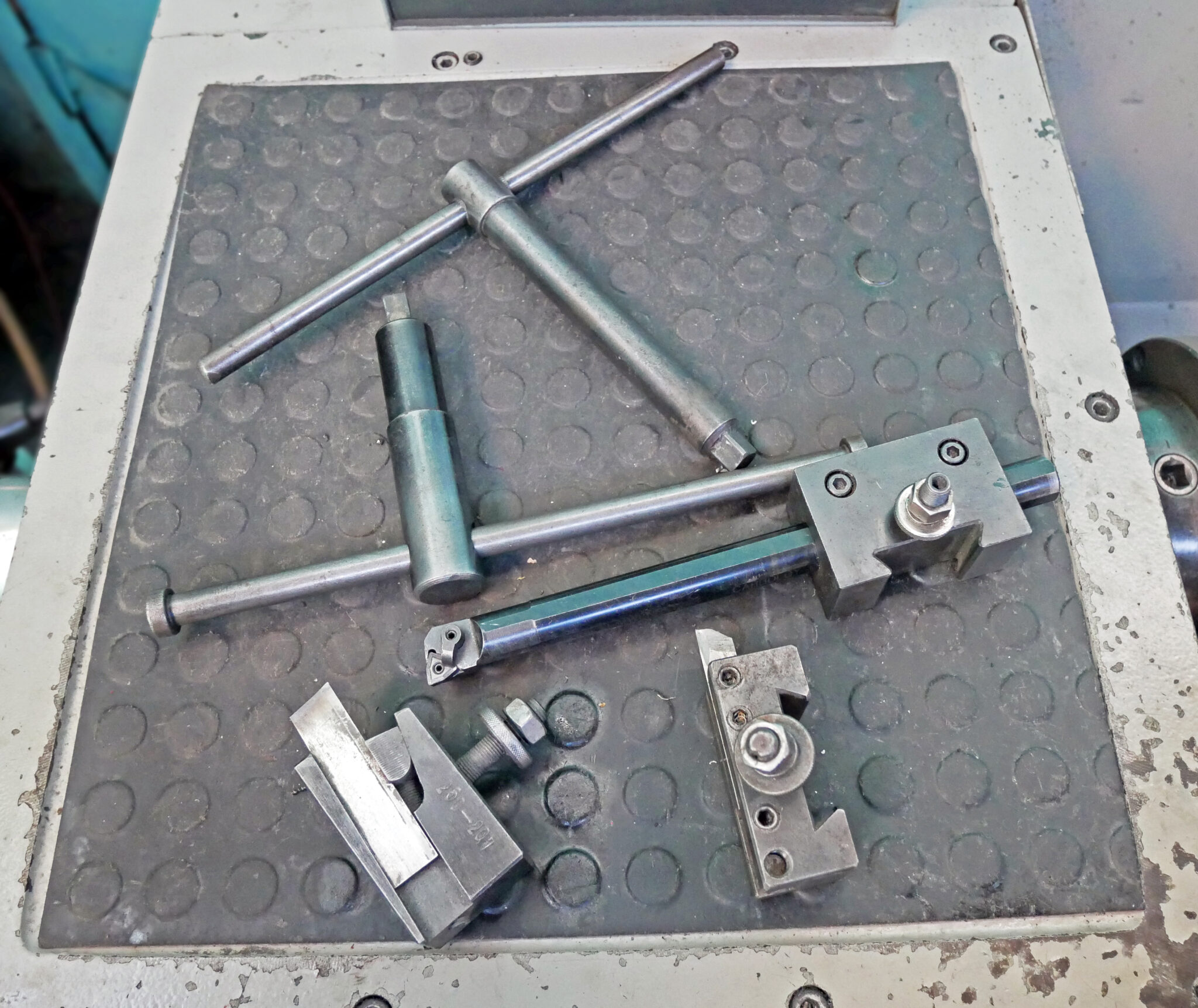

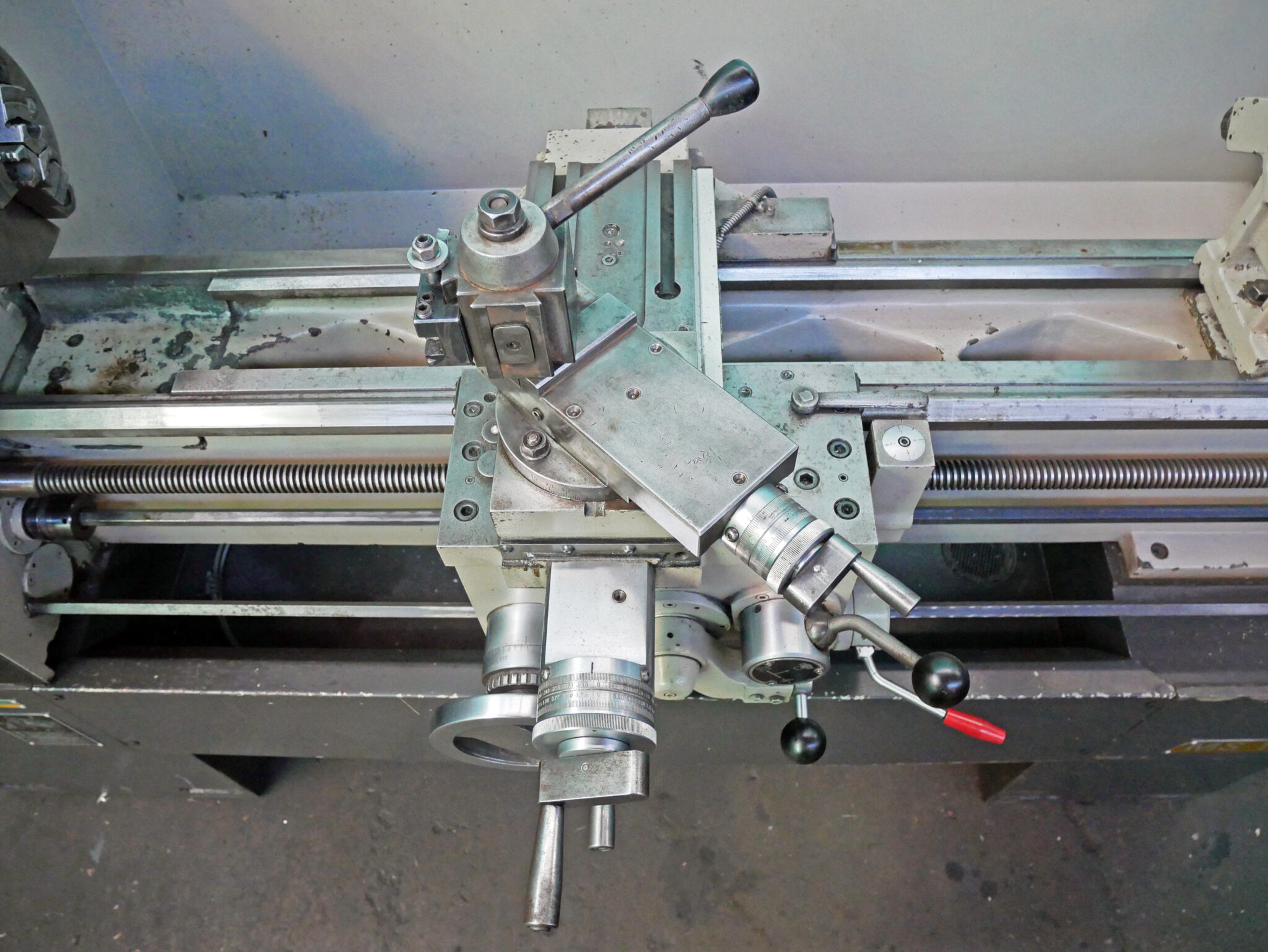

Aloris Style Tool Post
Acu-Rite Turnmate 2-Axis Digital Readout*
Tailstock

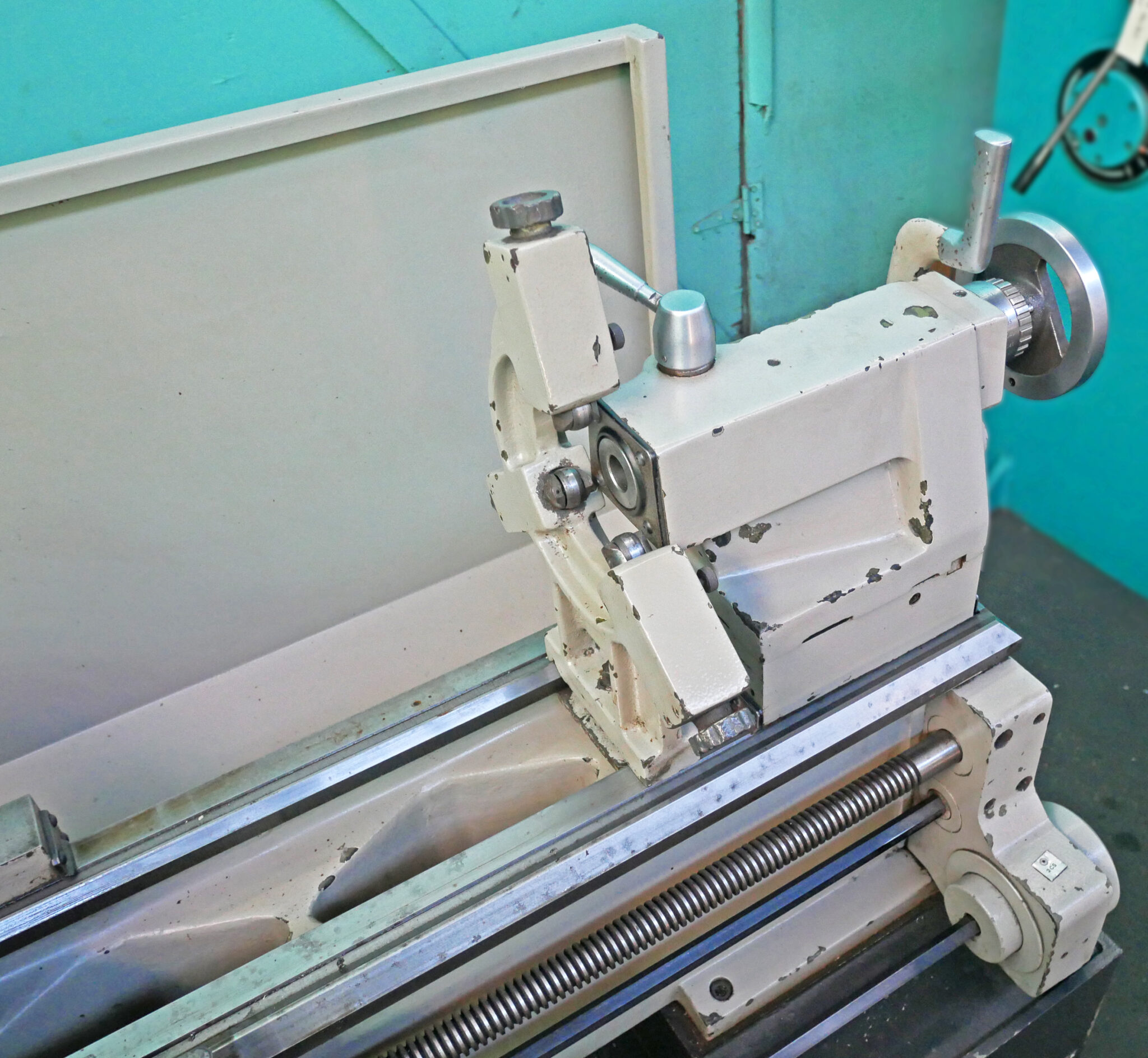

Follow Rest
Lever Style Collet Closer

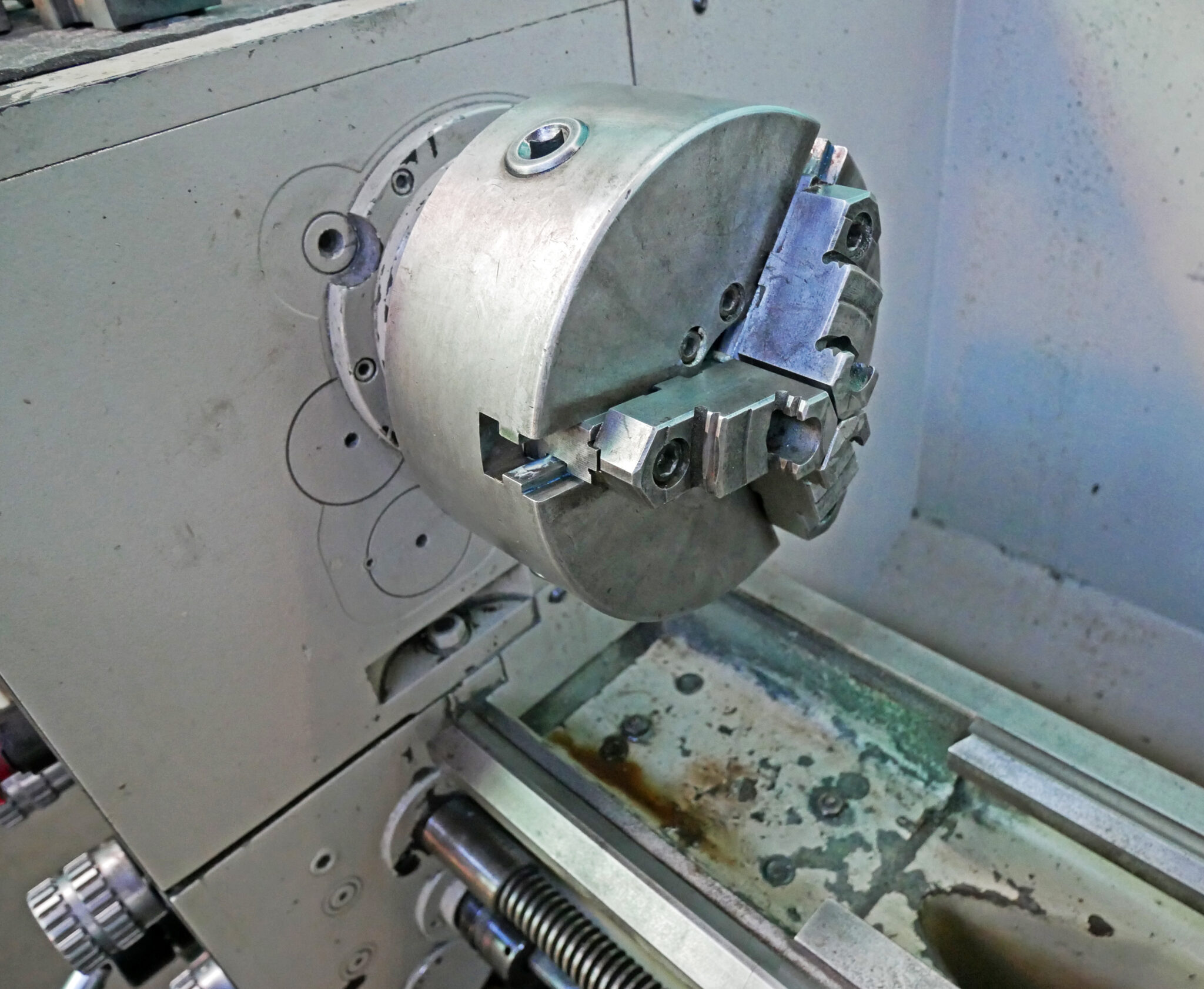

8″ 3-Jaw Chuck
Backsplash
Mechanical Specifications:
Dimensions: 87″ x 36″ x 55″ H
Weight: approx. 3,400 lbs.
*Please Note: Lathe runs as it should. DRO works, but the X-axis scale is damaged, and it errors (as shown in photos). There are no replacement parts for this machine, and it is being sold as-is, as-inspected, with no warranty and no return privilege
FOB Our Baltimore, MD Warehouse
