Description

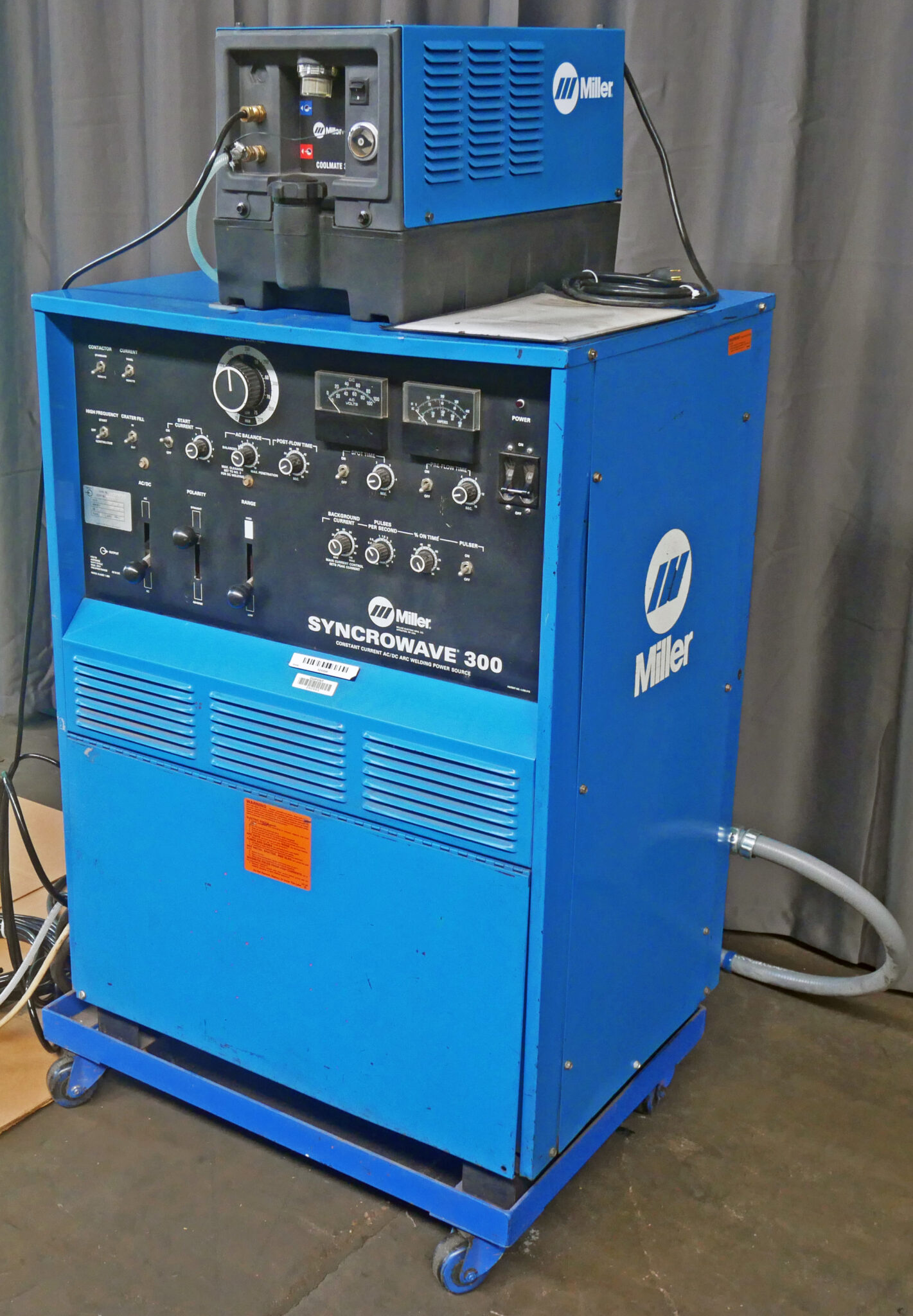

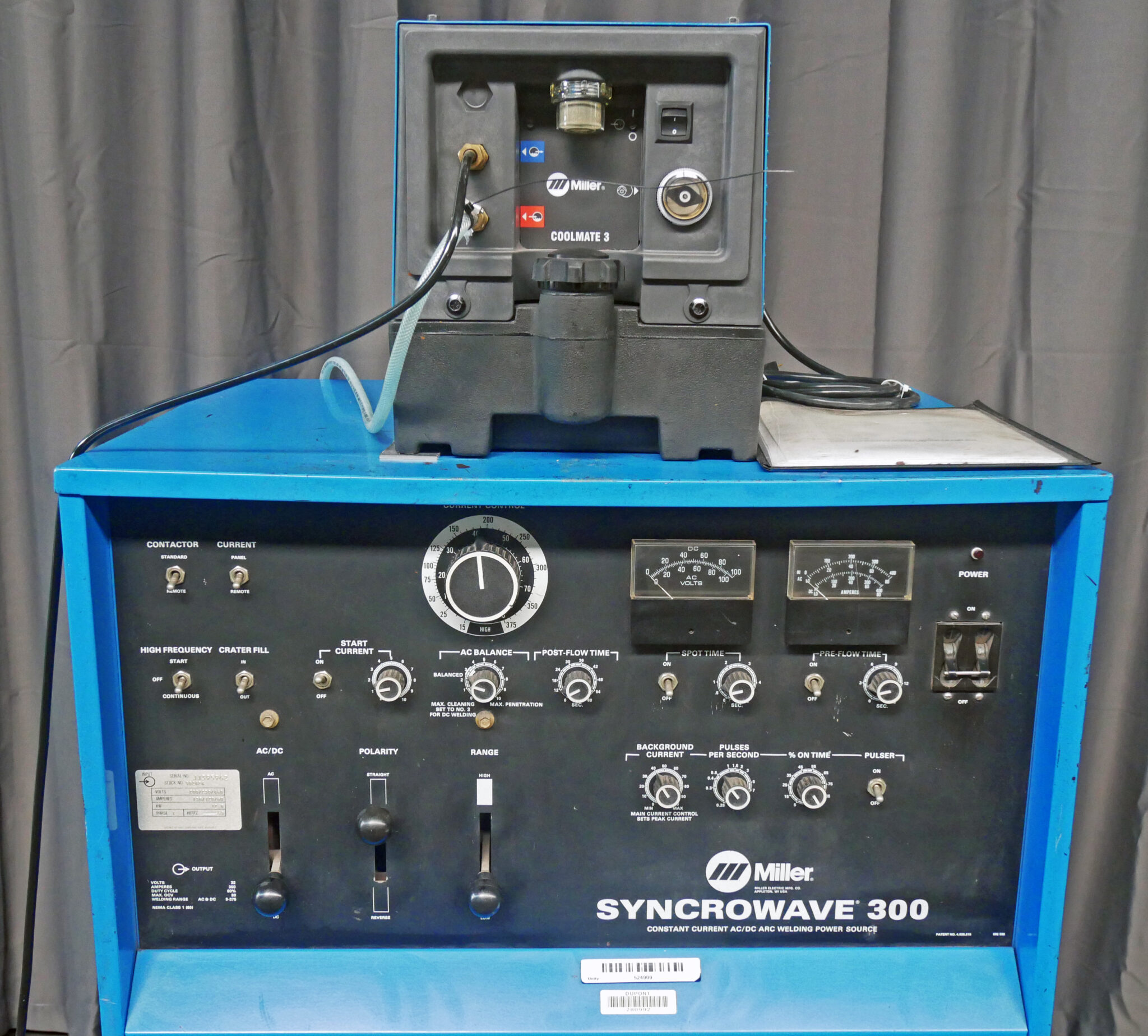

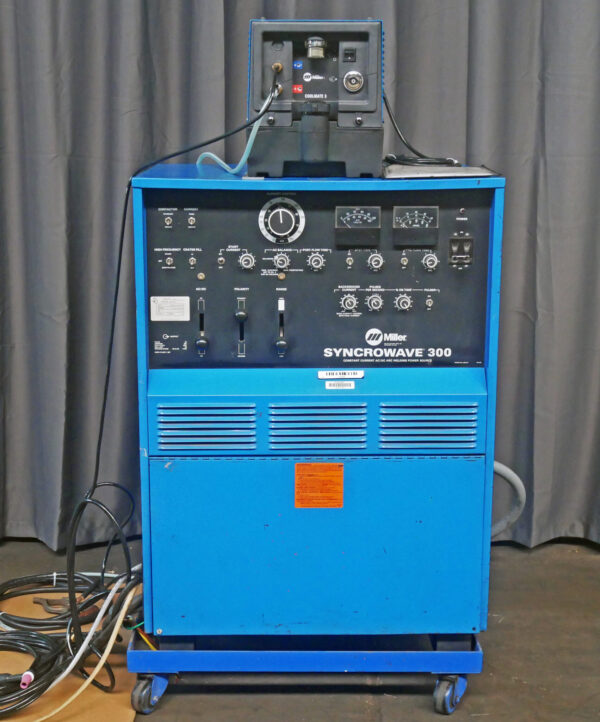

Miller Syncrowave 300 Arc Welder with Miller Coolmate 3
Inventory # 9923-P

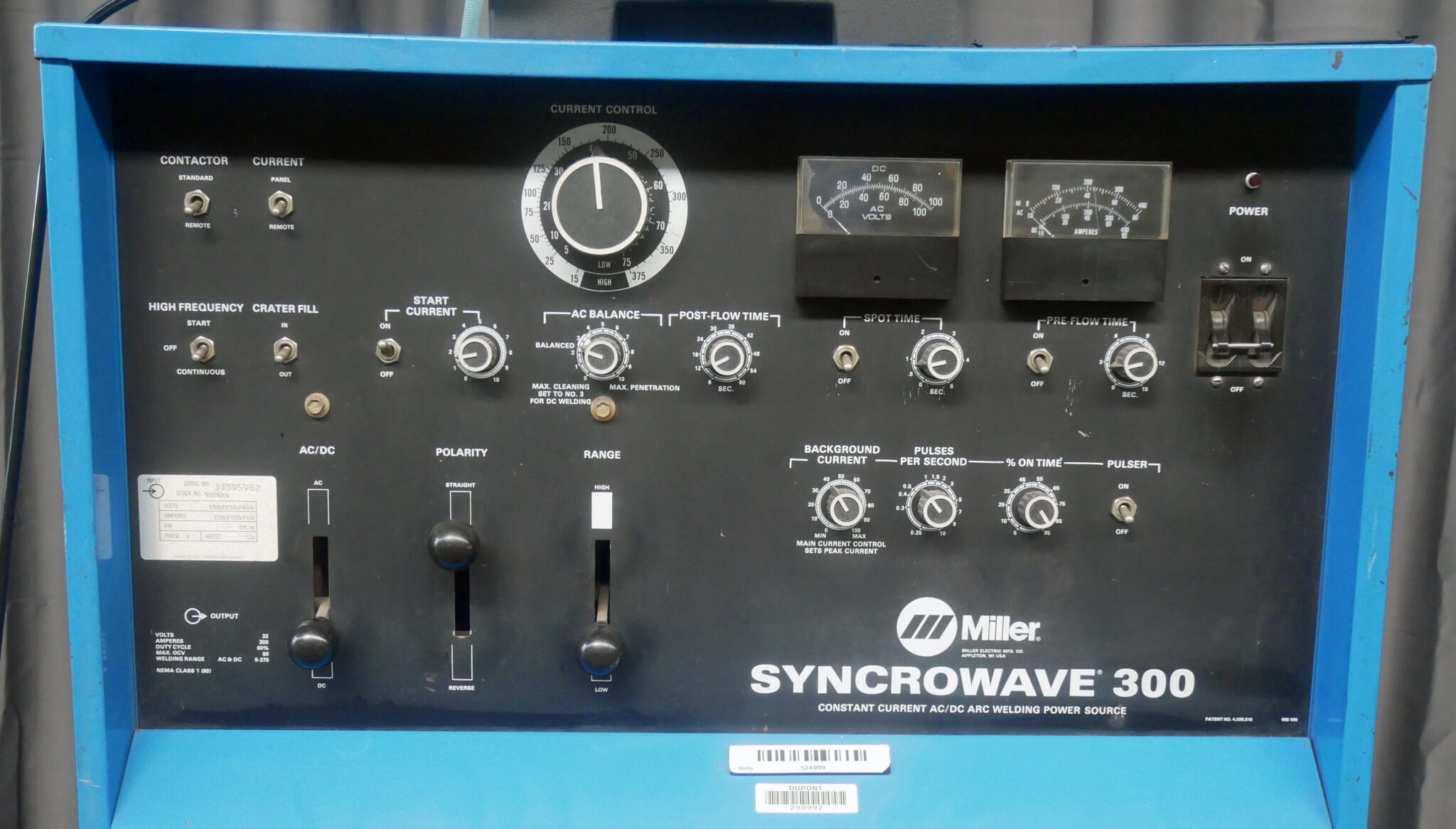

Model: Syncrowave 300
S/N: JJ395962
View the Syncrowave 300 PDF Here
Specifications:
Industrial Applications:
Precision Metal Fabrication
Maintenance and Repair
Light and Heavy Manufacturing
Shipbuilding
Tube and Pipe
Automotive
Vocational
Processes:
TIG (GTAW)
Stick (SMAW)
DC Pulsed TIG (GTAW-P)
Material Thickness:
Aluminum: 0.015″ (0.4 mm) – 3/8″ (9.5 mm)
Steel: 0.012″ (0.3 mm) – 1/2″ (12.7 mm)
Weldable Materials:
Aluminum
Stainless Steel
Steel
Current Type: AC / DC
CACA Thickness: 3/16″
Input Power: 208/240/480 V / 3-Phase or 1-Phase Power
Amperage Range: 5 – 300 A
Max. Open-Circuit Voltage: 60 VDC
Rated Output:
300 A @ 22 V, 30% Duty Cycle
210 A @ 18 V, 60% Duty Cycle

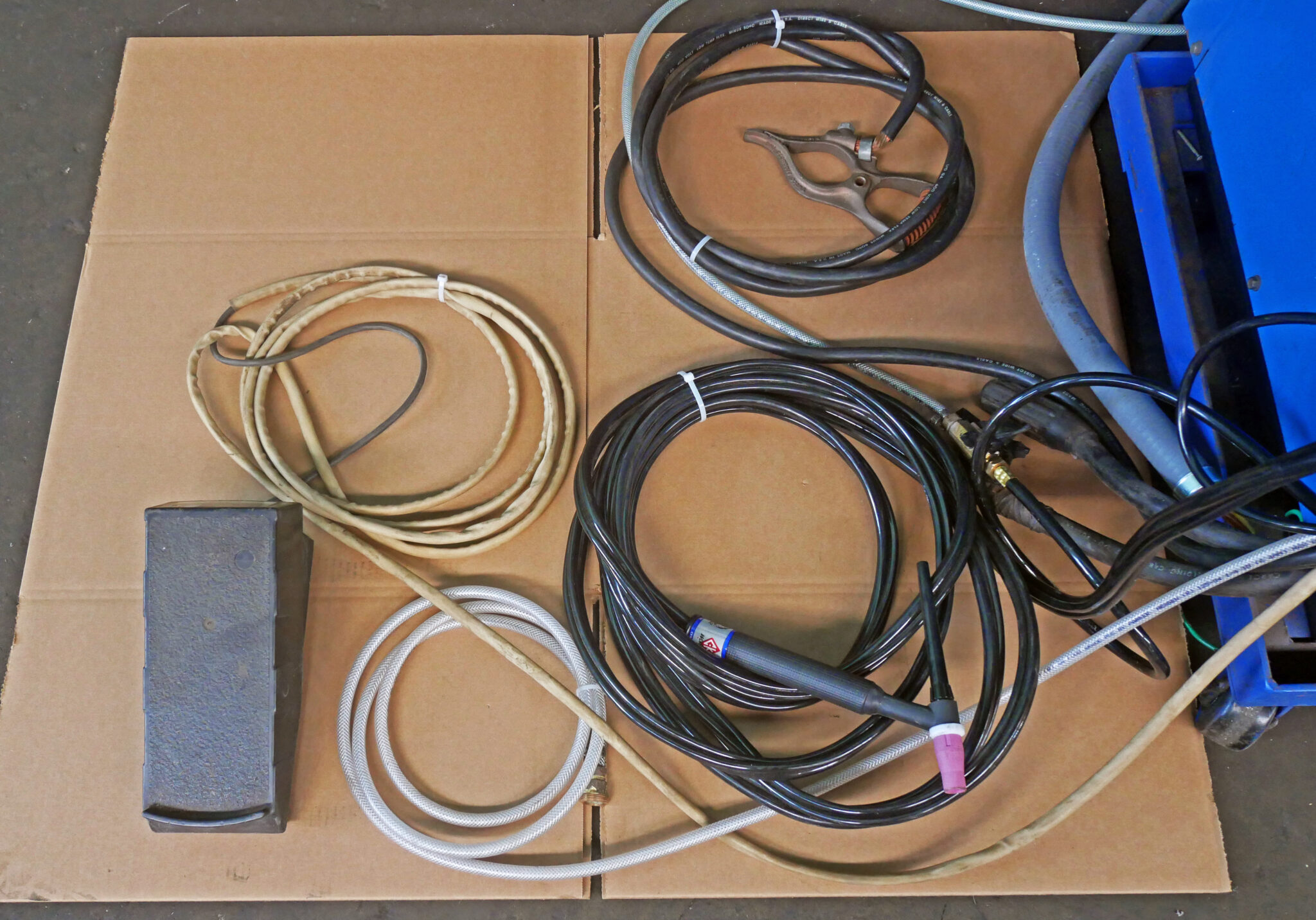

Equipment Included:

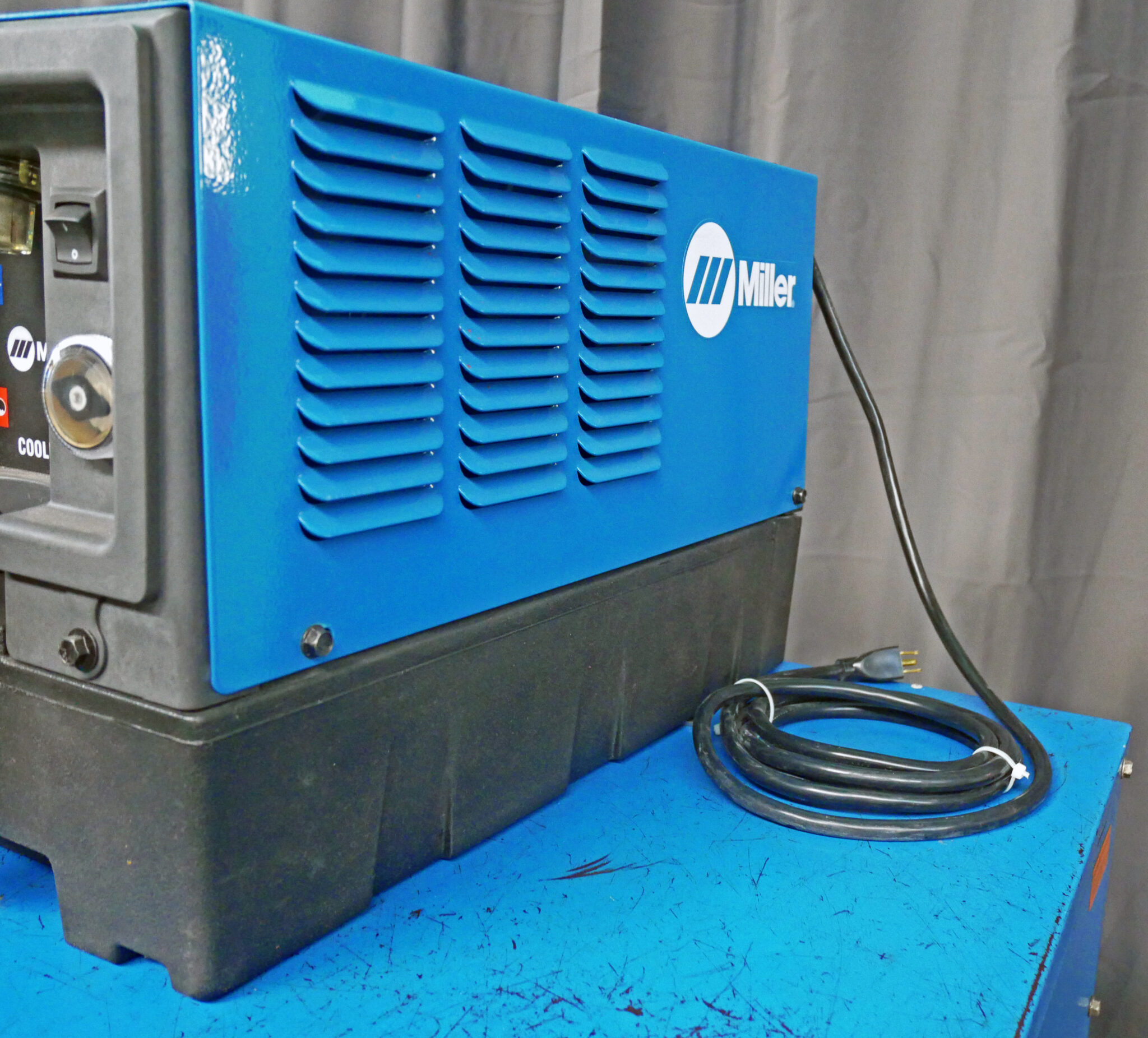

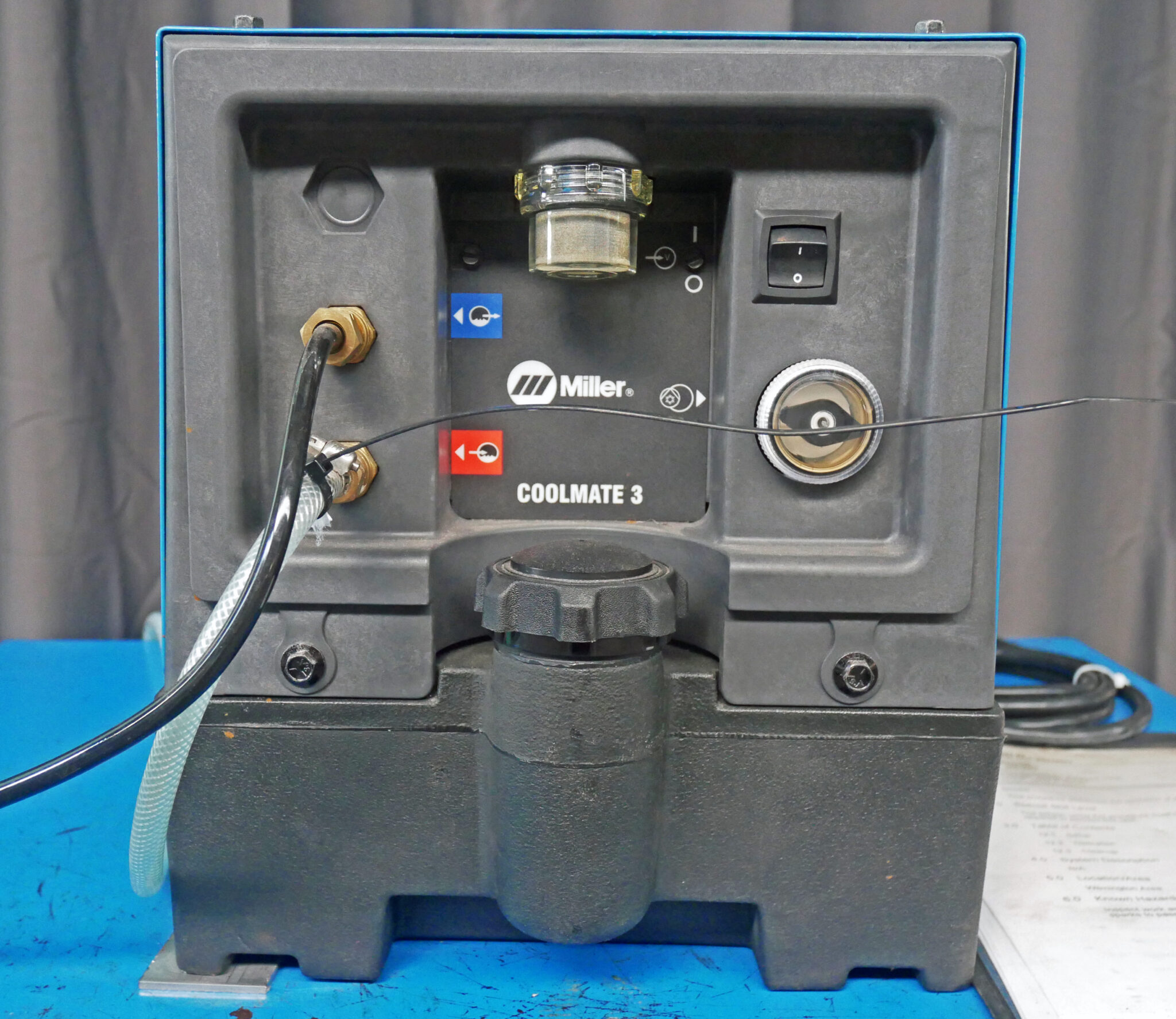

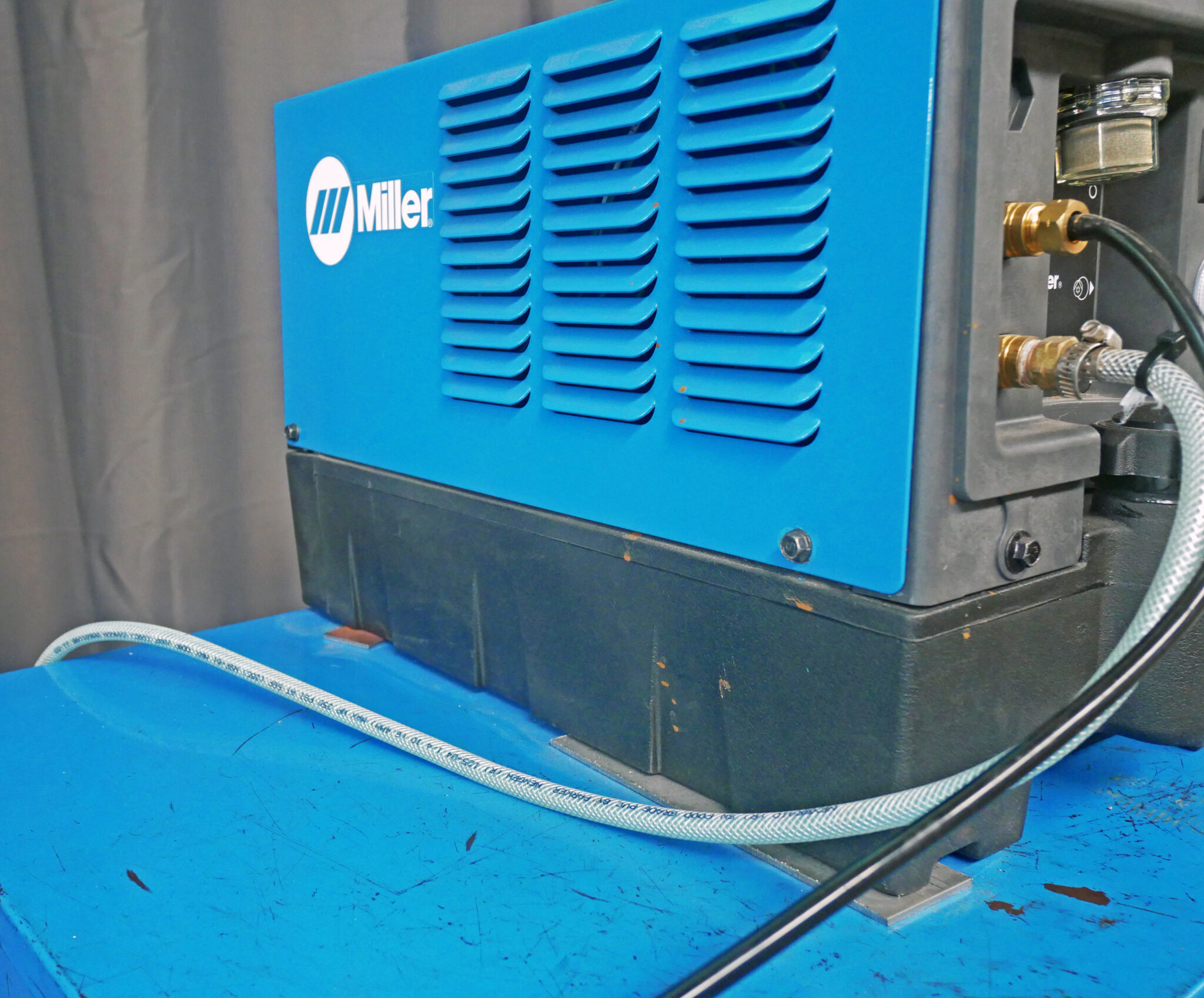

Miller Coolmate 3
Running Gear
Wireless Foot Control System

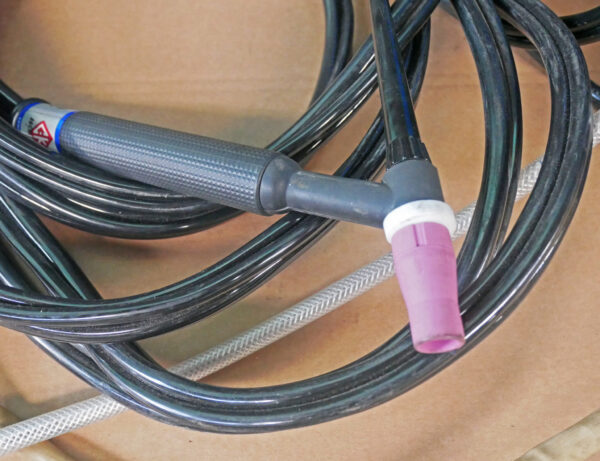

Weldcraft Torch Kit and Accessories
Mechanical Specifications:
Weight: approx. 180 lbs. (including Cooler and Running Gear)
New Replacement Cost: $12,500.00
FOB Our Baltimore, MD Warehouse
