Description

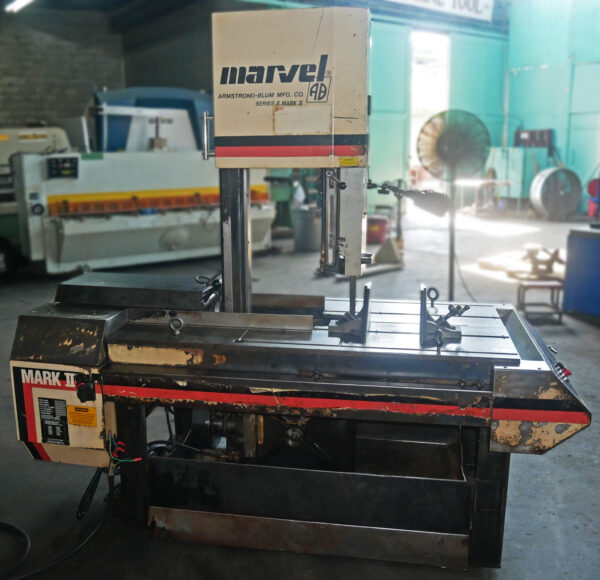

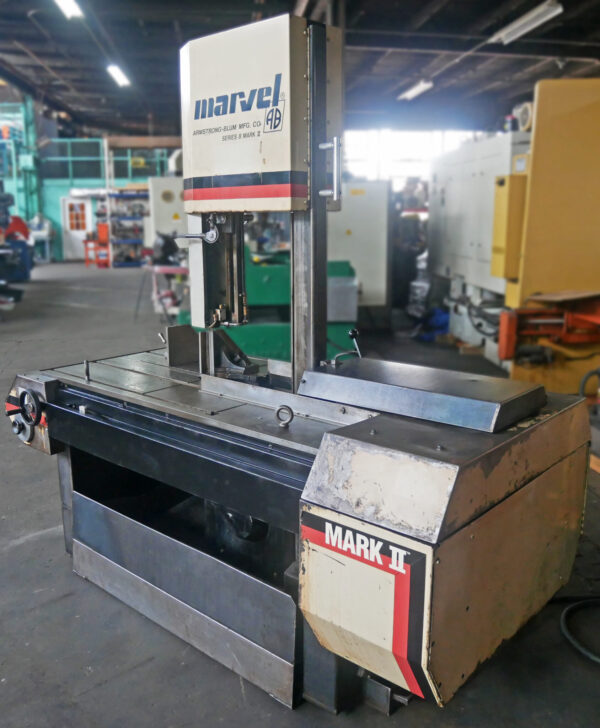

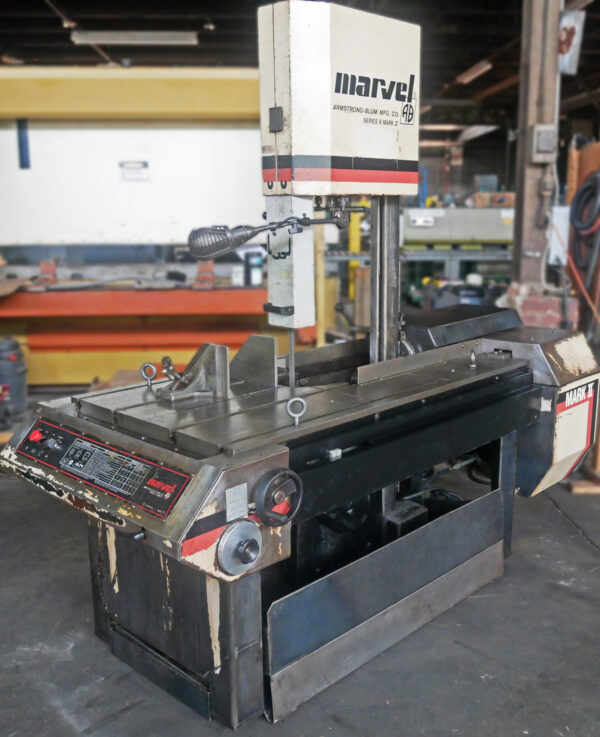

Marvel 18″ x 22″ Series 8 Mark II Tilt-Frame Vertical Band Saw
Inventory # 9889-P
Model: Series 8 Mark II
S/N: 827024
Specifications:
Max. Cutting Capacity:
Squares: 18″ x 22″
Rounds: 18″
@ 45°: 18″ x 12 3/4″

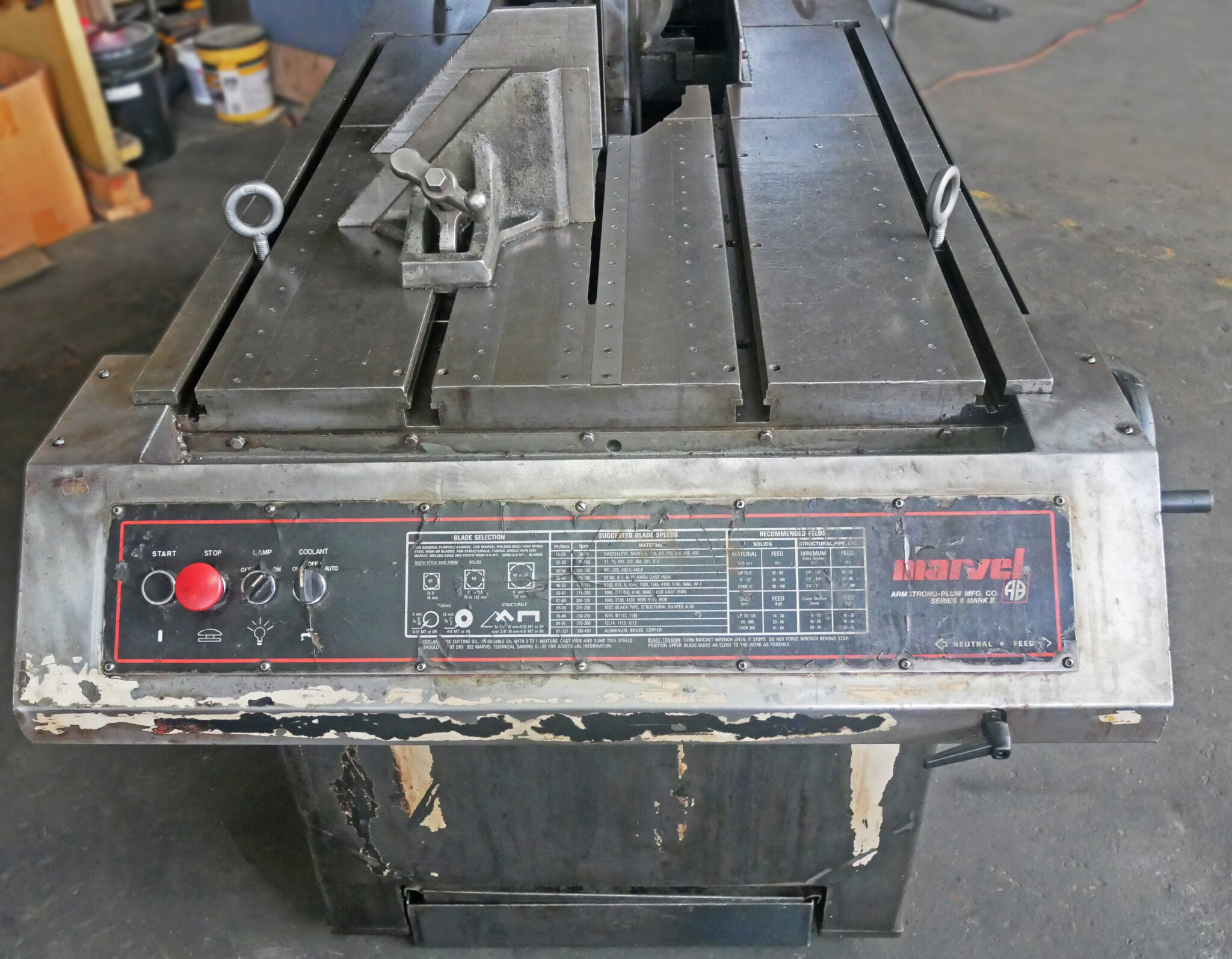

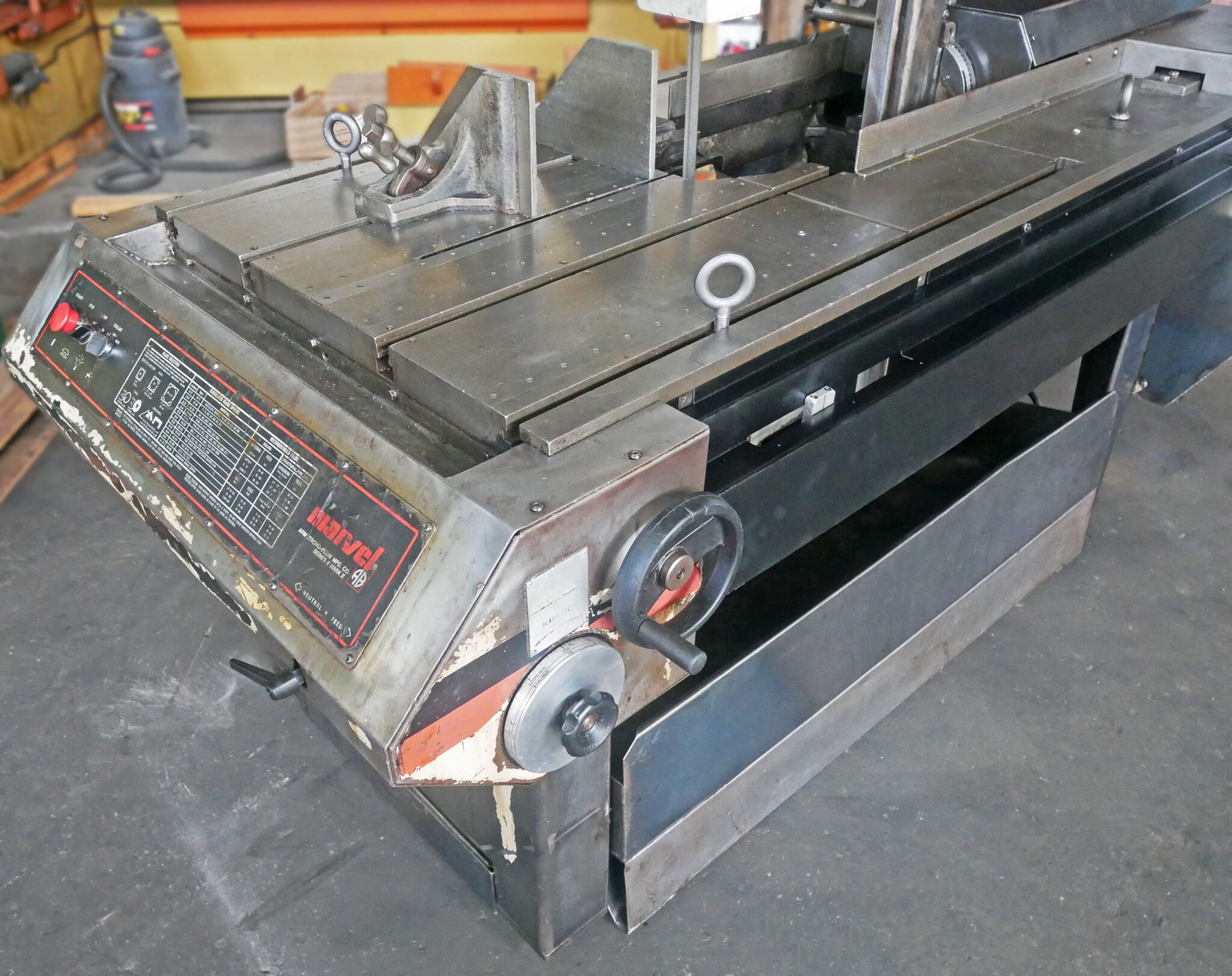

Working Surface of Table: 24 1/4″ x 33″
Table Height: 34 1/2″
Blade Size: 186″ x 1″ x .035″
Blade Speeds: 50 – 450 FPM (Variable)
Feed Force: 0 – 140′ /lbs.
Motor: 2 HP / 230v / 3ph
Standard Features & Equipment Included:

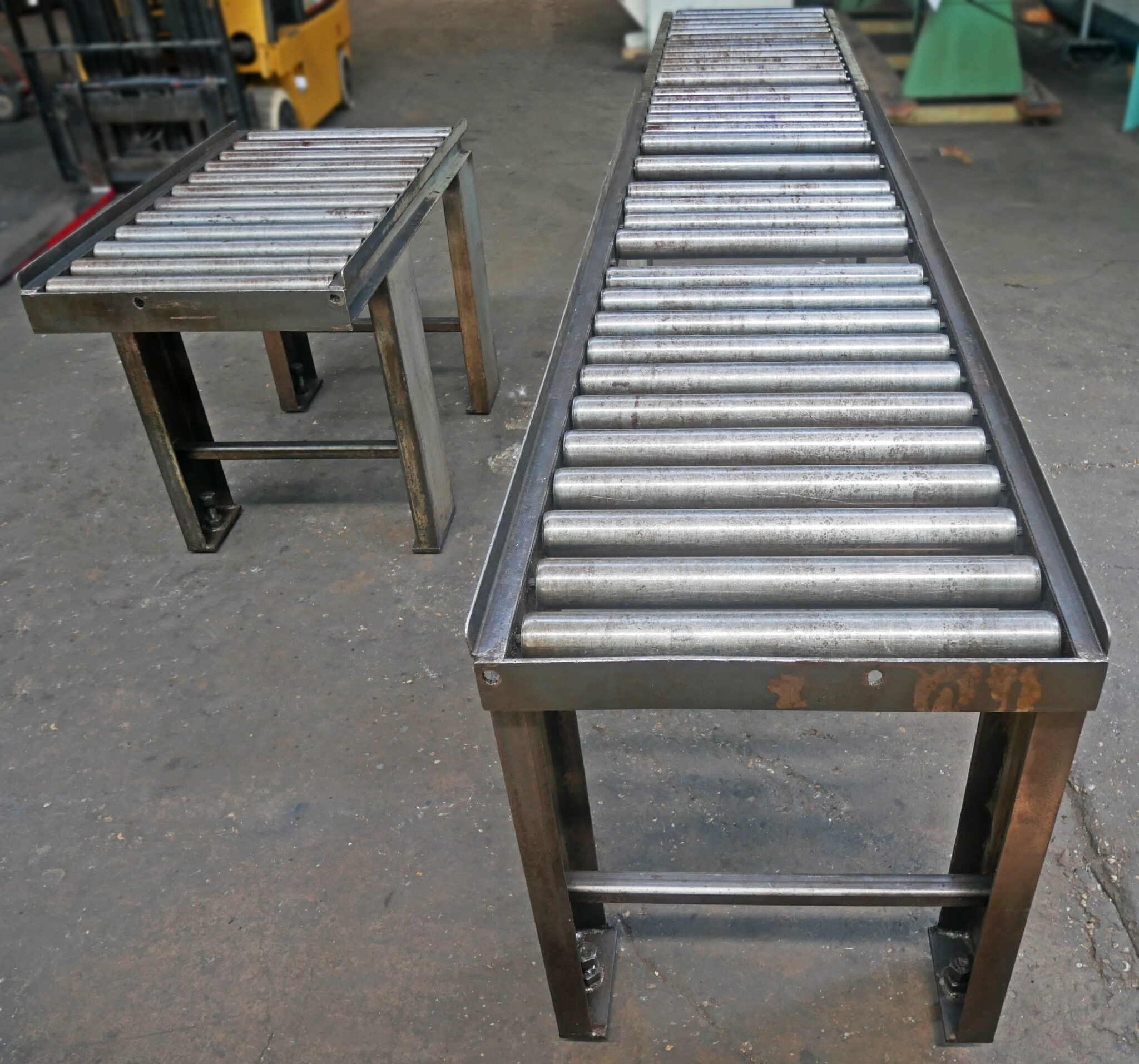

(1) 152″ L x 23 1/2″ Wide Roller Conveyor
(1) 48″ L x 23 1/2″ Wide Roller Conveyor
Power In-Feeding Head with Limit Stops
Automatic Blade Tensioning
Left and Right Tilting Head
Adjustable Feed Pressure
Coolant System
Work Light

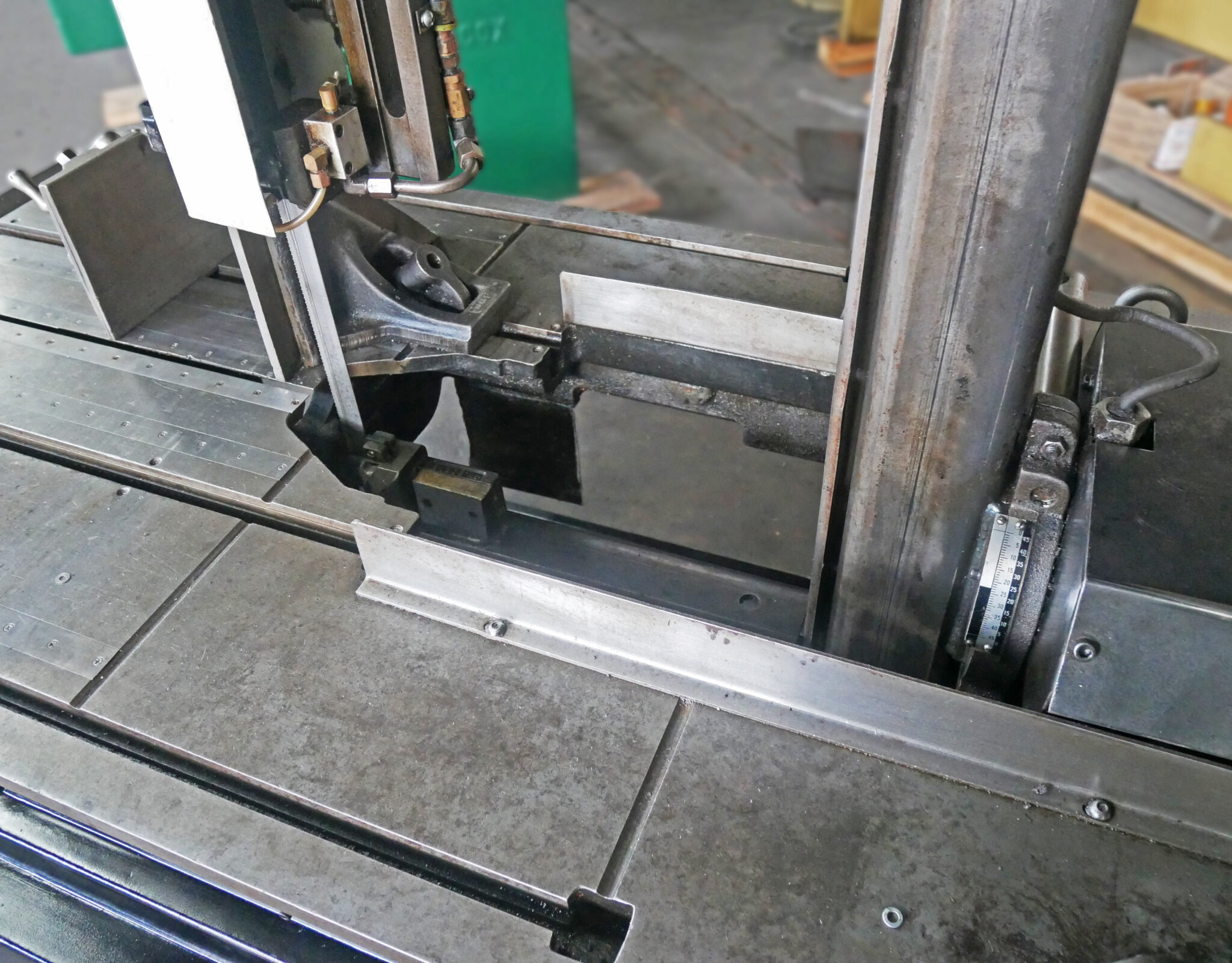

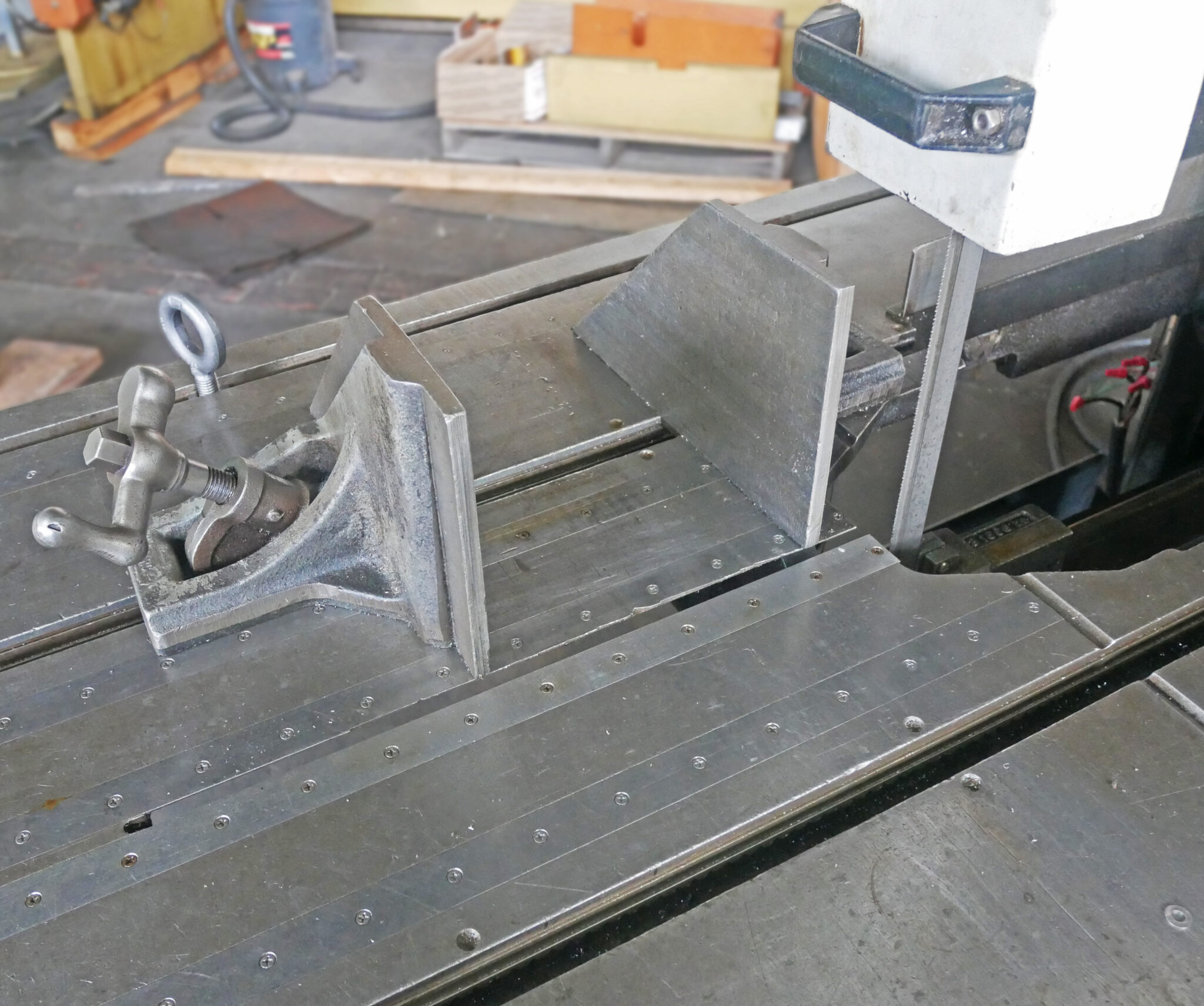

Vise
Mechanical Specifications:
Dimensions: 96″ x 52″ x 87″ H
Weight: approx. 2,870 lbs.
FOB Our Baltimore, MD Warehouse
