Description

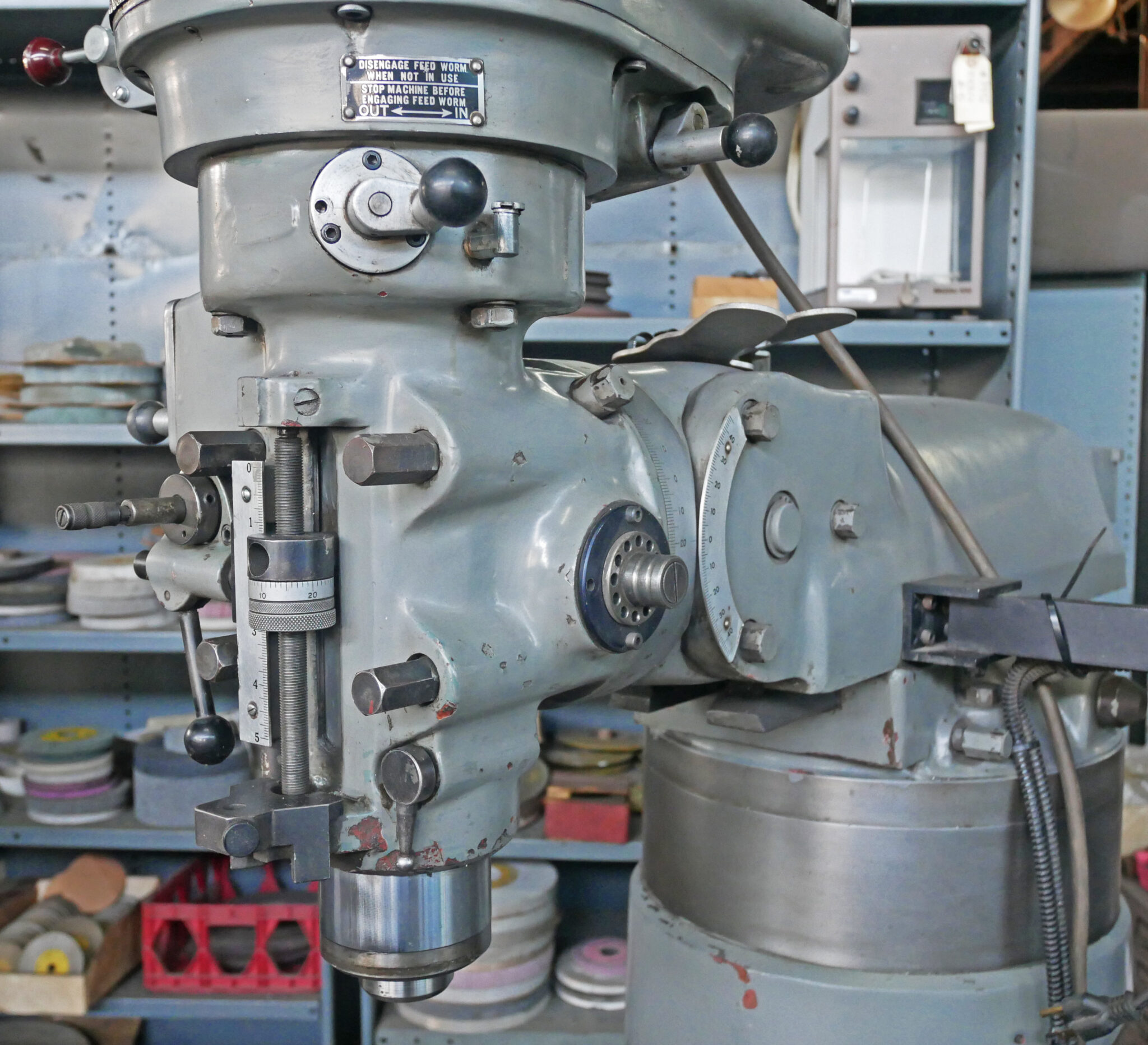

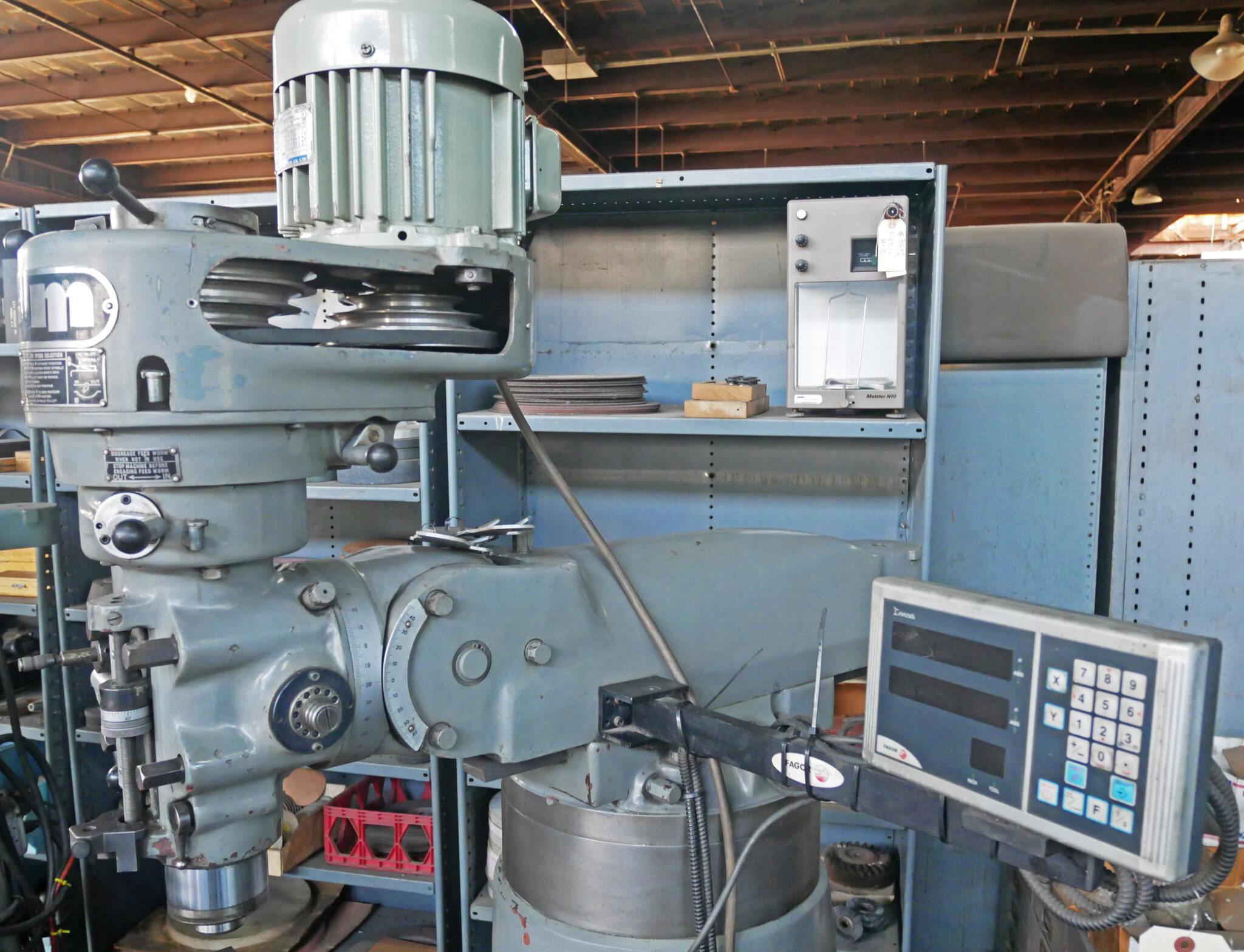

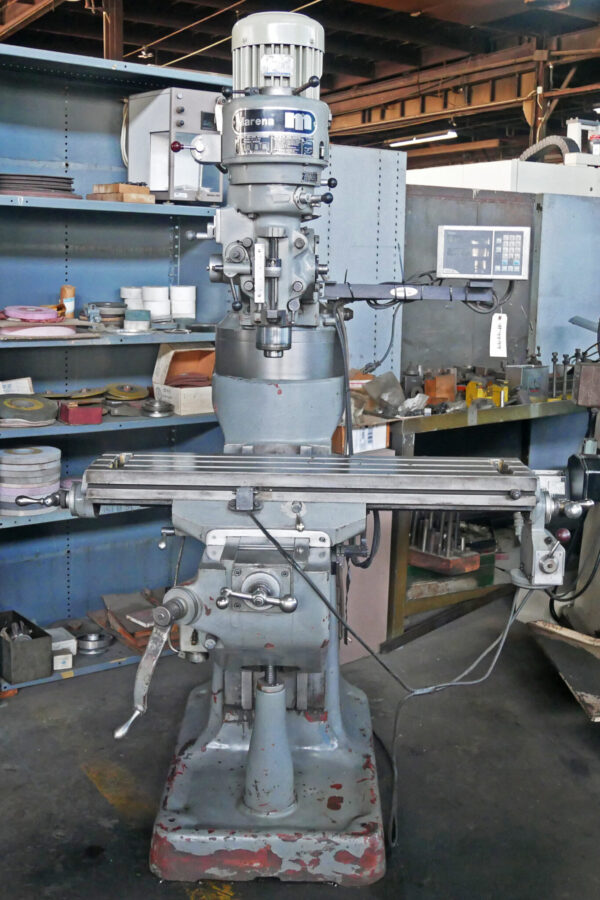

Marena Machinery 9″ x 42″ Vertical Milling Machine
Inventory # 9799
Specifications:
Table Size: 9″ x 42″
Travels:
X-Axis: 30″
Y-Axis: 12″
Z-Axis: 16″
Ram Travel: 12″
Quill Travel: 5″
Spindle Speeds: 80 – 2,760 RPM (8-Speeds)
Spindle: R8
Throat Distance: 6 3/4″ – 18 3/4″
Max. Weight of Workpiece: 750 lbs.
Motor: 2 HP / 220v, 440v / 3ph
Equipment Included:

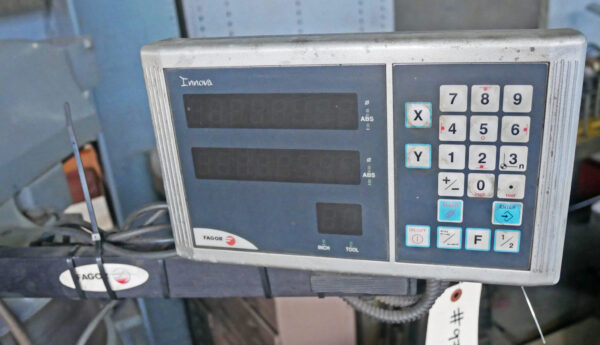

Fagor 20iM 2-Axis Digital Readout
Servo X-Axis Power Feed
6″ Riser Block
One-Shot Lubrication
Mechanical Specifications:
Dimensions: 84″ x 120″ x 87″ H
Weight: approx. 1,700 lbs.
FOB Our Baltimore, MD Warehouse
