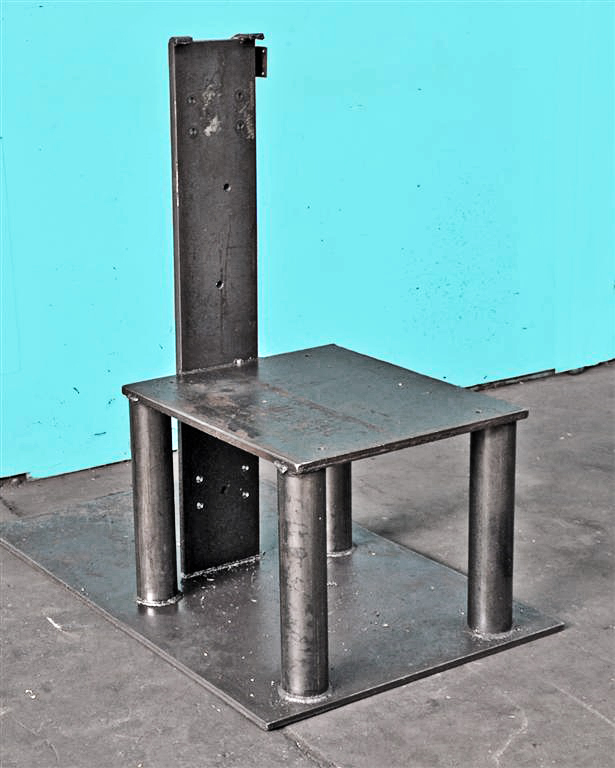

MACHINE DRILL FIXTURE FOR FLANGES AND MORE

INVENTORY # 4916

DESCRIPTION:

HEAVY DUTY BI-LEVEL DESIGN

ORIGINALLY A HEAVY DRILL PRESS WAS MOUNTED ON THE PEDESTAL AND “VEE’S” WERE MOUNTED TO THE BACK UPRIGHT.

YOU COULD SWING THE FIXTURE AROUND AND DRILL THE END OF ROUND PARTS, DRILL FLANGES, OR SET UP ON THE BASE FOR EXTENDED WORK HEIGHT.

SPECIFICATIONS:

BASE: 29” x 24” x ½” THICK

UPPER PLATFORM:

22” x 25” x ¾” THICK (4-HOLE PATTERN TO MOUNT A DRILL PRESS)

THE UPPER PLATFORM IS RAISED 18 5/8” BY HEAVY ROUND COLUMNS.

BACK: 8” x 48” x 1” THICK, SEVERAL HOLES TO MOUNT THE “VEE’S”

(2) CAST IRON VEE’S”: 8” x 4” WITH 4 ¼” OPENING

BOLTS AND CLAMPS WITH PARTIAL ROUND MACHINES SURFACE ON 1 SIDE

GOOD CONDITION

PRICE: $650.00

SALE PRICE: $500.00

FOB Our Baltimore, MD Warehouse
