Description

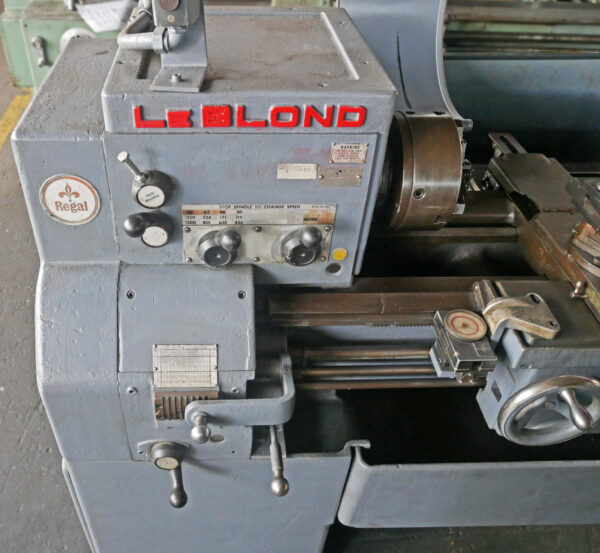

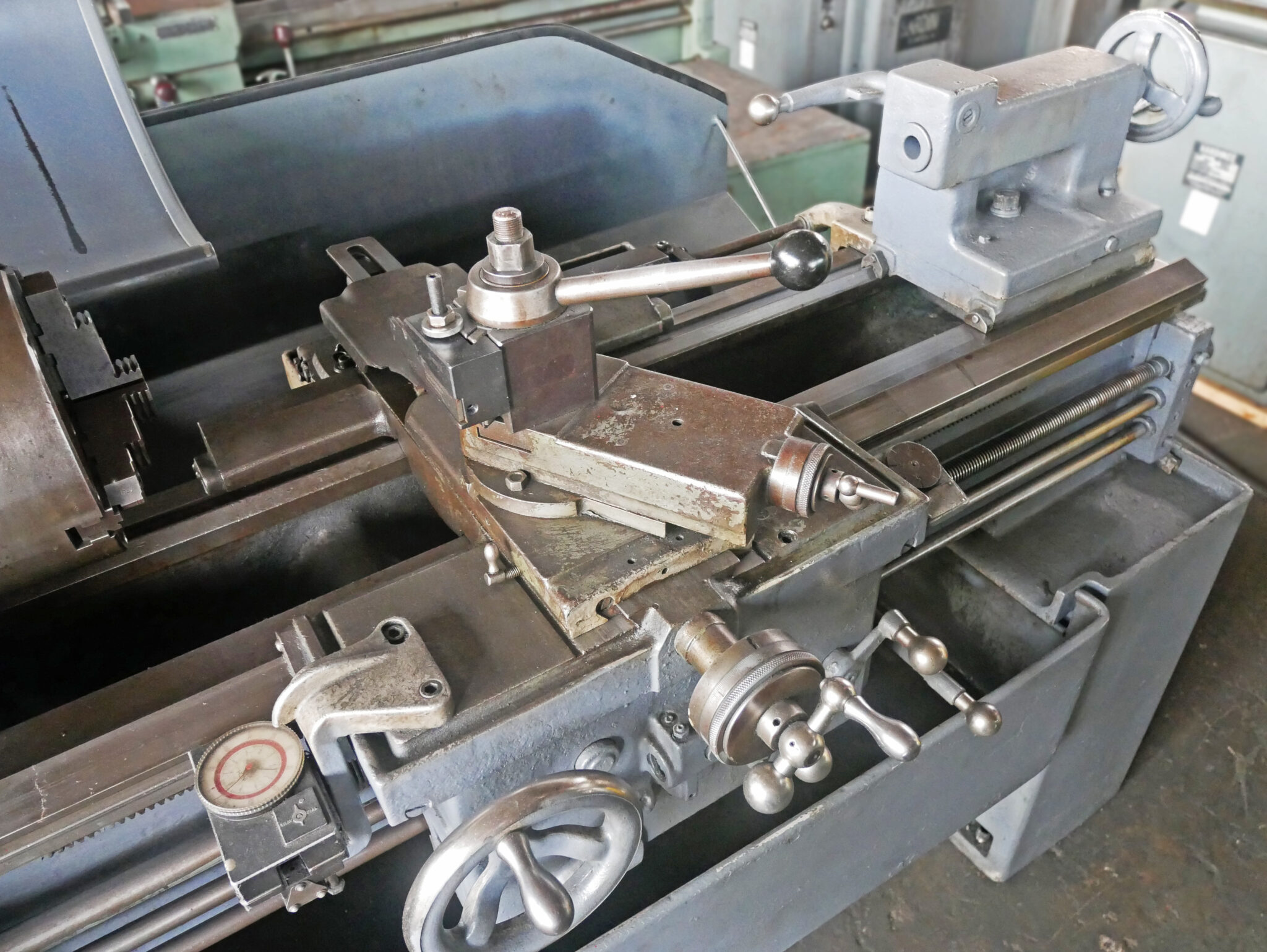

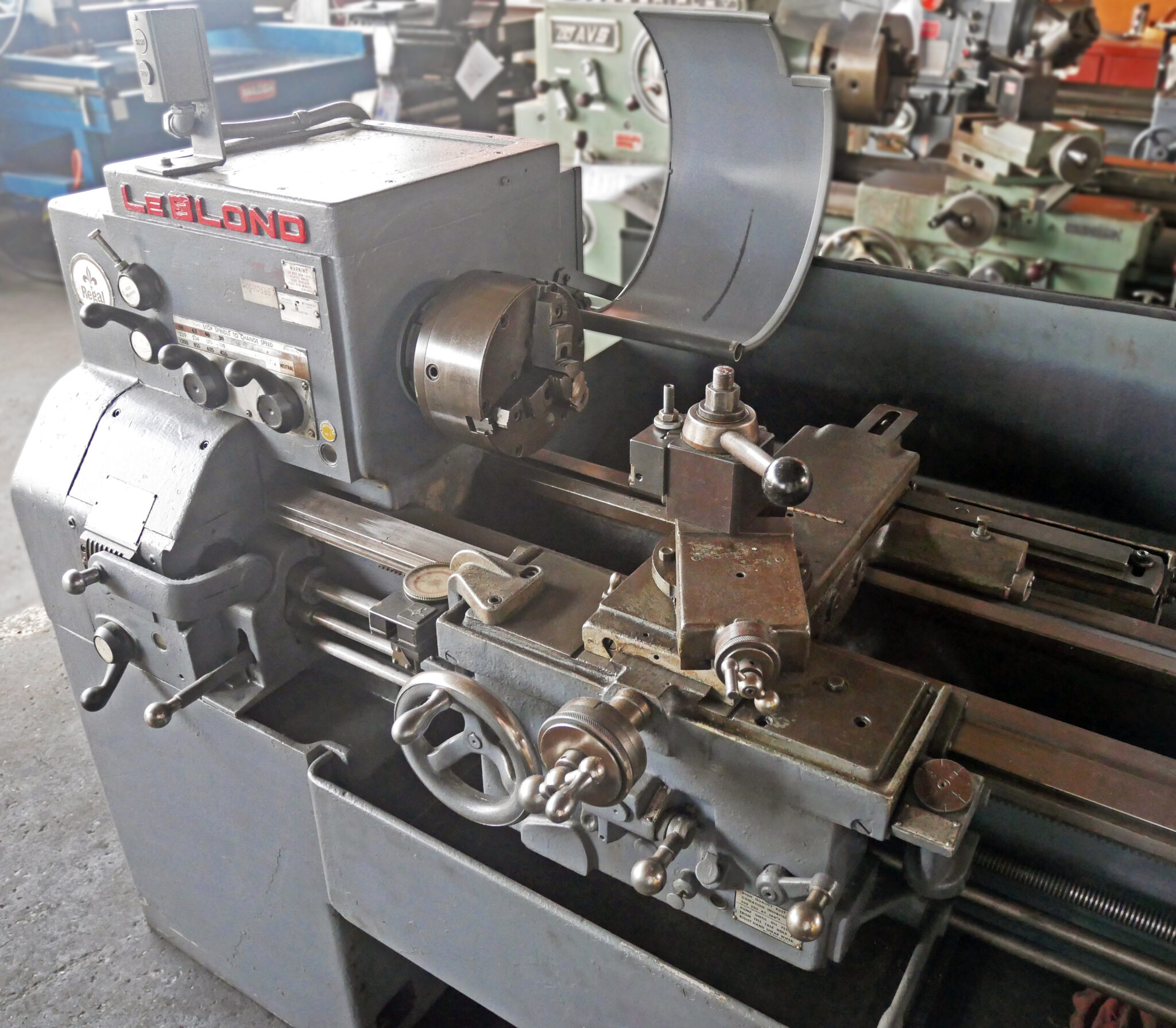

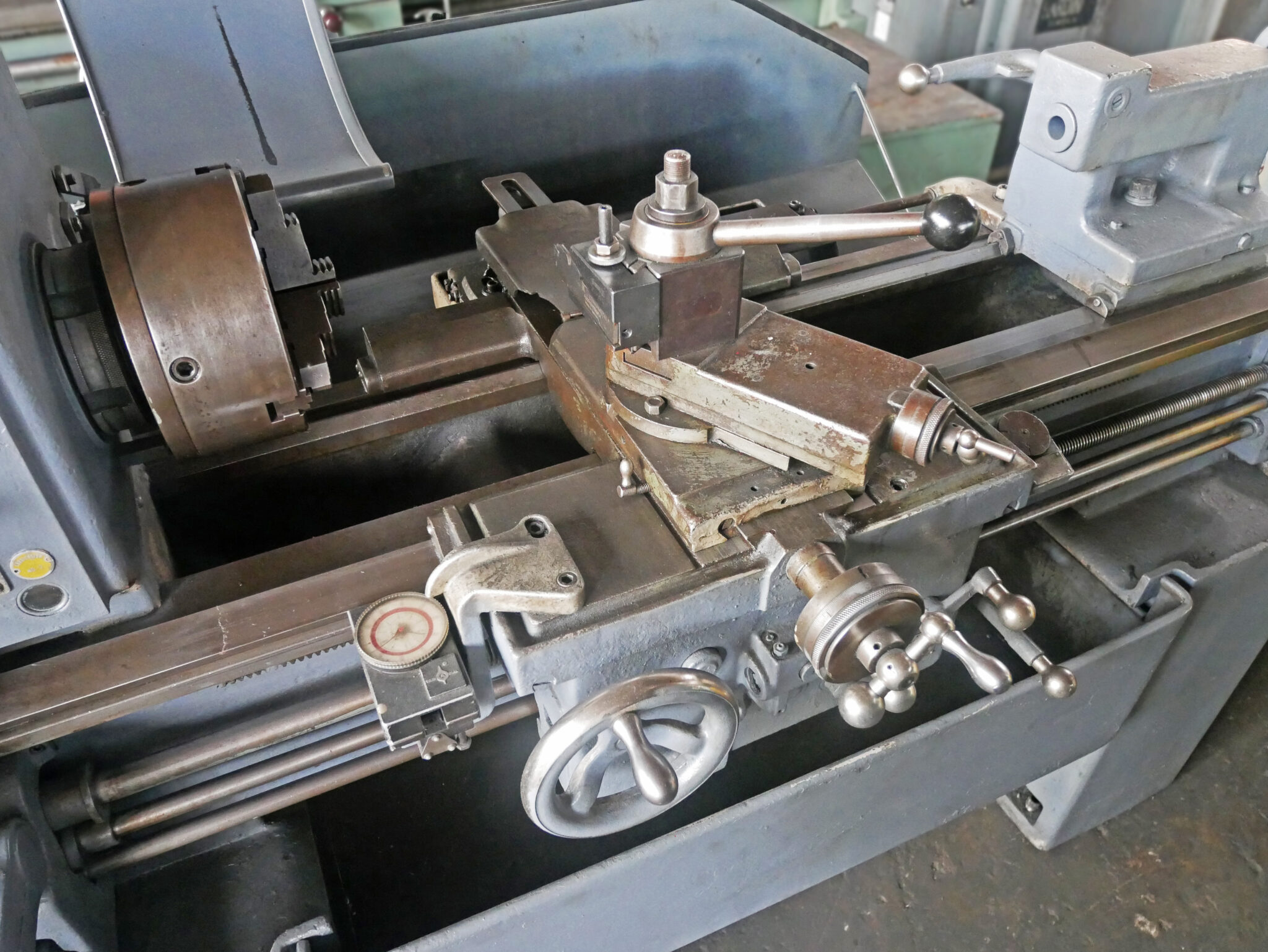

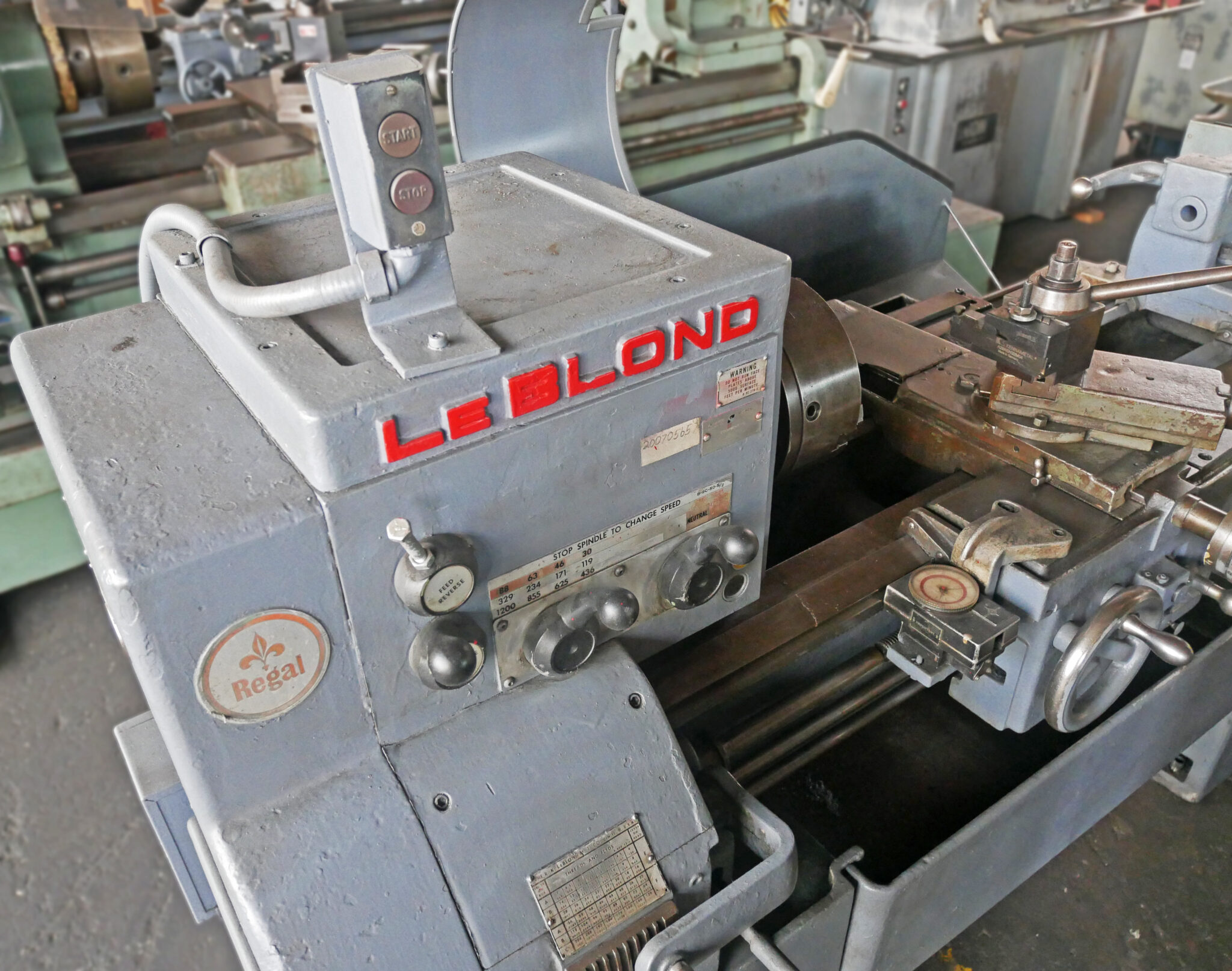

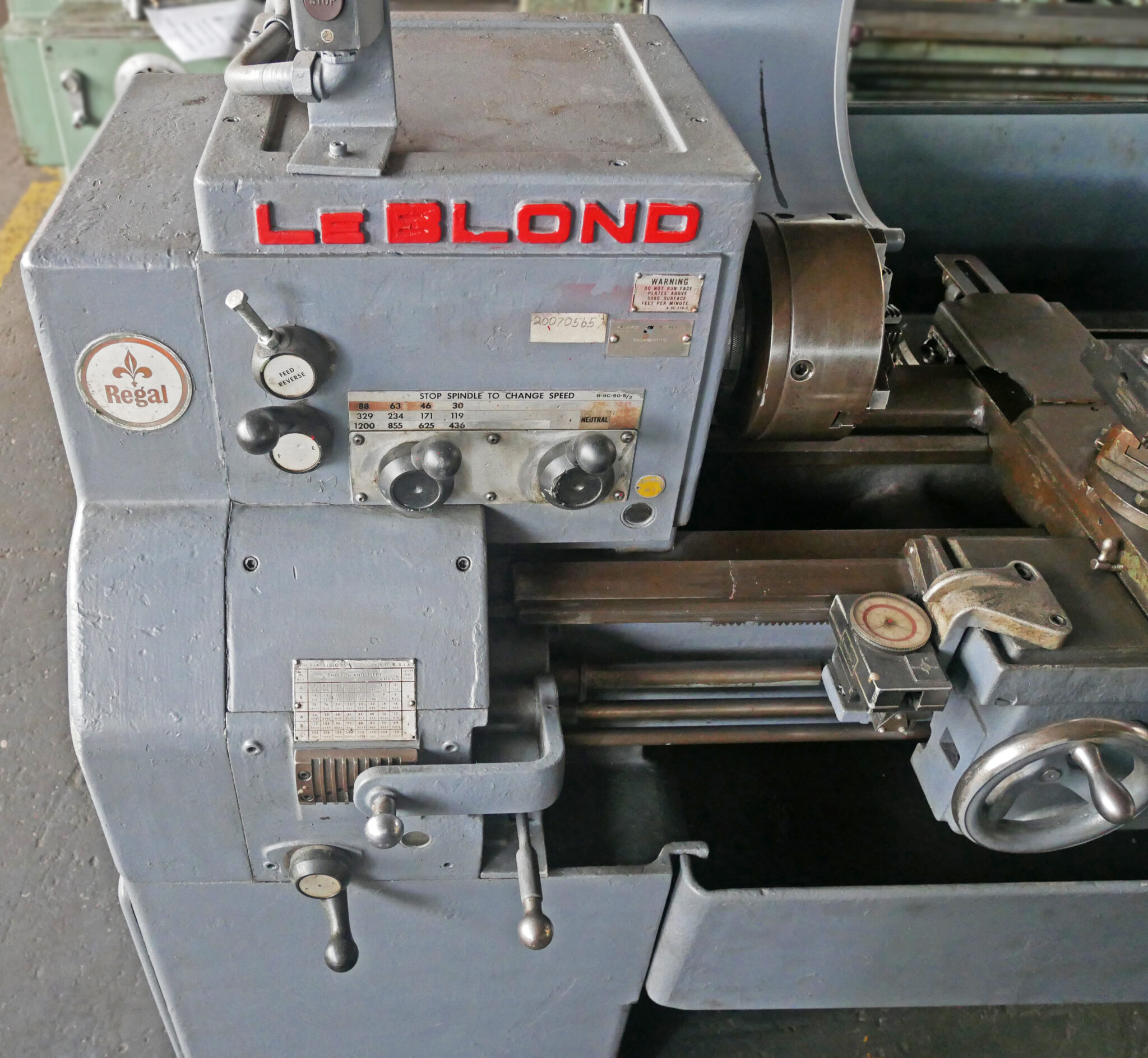

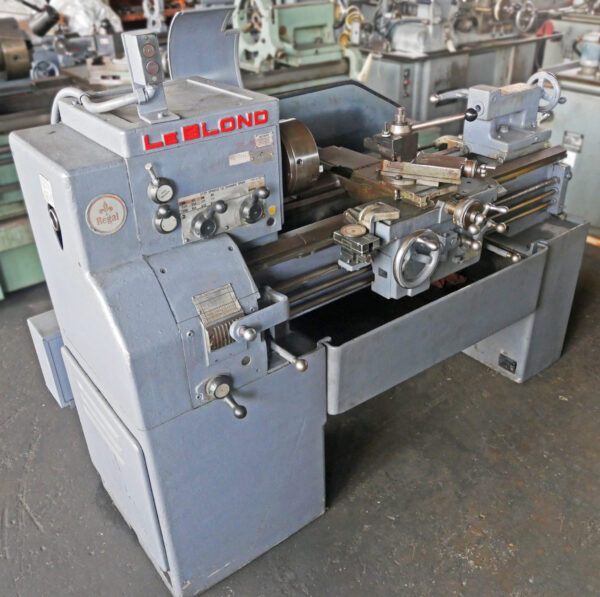

Leblond ‘Regal’ 15″ x 50″ Engine Lathe
Inventory # 9563
Model: 15″ x 50″
S/N: 4B1197
Specifications:
Swing Over Bed: 15″
Swing Over Cross Slide: 9″
Max. Distance Between Centers: 32″
Bed Length: 50″
Spindle Hole: 1 17/32″
Spindle Speeds: 88 to 1,200 RPM (12)
Feeds: 4 – 224 TPI (48)
Motor: 3 HP / 220v, 440v / 3ph
Equipment Included:
Taper Attachment
8″ 3-Jaw Chuck
Aloris Tool Post
Thread Dial
Travel Dial
Chuck Guard
Splash Guard
Mechanical Specifications:
Dimensions: 24″ x 78″ x 48″ H
Weight: approx. 3,100 lbs.
FOB Our Baltimore, MD Warehouse
