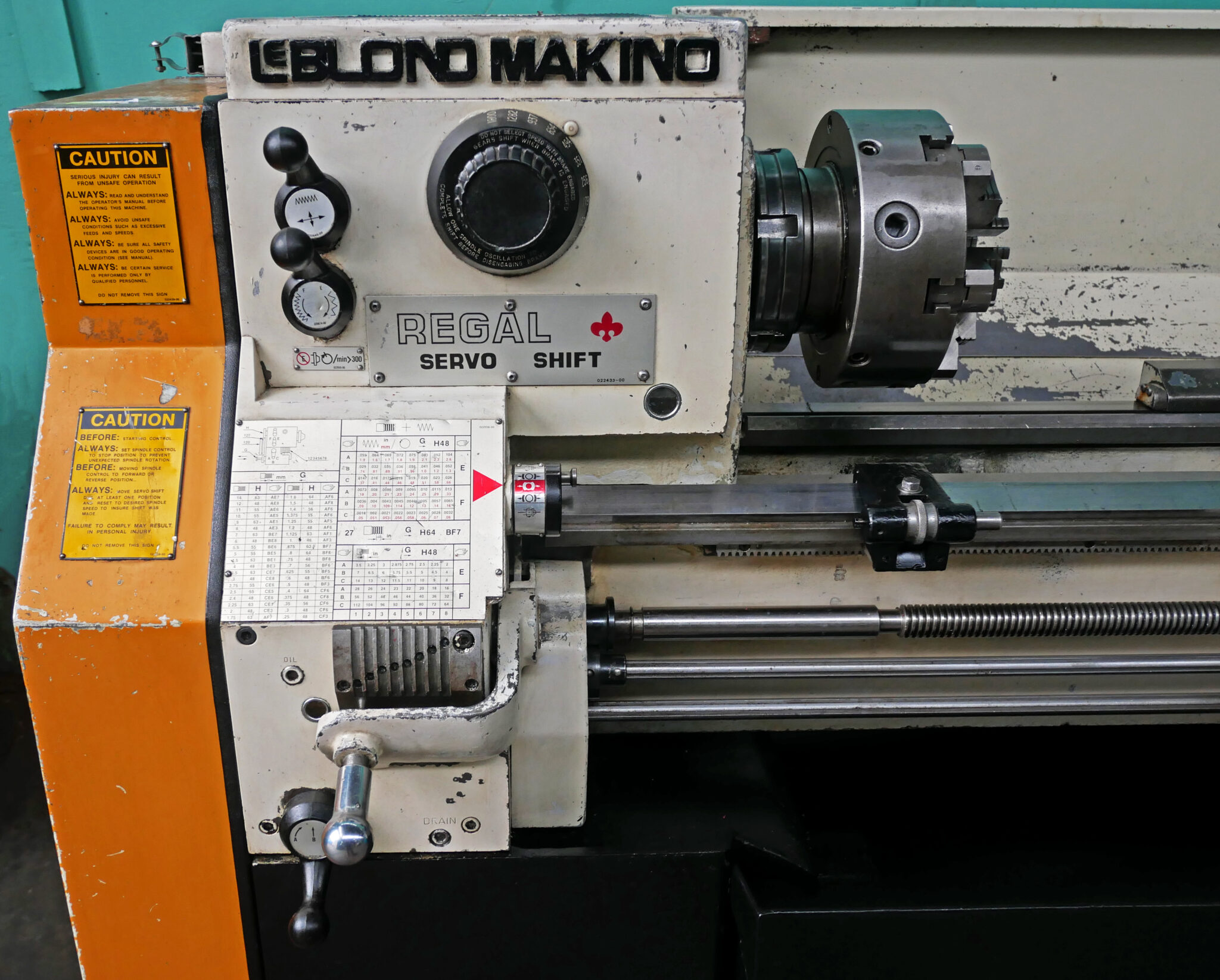

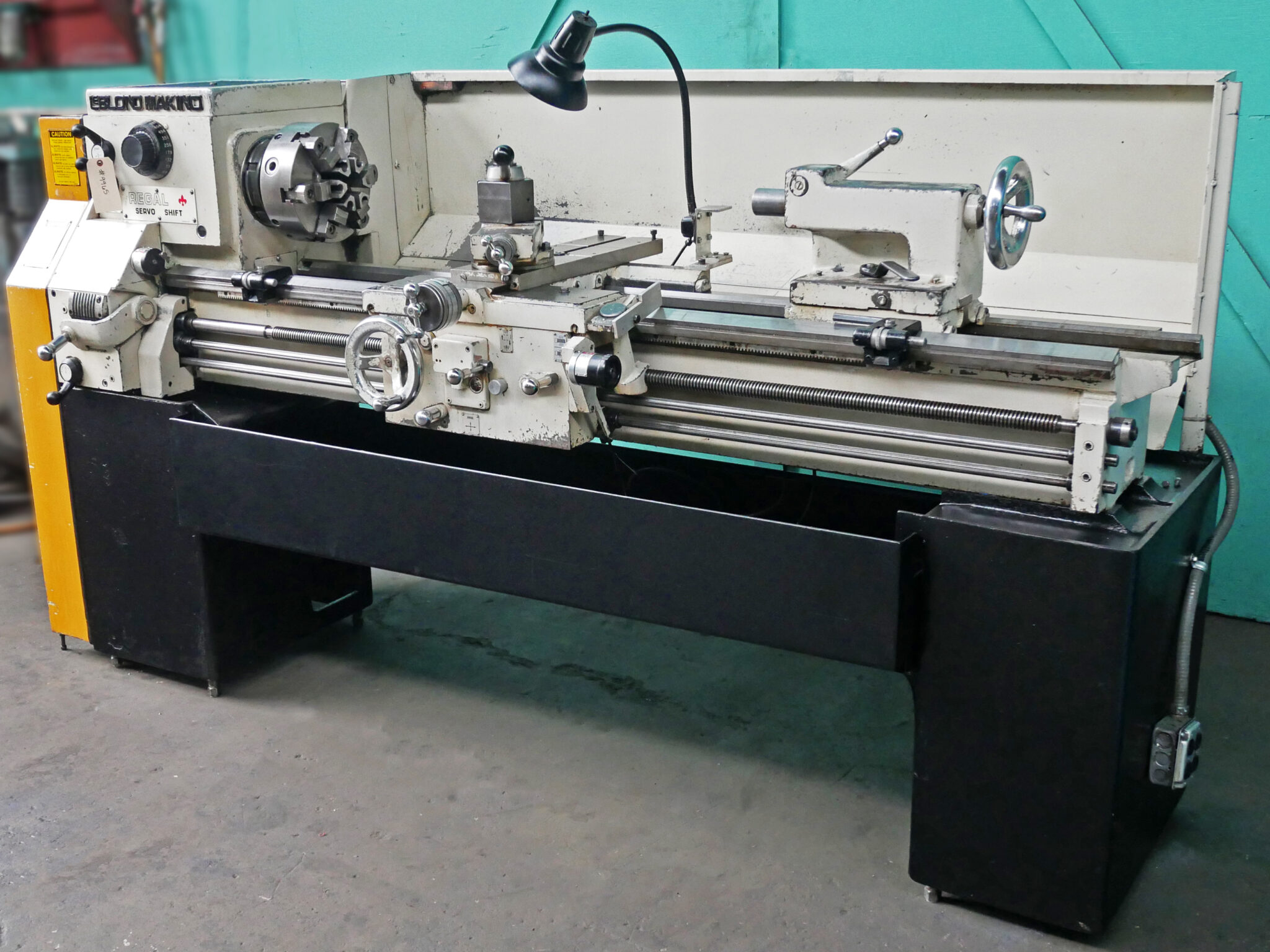

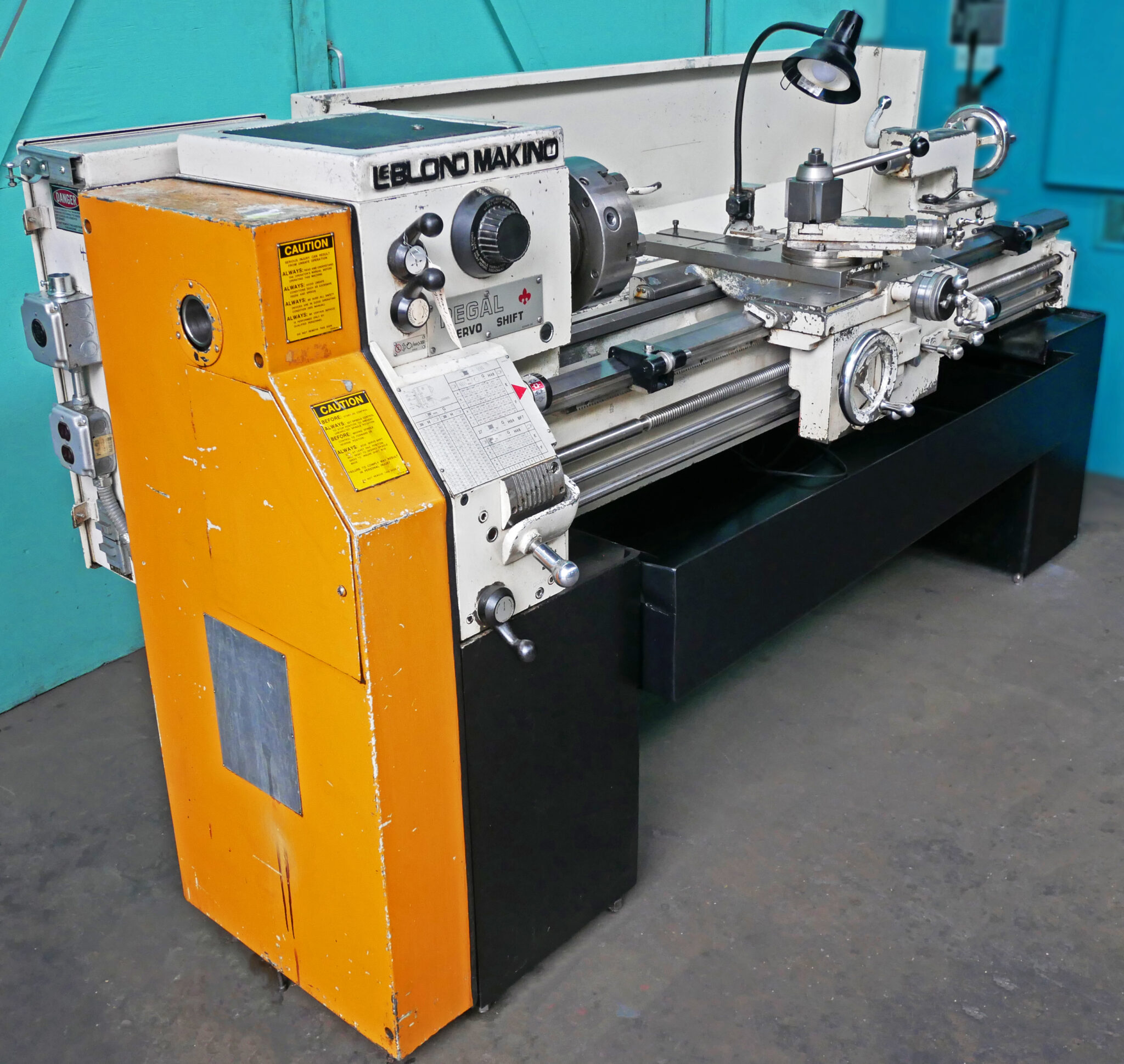

Leblond Makino Regal 15″ x 54″ Servo Shift Lathe
Inventory # 9965
Model: 15″
S/N: 14C-241
Specifications:
Swing Over Bed: 15 1/2″
Swing Over Cross Slide: 9 1/2″
Distance Between Centers: 59″
Spindle Speeds (12):
Low Range: 30 – 1,200 RPM
High Range: 45 – 1,800 RPM
Spindle Nose Taper: L-1
Spindle Bore: 2 5/16″
Feed Range: .0018 – .104 IPR

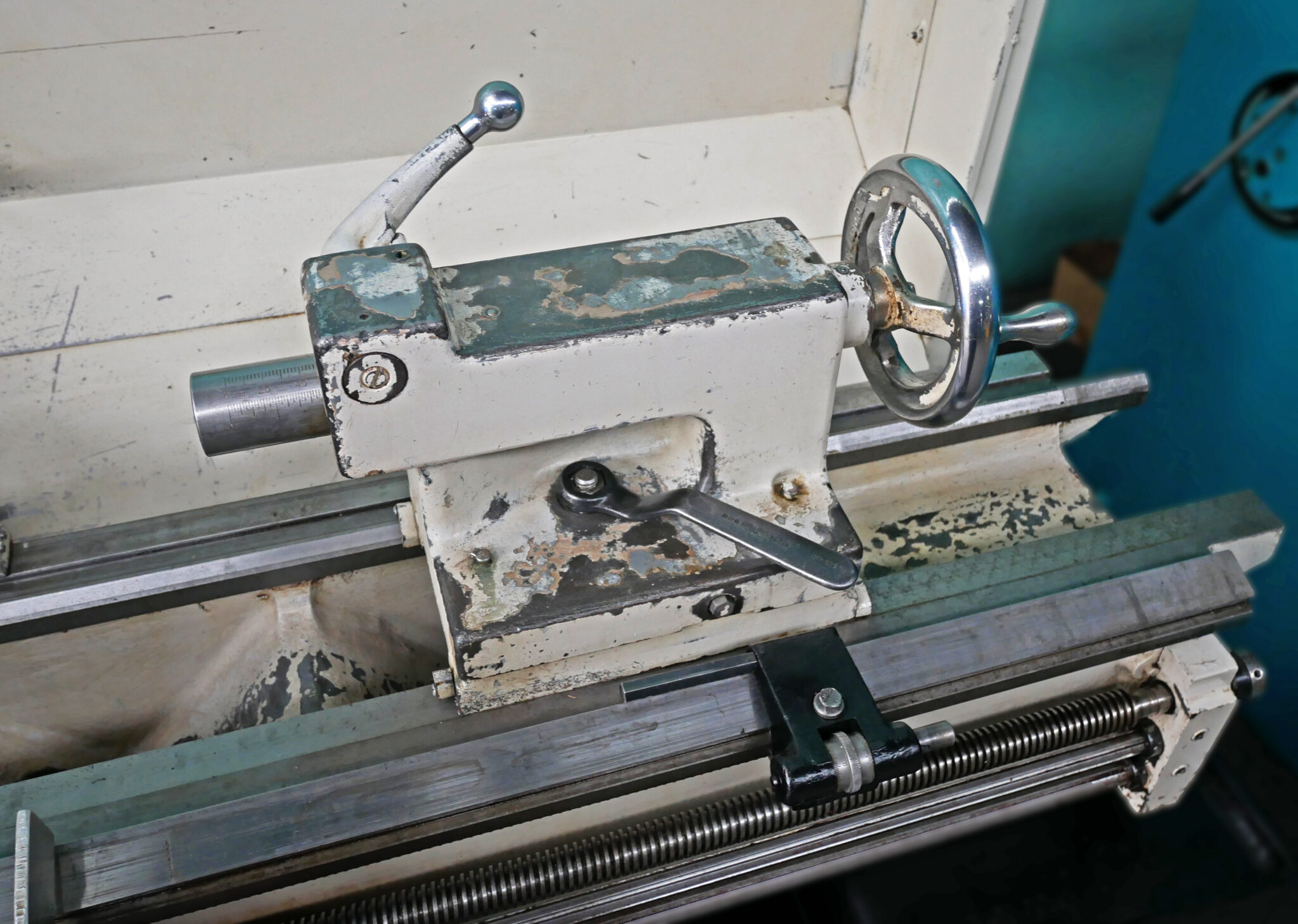

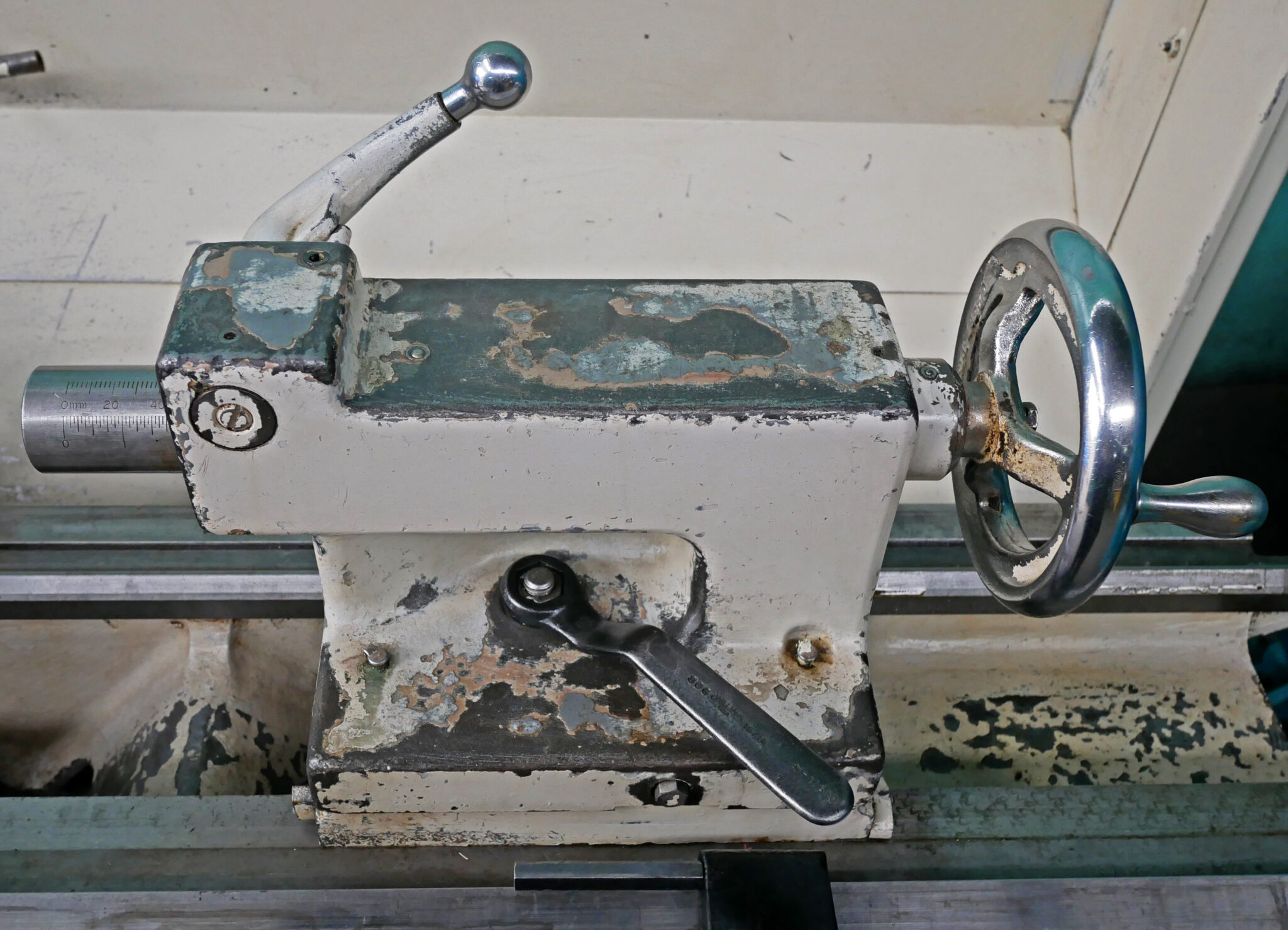

Tailstock Center: Morse No. 3
Spindle Travel: 5″
Motor: 7.5 HP
Equipment Included:

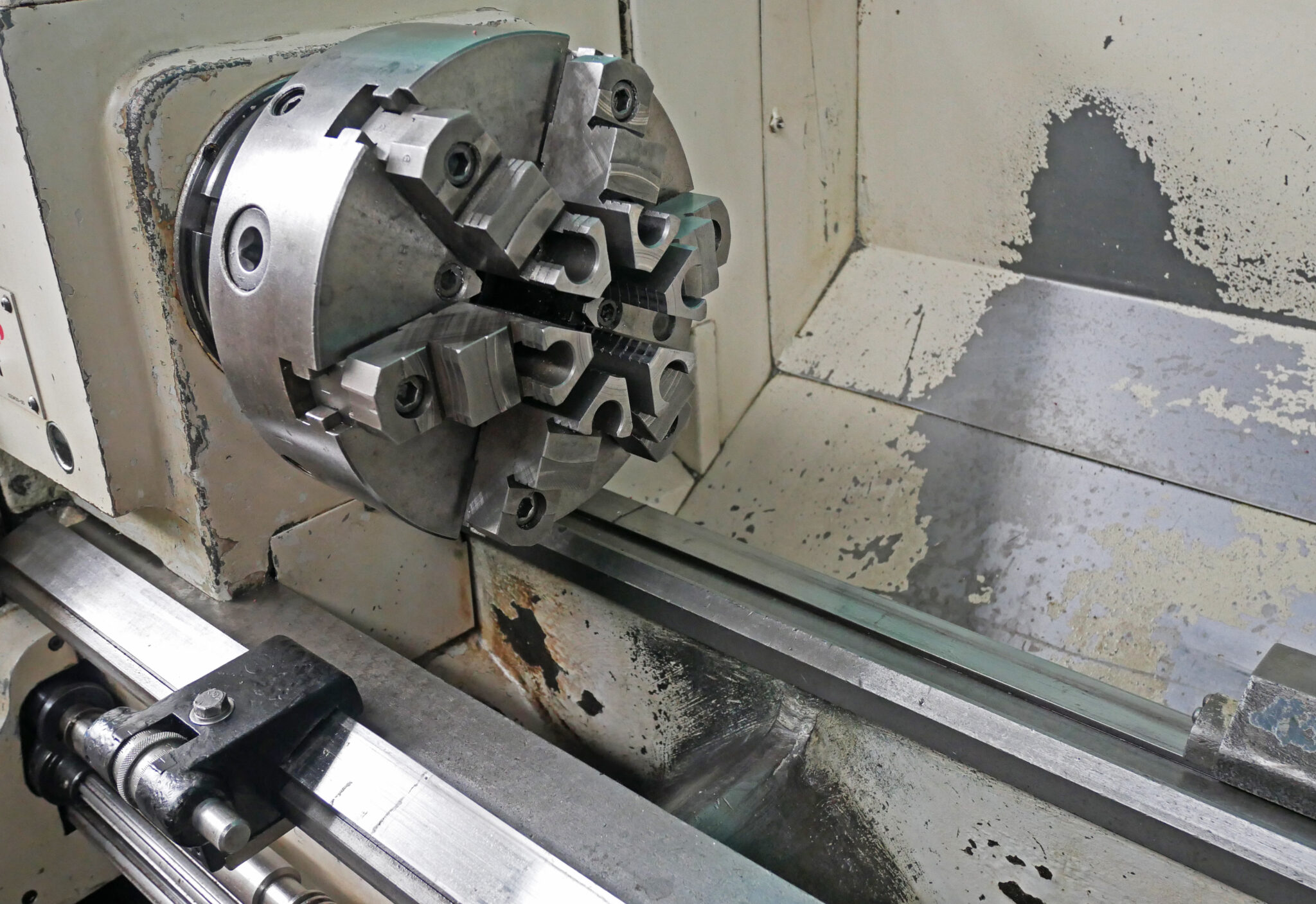

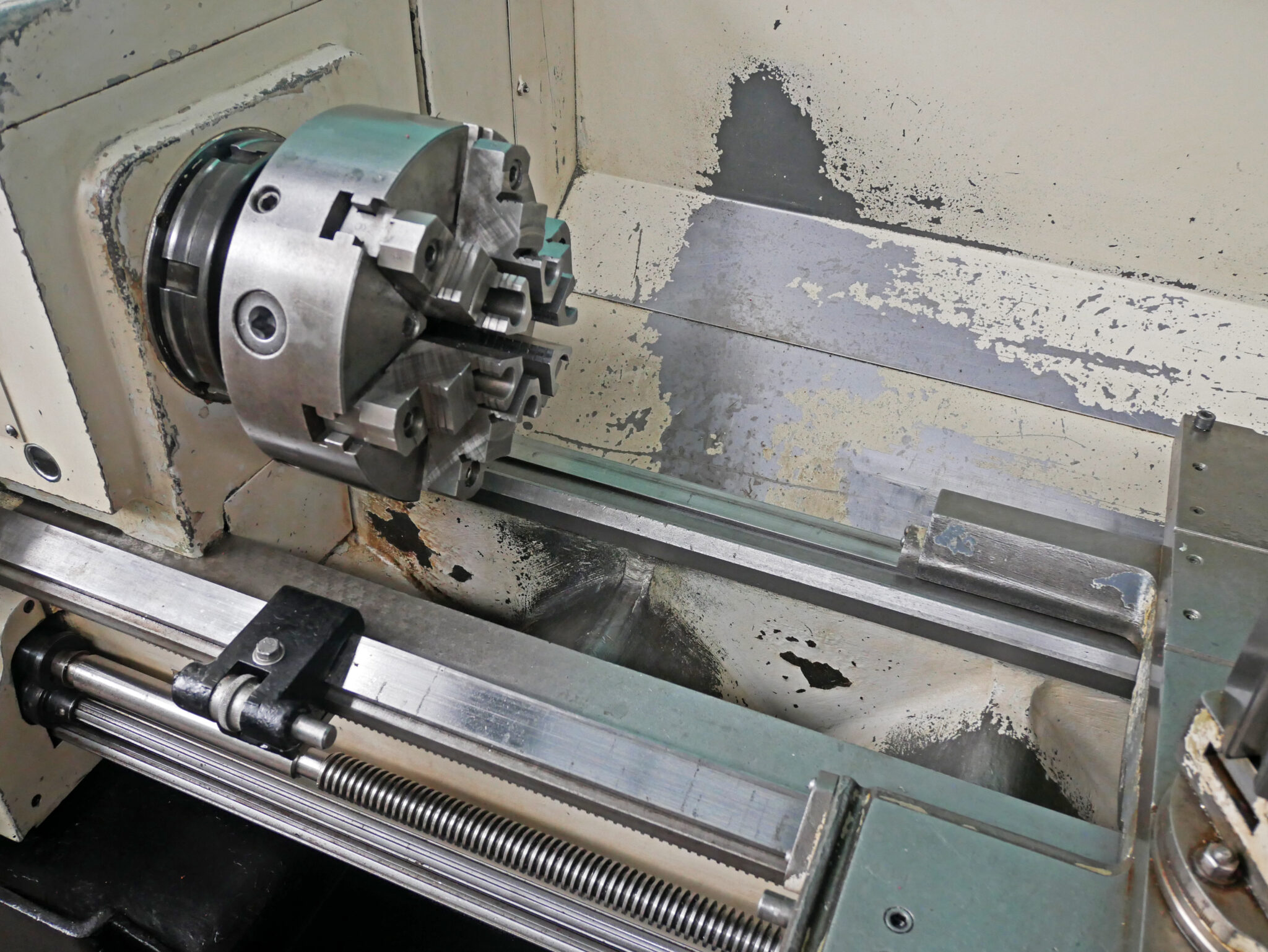

10″ 6-Jaw Chuck
(2) Micrometer Stops

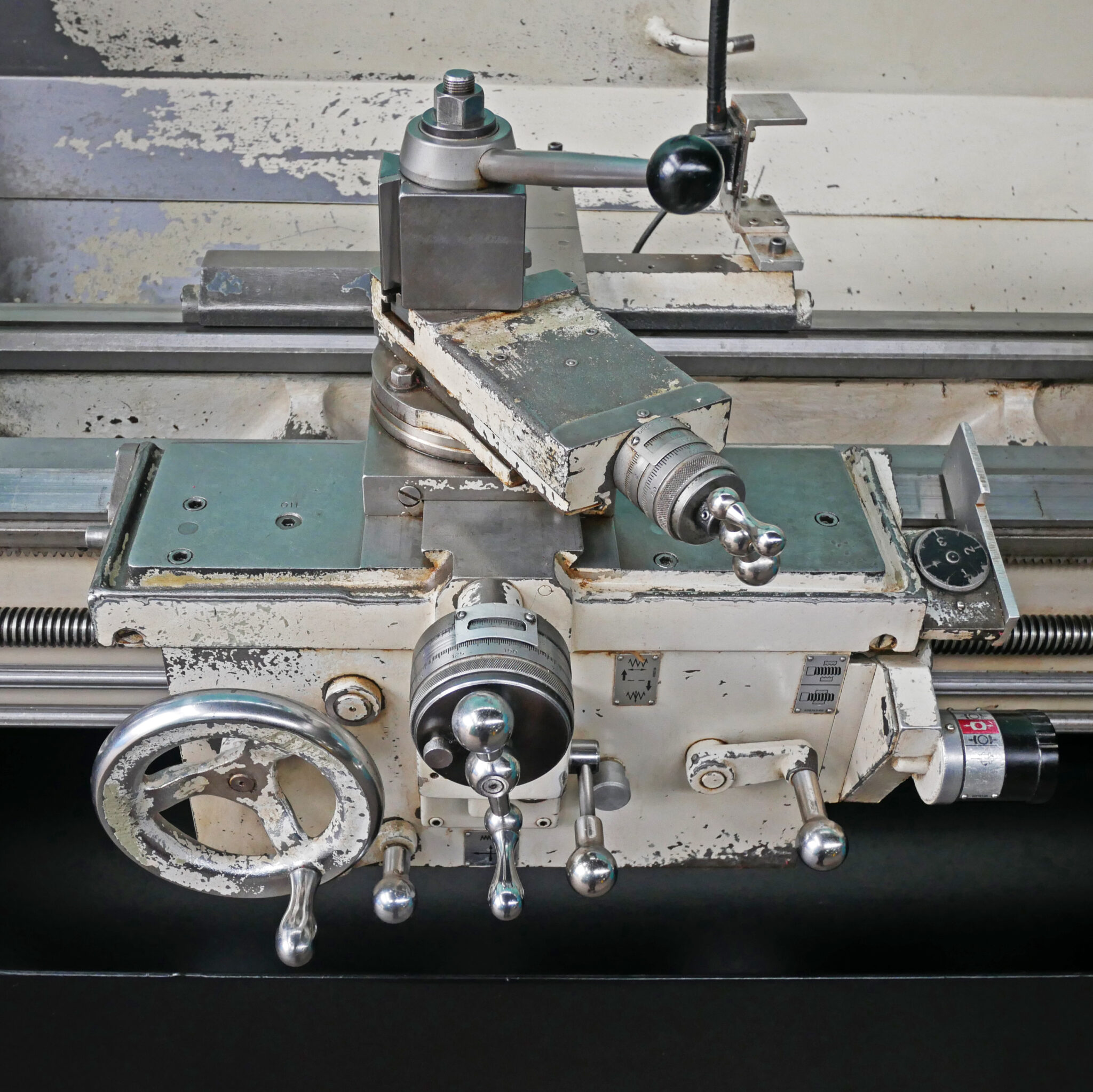

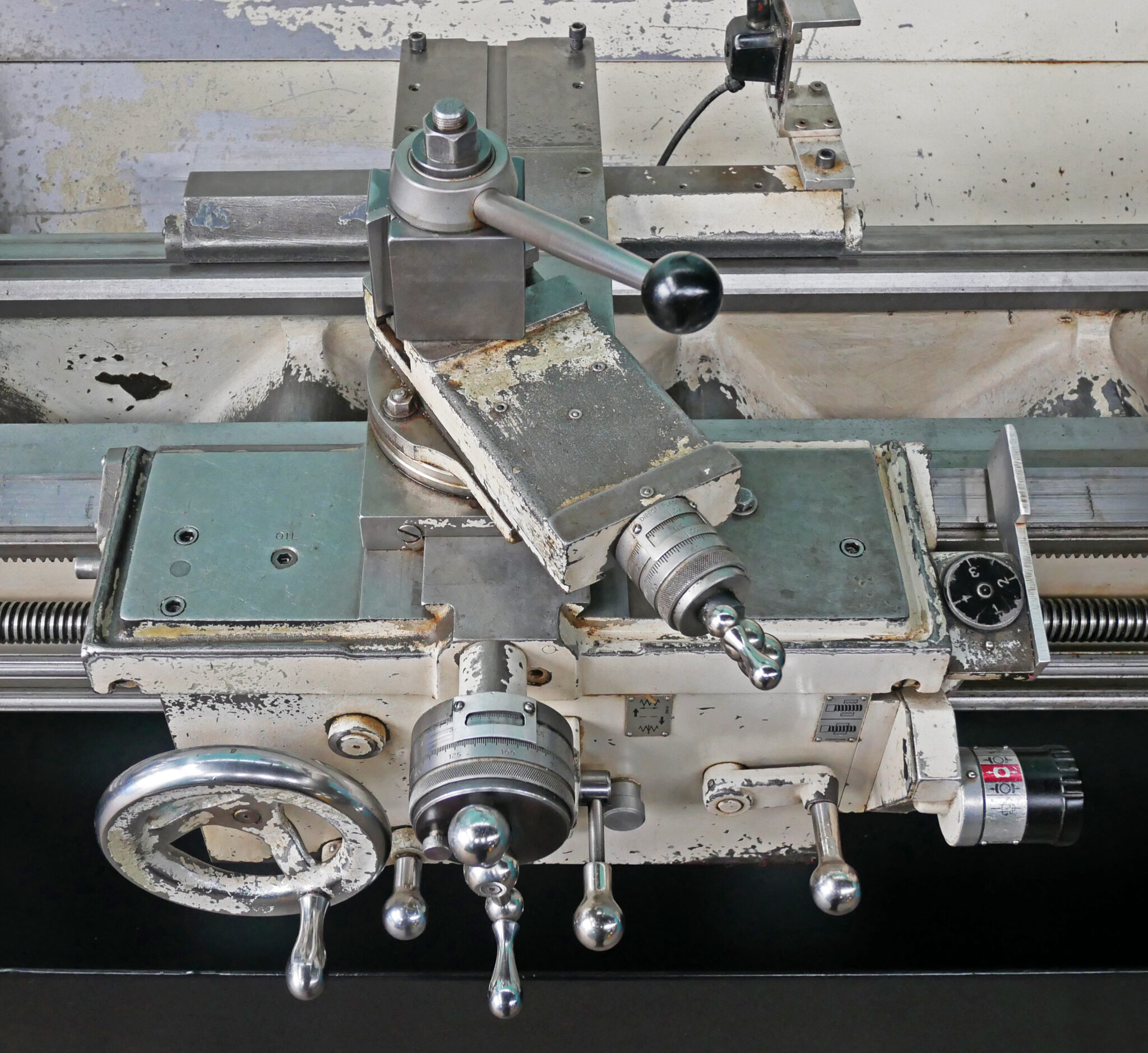

Aloris-Style Quick-Change Tool Post
Work Light
Inch/Metric Threading
Mechanical Specifications:
Floor Space: 78″ x 40″
Weight: approx. 3,000 lbs.
FOB Our Baltimore, MD Warehouse
