Description

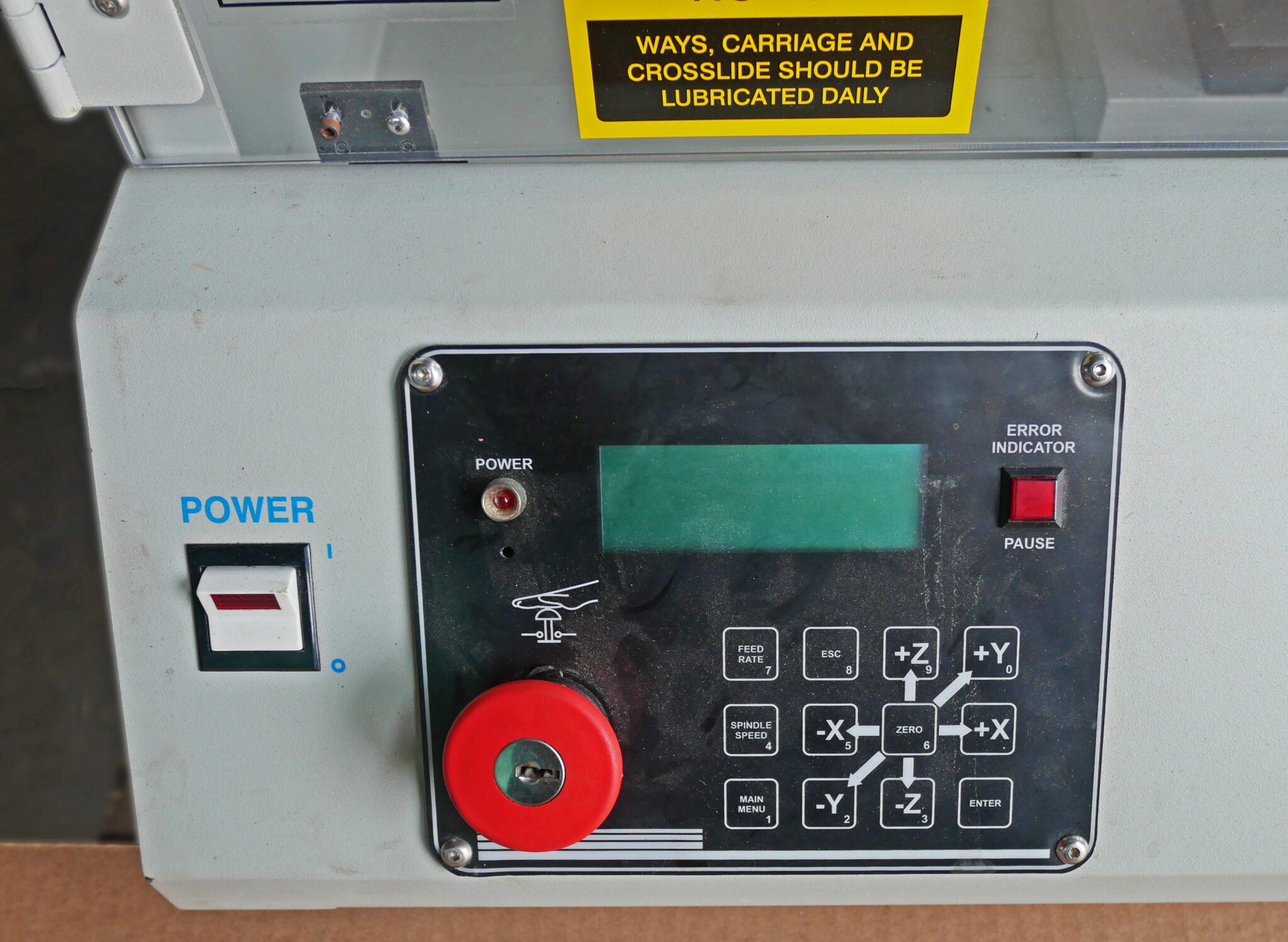

Lab-Volt Automation 5600-B0 CNC Mill
Inventory # 9569-P
Model: 5600-B0
S/N: G-125070
Specifications:
Working Range:
X-Axis Travel: 7 1/2″
Y-Axis Travel: 4″
Z-Axis Travel: up to 8″ (Varies with Collet)
Milling Table:
Table Surface: 5 1/2″ x 12″
Hold-Down T-Slots: 2
Slot Width/Spacing: 0.625″ / 2 1/2″
Max. Clearance: 8 1/2″
Cutting Spindle:
Throat Clearance: 7 1/2″
Spindle Taper: R8
Rapid Traverse Feed: 20″ /Min.
Main Spindle Drive:
Spindle Speed: 0 – 3,400 RPM
Motor: 1 HP, Continuous – 1.5 HP, Peak
Mechanical Specifications:
Dimensions: 32″ x 38 1/2″ x 29 1/2″ H
Weight: approx. 480 lbs.
FOB Our Baltimore, MD Warehouse
