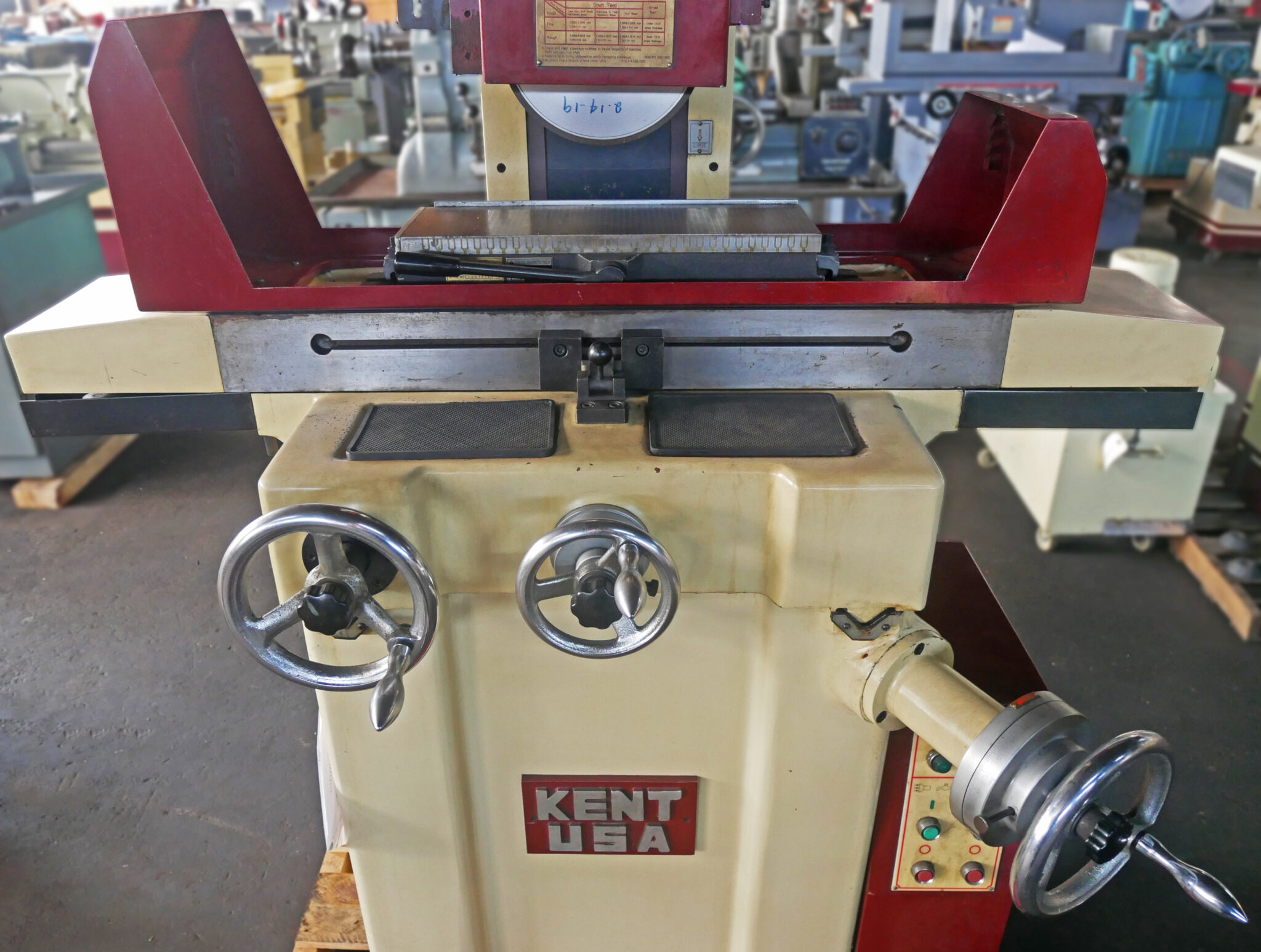

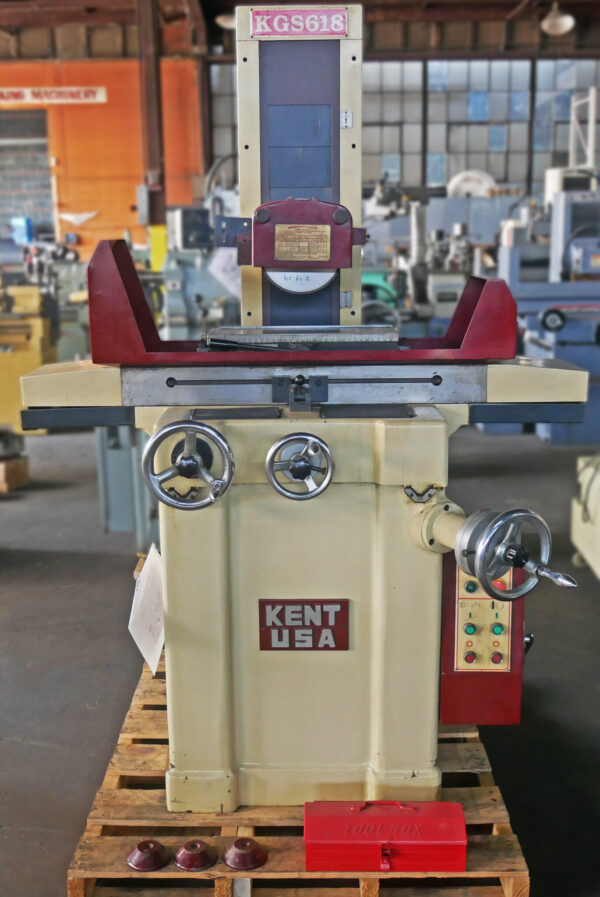

Kent 6″ x 18″ Manual Hand Feed Surface Grinder, KGS618
Inventory # 9861
Model: KGS618
S/N: 40010N
Specifications:
Working Capacity: 6″ x 18″
Table Travel: 19 1/2″
Saddle Travel: 8 1/2″
Grinding Wheel Capacity: 8″ x 1″ x 1 1/4″
Spindle Speed: 3,470 RPM
Vertical Graduation: 0.0002″
Vertical Revolution: 0.050″
Spindle Travel: 21″
Spindle Motor: 1.5 KW / 240v / 3ph
Standard Features:
Roller ball on linear table ways for easy and smooth longitudinal movements
Ultra-high super rigid H-frame column with 21″ spindle center to table for more clearance under the wheel
Flange-mount 3.35″ diameter spindle cartridge design provides unmatched heavy grinding with superior side-grinding rigidity

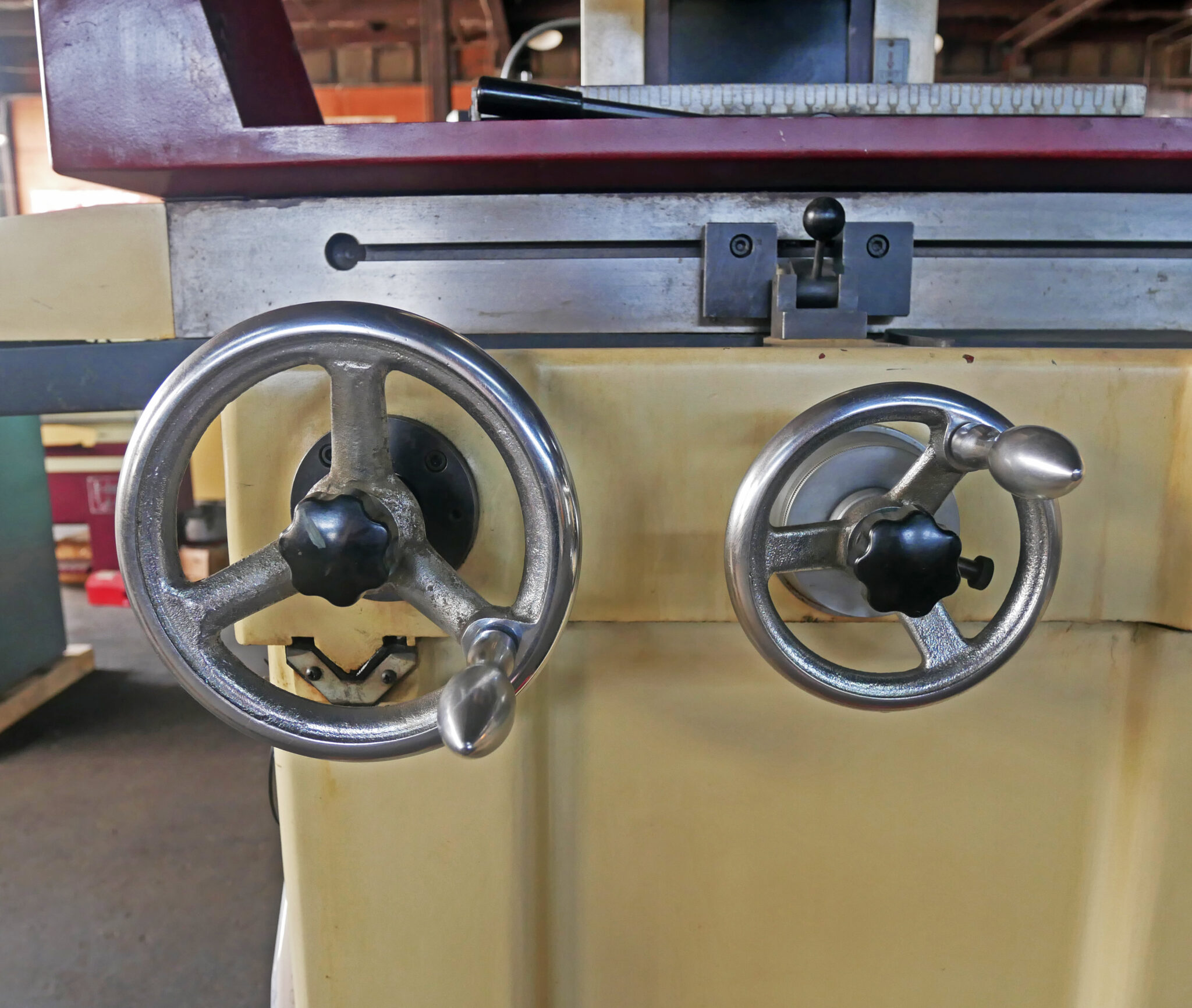

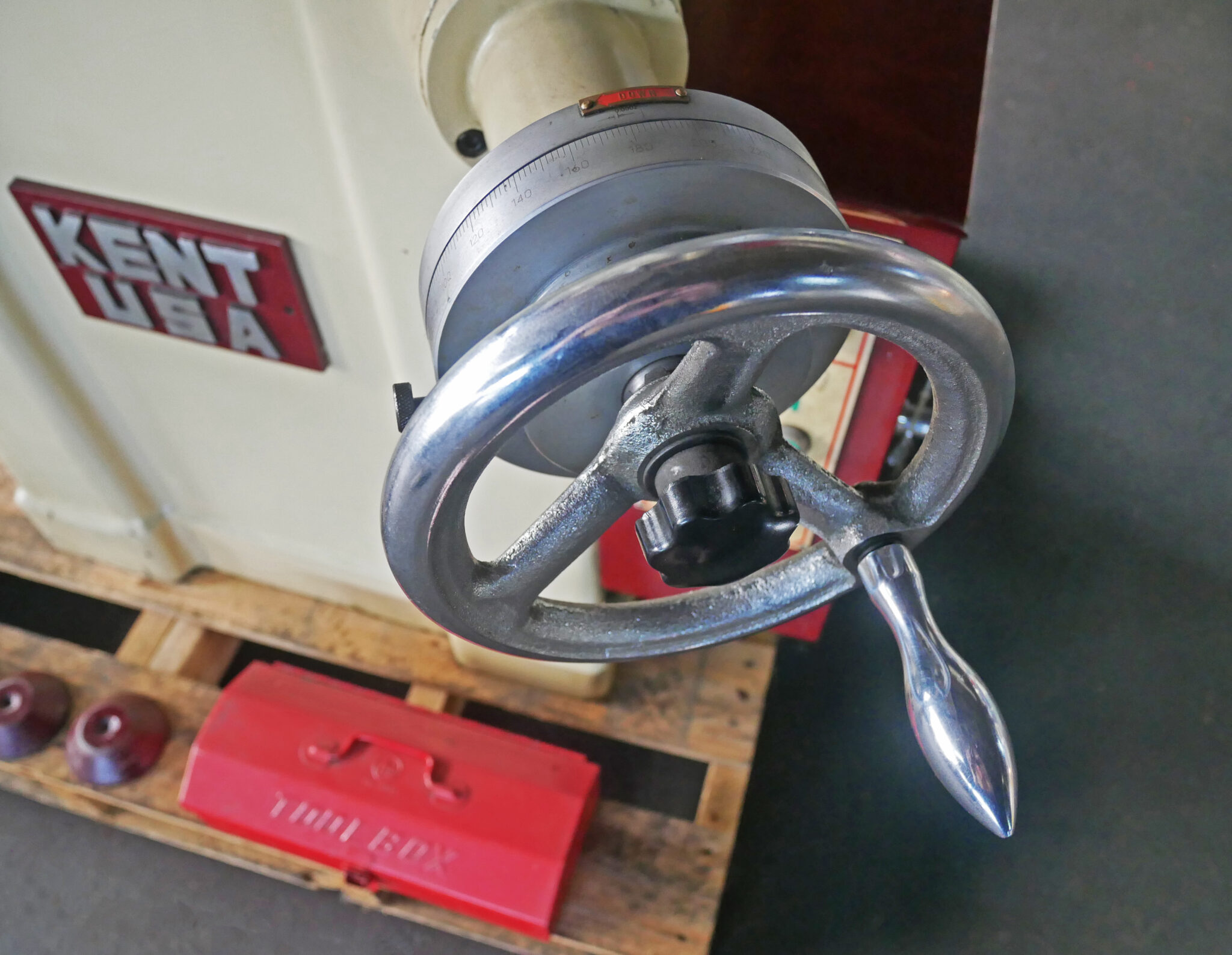

Large metal hand wheels on all axes for long-lasting dependability and easy operation

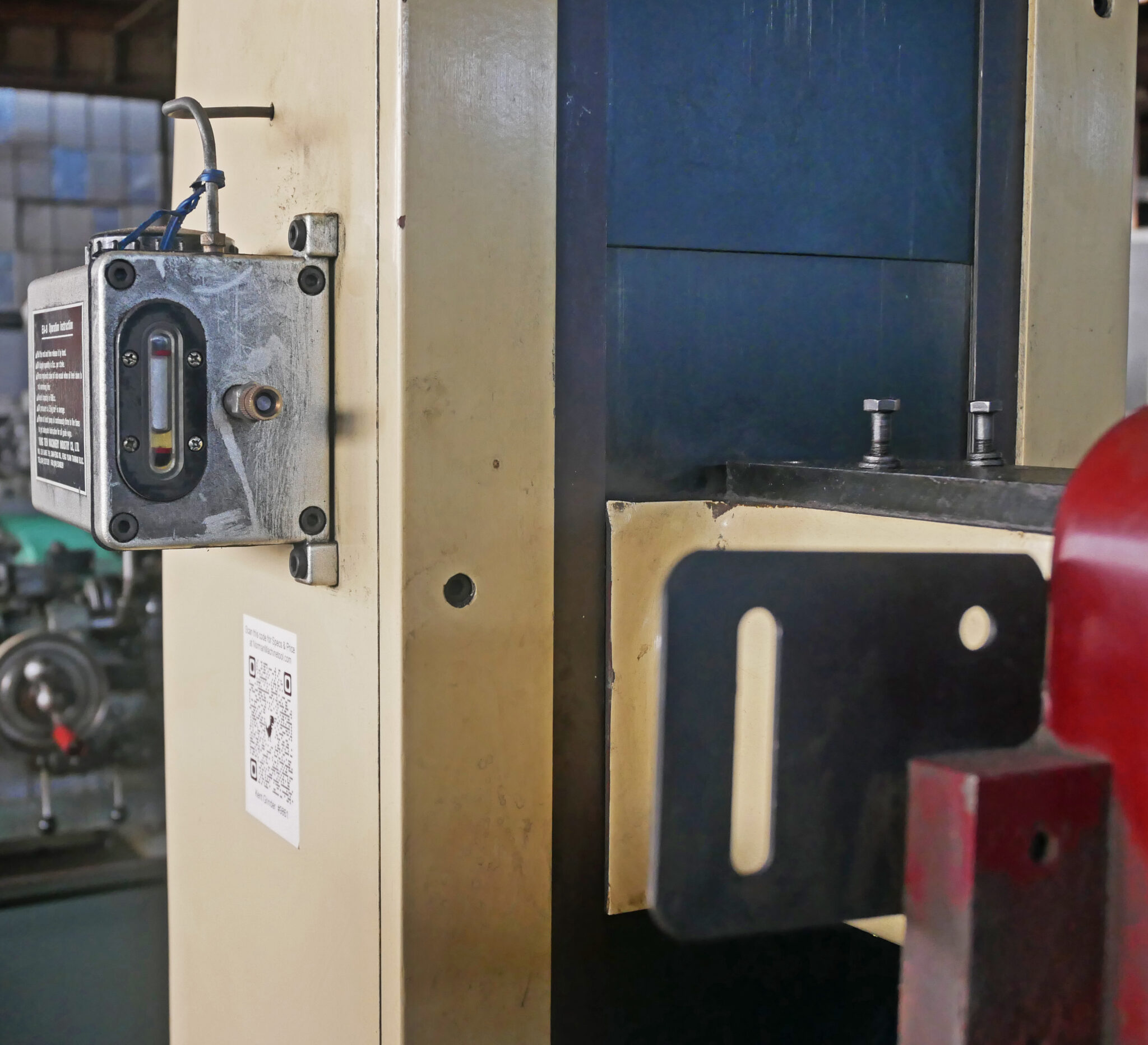

A centralized one-shot lubrication system provides lubrication to all points

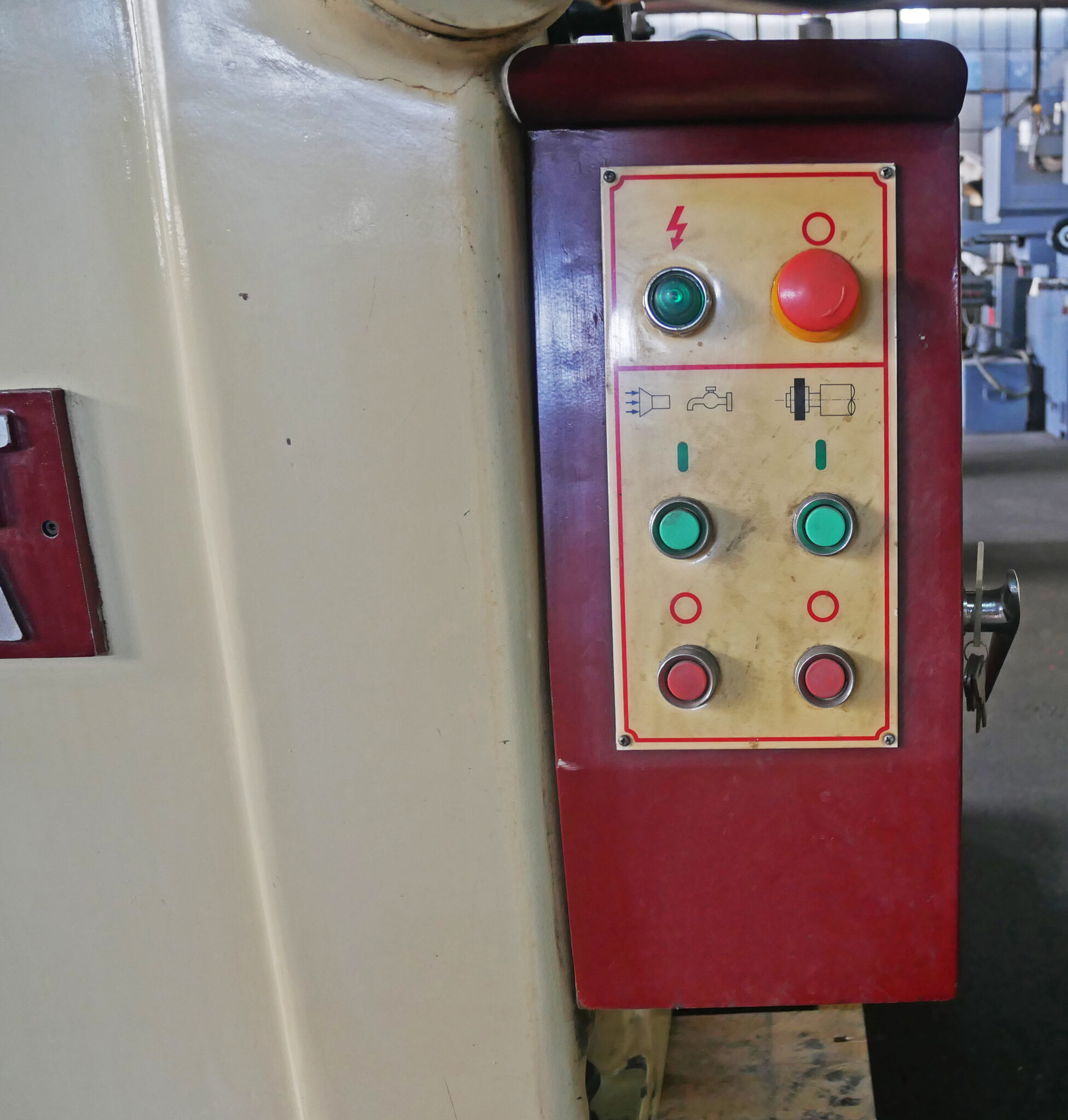

Safety 24V control circuit power
Equipment Included:

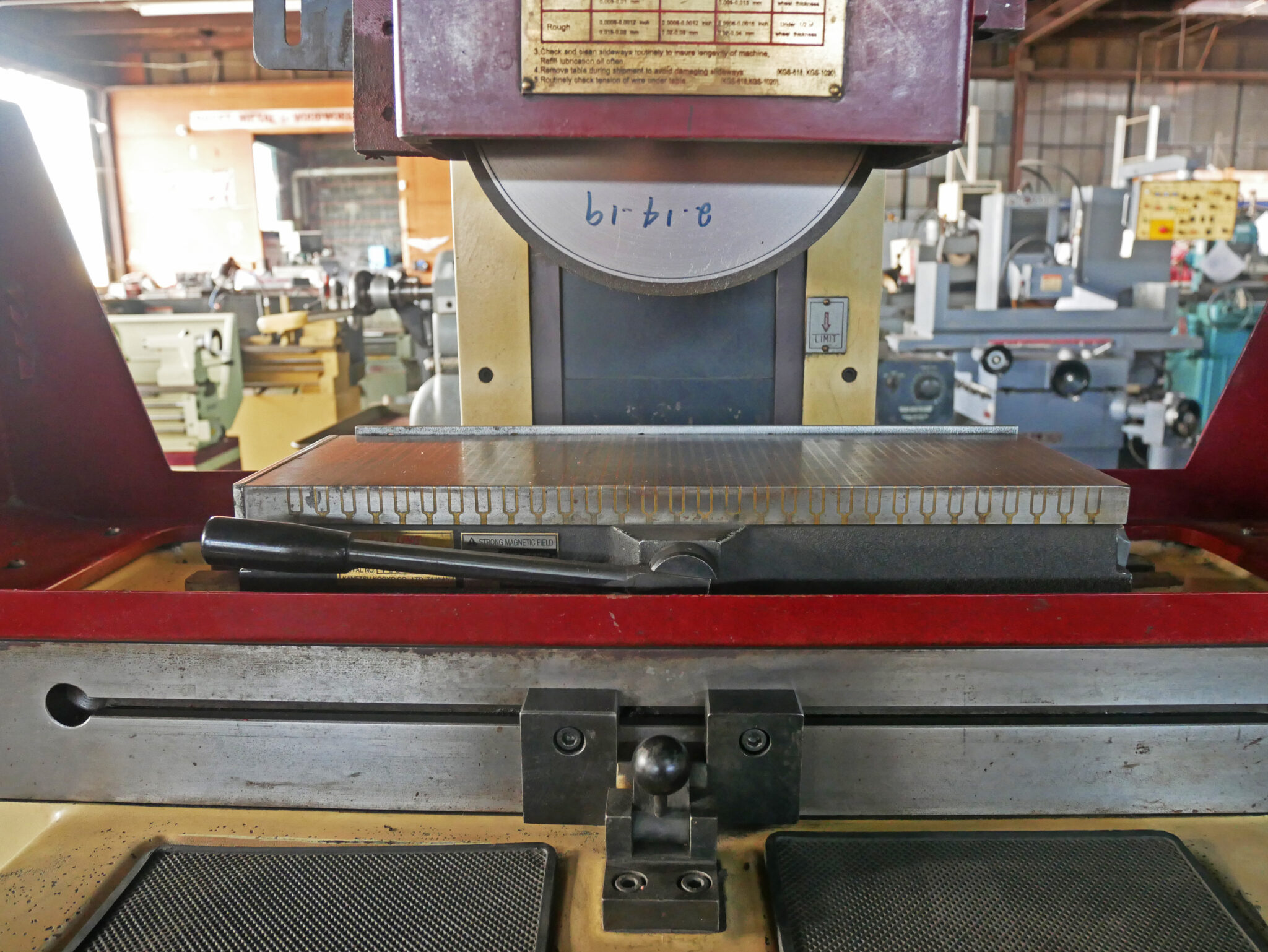

6″ x 18″ Permanent Magnetic Chuck
Splash Guards
One Shot Lube

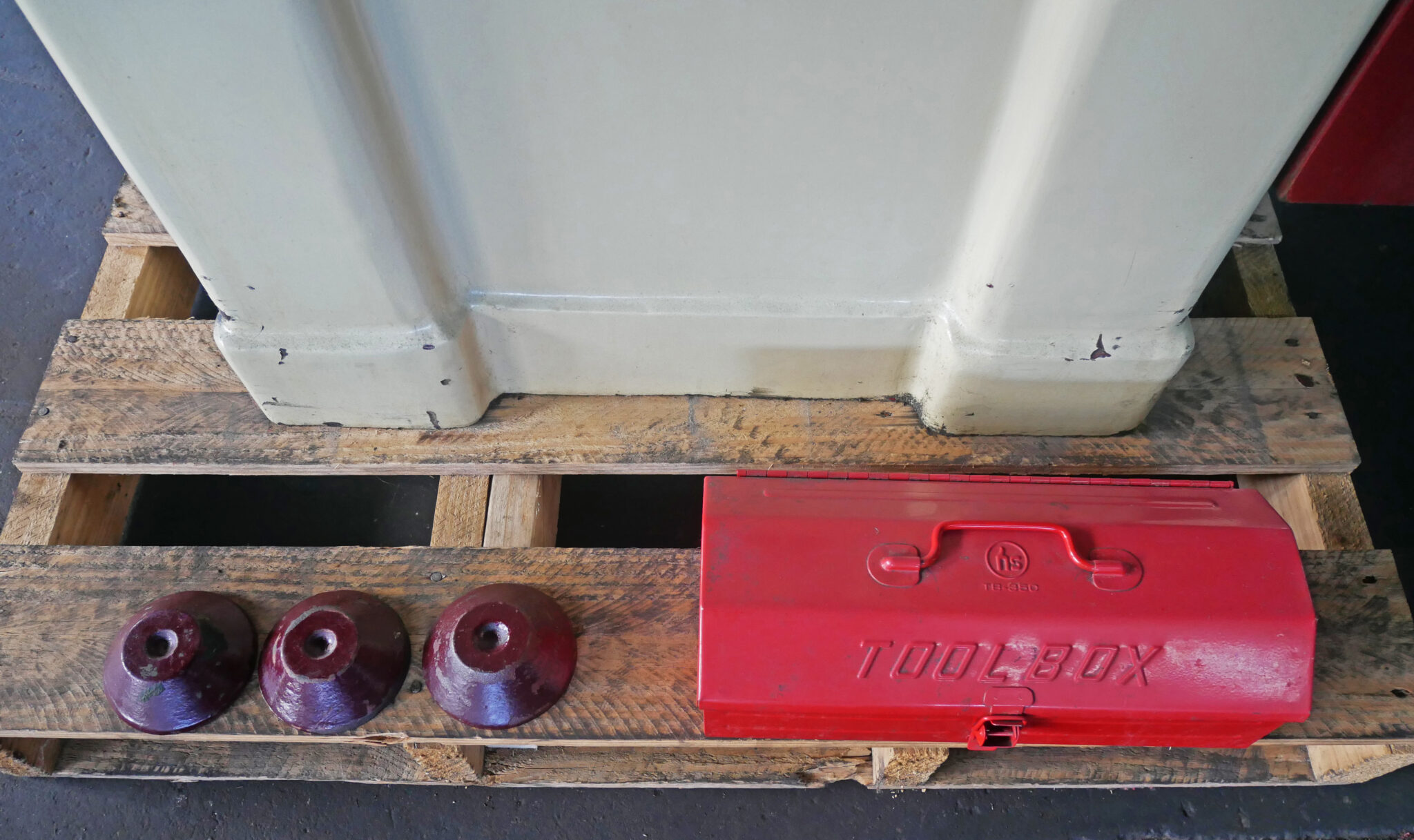

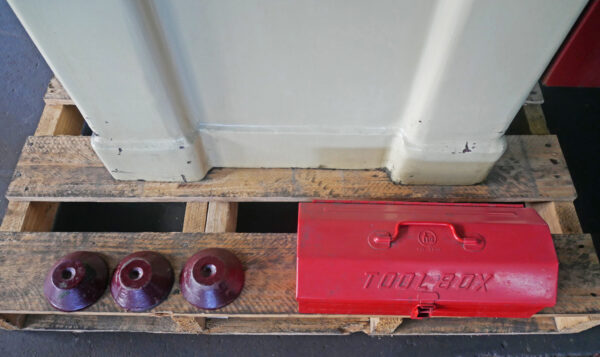

Toolbox
Mechanical Specifications:
Dimensions: 72″ x 60″ x 72″ H
Weight: approx. 2,750 lbs.
FOB Our Baltimore, MD Warehouse
