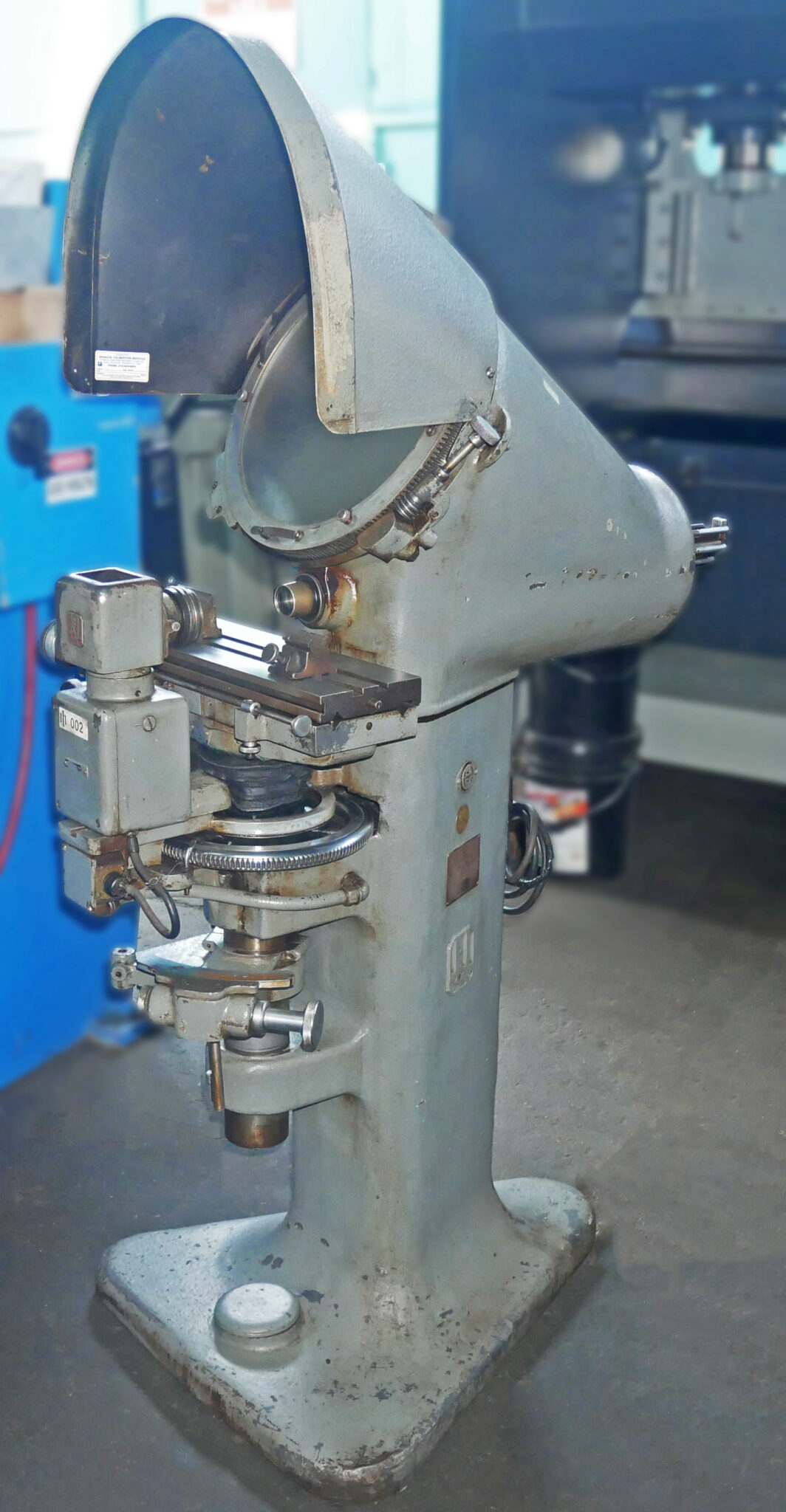

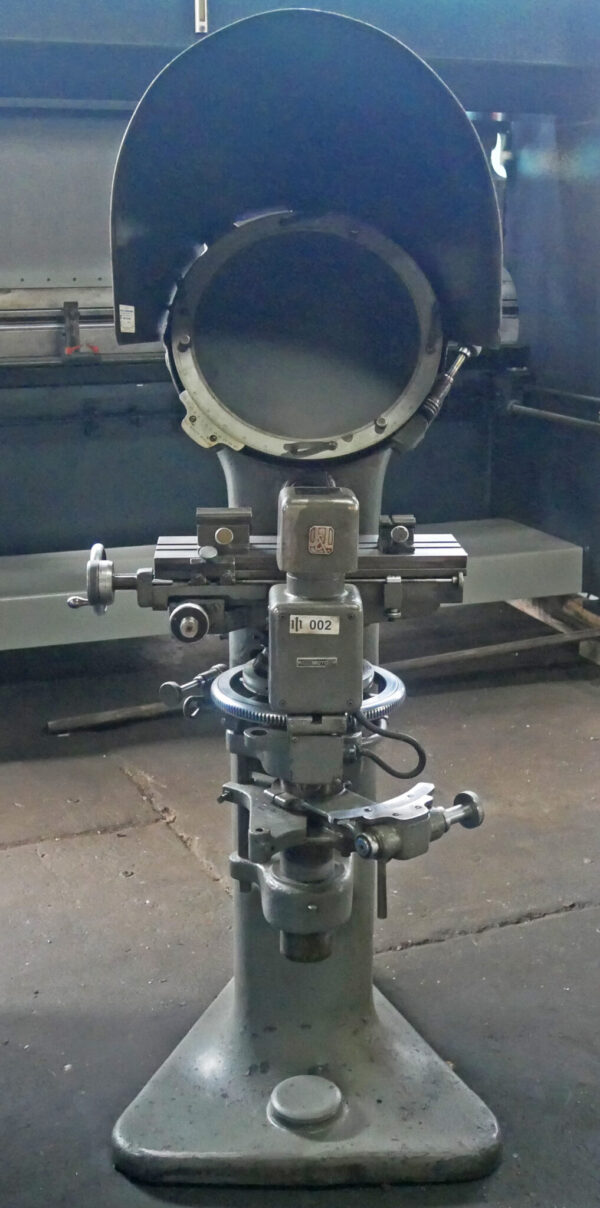

Jones & Lamson 14″ Optical Comparator & Measuring Machine, PC-14
Inventory # 9887-P
Model: PC-14
Specifications:

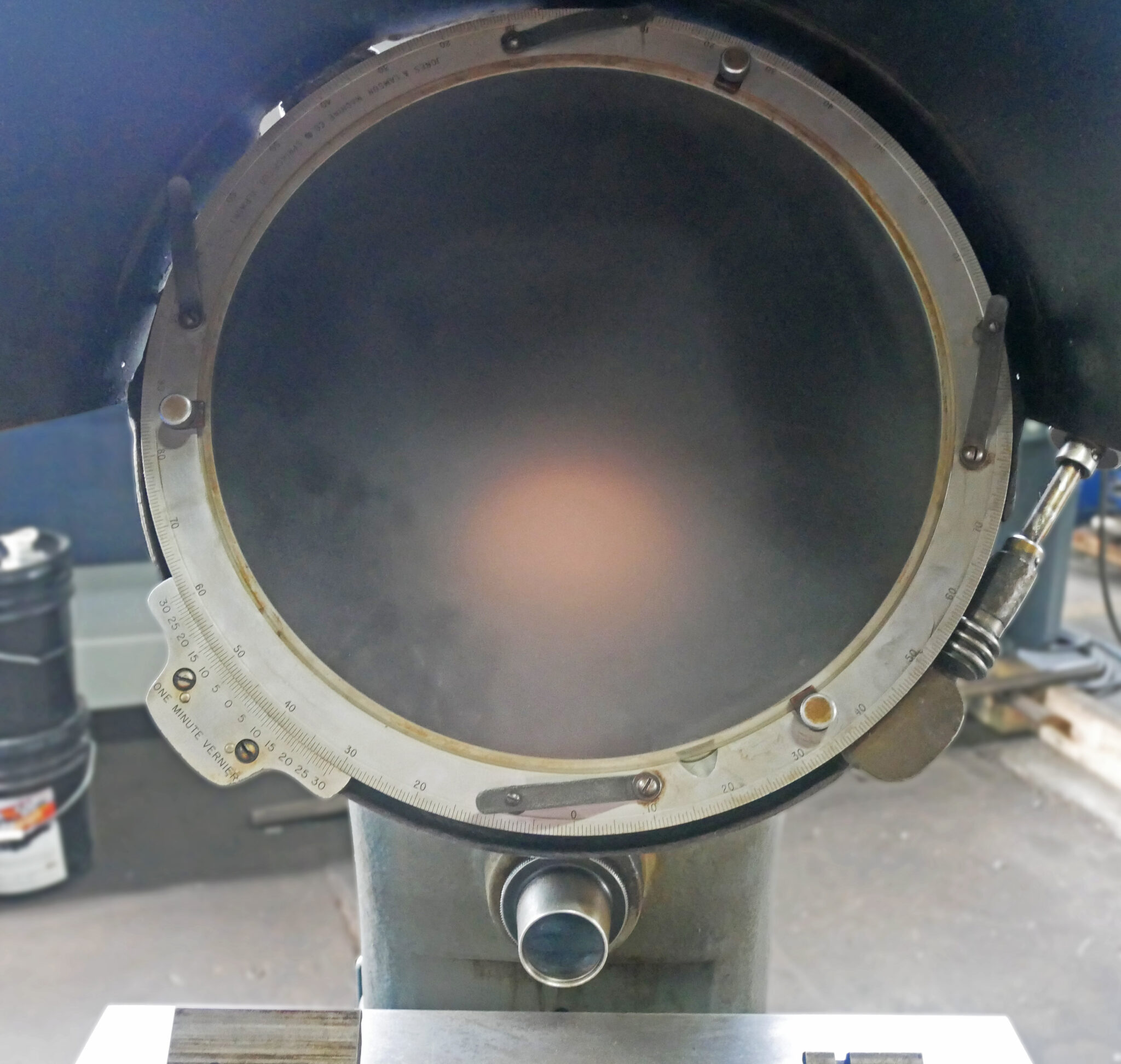

Screen Diameter: 14″
Measuring Range:
Lateral: 8″
Vertical: 4″

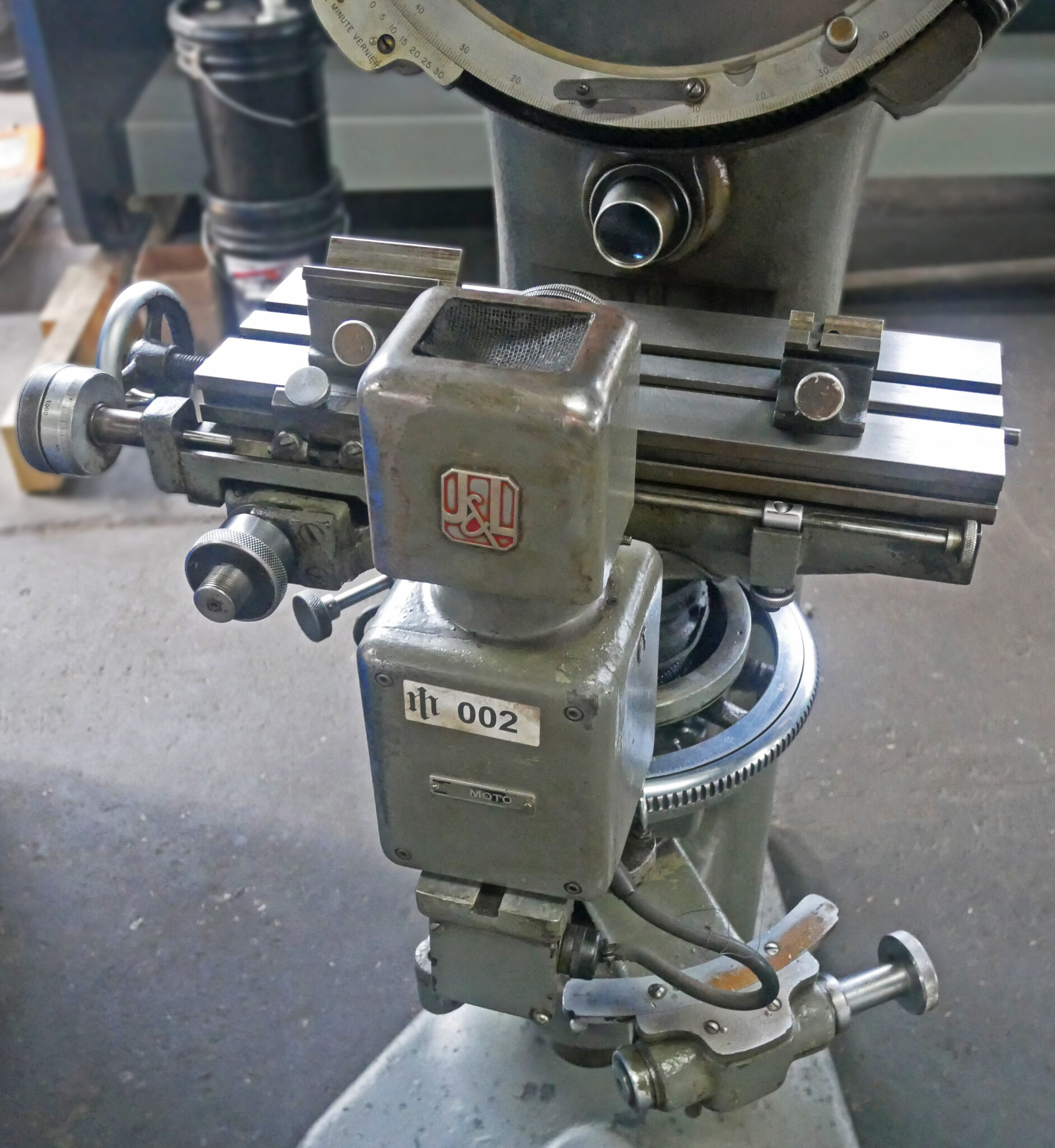

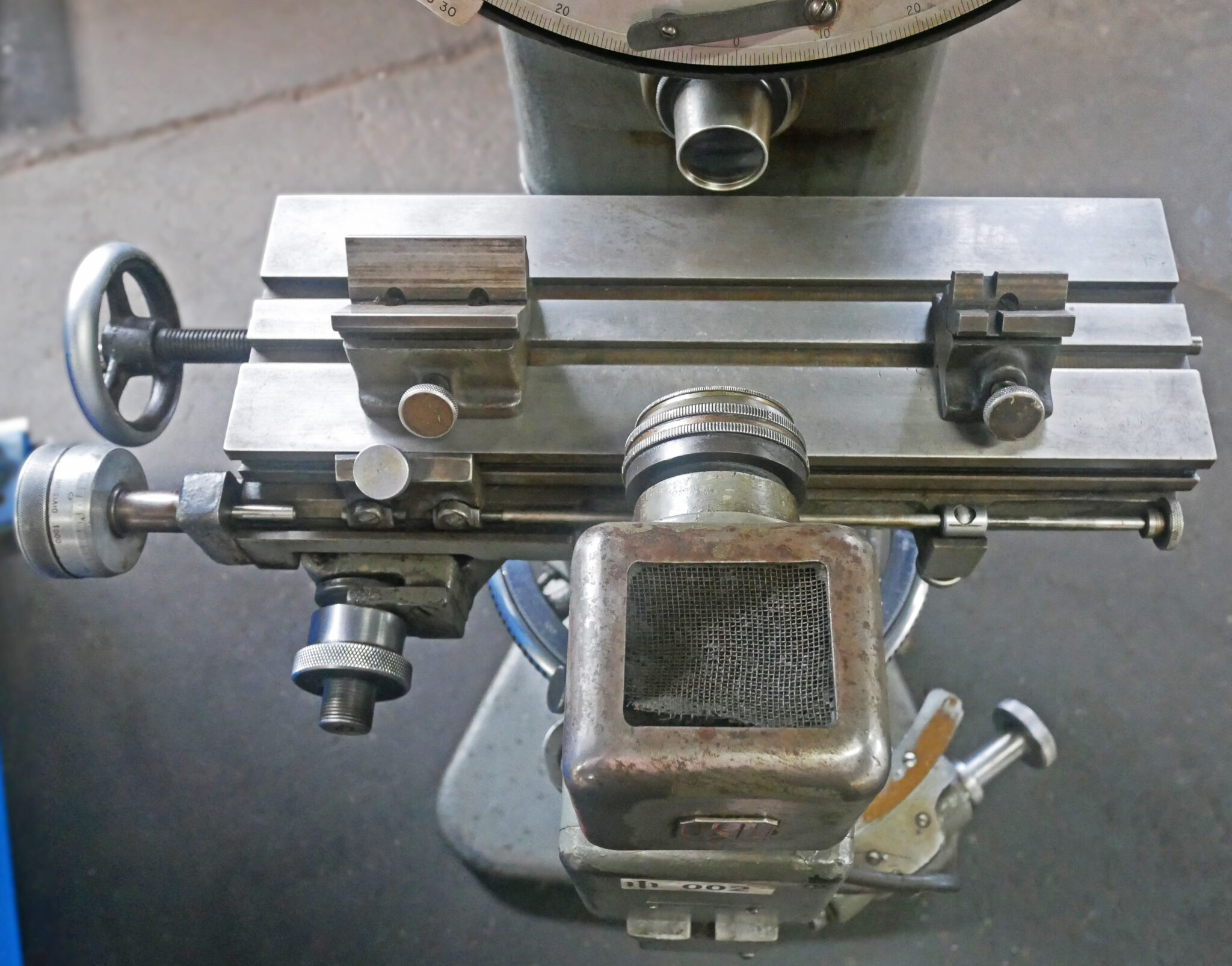

Table Size: 6″ x 18″, Two V-Slots
Longitudinal Travel by Hand: 4 1/8″
Cross Travel by Hand: 1 1/8″
Stage Angling: +/- 30°
Magnification Turret: Manual Driven
Positions: 6
Magnifications: 10, 20, 31.25, 50, 62.5, 100X
Screen Rotation: Hand Rotation, One-Minute Vernier Rotation
Motor: 115v / 1ph
Equipment Included:
Glare Hood
Mechanical Specifications:
Weight: approx. 750 lbs.
FOB Our Baltimore, MD Warehouse
