INDUSTRIAL MACHINE ATTACHMENT #74046  T-SLOTTED SLIDE-BLOCK-BASE

INVENTORY # 5258

MODEL: 74046

DESCRIPTION:

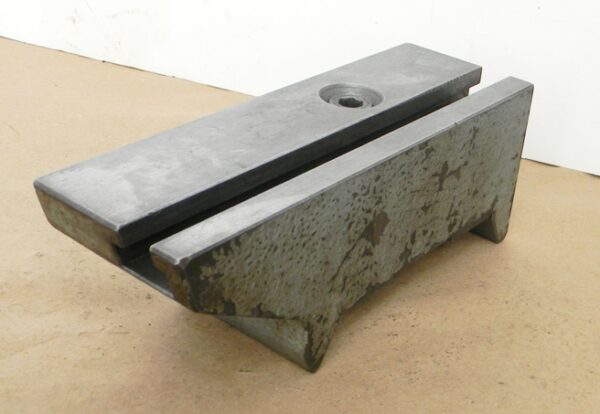

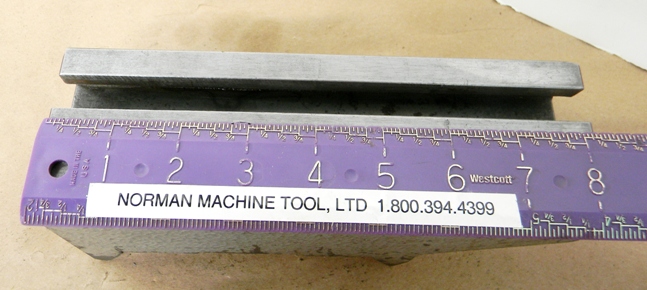

WE ARE NOT SURE WHAT MACHINE THIS T-SLOT BASE GOES TO. TAKE A LOOK AT THE PHOTOS AND MEASUREMENTS TO SEE IF THIS IS WHAT YOU NEED FOR YOU MACHINE.

SPECIFICATIONS:

DIMENSIONS (APPROXIMATE):

BASE:

TOP: 8 1/4″ x 2 3/4″

BOTTOM:

O.D.: 5 1/2″ x 2 1/2″

I.D.: 4 1/2″ x 2 1/2″

T-SLOT:

TOP: 8 1/4″ L x 5/8″ W

BOTTOM: 8 1/4″ L x 1″ W

FROM BOTTOM OF T-SLOT TO TOP OF T-SLOT: 3/4″

BOLT HOLE:

CENTER TO CENTER: 2 7/8″ FROM FLAT END and 7/8″ FROM OUTSIDE

MECHANICAL SPECIFICATIONS:

OVERALL DIMENSIONS: 8 1/4″ L x 2 3/4″ W x 3″ H

WEIGHT: 11 1/2 LBS

PRICE:  $ 495.00

FOB OUR BALTIMORE, MD WAREHOUSE
