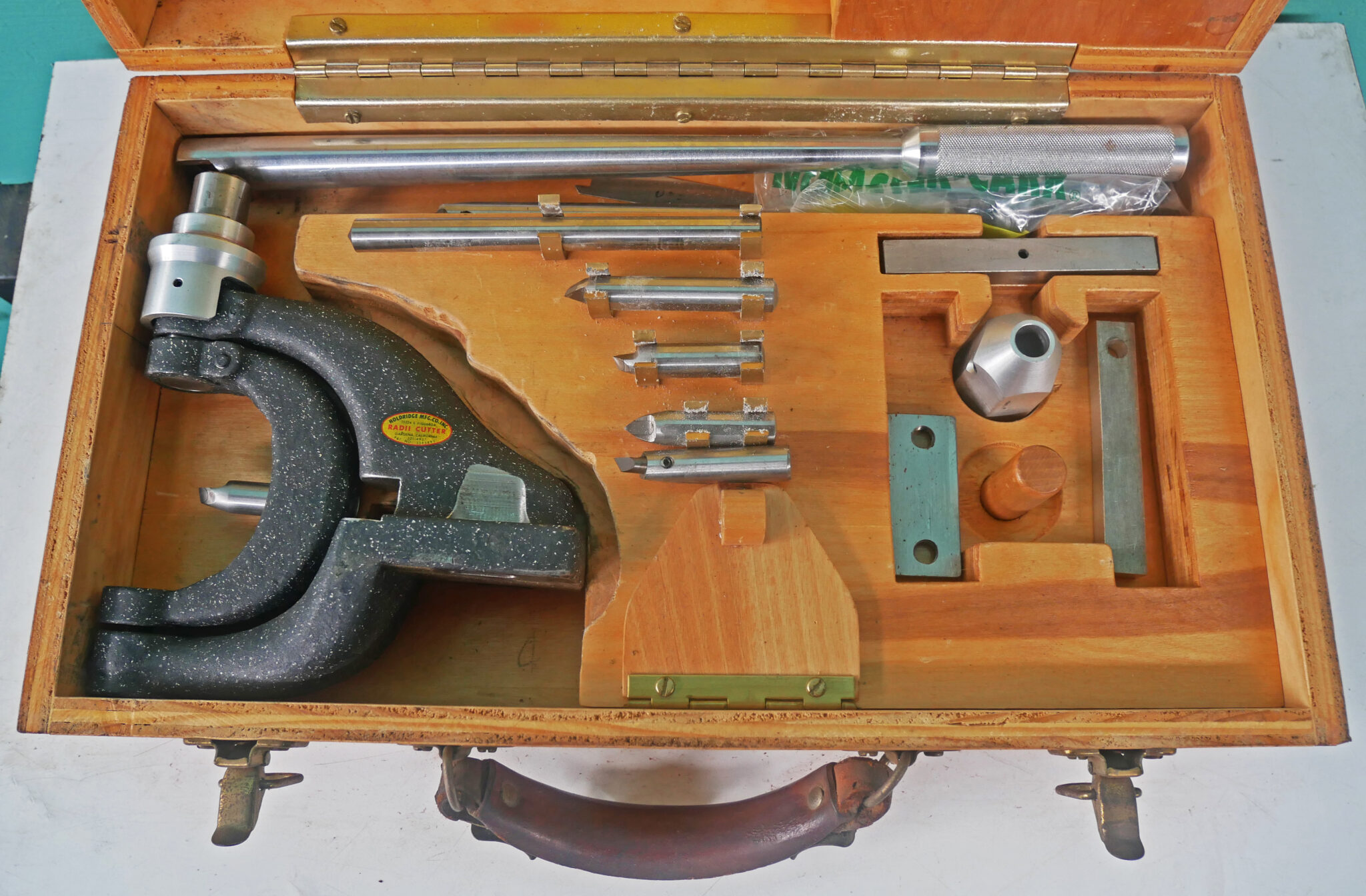

Holdridge 0 – 3″ Standard Concave & Convex Radii Cutter, Model 3-S
Inventory # 9897

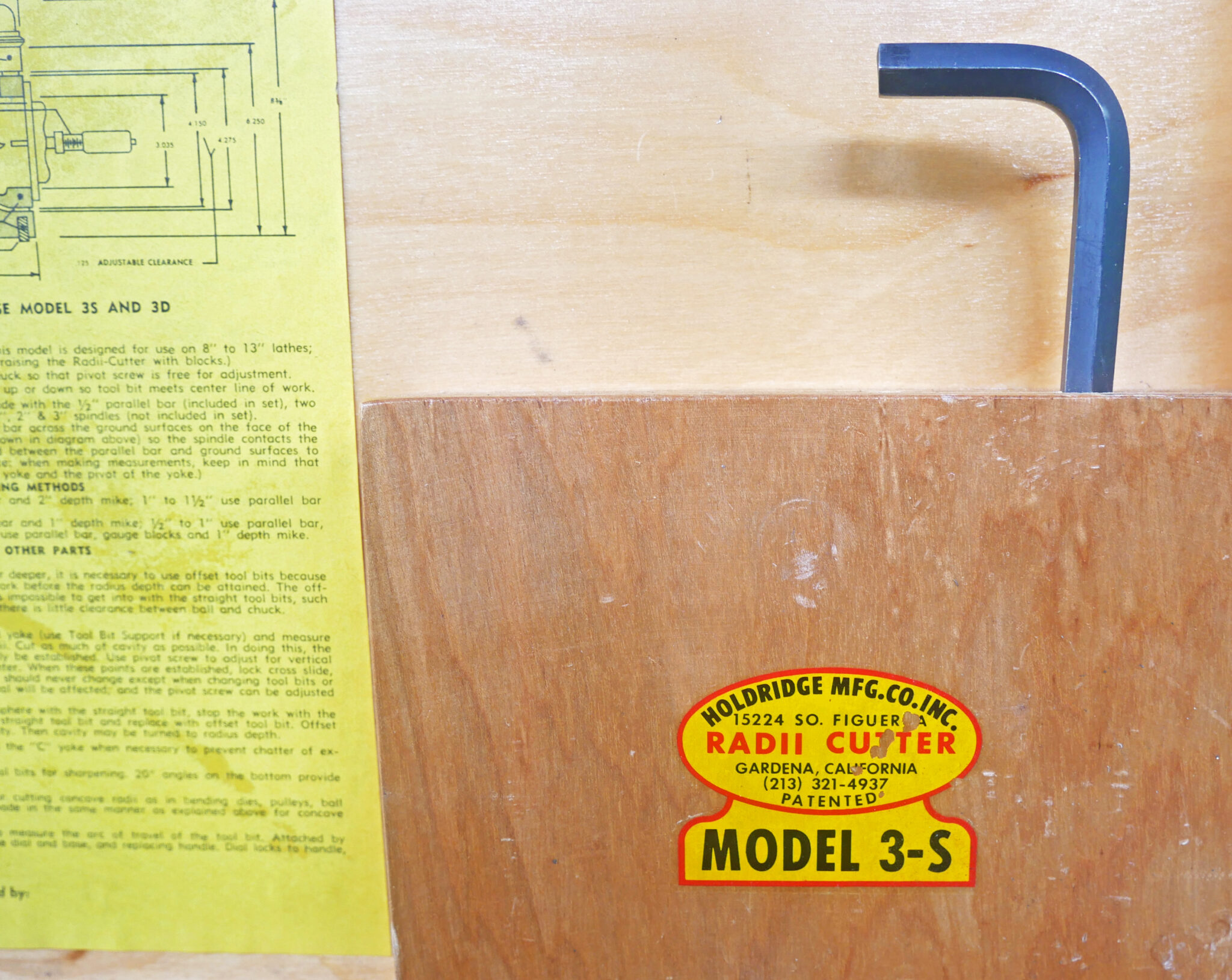

Model: 3-S
Description:
The small model Radii-Cutter is specifically designed for all small lathes, will cut from 0 – 3″ diameter convex ball shapes and from 0 – 3″ concave sockets to radius depth. By reversing the yoke, sockets up to 8″ may be formed; however, radius depth will be minus 17/32″ to allow for the “boss line” of the tool
The compound height from the base of the tool to the center line is 1″. The tool may be shimmed to fit various model lathes and turret lathes
Specifications:
Convex & Concave Diameter: 0 – 3″
Overall Weight: approx. 20 lbs.

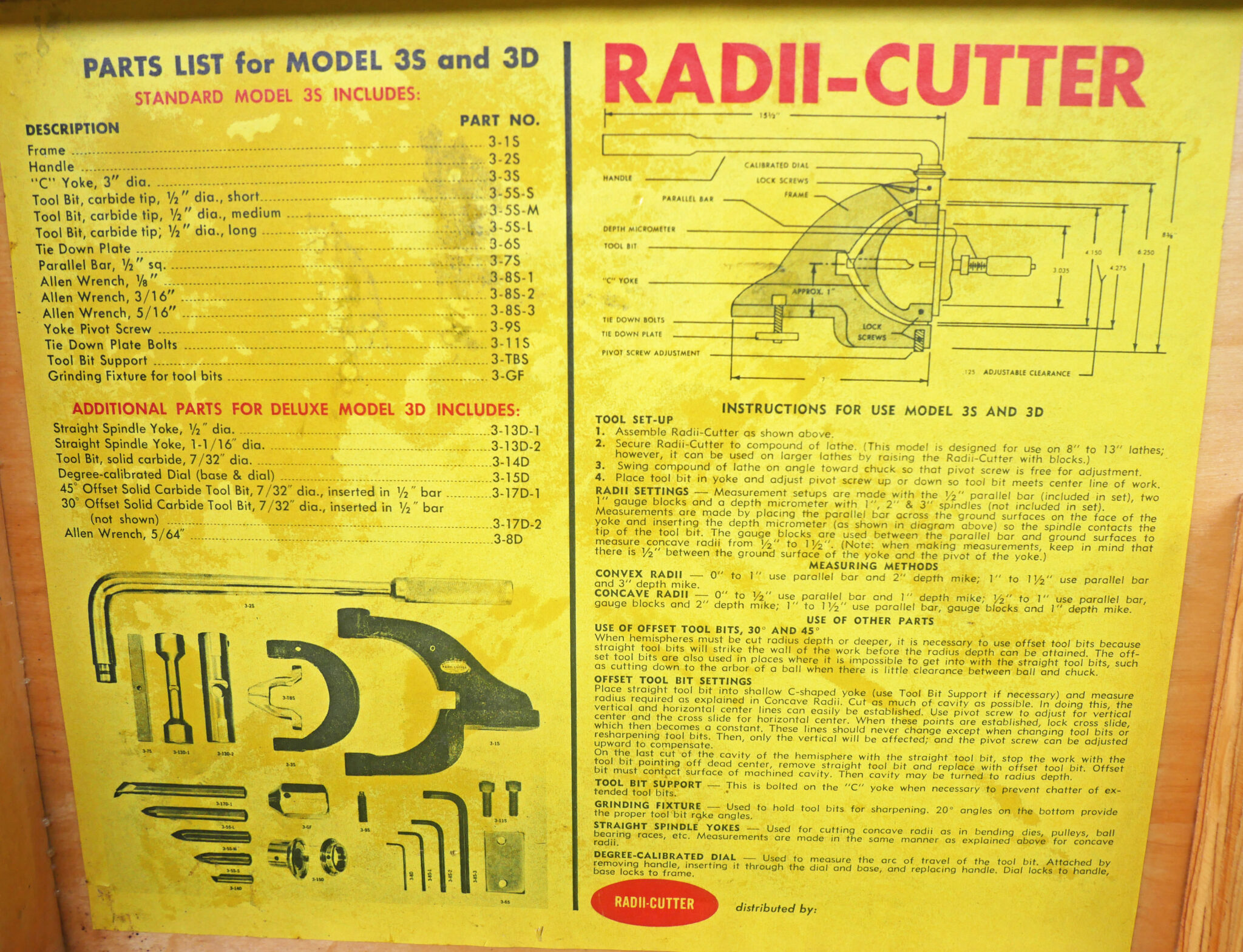

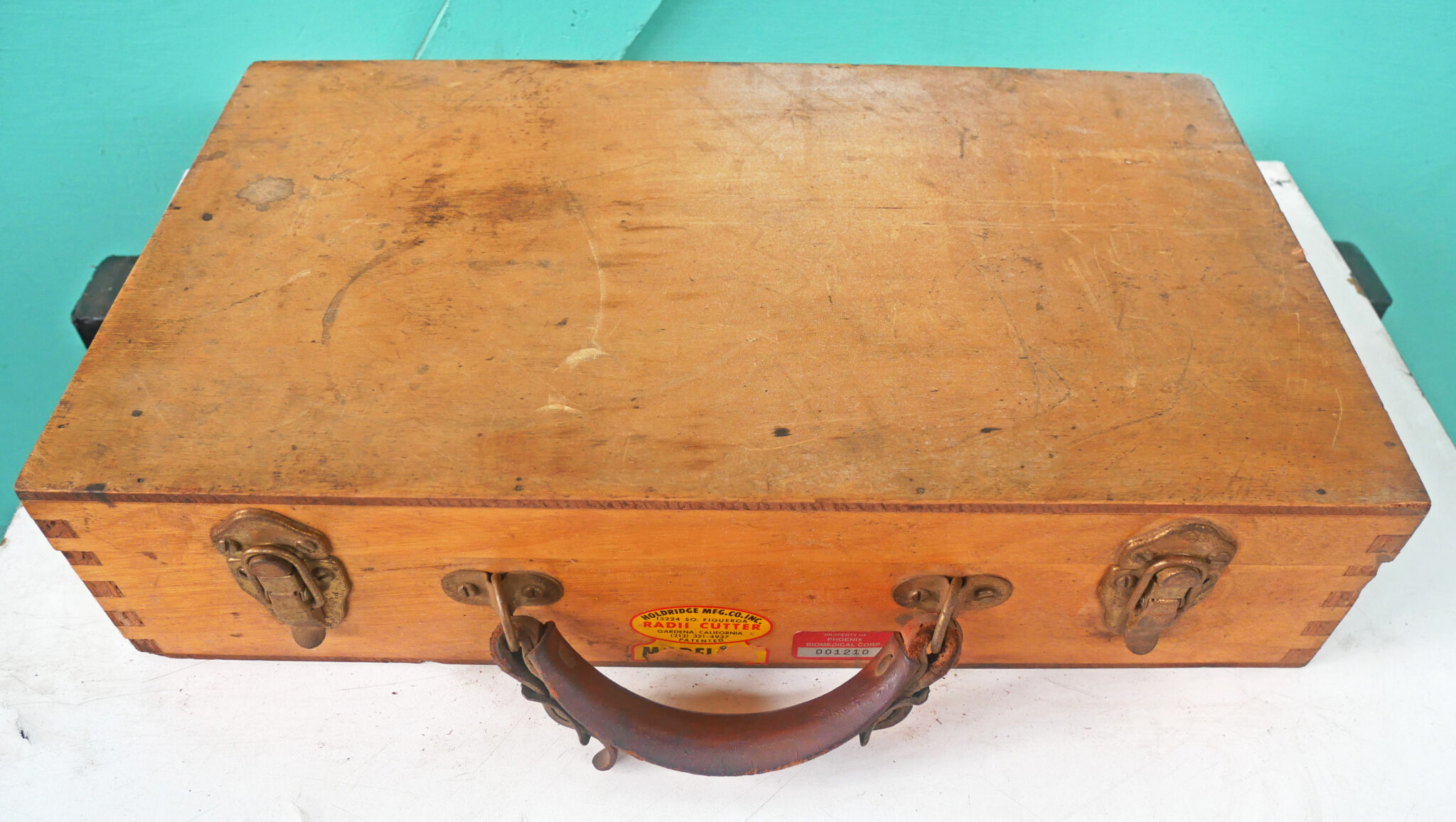

Complete Instructions on the Inside Lid of the Carrying Case
FOB Our Baltimore, MD Warehouse
