Description

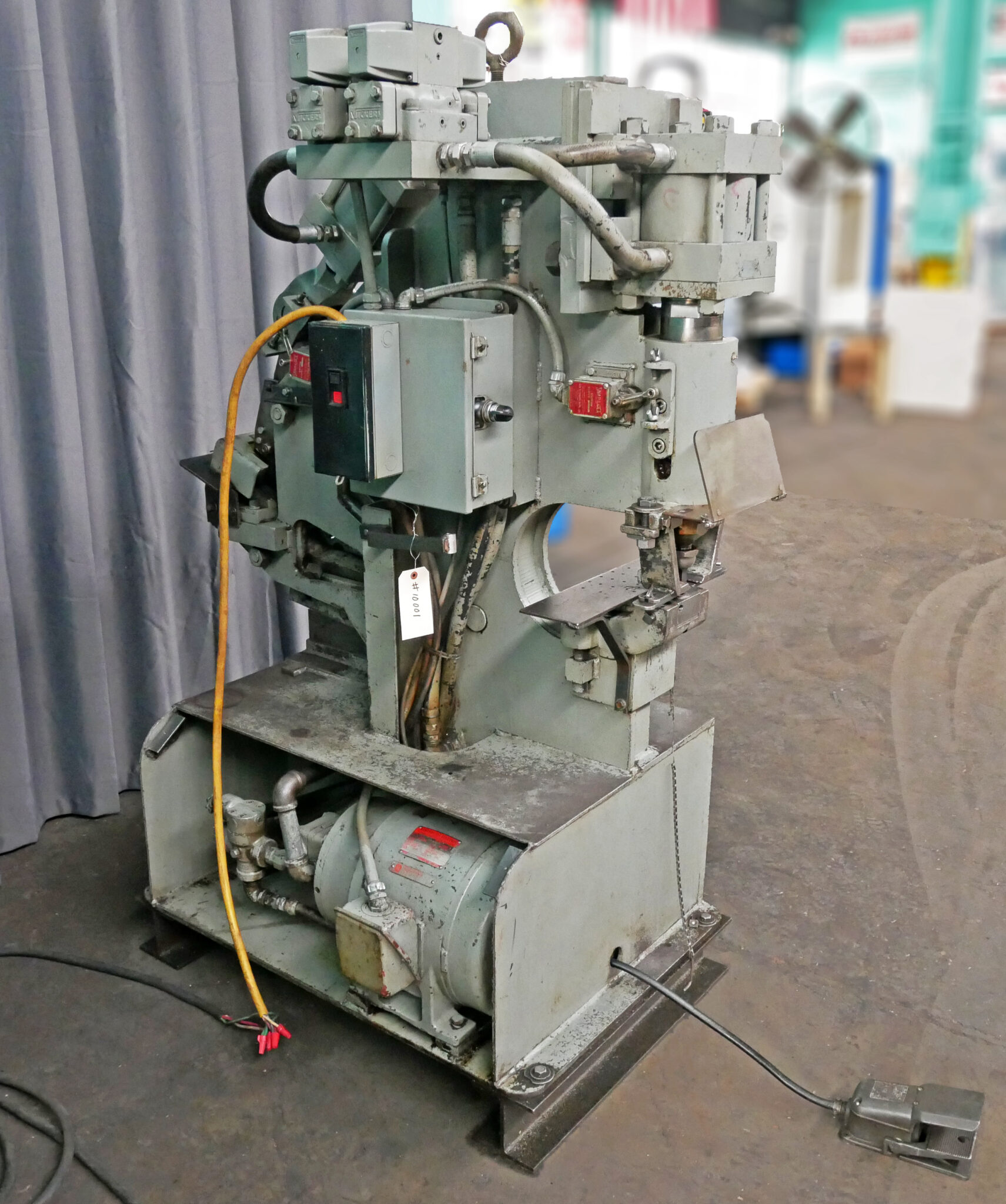

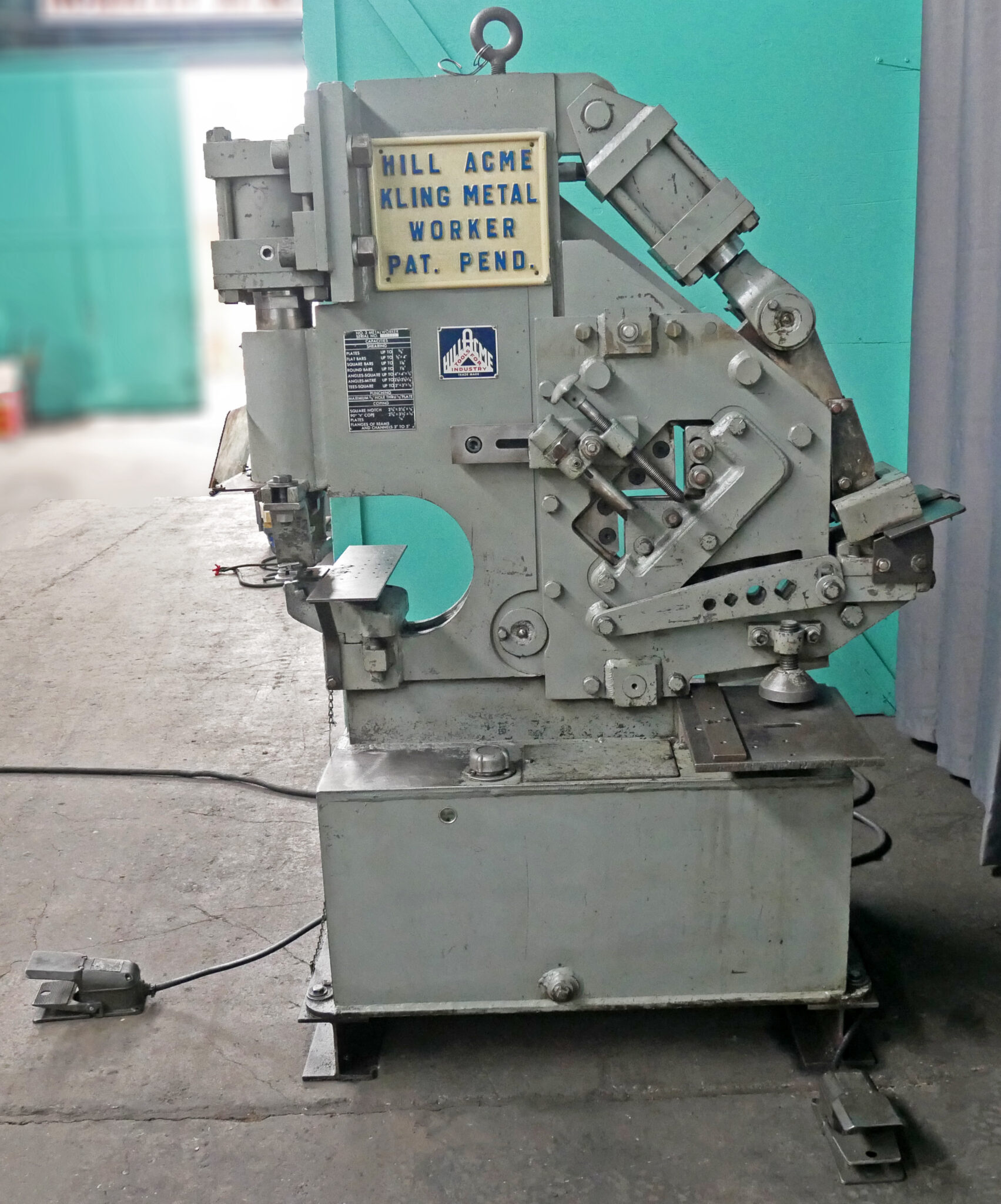

Hill Acme 33 Ton Ironworker, No. 3
Inventory # 10001
Model: No. 3
S/N: 476053
Specifications:

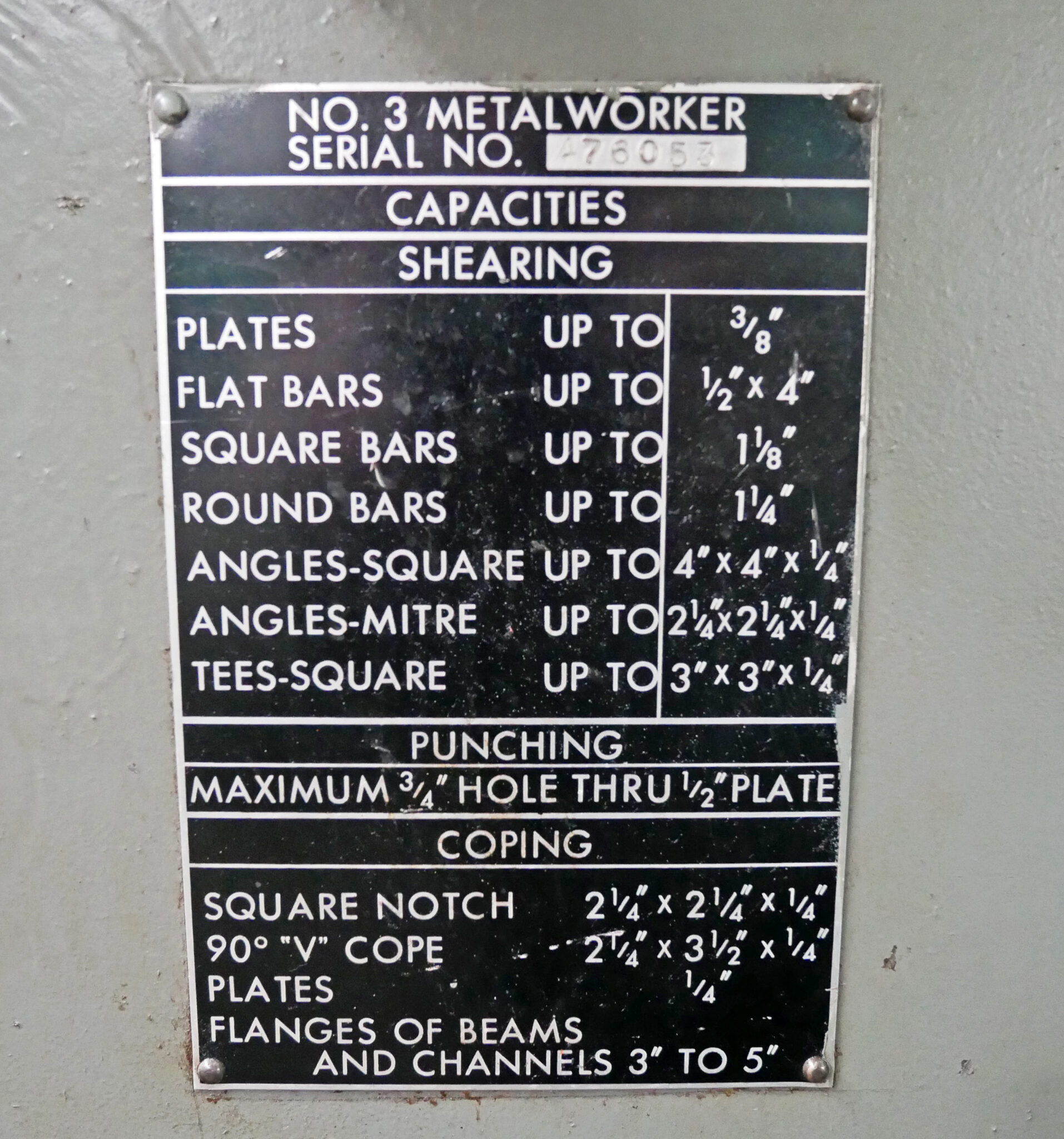

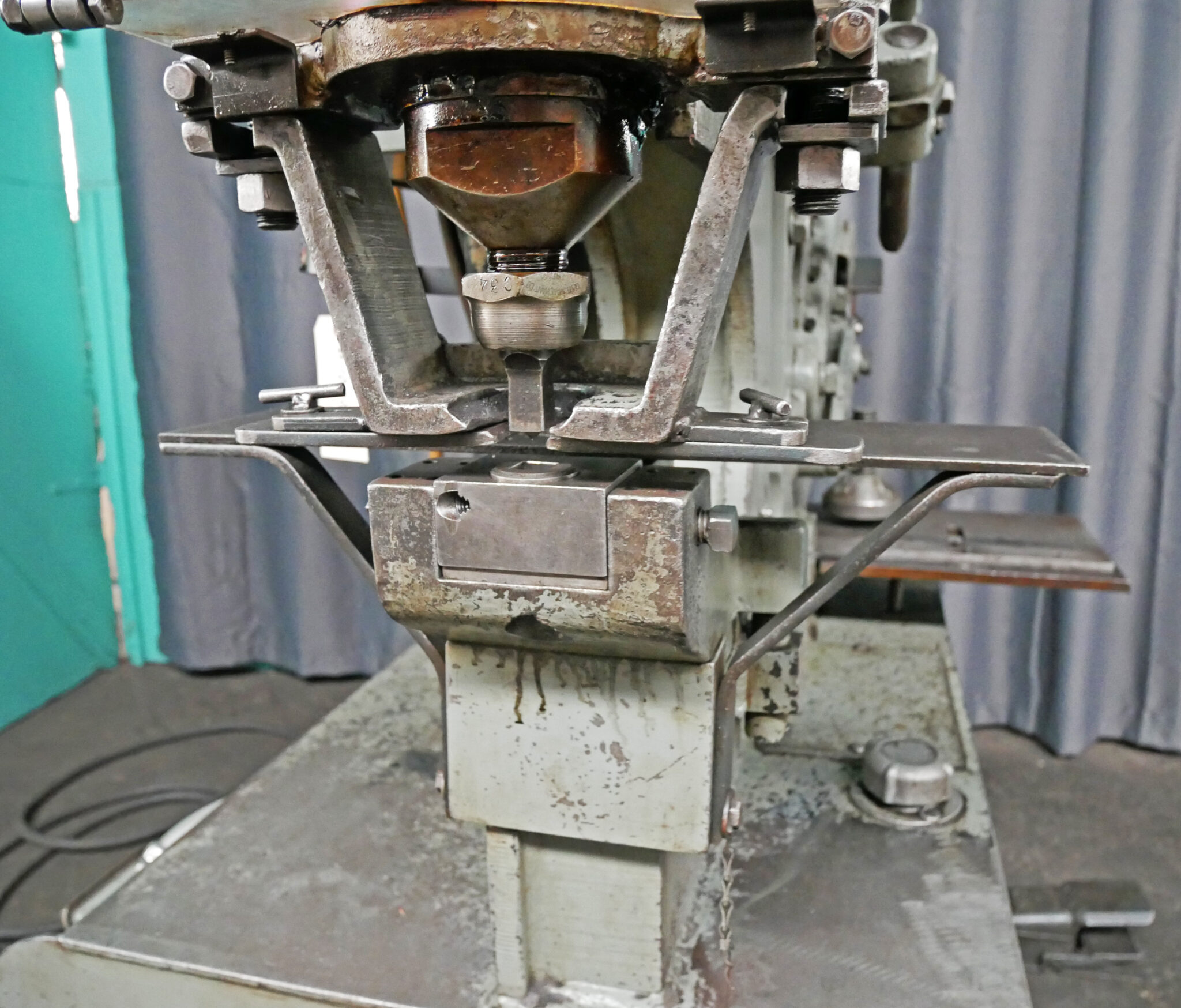

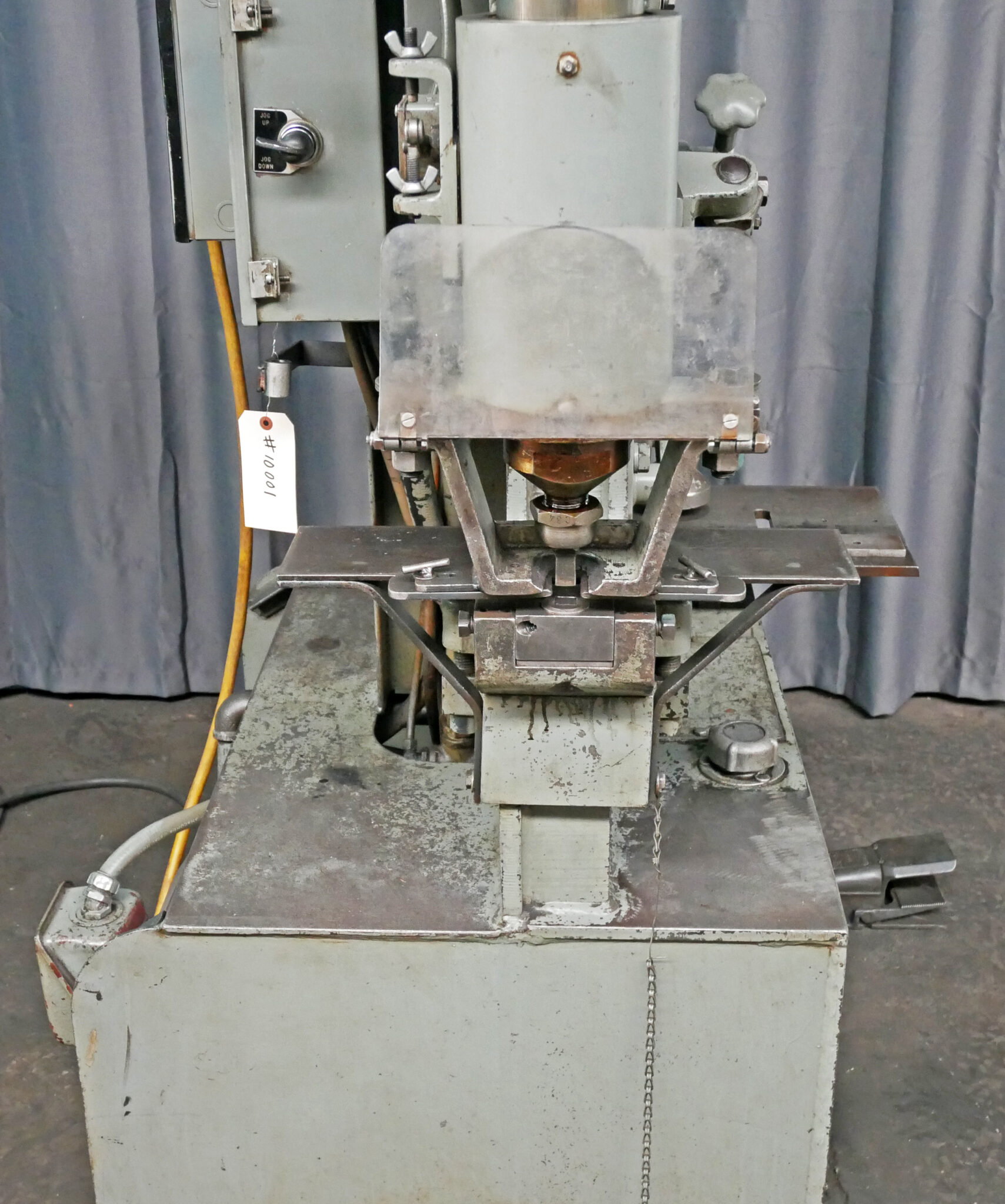

Punching Capacity:
Tons: 33
Max. Diameter Thru Thickness: 1 1/16″ thru 3/8″ tk
Diameter Thru Max. Thickness: 13/16″ thru 1/2″ tk
Depth of Throat: 12 1/2″
Length of Stroke: 1″ Max.

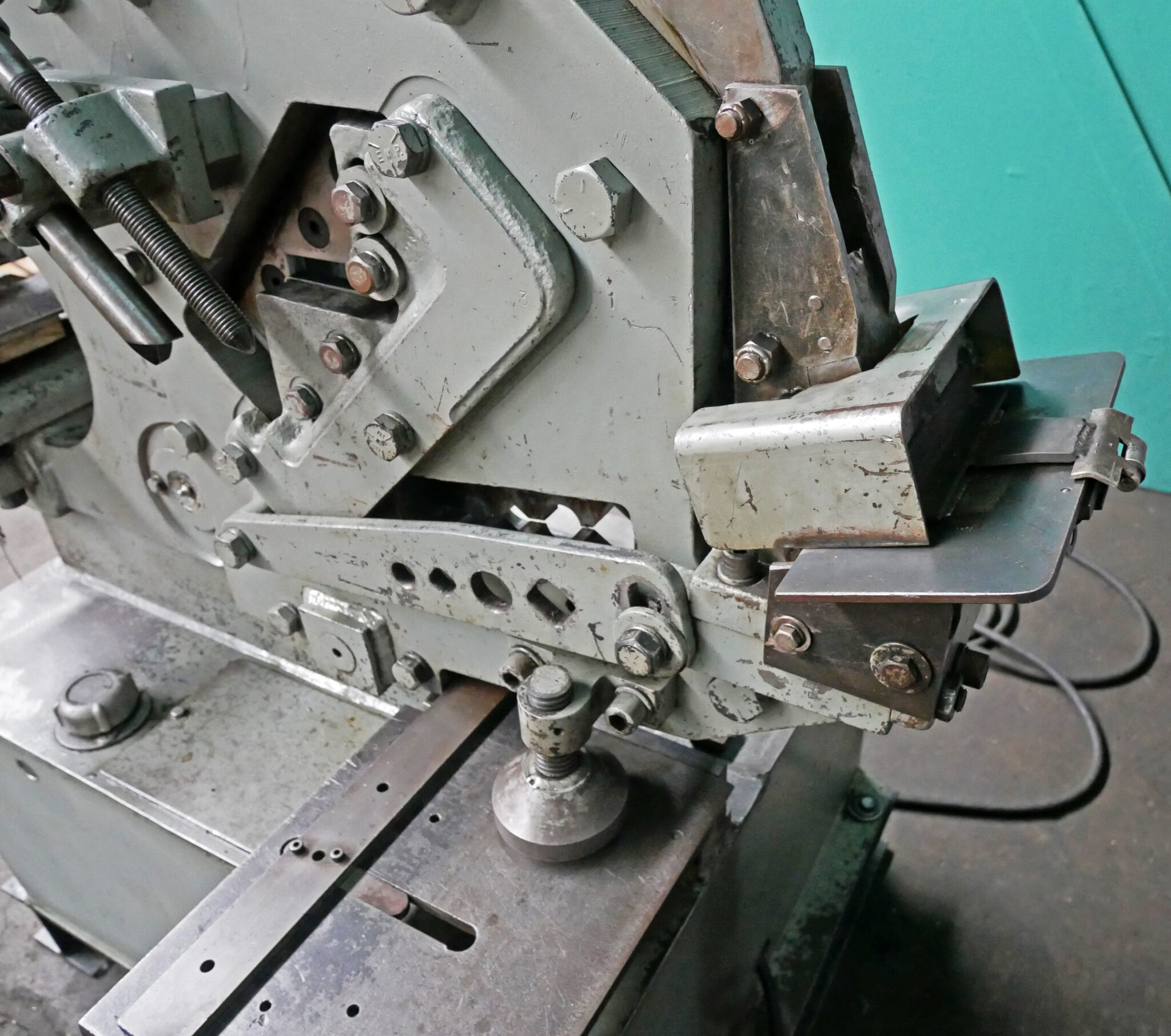

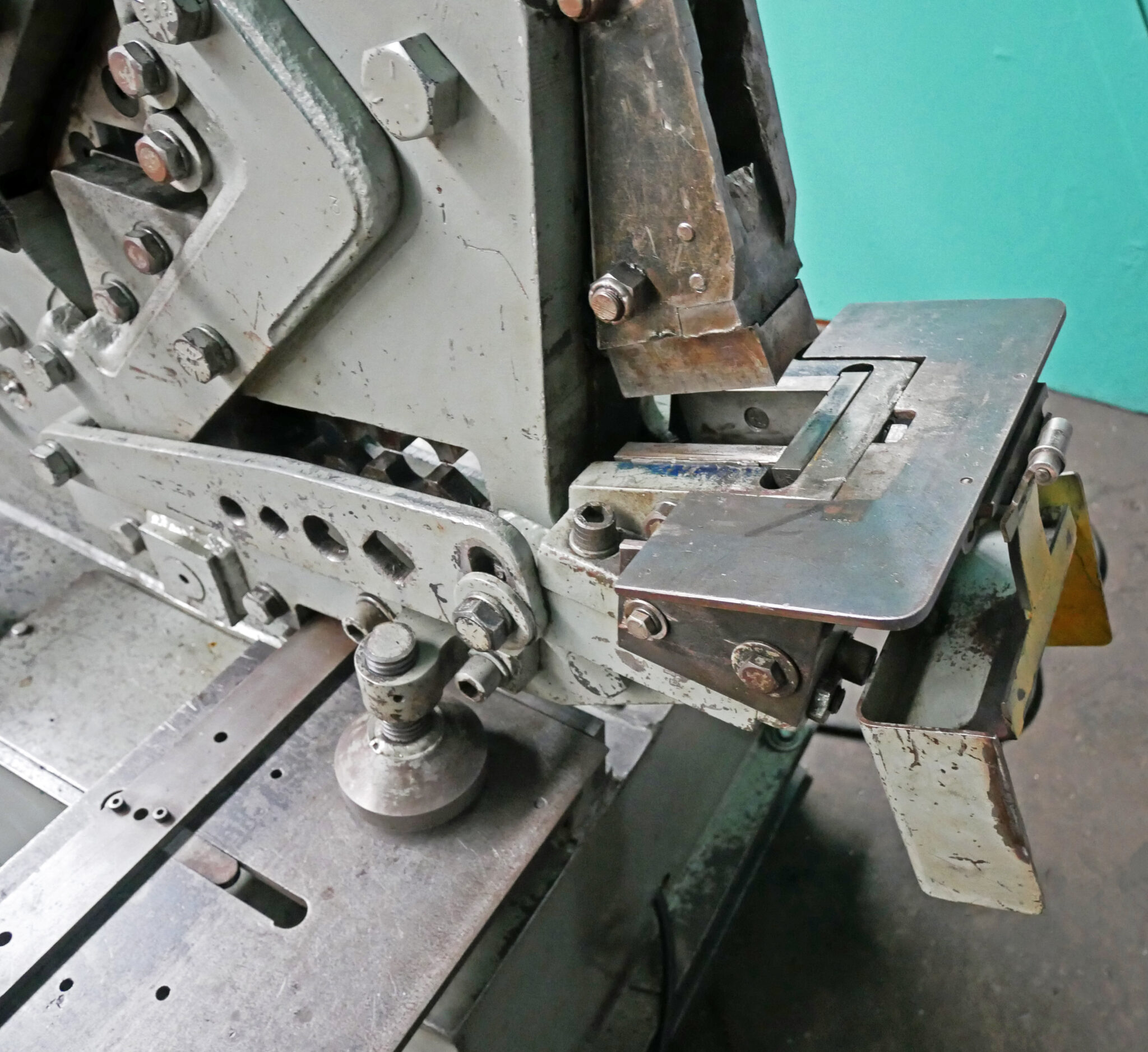

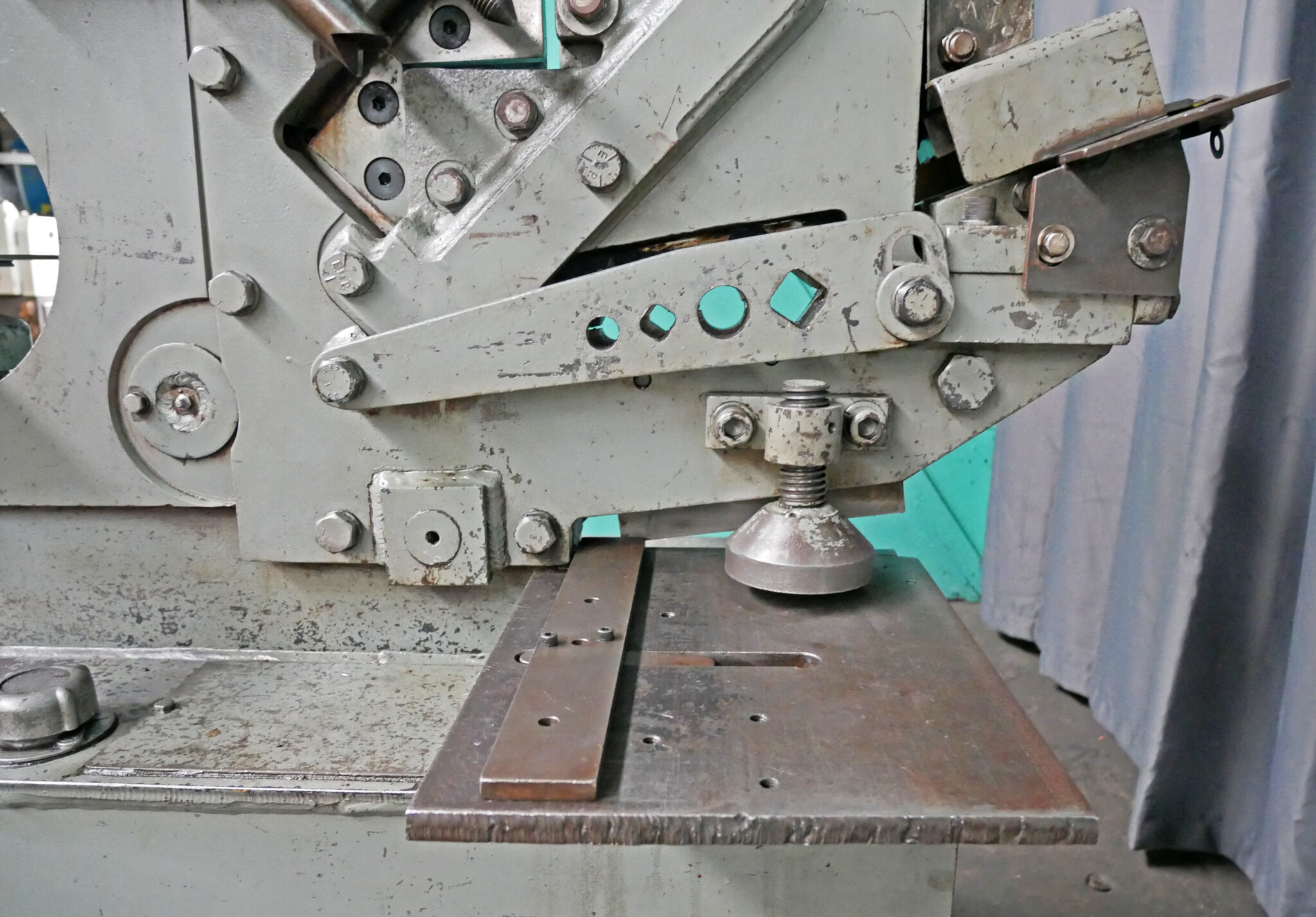

Shearing Capacity:
Flats/Max. Thickness and Width: 1/2″ x 6″, 3/8″ x 6/12″, 1/4″ x 8″
Blade Length: 9″
Rounds: 1 1/4″
Squares: 1 1/8″

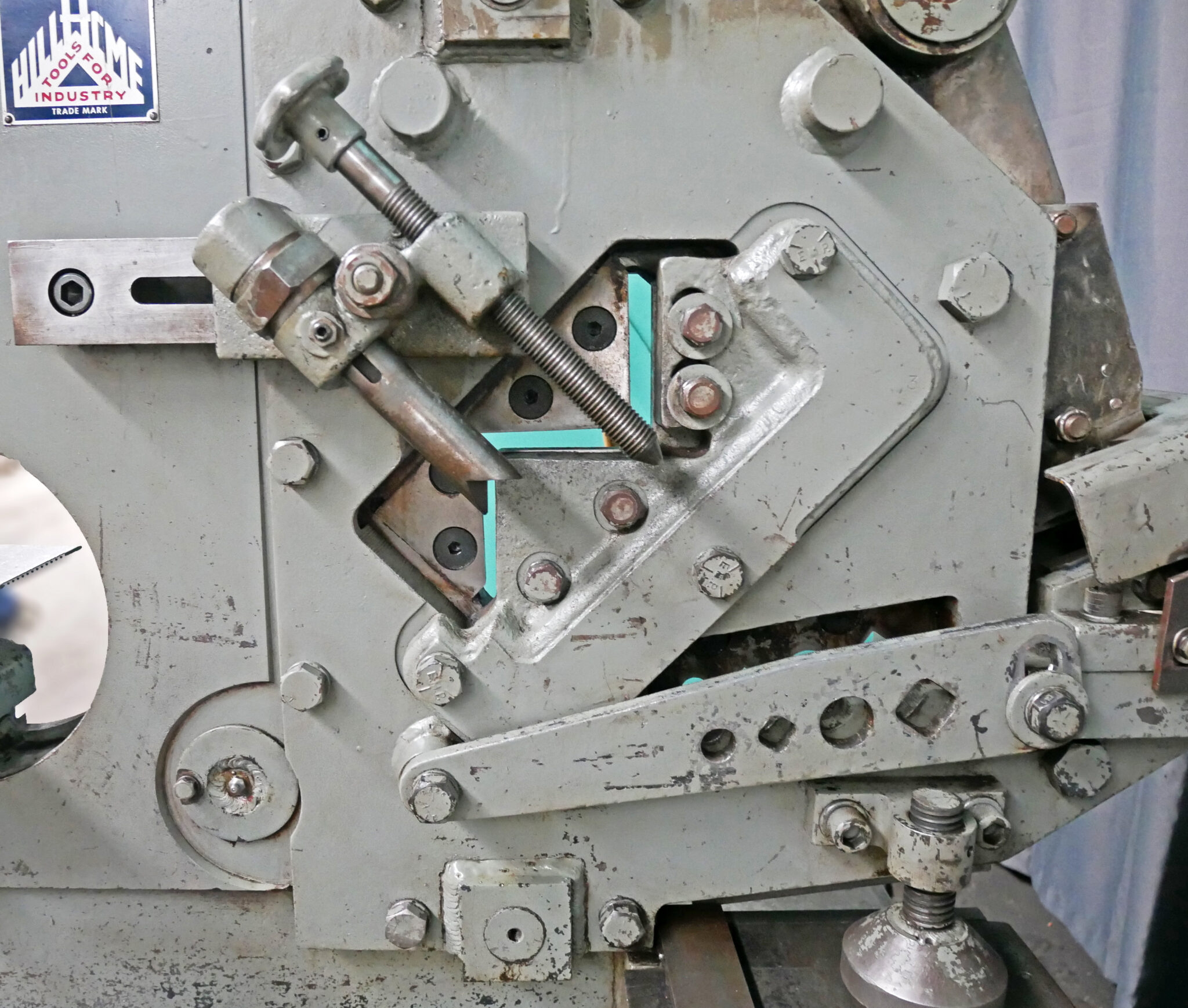

Angles: 4″ x 4″ x 1/4″
Angles with Special Blades: 5″ x 3″ x 1/4″
Angles – 45° Miter: 2 1/4″ x 2 1/4″ x 1/4″
Tees: 3″ x 3″ x 1/4″
Channels with Optional Attachments: 4″ – 7.25#
Coping Capacity:
Square Notch: 2 1/4″ x 2 1/4″ x 1/4″
90° “V” Cope: 2 1/4″ x 3 1/2″ x 1/4″
Flanges of Beams and Channels: 3″ to 5″
Strokes per Min. Punch End: Min. 20 Strokes @ 1″ Length – Max. 35 Strokes @ 3/8″ Length
Oil Required: 23 Gallons
Die Working Height: 30″
Motor: 5 HP @ 1,200 RPM / 3ph
All Capacities Based on 60,000 PSI Tensile, 40,000 PSI Yield Mild Steel
Mechanical Specifications:
Dimensions: 35″ x 50″ x 65″ H
Weight: approx. 2,650 lbs.
FOB Our Baltimore, MD Warehouse
