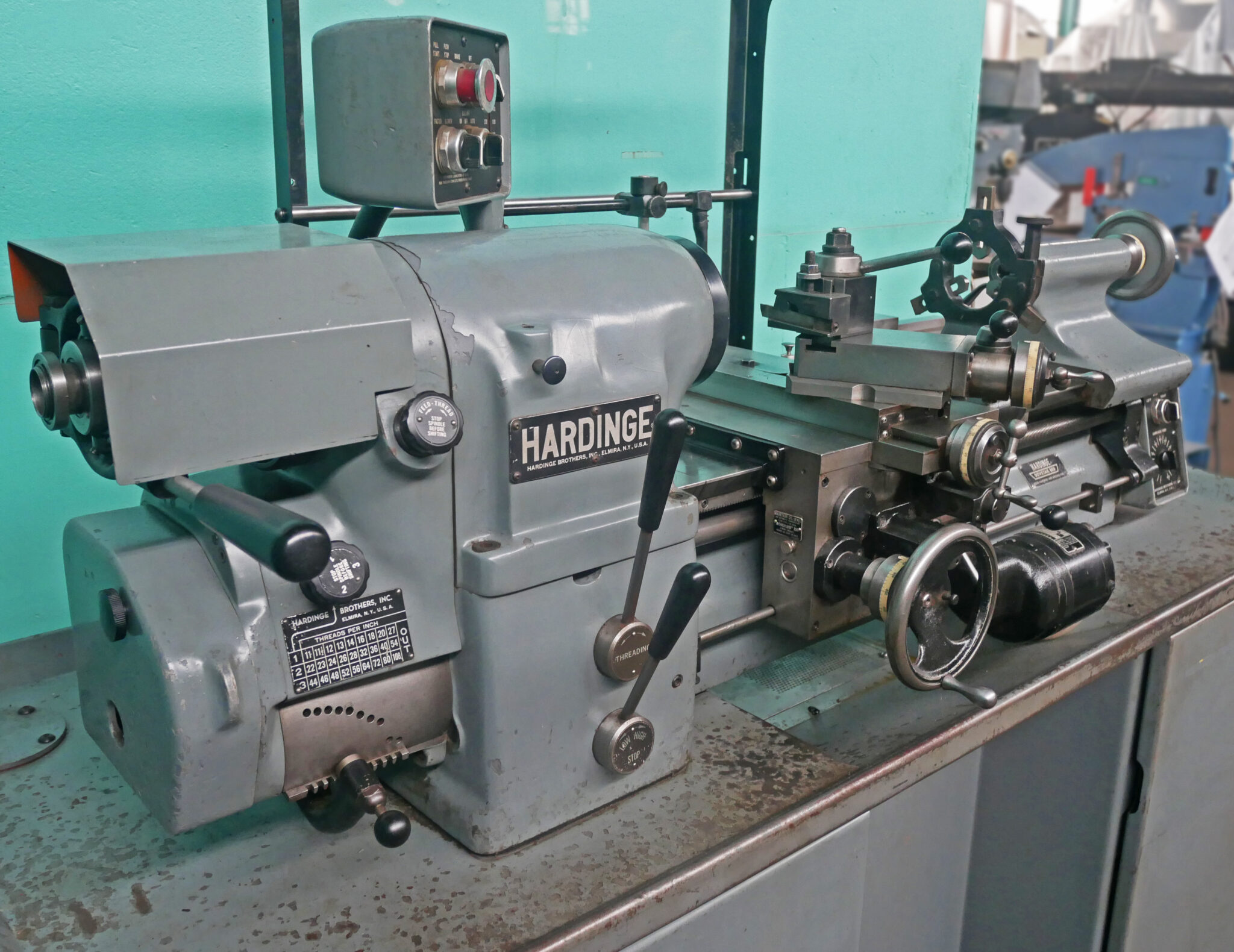

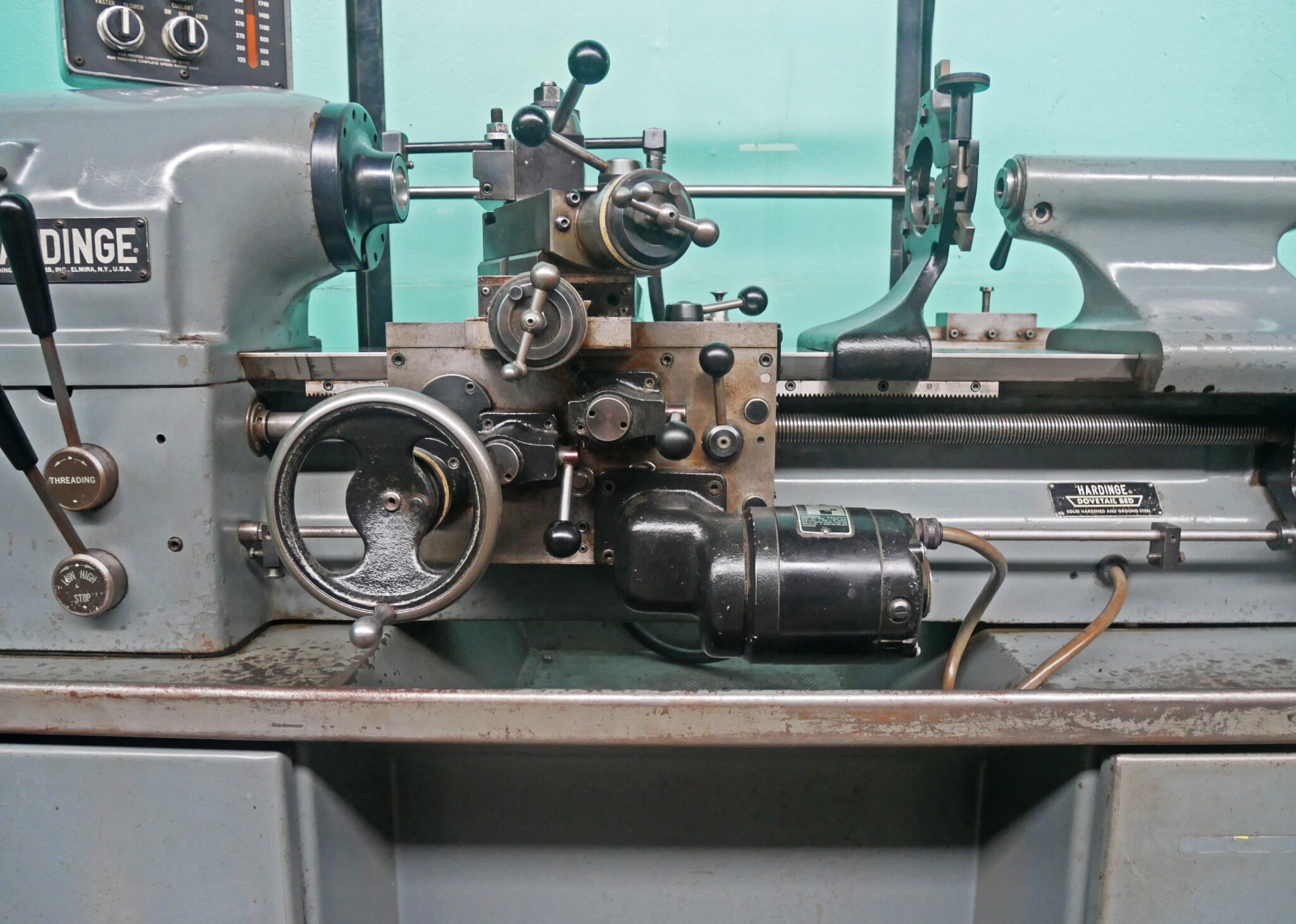

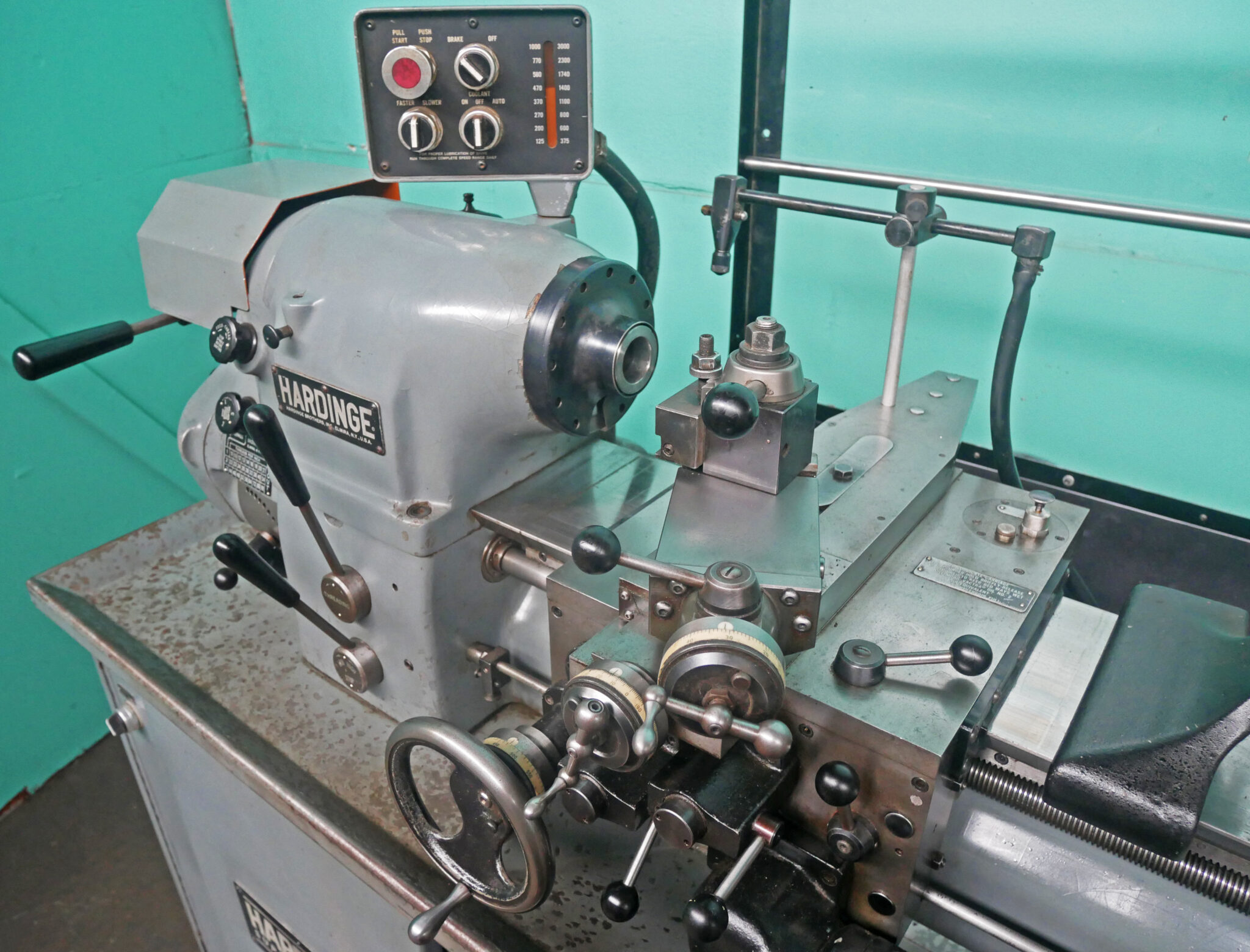

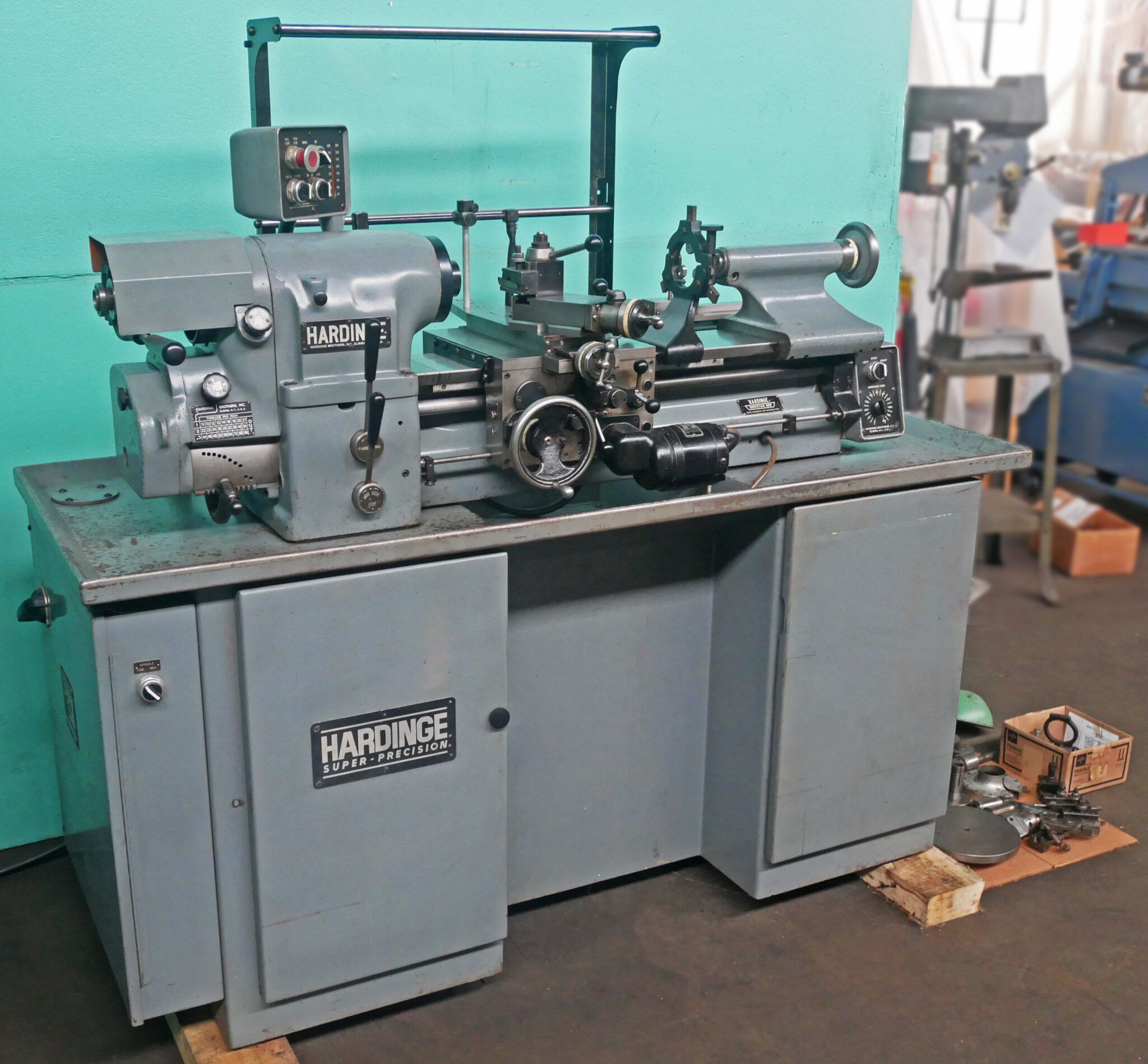

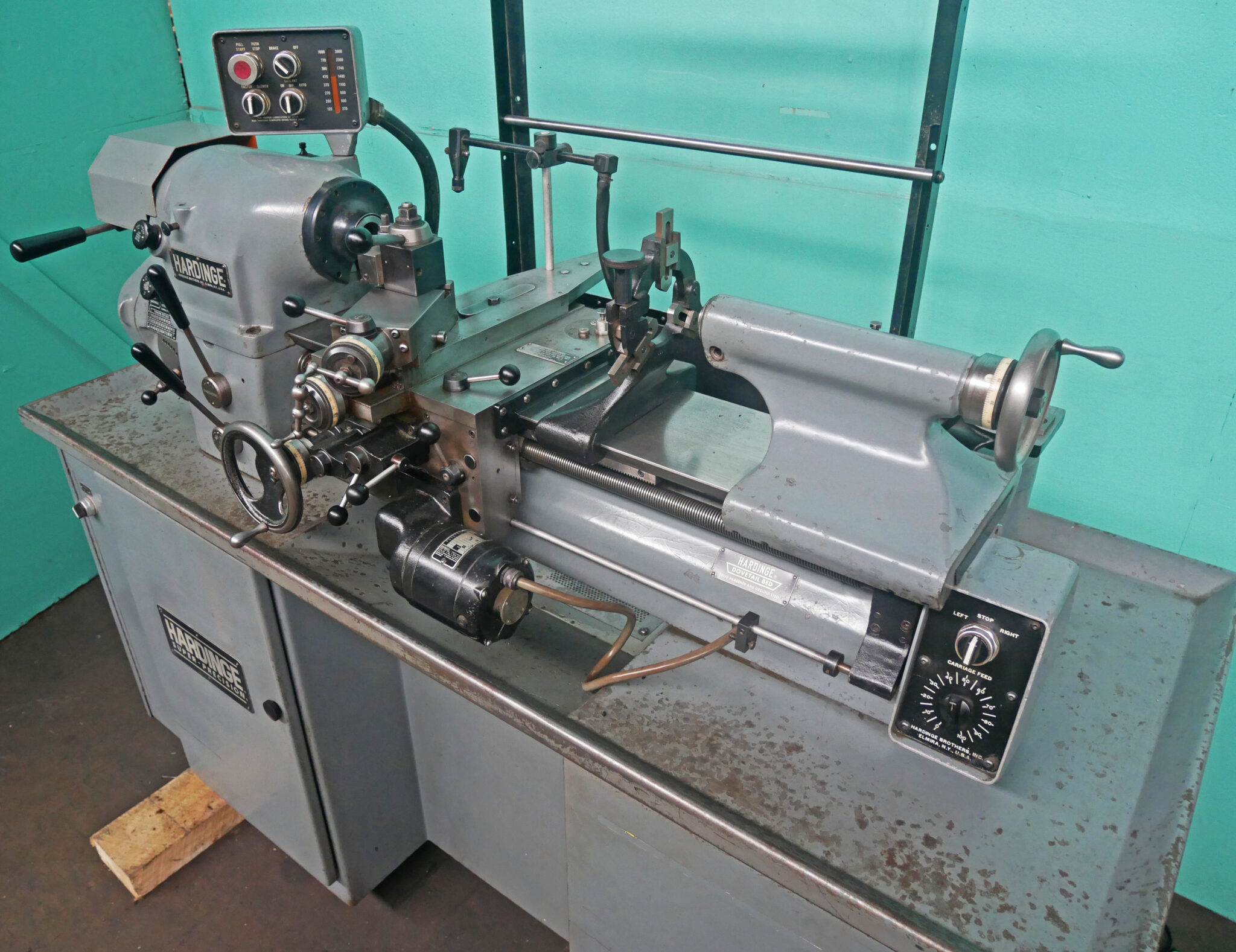

Hardinge 11″ x 18″ Super Precision Toolroom Lathe, HLV-H

$16,500.00


Shipping: Add to Cart to Calculate

In stock

SKU: #9863-P - Hardinge HLV-H Lathe

Inventory #: 9863-P

Categories: ,

Condition:

Type:

Brand:

Description

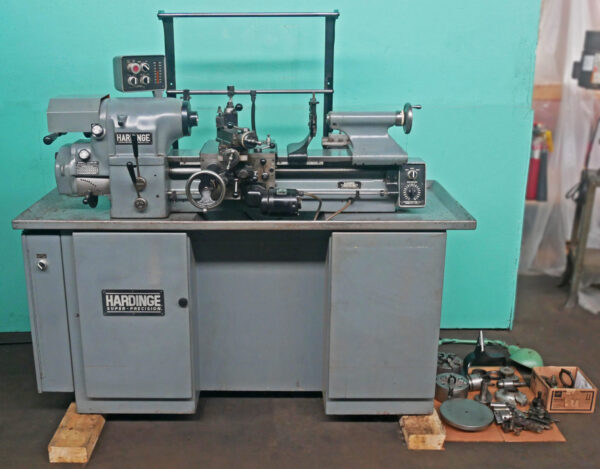

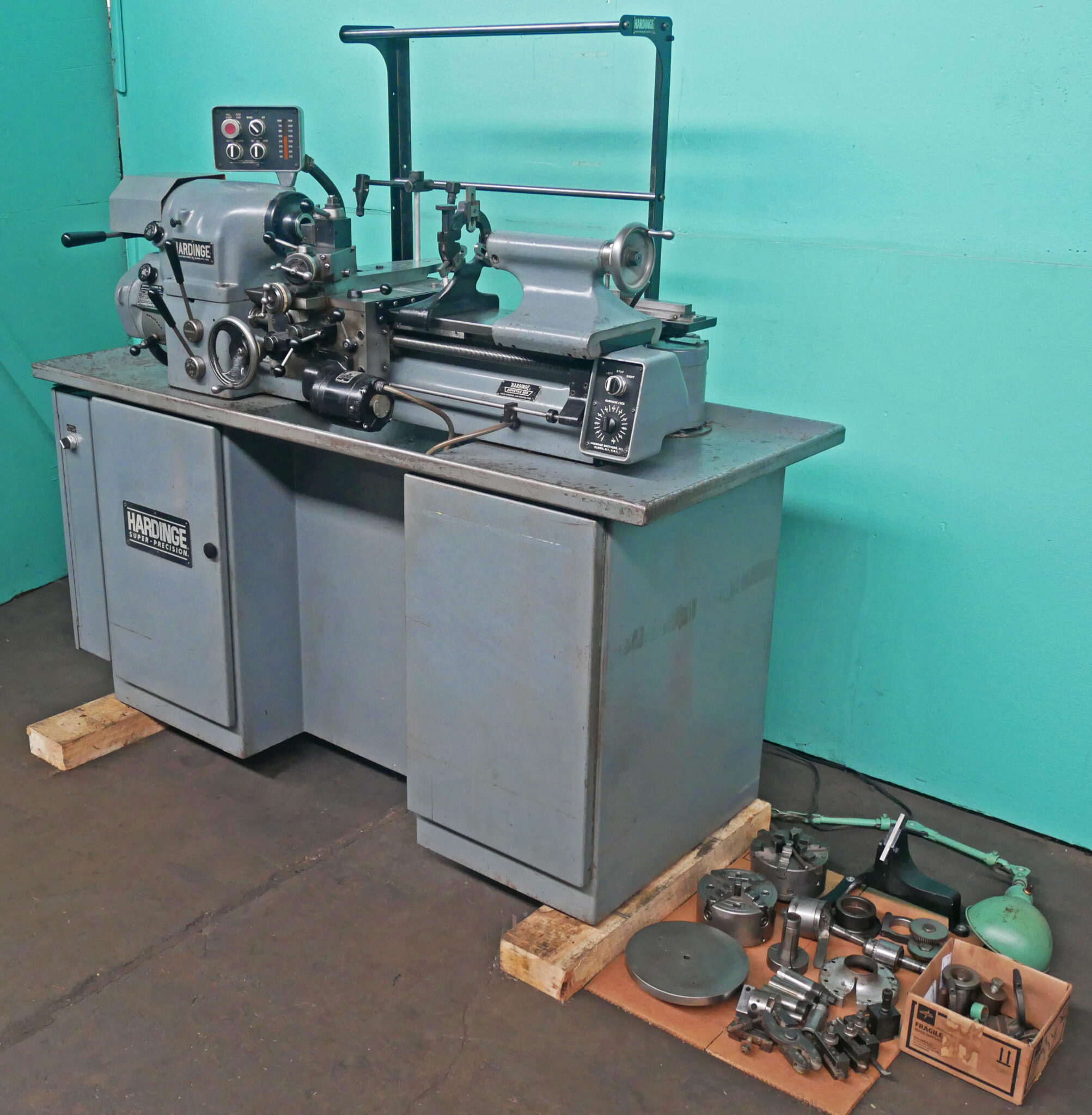

Hardinge 11″ x 18″ Super Precision Toolroom Lathe, HLV-H

Inventory # 9863-P

Model: HLV-H

S/N: 12602

Specifications:

Swing Over Bed: 11″

Swing Over Carriage: 9″

Swing Over Cross Slide: 6″

Distance Between Centers: 18″

Spindle:

Hole Through Spindle: 1 1/4″

Spindle Nose: Hardinge Tapered

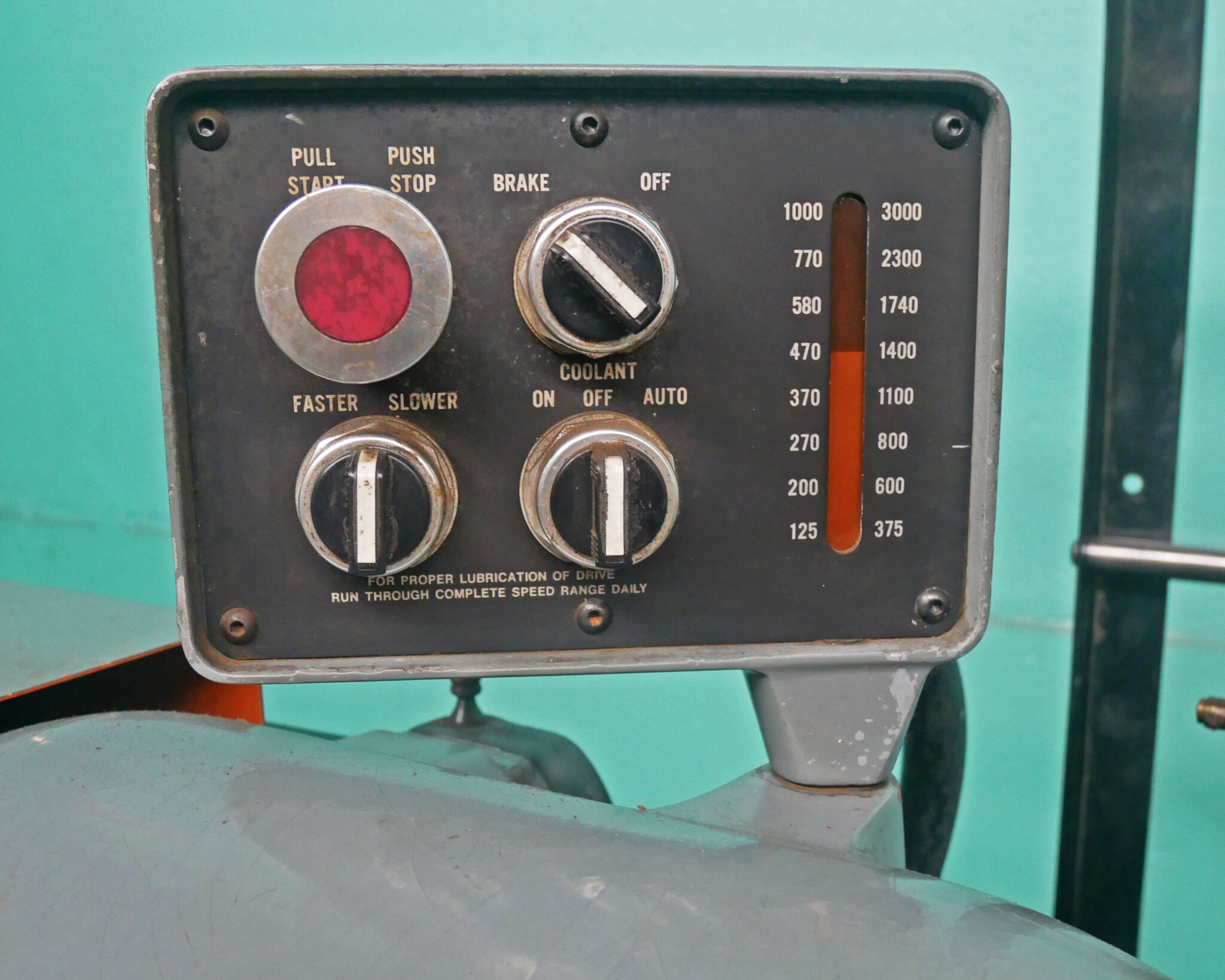

Spindle Speeds: 125 – 3,000 RPM

Compound Slide Travel: 3″

Powerfeed Range: 1/4″ – 7″ per Minute

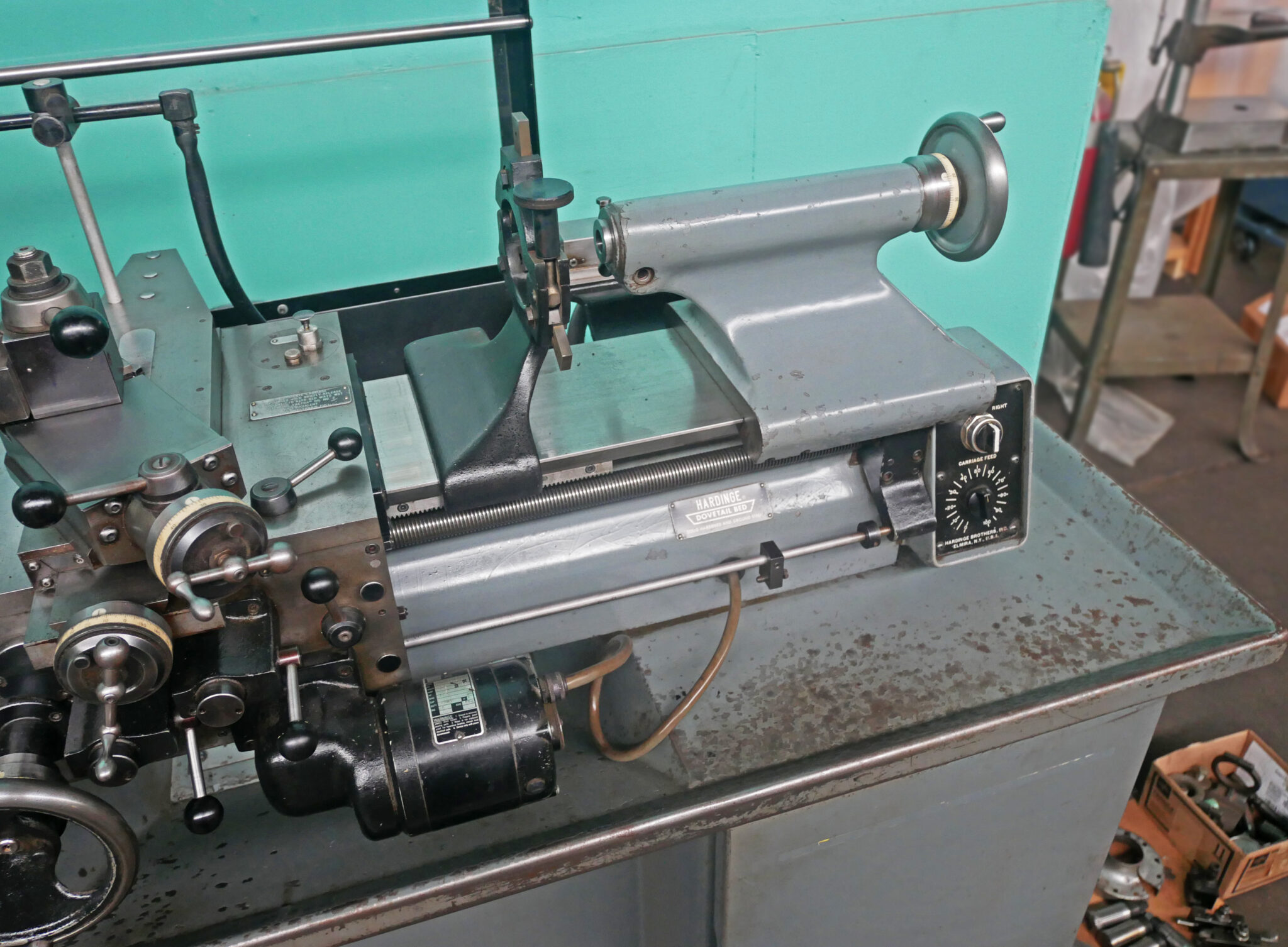

Tailstock:

Tailstock Diameter: 1 3/8″

Tailstock Travel: 3 3/4″

Lead Screw Diameter: 1″ – 8″ Thread

Motor: 1 HP / 230v / 3ph

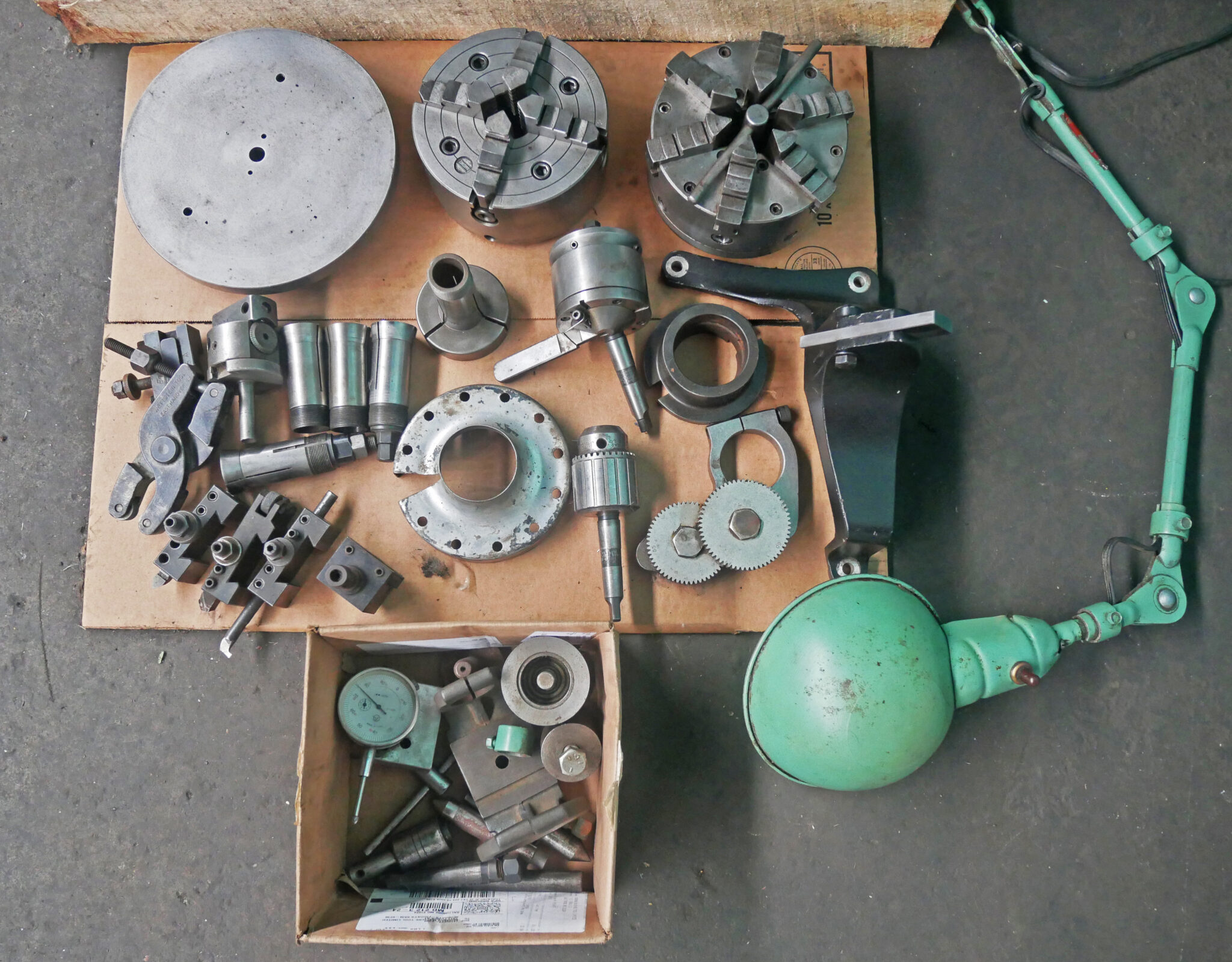

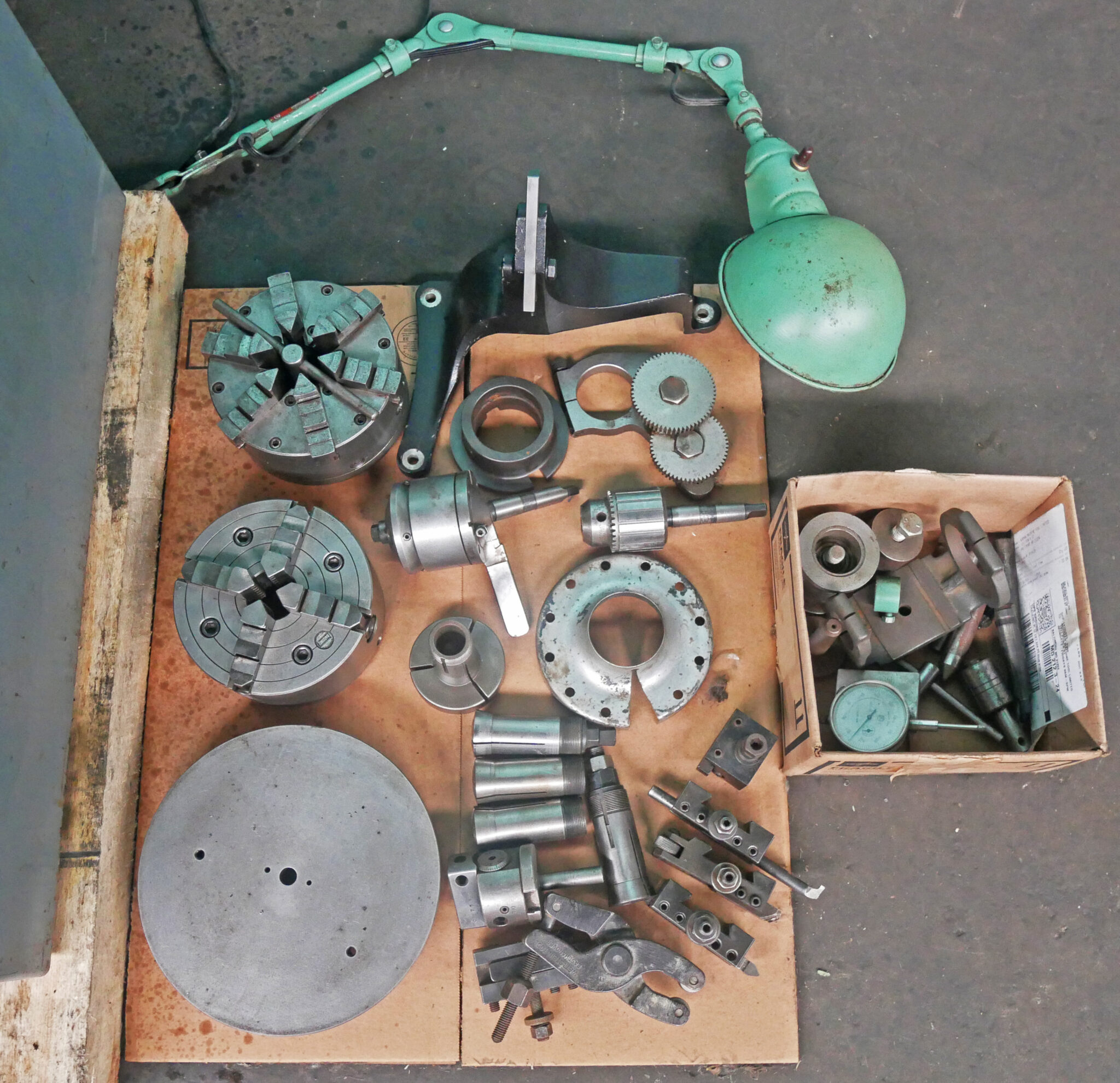

Equipment Included:

6″ 6-Jaw Chuck

6″ 4-Jaw Chuck

Taper Turning Attachment

Quick Change Tool Post with Tool Holders, AXA

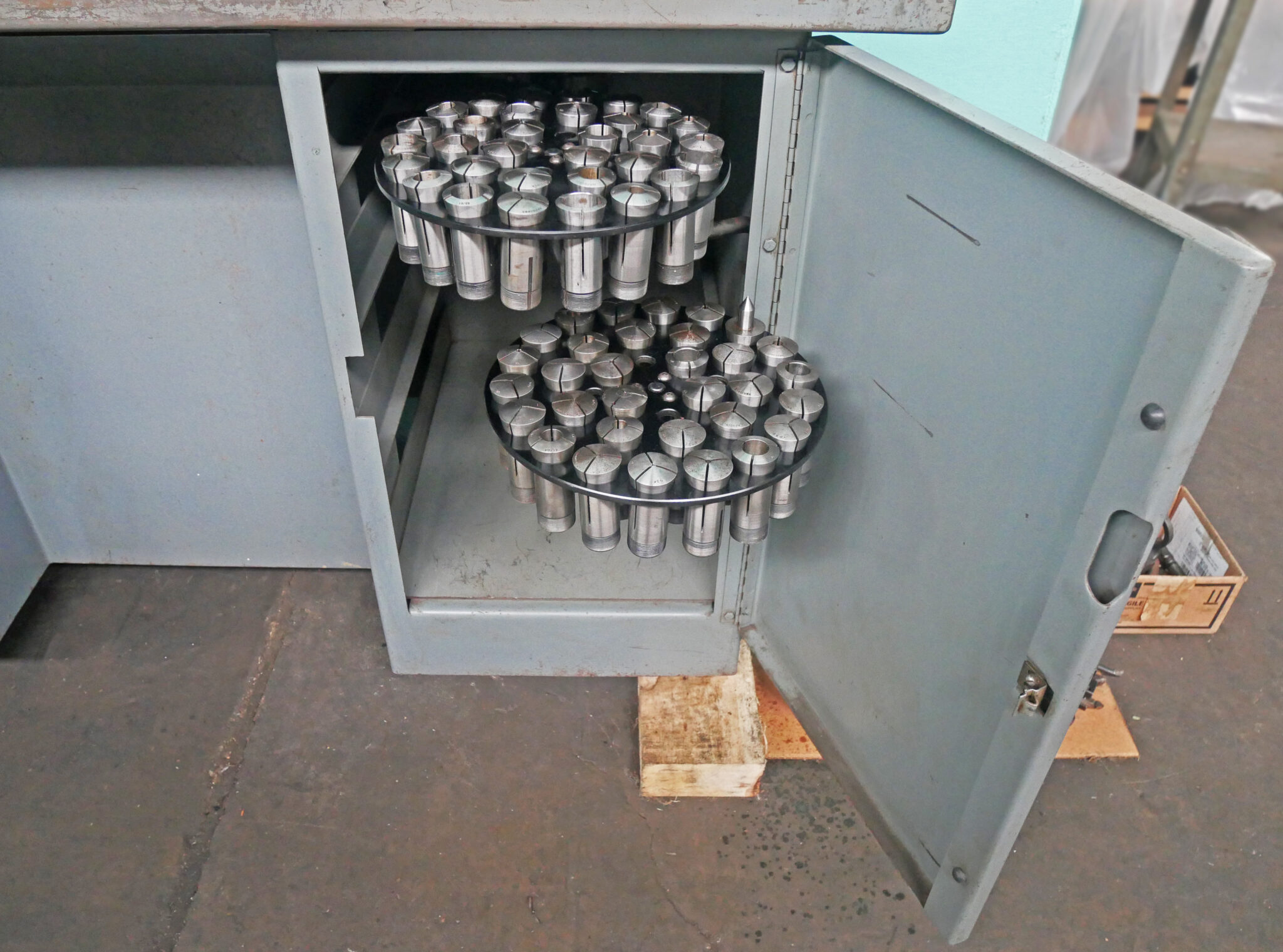

Assortment of 5C Collets

Taper Turning Attachment

Steady Rest

Follow Rest

Jacobs Drill Chuck for Tail Stock

Coolant System

Rear Splash Guard

Mechanical Specifications:

Dimensions: 72″ x 33″ x 60″ H

Weight: approx. 1,700 lbs.

FOB Our Baltimore, MD Warehouse

Additional information

Weight 1800 lbs
