Description
Haas VF3 Vertical CNC Machining Center
Inventory # 10051-C
Model: VF3

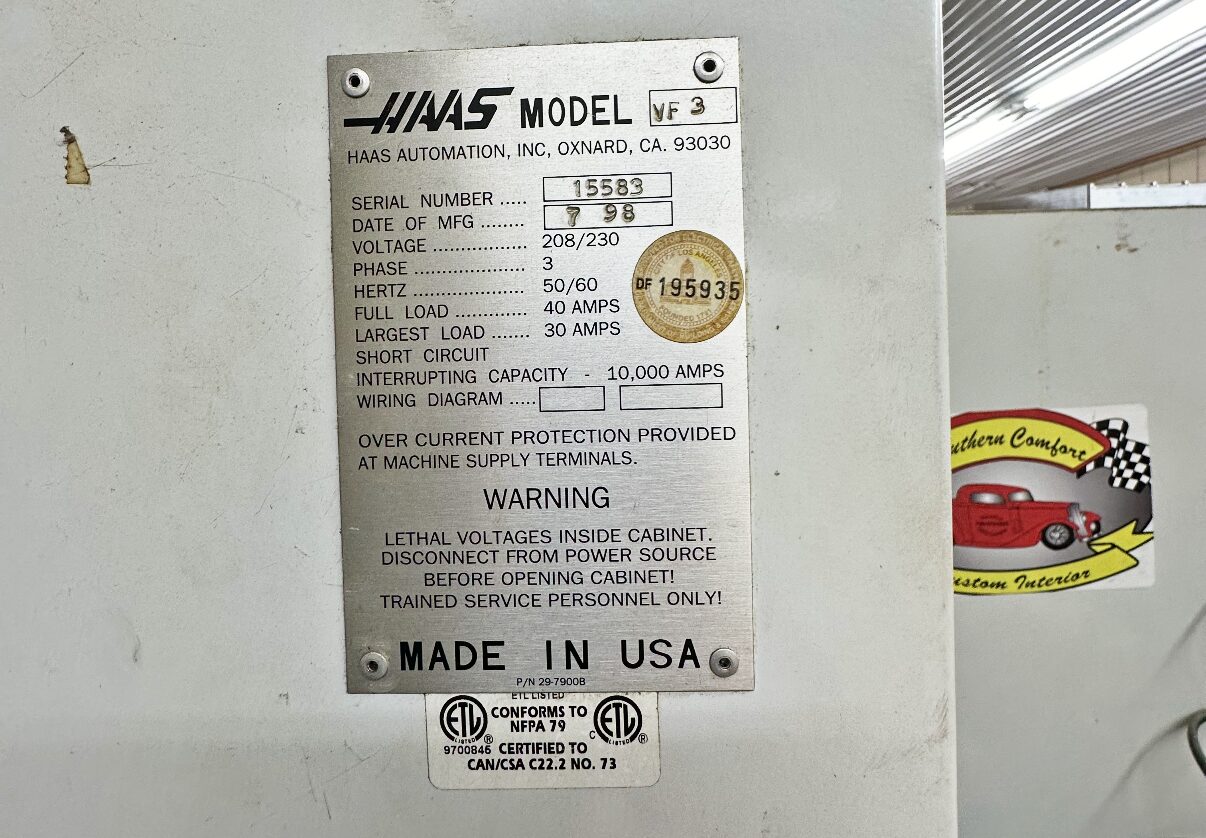

S/N: 15583
Specifications:
X-Axis Travel: 40″
Y-Axis Travel: 20″
Z-Axis Travel: 25″
Spindle Nose to Table: 4″ – 29″

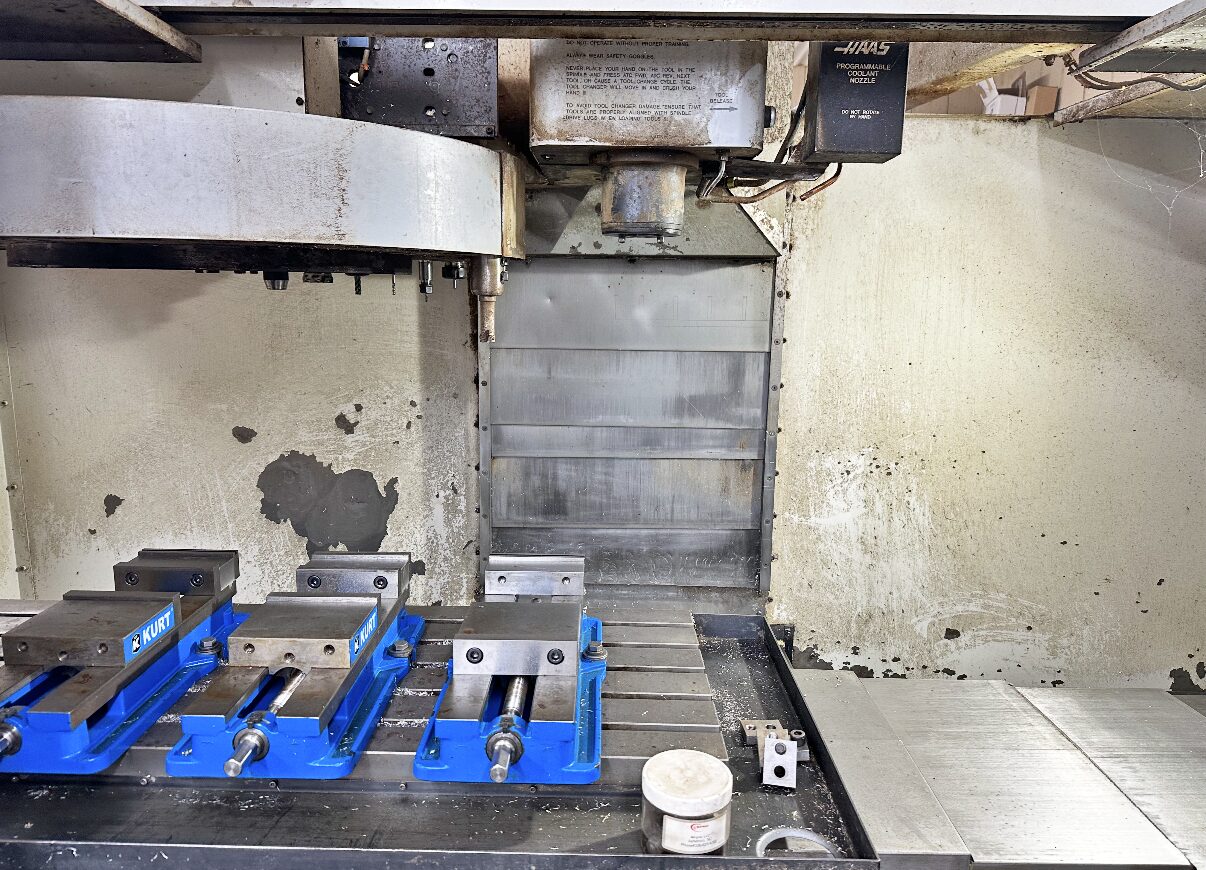

Table Size: 48″ L x 18″ W
T-Slot Center Distance: 3.15″
Standard T-Slots: (5) 5/8″ W
Spindle:
Rating: 20 HP Max.
Speed: 7,500 RPM Max.
Torque: 75′ /lbs. @ 1,400 RPM Max.
Drive System: Direct Speed Belt Drive
Taper: CT 40
Bearing Lubrication: Air/Oil Injection
Cooling: Liquid Cooled
Feed Rates:
Rapids on X/Y/Z: 1,000″ /Min.
Max. Cutting: 650″ /Min.
Axis Motors:
Max. Thrust X/Y: 2,550 lbs.
Max. Thrust Z: 4,200 lbs.
Tool Changer:
Capacity: 24
Tool Diameter (Full): 3 1/2″ Max.
Tool Weight: 12 lbs. Max.
Tool to Tool: 4.2 Seconds (Avg.)
Chip to Chip: 4.5 Seconds (Avg.)
Accuracy (1-Axis):
Positioning: +/- 0.0002″
Repeatability: +/- 0.0001″
Air Required: 4 SCFM, 100 PSI
Coolant Tank Capacity: 55 Gallons
Motor: 20 HP / 208v, 230v / 3ph
Equipment Included:
Side Mount Tool Change
Chip Conveyor
Brushless Servo Motors
4th Axis Brush
Programmable Coolant
Spindle Orientation
Rigid Tapping

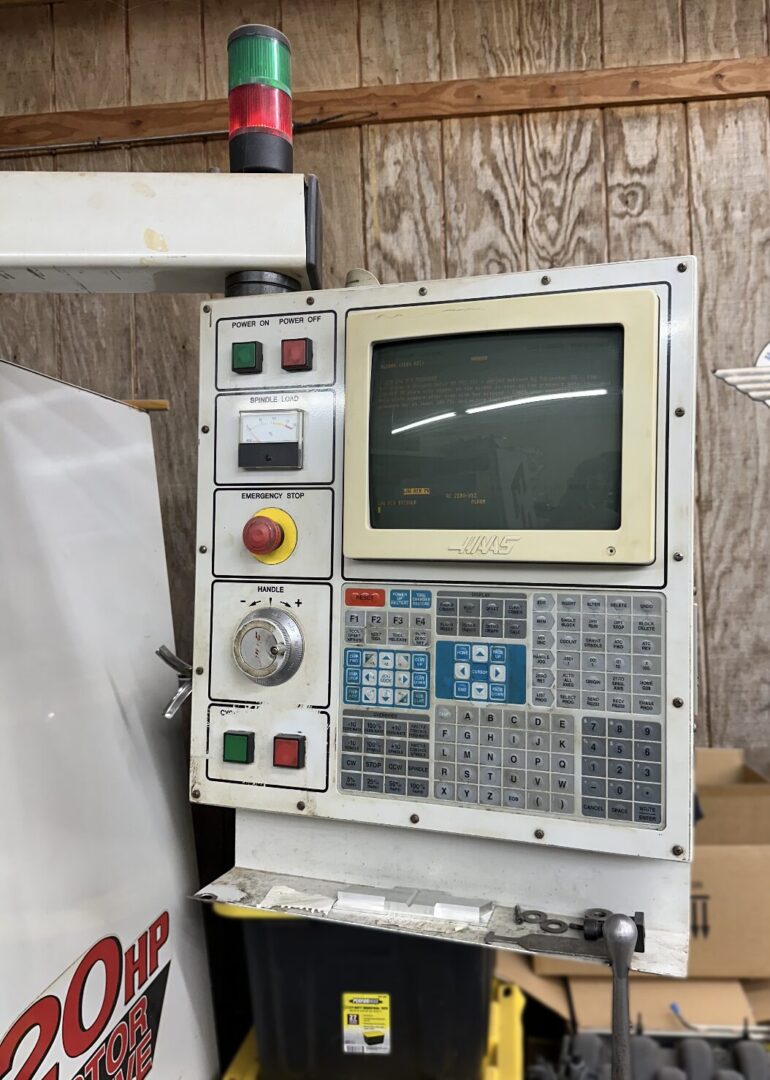

Jog Handle
Extended Memory 1MB
Floppy Disc Drive
Quick Code
Micro Code
Custom Macros
Coordinate Scale
Coordinate Rotation
Mechanical Specifications:
Dimensions: 152″ x 100″ x 106″ H
Weight: approx. 12,500 lbs.
New Replacement Cost: $87,995.00
FOB Ramseur, NC Facility
