Description

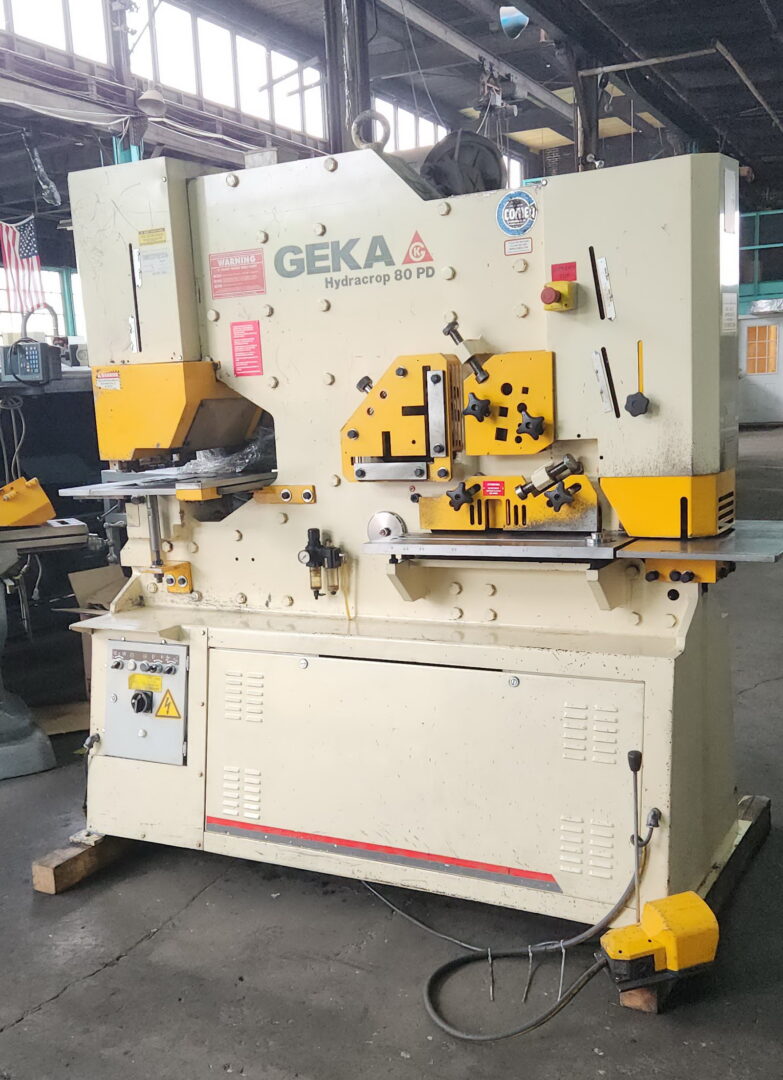

Geka 88 Ton Dual Cylinder Hydraulic Ironworker with Semi-Paxy CNC Positioner, Hydracrop 80PD
Inventory # 10103
Model: Hydracrop 80PD

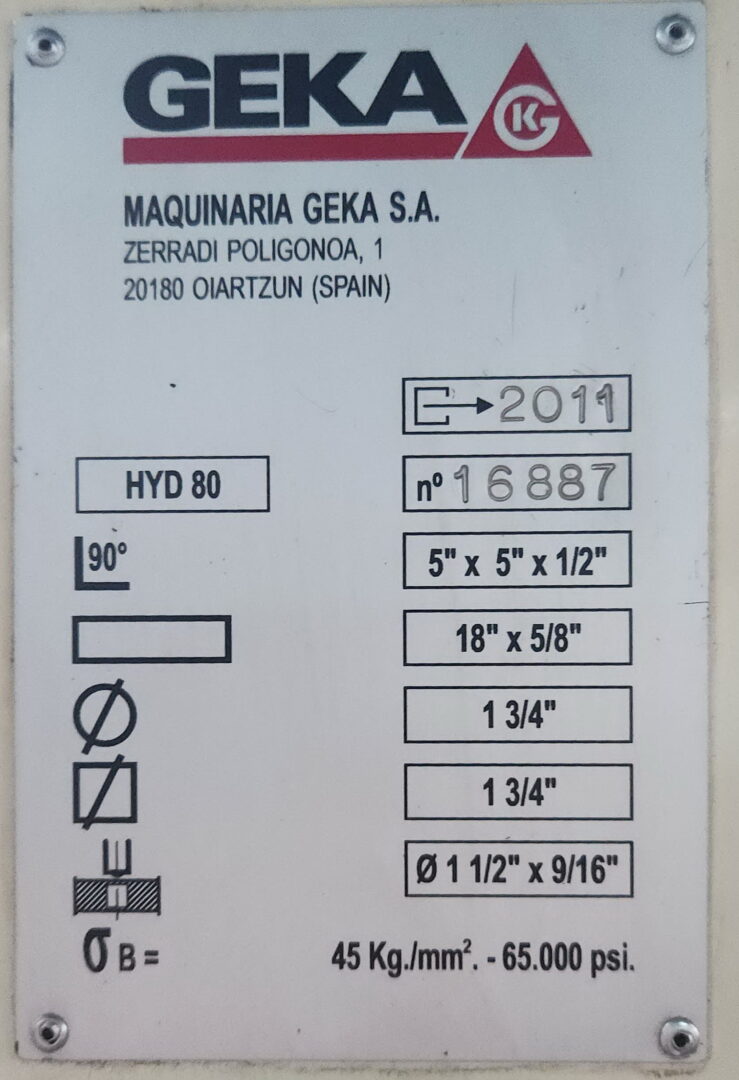

S/N: 16887 “2011”
Specifications:
Punching Power: 88 US Tons
Throat: 19 3/4″
Max. Punch Capacity: Ø 1 1/2″ x 9/16″
Punching Stroke: 2 3/4″
Shearing Power: 150 US Tons
Shearing Capacity:
Flat Bars and Plates: 18″ x 5/8″
Station for Shearing Angles @ 90°: 5″ x 5″ x 1/2″
Solid Round and Square Bars (with Optional Blades): Ø 1 3/4″ Round, 1 3/4″ Square
Rectangular Notching: 3 1/2″ x 2″ x 15/32″
Motor: 12.5 HP / 220v, 440v / 3ph
Standard Features:
The Geka Hydracrop 80 ironworker is highly recommended for the manufacturing tasks of punching and cutting plates. Since it features two cylinders, the machine offers the capability of being worked by two operators at the same time, one at each hydraulic cylinder. Like the other machines in the Hydracrop Series, it includes five workstations on which different optional equipment accessories from Geka may be mounted
The Five Workstations in the Geka Hydracrop 80 Universal Ironworker:
Punching Station: The punching station is fitted with an independent cylinder, making it a flexible and adaptable workstation, on which special accessories and die sets may be easily adaptable
Station for Shearing Angles at 90°: Thanks to a blade system designed by Geka, this station is capable of distortion-free shearing without any loss of material
Notching Station: This station was designed to be equipped with many different Geka accessories or tools. The optional peripherals allow the machine to perform different jobs like triangular notching at 90°, pipe notching, and notching footings
Station for Shearing Flat Bars and Plates: Thanks to the stability provided by a monoblock blade-holder, a long upper blade may be mounted on the station to obtain optimum shearing results
Cutting Station for Round and Square Bars: The station comes equipped with standard blades for cutting round and square bars. However, different blades may also be mounted in order to cut in different shapes. The machine also features an electric cabinet with an inching selector switch. The cabinet may be easily removed for access to the hydraulic unit
Equipment Included:
Semi-Paxy CNC Automatic Positioner:
– Programmable Stops Along X & Y Axis
– Two Servo Motor-Driven Positioning Carriages
– Touch Screen
– Conveyor Assembly Consisting of Independent Servo Drives Along Each Axis, Spindle, and Encoder Units
– 0 to 470 IPM Rate of Motion
– +/- .003″ Repeatability

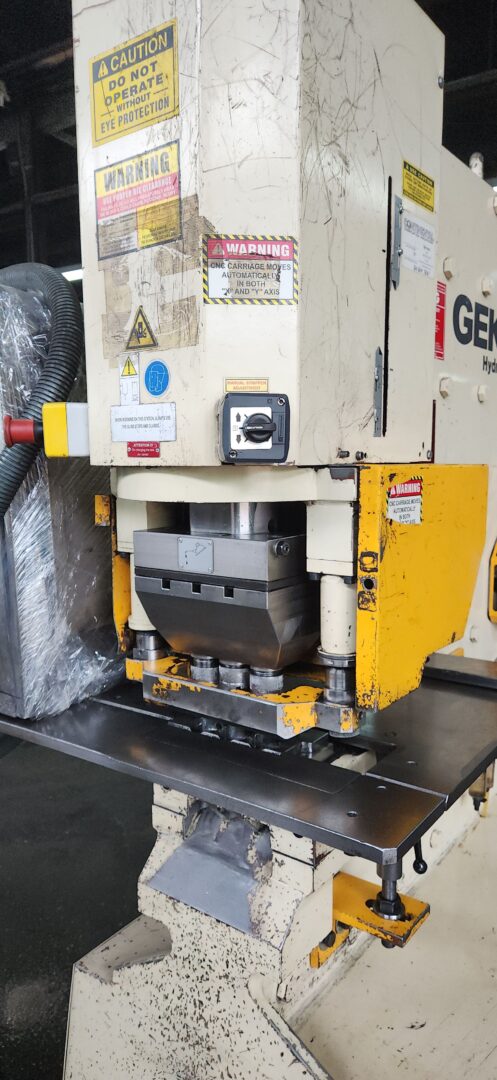

Triple Punching Head:
– Three On-Demand, Programmable Punches
– Diameters up to 1 9/16″
– Punching is Accomplished by Means of Forcible Strokes or Blows
– Excellent for Operations Requiring Identical Perforations with Varying Diameters
Mechanical Specifications:
Shipping Dimensions: 120″ x 85″ x 85″ H
Shipping Weight: approx. 6,800 lbs.
FOB Our Baltimore, MD Warehouse
